• Model NO.：CSCXZ2
• Air Consumption：50L,Min
• Main-Shaft Revolution：25000r,Min
• Cutter Diameter：Dia.5mm Dia.4mm
• Slot Depth：30mm
• Slot Length：0-60mm
• Color：Optional
• Transport Package：1.Simple Stretch Film Packaging; 2.Professional E
• Specification：4300*1450*1650mm
• Trademark：Truepro
• Origin：Jinan, Shandong
• Production Capacity：15 Set,Sets Per Month

Basic Info.

Model NO. CSCXZ2 Air Consumption 50L/Min Main-Shaft Revolution 25000r/Min Cutter Diameter Dia.5mm Dia.4mm Slot Depth 30mm Slot Length 0-60mm Color Optional Transport Package 1.Simple Stretch Film Packaging; 2.Professional E Specification 4300*1450*1650mm Trademark Truepro Origin Jinan, Shandong Production Capacity 15 Set/Sets Per Month

Product Description

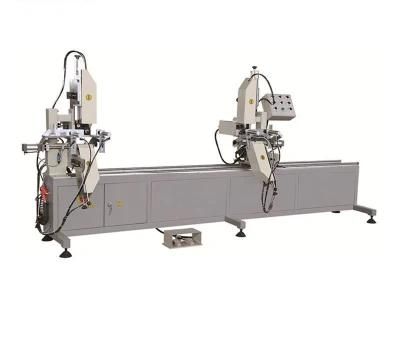

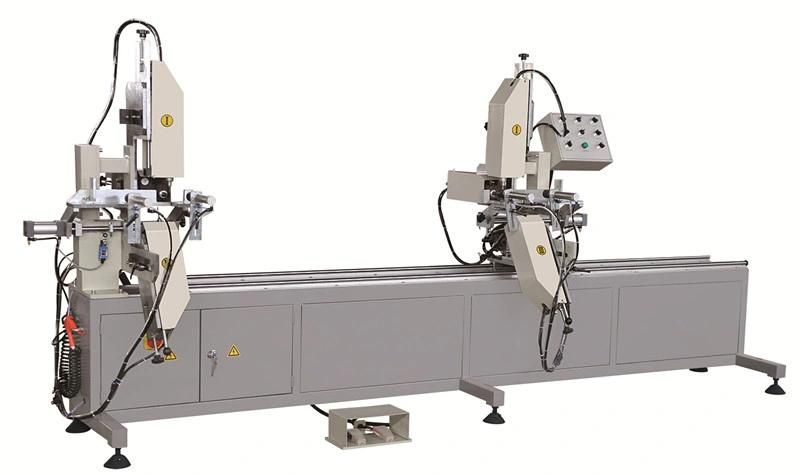

PVC Window Door Water-Slot Milling Machine with Double Head
Detailed Information

Equipment features:

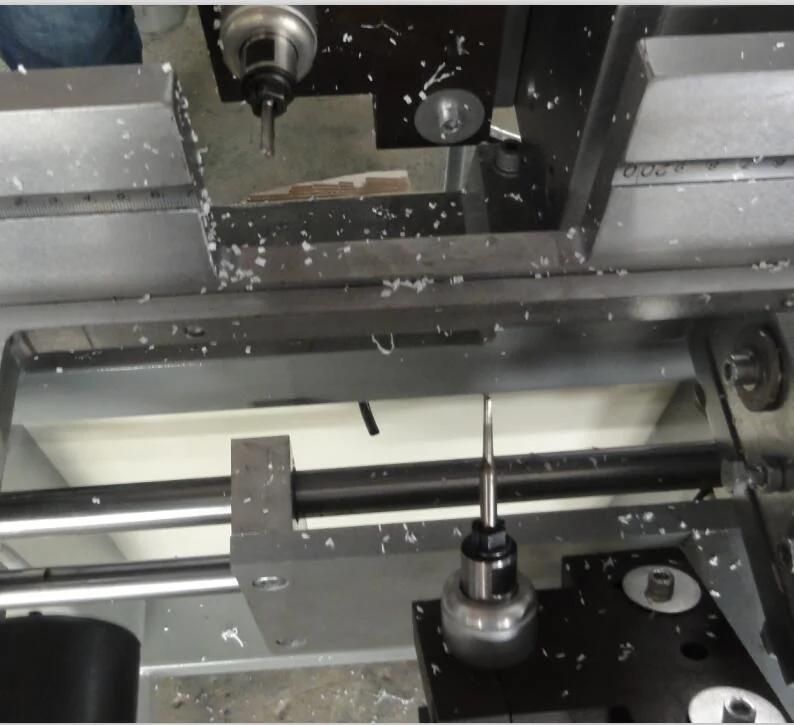

-Milling all kinds of water slots and air presure balance grooves.
-Two three-axis milling heads layout along the machines.
-One time clamp, two end water slot processing.
-High efficiency, suitable for mass production.
-Special feeding system, need no special maintenance, high milling quality.
-Convenient adjustment for the cutter location to meet different kinds of profiles.
-Water slot milling length adjustable within 100mm, wide adaptability.
-Adopt linear bearing motion to ensure the processing predision.

Main Pharameter:

Brand name	TRUEPRO	Model	CSCXZ2
Input Voltage	220V 50Hz	Input Power	2.28KW
Air pressure	0.5-0.8MPa	Air consumption	50L/min
Slot depth	30mm	Slot length	0-60mm
Main-shaft Revolution	25000r/min	Cutter diameter	Dia.5mm Dia.4mm
Overall dimension	4300*1450*1650mm	Weight	700kg

Company Information


FAQ
 1.Q:Are you a manufacturer?
 A: Yes,we have been in providing the professional products in this field for 10 years.

2.Ask:how to install the machine ?
A:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you to install it in your country .

3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.

4.Q: What is your available port of shipment?
A:Qingdao port,shanghai,tianjin,guangzhou etc.

5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide

7. Q:After Sale Service
24 hours technical support by phone, email or skype (email or skype) .
12 months warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation

8.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.

9.Q: How long is your delivery time?
A: Generally single tanks need 15-30 days, for whole plant need 30-50days.

10.Q: Do you have CE and UL certification?
A: Yes.
