• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Usage：Floor
• Transmission Method：Machinery
• Feeding Width：1220,1445 mm
• Effective Width：1000,1200 mm
• Thickness：0.3-0.8 mm
• Yield Strength：235 MPa
• Transport Package：40gp*1
• Specification：12T
• Trademark：Xiamen Liming
• Origin：Fujian, China(Mainland)
• Production Capacity：60 Set,Month
• Package size per unit product：12000.00cm * 1960.00cm * 1650.00cm
• Gross weight per unit product：7300.000kg

Basic Info.

Certification CE, ISO Condition New Customized Customized Usage Floor Transmission Method Machinery Feeding Width 1220/1445 mm Effective Width 1000/1200 mm Thickness 0.3-0.8 mm Yield Strength 235 MPa Transport Package 40gp*1 Specification 12T Trademark Xiamen Liming Origin Fujian, China(Mainland) Production Capacity 60 Set/Month

Packaging & Delivery

Package size per unit product 12000.00cm * 1960.00cm * 1650.00cm Gross weight per unit product 7300.000kg

Product Description

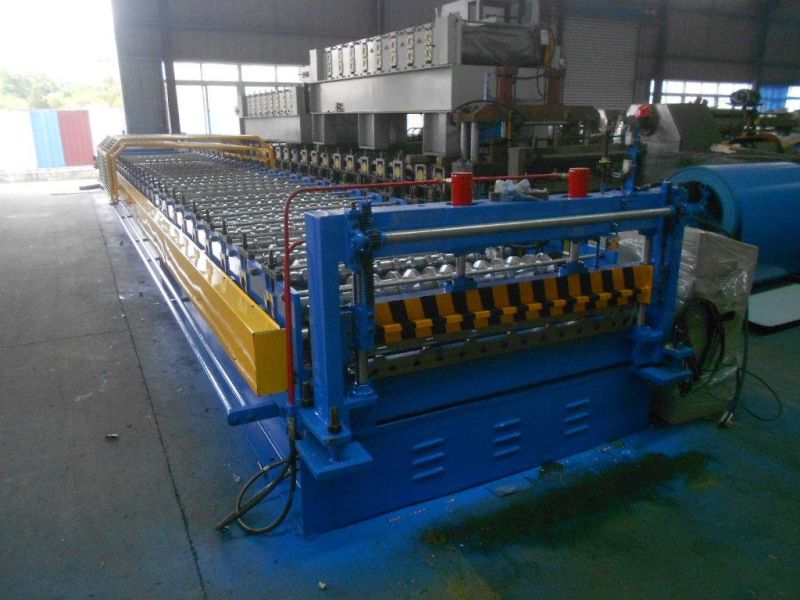

This Producing Process Sketch As Below Picture:

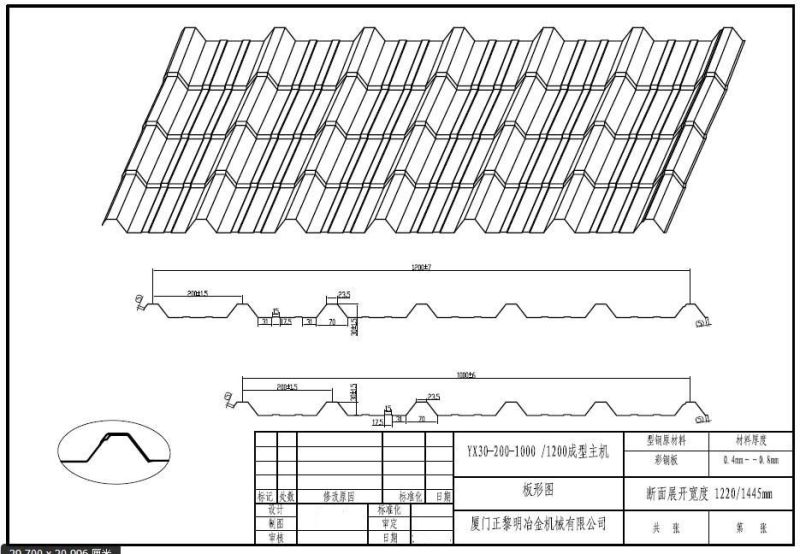

This Profile Drawing As Below Picture:



 General Parameter

1	Item	Parameters
2	Model NO.	YX30-200-1000/1200
3	Material	Pre-painted galvanized sheet
4	Thickness	0.3-0.8 mm
5	Yield Strength	550 MPa
6	Feed Width	1220/1445 mm
7	Effective width	1000/1200 mm
8	Roll Stages	26 Stages
9	Shafts Diameter	ф95 mm
10	Main Motor Power	15 KW
11	Hydraulic Group Power	11KW
12	Max. Line Speed Of Roll Former	Approx.18-20 m/min
13	Electric Standard	According to local voltage

  Machine Components

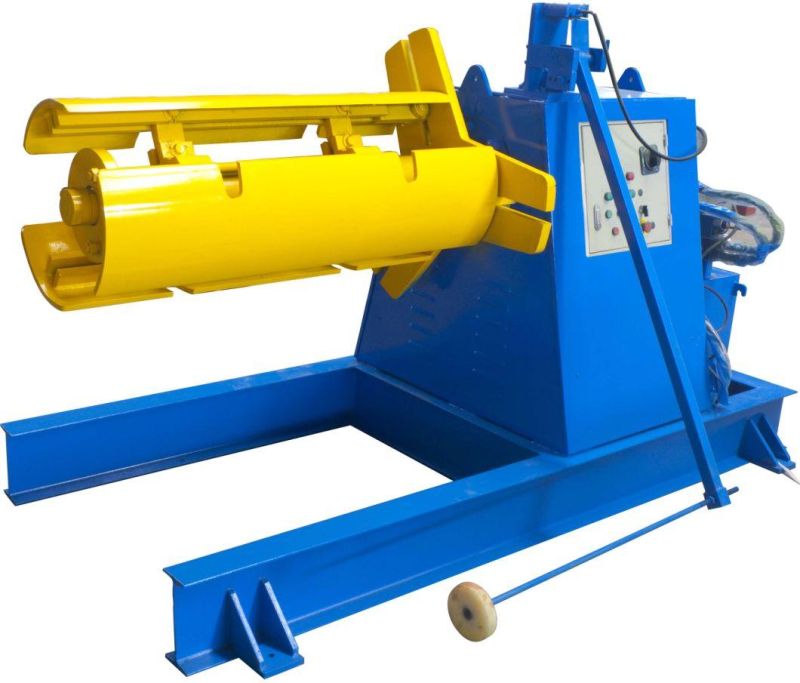

A. (5+1 )Ton X 1500mm Hydraulic Un-coiler (with support arm)
Hydraulic system expand coil inner hole, Pump motor: 3KW
Frequency Inverter to regulate turning speed, Motor: 3KW
Link-connect expanding system
Hydraulic Pressure keeping function
Load capacity = Max.6Tons
Coil Inner-diameter= 470-650mm, Coil width = Max.1500mm
Automatic stopping device with limited switch as assistance to control stop/star rotation









B.  Entry bench and Manual Pre-shearing device
Entry bench and Manual Pre-shearing device
Working thickness: up to 0.8mm
Smart cut control, to cut off the end of the final piece of sheet only

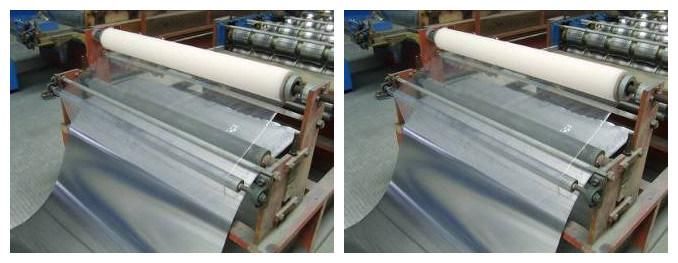

C.  Polythene Film-on Device
Un-powered film-on device to cover plastic film on the surface of sheet


 D.  Cold Rolling Mills Feeding section with guide;
Gear/Sprocket driving;26 stages to form
Wall-plate-frame design
Rollers manufactured from 45# steel,CNC lathes,hard chrome coating
Shafts Diameter=ф95mm, Precision Machined
Main motor =15KW,Frequency speed control
Max line speed of roll former: Approx.18-20m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside




E.  Hydraulic Stair-Drawing & Cutting M/C
Stop to press, Stop to cut; Post cut, No Blanking cut
Dropping cutting device
Cutting tool material: Cr12, Heat treatment
Stair depth=18mm
Profiles can be with stairs and without stairs, without stairs is blank profile
Pump motor =11KW with Accumulator
4- pillars structure instead of old frame design

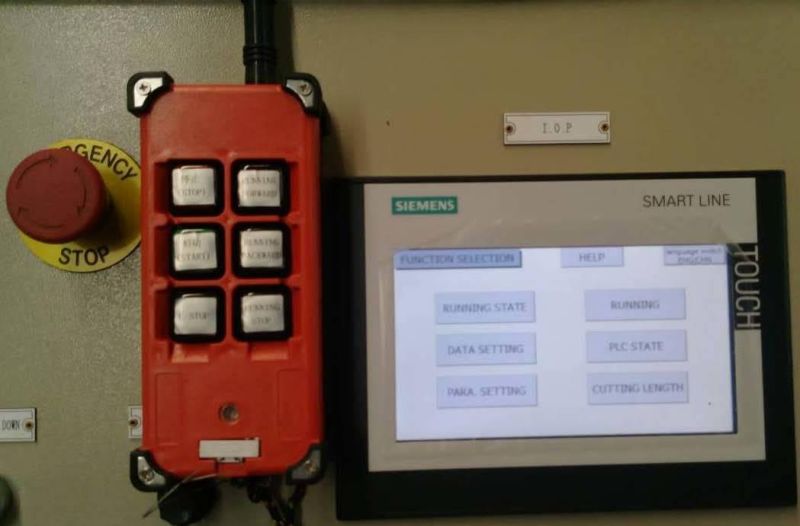

F.   PLC Control System
Control the quantity & cutting length automatically;
Combined with: PLC, Touch Screen, Inverter (SIEMENS), Encoder (Omron), REMOTE CONTROL etc
Cut-to-length tolerance≤±2 mm
 Control Voltage 24V


G. Product Rack   Un-powered, 3 units  After-Sale ServiceIn correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
If installation is needed, the buyer shall make the following preparation before arrival of technicians.
 Terms Of Trade1.Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.
2.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.
