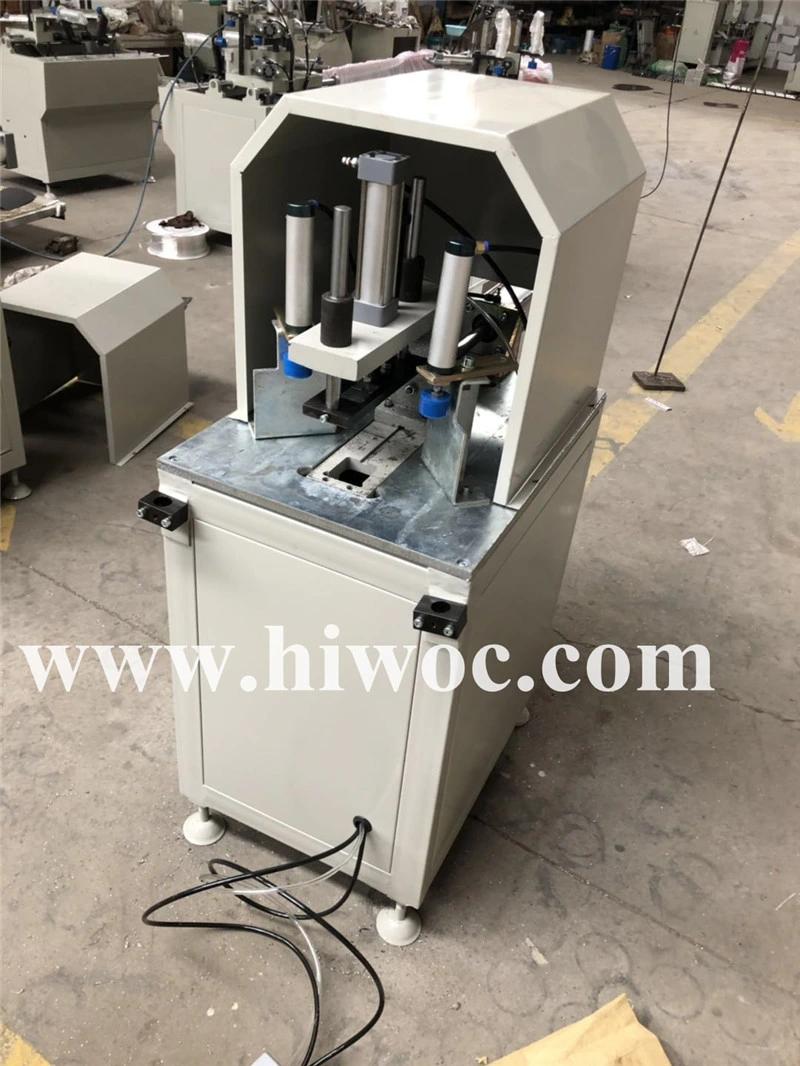

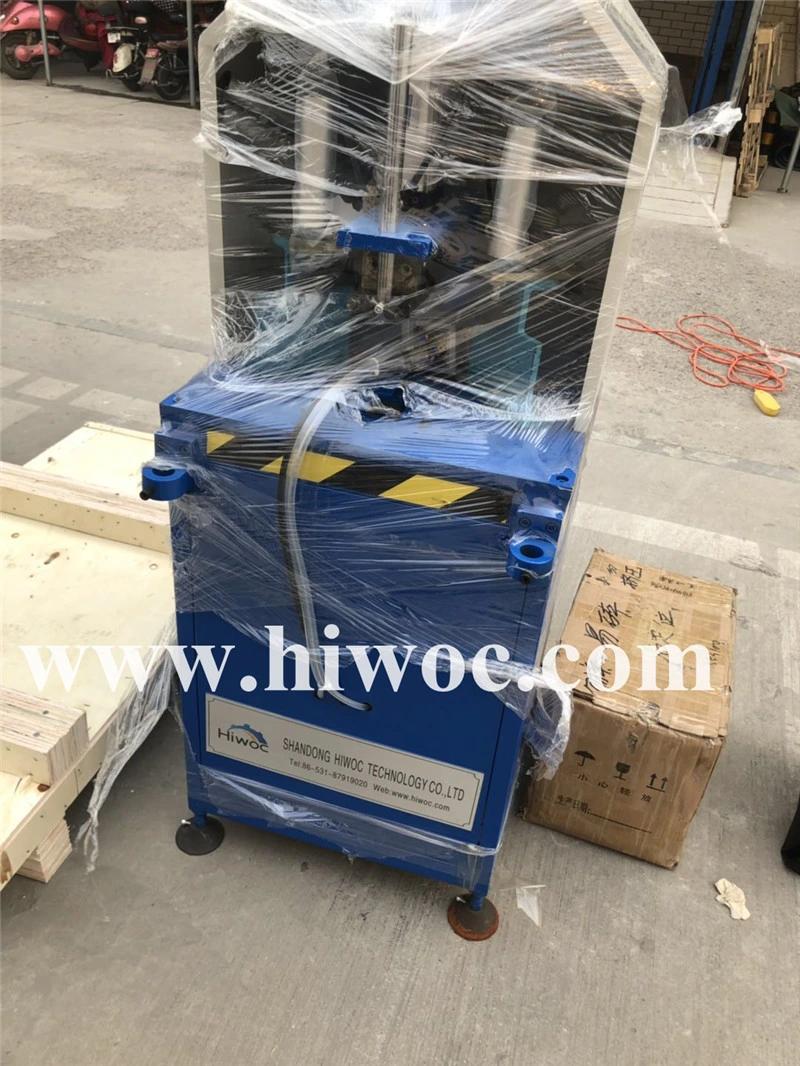

Pneumatic Plastic Window Frame Corner Cleaning Machine

Jinan Hiwoc Group Co., Ltd.
  • Certification：ISO, CE
  • Automatic Grade：Automatic

Base Info

  • Model NO.：SQJ06-120
  • CNC or Not：CNC
  • Voltage：Customized
  • Air Pressure：0.4~0.7MPa
  • Air Consumption：100L,Min
  • Input Power：2.8kw
  • Cutting Profile Height：20-150mm
  • Cutting Width：Max 120mm
  • Cleaning Groove Width：3mm
  • Drawing Groove Depth：0.3mm
  • Overall Size：1600X1000X1650 (mm)
  • OEM：Yes
  • Color：Customized

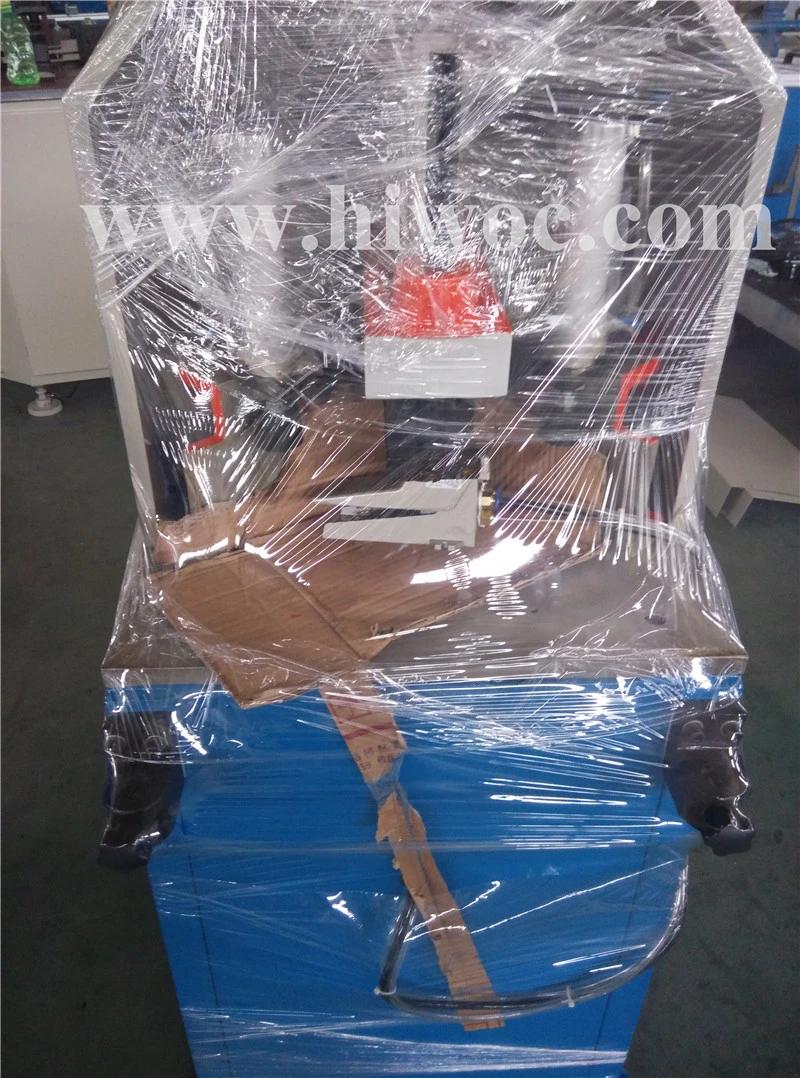

  • Transport Package：Film and Plywood Case
  • Specification：1600x1000x1650 (mm)
  • Trademark：Hiwoc
  • Origin：China
  • HS Code：84659200
  • Production Capacity：1000,Year

Description

Basic Info.

Model NO. SQJ06-120 CNC or Not CNC Voltage Customized Air Pressure 0.4~0.7MPa Air Consumption 100L/Min Input Power 2.8kw Cutting Profile Height 20-150mm Cutting Width Max 120mm Cleaning Groove Width 3mm Drawing Groove Depth 0.3mm Overall Size 1600X1000X1650 (mm) OEM Yes Color Customized Transport Package Film and Plywood Case Specification 1600x1000x1650 (mm) Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

Feature1. This machine is used for cleaning PVC window/door corner welding seam .2. Double-axis control system, Delta control system from Taiwan.3. can cleaning the up and botton surface, also the external and inner conner.4. High processing precision due to size error compensation function.5. Can store many programs for various profile processing.6. easy adjusting and high automaticity.
Parameter
Air Pressure0.4~0.7MPa
Air consumption100L/min
Input Voltage380V 50~60Hz or As Customer need
Input Power2.8Kw
Cutting profile height  20-150mm
Cutting Width  Max 120mm
Drawing groove width3mm
Drawing groove depth  0.3mm
Overall size1600×1000×1650 (mm)
Weight900kg
Comprehensive angle cleaning time25"

Main accessory
CNC control systemTaiwan Delta
Solenoid valveAirtec
CylinderHuatong
MotorAnhui Sanyang (Best Chinese Motor Brand)
Air Filter DeviceSTNC
Electrical Button and SwitcherSchneider
AC Contactor and Circuit BreakerSchneider
Linear bearing systemLinear (South Korean brand)

Standard accessory
Saw blade 1pcs
Groove surface cutter3PCS
Complete tooling1set
Certificate1pc
Operation Manual1pc
