Automatic Changed CZ Purlin Cold Roll Forming Machine Interchangable CZ Channel Machine
General Industry Tech Hebei Developing Co., Ltd.- After-sales Service：Video Techenical Support
- Warranty：2 Years
- Tile Type：CZ Purlin
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：GEIT
- Usage：CZ Purlin, CZ Channel
- Transmission Method：Hydraulic Pressure
- Name：Automatic Changing Size CZ Purlin Shape Roll Formi
- Use：to Produce CZ Channel
- Speed：30m,Min
- Dimension：11000*1200*1500mm
- Weight：6700kg
- Thickness：1.5-4mm
- Feeding Width：300mm
- Voltage：380V 50Hz 3phase
- Shaft Material：45# Steel
- Shaft Outer Diameter：80mm
- Roller Material：45# Steel
- Cutter Material：Gcr12 Quenched
- Changing Size：Automatic
- Cutting Type：Hydraulic
- Basic Frame：400h Steel
- Transport Package：Standard Packing
- Specification：11000*1200*1500mm
- Trademark：ZTRFM
- Origin：Botou, Hebei, China
- HS Code：8474801
- Production Capacity：300 Sets
Description

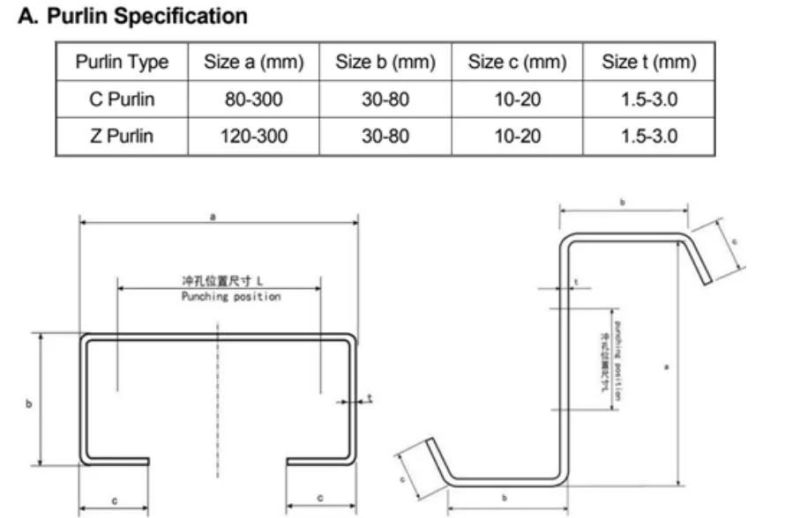

Since this Full automatic interchangeable profile CZ Purlin Roll Forming Machine can produce different size and shape products on one machine, if you want to buy this machine, you should confirm and send us the finished products profile drawing, we will design the machine according to your requirement. How to confirm the finished products profile drawing?1. confirm the shape and size of finished products you want to produce2. need punching holes or not ?Here is some hot sales profiles drawing we sold before for your referance
Products description
Working flow: Uncoiler - (Pre-Shearer) -Leveling & Guiding - Main Roll Forming Machine - Hydraulic Punching - Hydraulic Universal Cutting -Runout Table

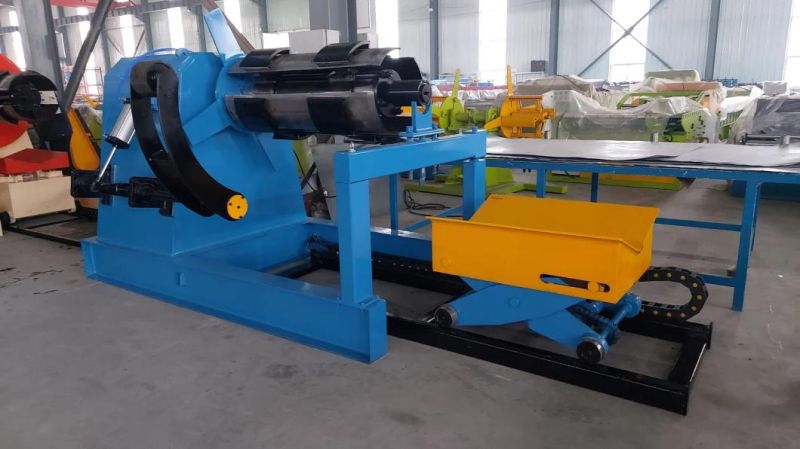

1. Hydraulic Decoiler with loading car

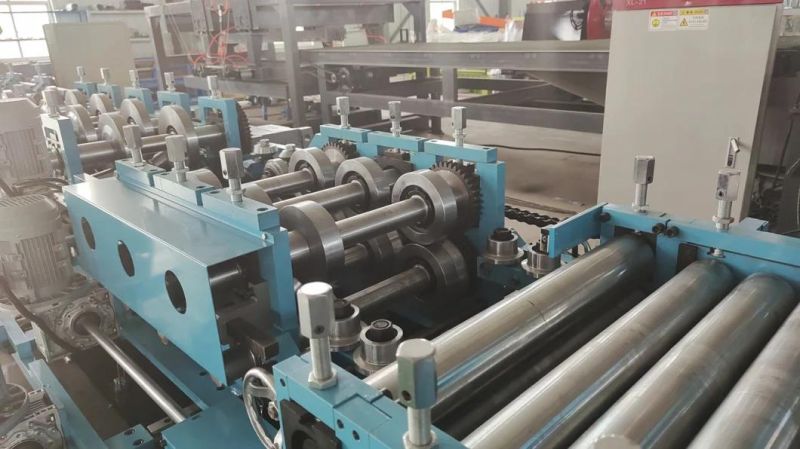

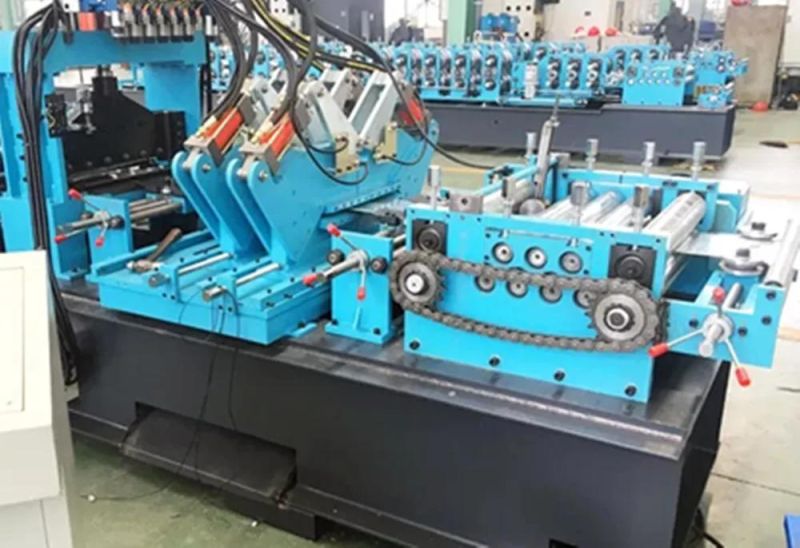

2. Feeding and Leveling devicea. Leveling system: top 3 and bottom 4 rollers, with extra 2 couple of pinch rollers.
b. Leveling roller diameter: Ø 80/100mm
c. Rollers are solid shaft with heating treatment, polishing and galvanizing.
d. Guiding system including guiding shaft and guiding rollers, width is adjustable in order to suit for various steel strips.
Pre-shearer (optional)It is used to pre-shear the coil strip before forming.
The pre-shearer is individual controlled by button which is installed on shearer frame.

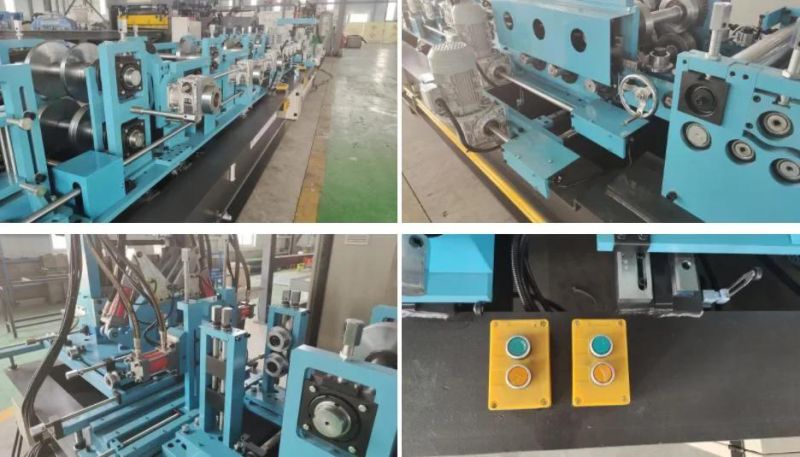

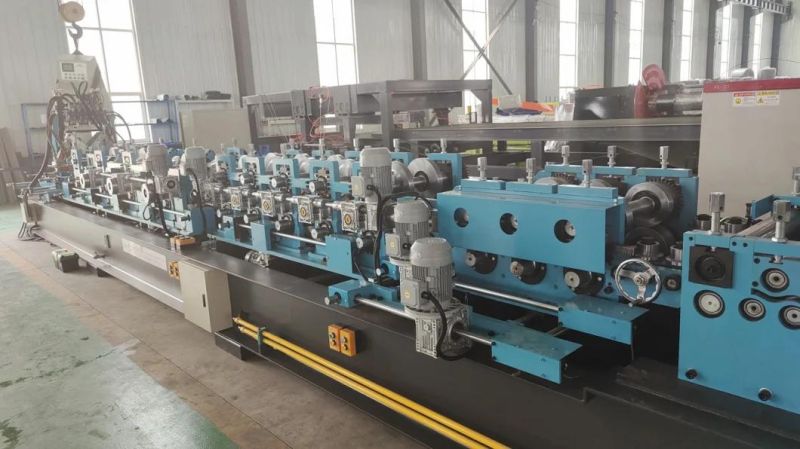

3.Roll forming systemRollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options.
basic frame use 400H steel welding
Advantage:Buttons control adjust for roll forming different sizes finished products.
4. Punching part:with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

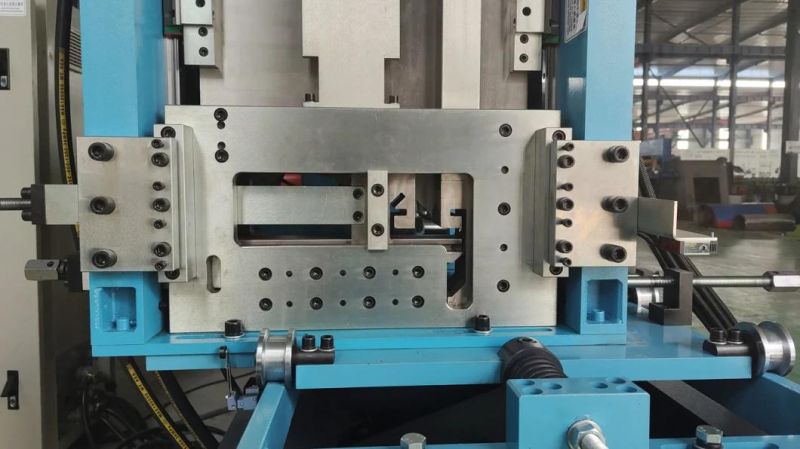

5.cutting systemNo need to change cutter for different sizeblade made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
