• Model NO.：QTM6-25
• Method：Hydraulic Pressure
• Product：Brick
• Brick Raw Material：Concrete
• Automation：Non Automation
• Tolerance：0.5mm
• Condition：New
• Labor Required：2 Person
• Machine Material：Q235r Steel
• Raw Material：Sand,Cement ,Stone Chips,Water
• Transport Package：Suitable for Sea Transportation
• Specification：CE,SGS,ISO ,SONCAP
• Trademark：RAYTONE MACHINERY
• Origin：Shandong China
• HS Code：84748090
• Production Capacity：6800PCS,Shift for 400*200*200mm Block

Basic Info.

Model NO. QTM6-25 Method Hydraulic Pressure Product Brick Brick Raw Material Concrete Automation Non Automation Tolerance 0.5mm Condition New Labor Required 2 Person Machine Material Q235r Steel Raw Material Sand/Cement /Stone Chips/Water Transport Package Suitable for Sea Transportation Specification CE/SGS/ISO /SONCAP Trademark RAYTONE MACHINERY Origin Shandong China HS Code 84748090 Production Capacity 6800PCS/Shift for 400*200*200mm Block

Product Description

                QTM6-25 Mobile Concrete Block Making Machine

1. QTM6-25 Mobile Concrete Block Machine Generally Description

Mobile Concrete block machine is working on concrete ground, it doesn't need brick pallets, this can save a big cost in the block making industry, but the mobile block making machine needs big area for moving around.
The mobile block making machine is improved to be two-times vibration, this makes the produced blocks higher density, and concrete block shaping speed to be quicker.
The QTM6-25 mobile concrete block making machine can make 6800-8800 pieces 8 inch hollow blocks per day;
The basic requirement for QTM6-25 Mobile concrete block making machine: 3-5 workers, 1000-1500 Square Meters for land area.
QTM6-25 mobile concrete block machine technology is improved now, it can also make standard solid bricks, paver bricks now; while only hollow blocks and solid blocks can be made in the past time.

2. The matched machines for QTM6-25 mobile block machine line

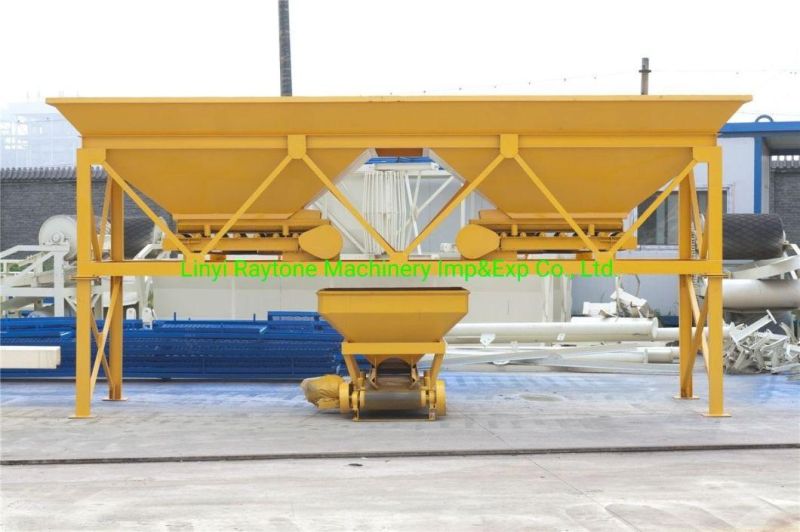

PLD800 concrete batching machine

dimension:	6000*2050*2900mm	scale capacity:	1200L
weight:	2800kg	hopper volume:	2*3m3
productivity:	60m3/h	feeding height:	2600mm
power:	9kw	max weighing value:	3000kg

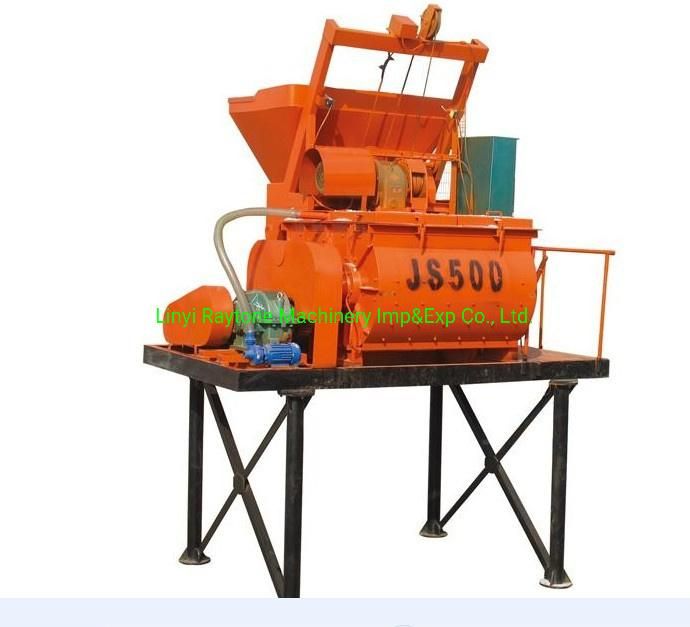

JS500 Concrete Mixer

Dimension:	3030*2300*2680mm	Charging Volume:	800L
Capacity:	25 M3/h	Discharging Volume:	500L
Machine weight:	1500kg	Mixing Circle:	60S
Aggregate Size:	≤60/80mm	pump motor:	0.75kw
Mixing Blade:	2*7	lift motor:	5.5kw,
Mixing Speed:	35R/M	mixing motor:	18.5KW,

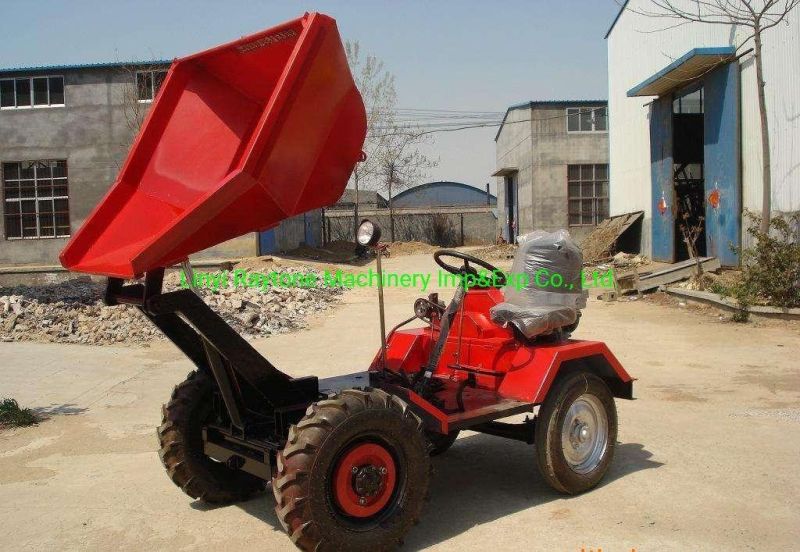

Raw materials transport hopper

hopper capacity:	0.6M3	dimension:	2620*1480*2550mm
Load capacity:	1T	engine power:	16KW
weight:	1100KG

dump height is customized to be suitable for QTM6-25 mobile brick machine

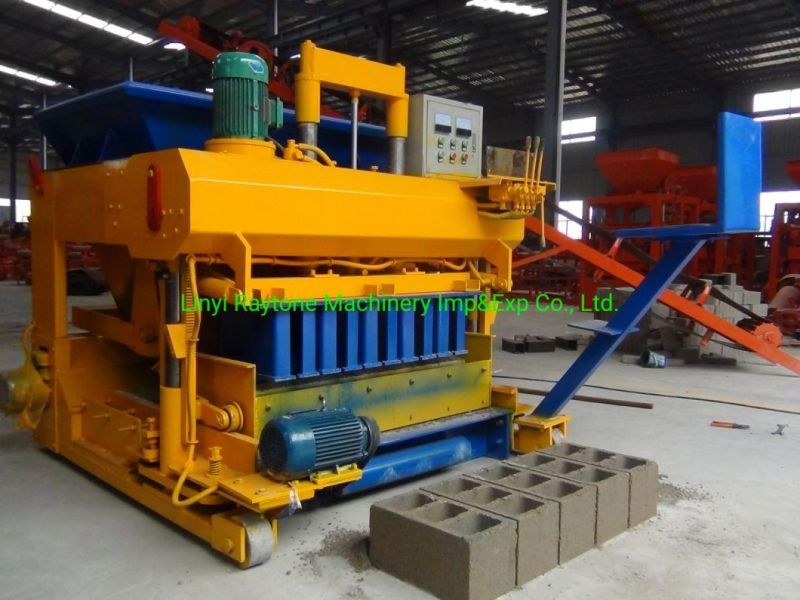

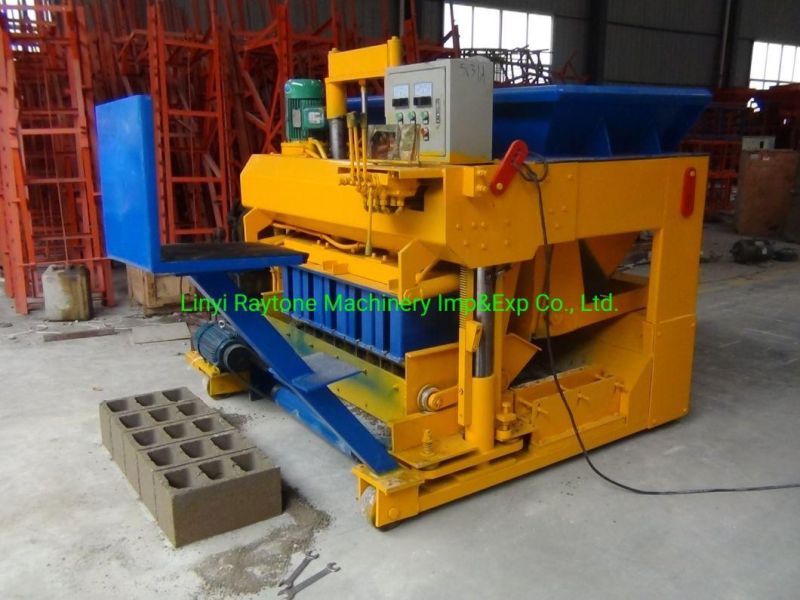

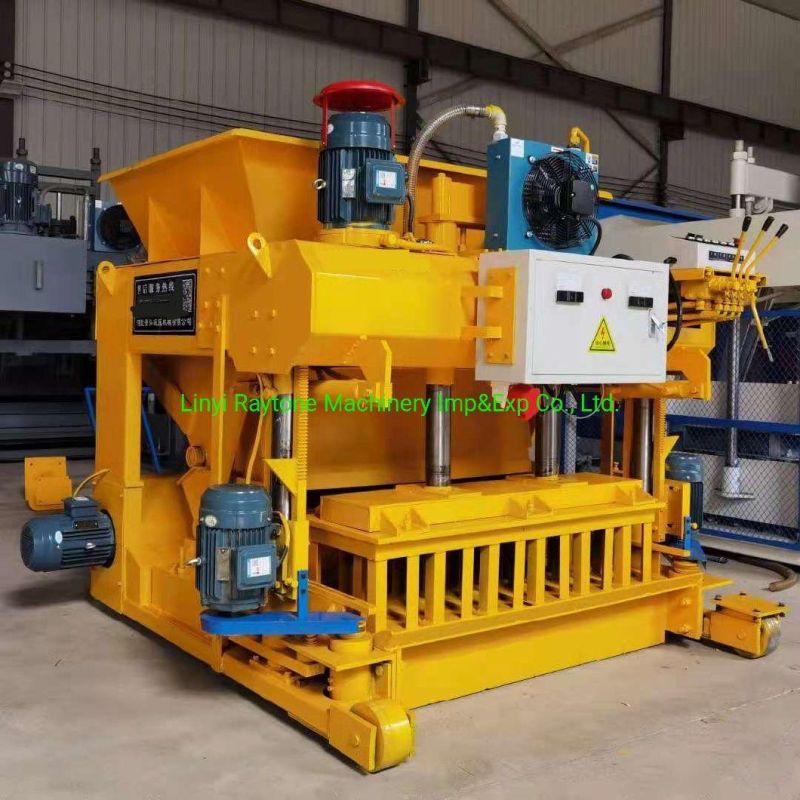

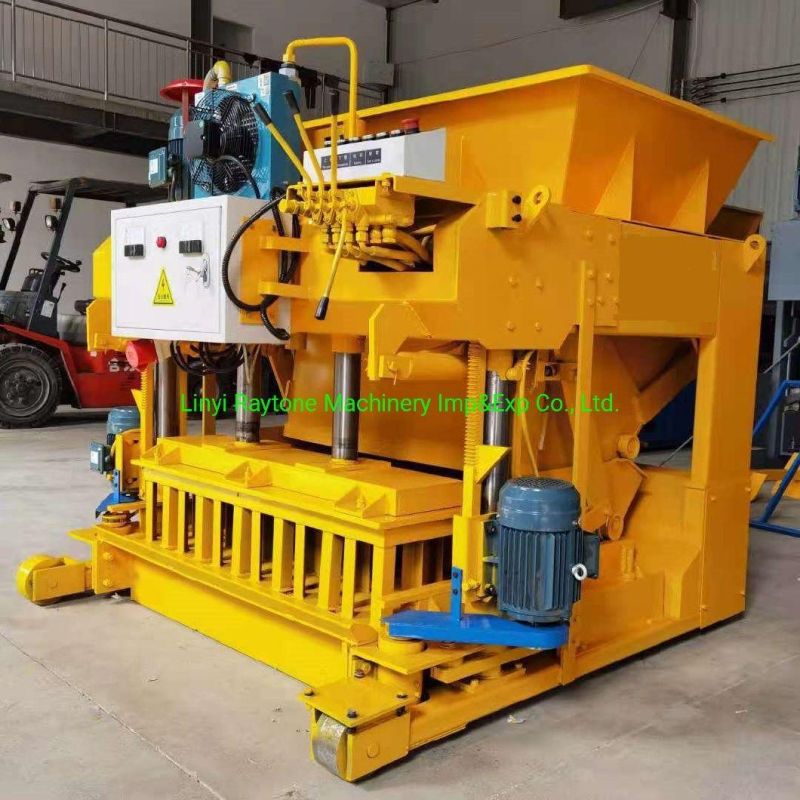

QTM6-25 Mobile Concrete Block Machine

Dimension:	2250*2200*1750mm	mould cycle:	25 Seconds
weight:	2600kg	hydraulic pressure:	16-20Mpa
Capacity:	8000-10000 pieces	Forming method	Hydraulic pressing and vibration
Vibration force	55KN	Total power:	12kw
Hydraulic oil tank:	24 Liters	Voltage:	415v; 50HZ
Walking method:	Electric walk	Turning method	hydraulic

Daily capacity of QTM6-25 Mobile Concrete Block Machine

Size (mm)	Qty/mould	mould cycle (s)	capacity per hour	daily capacity
hollow 400*200*200	6	20-25 s	850-1100	6800-8800
hollow 400*150*200	7	20-25 s	1000-1300	8000-10400
hollow 400*100*200	18	20-25 s	1200-1400	9600-11200

Welcome contact me if you are interested in our block machine .
