• Model NO.：Double Layer Roll Forming machine
• Automation：Automatic
• Method：Hydraulic Pressure
• Tolerance：0.5mm
• Brick Raw Material：Color Steel
• Processing：Cold Roll Forming
• Product：Color Steel Sheet
• Type：Color Steel Sheet Cold Roll Forming Machine
• Color：Blue
• Machine Name：Good Roll Forming Machine
• Roller Material：High Grade 45# Steel
• Transport Package：Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. Double Layer Roll Forming machine Automation Automatic Method Hydraulic Pressure Tolerance 0.5mm Brick Raw Material Color Steel Processing Cold Roll Forming Product Color Steel Sheet Type Color Steel Sheet Cold Roll Forming Machine Color Blue Machine Name Good Roll Forming Machine Roller Material High Grade 45# Steel Transport Package Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

Columbia customized double  trapezoidal color roof tile making machine

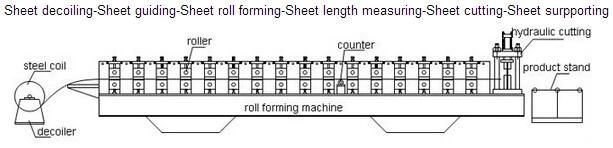

Working flow



Number	Items	UnitType
1	Steel Thickness	mm	0.3-0.8
2	Forming Speed	m/min	8-12m/min
3	Roller stands	stand	13
4	Roller Material		45# steel, coated with chrome
5	Main Motor Power	KW	4
6	Hydraulic cutting Power	KW	4
7	Hydraulic pressure	MPA	10-12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12
11	Control system		PLC with touch screen
12	Machine net weight	T	12

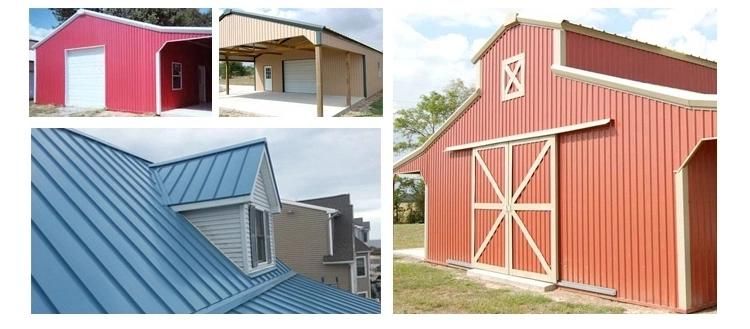

Application:Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers.   After-sales service and installation:Our factory with perfect after-sales service,And can according to user requirements design and manufacture of the special type,To the user guide at the same time, production, installation, debugging, maintenance.

Machine Features: Our sales of such type of tile press, by domestic and foreign customers consistent high praise, The equipment of exquisite workmanship, plate type standard, its biggest characteristic is suitable for site use, Good anticorrosive property, is the first choice for customers.    DIXIN have a professional design team, can manufacture machine exactly according to customer's requirement.Recently, our roll forming machine have been exported to more than 40 countries and regions over the world.And maintained good cooperate relationship with customers. To ensure the production of top quality precision gears, our manufacturing techniques are upgrated constantly. If you need our roll forming machine, pls don't hesitate to contact me. We can design according to your requirements. Looking forward to cooperate with you sincerely!  FAQ:1. What's your payment terms?T/T, 30% T/T in advance and balance 70% after testing confirm well before shipping.2. The delivery time?We deliver the machine within 30 days after receiving the deposit.3. What services do you provide?We provide our customers with 1 year warranty and technical support in the whole life time of the machine.
Equipment Use:Equipment of plate type is suitable for large factory,temporary housing,Outdoor steel structure roof panel,beautiful,Suitable for outdoor building,The plate for the lap type structure.


If u have any other question,please contact me any time.
