Trapezoidal Roofing Sheet Metal Ibr Wall Panel Roll Forming Machine
Henan Wadley CNC Machinery Co., Ltd.- After-sales Service：Available
- Warranty：1year
- Tile Type：Colored Steel
- Certification：CE
- Condition：New
- Customized：Customized
Base Info
- Model NO.：wd1200
- Usage：Roof, Wall, Floor
- Transmission Method：Electric
- Steel Cutting Type：Hydraulic Cutting
- Lanugage System：Chinese& English
- Rollers：up Layer 13rows Down Layer 18rows
- Material of Mold：Cr12
- Control System：PLC Control with Touch Screen
- Transport Package：Film
- Specification：9.2m*1.6m*1.4m
- Trademark：wdl
- Origin：China
- HS Code：84595900
- Production Capacity：50sets,Month
Description
No.
Name
Unit
Qty
1
Decoiler
set
1
2
Main Machine for roll forming
set
1
3
Control System(PLC)
set
1
4
Pressing System
set
1
5

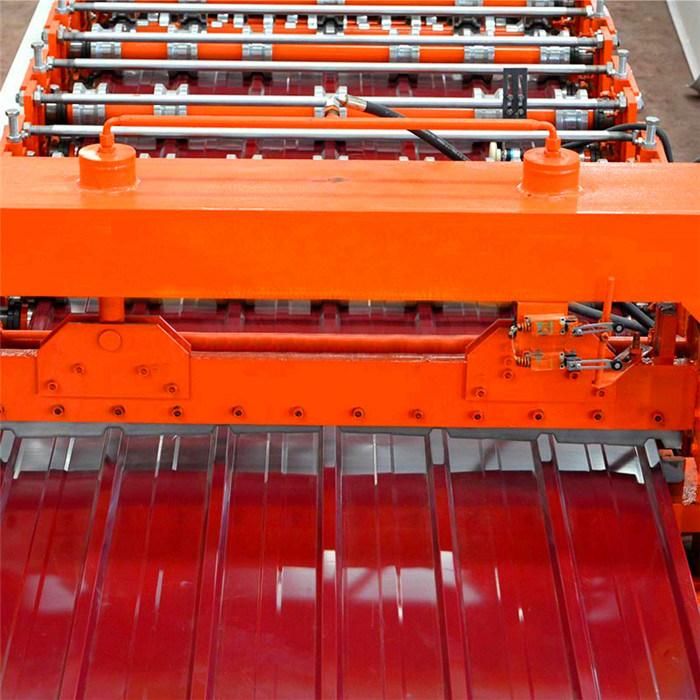

Cutting System
set
1
6
Output Table
set
1
Main Parameters of metal wall siding making machine
1
Suitable to process
Colored Steel plate, galvanized board, aluminum plate
2
Control system
PLC control
3
Productivity
15-20m/min
4
Width of the raw material
1250mm
5
Thickness of the plate
0.3-0.6mm
6

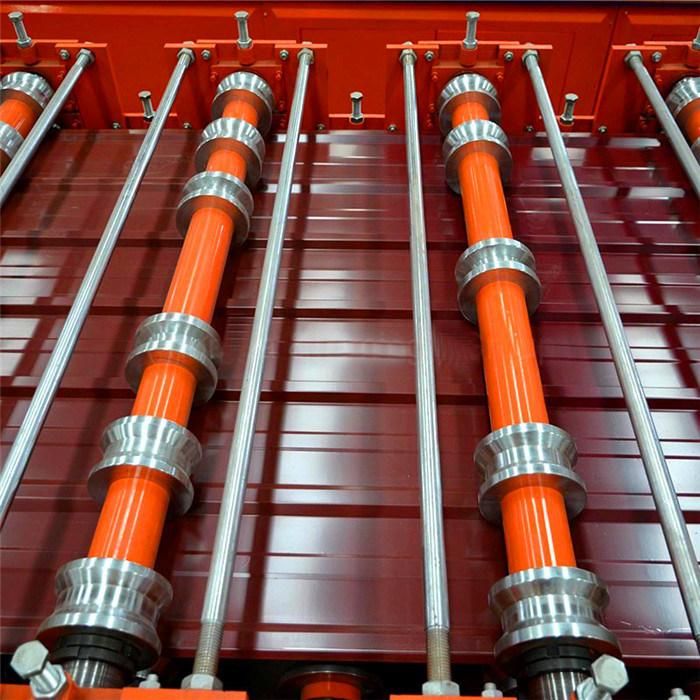

Rollers
Up layer:13 rows
Down layer:18 rows
7
Diameter of the rollers
70mm
8
Rolling galvanization thickness
0.05mm
9
Material of the cutting blade
Cr12
10
Dimension
9.2m*1.6m*1.4m
11
Weight
About 13.2T
12
Voltage
380V 50Hz 3phases
13
Power
5+4kw

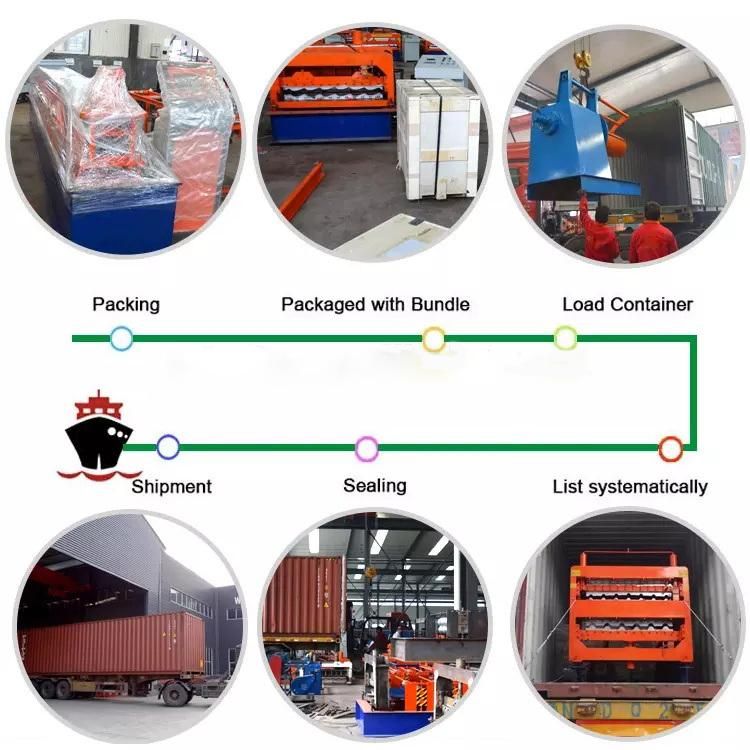

6.Packing&delivery:
7.FAQ:
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
