Hot Sales! ! Double Head Aluminum Profile Cutting Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Ljz2-450*3800

Base Info

  • Model NO.：Ljz2-450*3800
  • Input Voltage：380V 50Hz
  • Input Power：3.55kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：210L,Min
  • Cutting Length：360~3800mm
  • Cutting Height：200mm
  • Cutting Width：120mm
  • Cutting Angle：90-45
  • Saw Feeding Speed：0~3m,Min
  • Saw Blade Standard：450*4-30*Z120
  • Overall Dimension：4800*1300*1450mm
  • Transport Package：Wooden Box
  • Specification：4800*1300*1450mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：30 Window Per Day

Description

Basic Info.

Model NO. Ljz2-450*3800 Input Voltage 380V 50Hz Input Power 3.55kw Air Pressure 0.4~0.6MPa Air Consumption 210L/Min Cutting Length 360~3800mm Cutting Height 200mm Cutting Width 120mm Cutting Angle 90-45 Saw Feeding Speed 0~3m/Min Saw Blade Standard 450*4-30*Z120 Overall Dimension 4800*1300*1450mm Transport Package Wooden Box Specification 4800*1300*1450mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 30 Window Per Day

Product Description

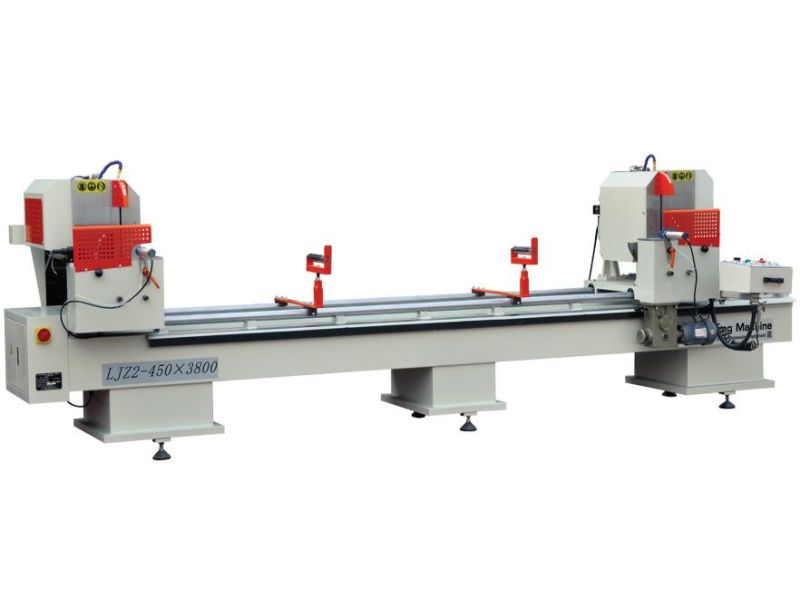

Hot Sales! ! Double Head Aluminum Profile Cutting Machine Hot Sales! ! High Precision Double Head Aluminum Profile Cutting machine
Hot Sales! ! Double Head Aluminum Profile Cutting MachineHot Sales! ! Double Head Aluminum Profile Cutting Machine

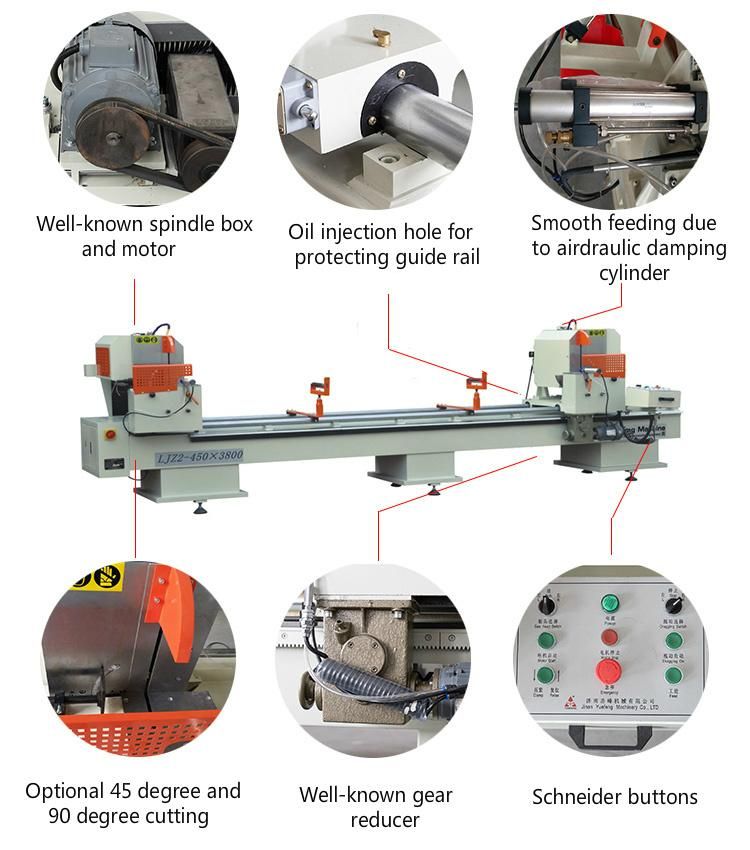

1. Used for cutting aluminum and PVC at 45° 90°.
2.The right head can be adjusted horizontally by the motor.
3.Two heads work independently or together.
4.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Parameter:
ModelLJZ2-450×3800
Input voltage380V 50Hz
Input power3.55Kw
Air pressure0.4~0.6MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length360~3800mm
Cutting width≤120mm
Cutting height≤200mm
Cutting angle90° 45° -45°
Saw feeding speed0~3m/min
Saw blade standardφ450×4×φ30×Z120
Overall dimension4800×1300×1450mm


  Hot Sales! ! Double Head Aluminum Profile Cutting Machine
Hot Sales! ! Double Head Aluminum Profile Cutting Machine
Hot Sales! ! Double Head Aluminum Profile Cutting Machine
Hot Sales! ! Double Head Aluminum Profile Cutting MachineHot Sales! ! Double Head Aluminum Profile Cutting MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
