• Usage：Embossing Machine
• Transmission Method：Drive by Gear
• Leveling Roller Sation：11 Rows
• Thickness：1-6mm
• Width：1600mm Max
• Voltage：380V 50Hz 3phase
• Speed：4-6m,Min
• Material of Rollers：42CrMo Alloy Steel
• Hardness of Roller：HRC58-60
• Roller Size：500mmx1600mm
• Main Power：15kw
• Automatic or Manual：Automatic
• Transport Package：Standard Packing
• Specification：9500*1450*1500
• Trademark：ZTRFM
• Origin：Botou, Hebei, China
• HS Code：8474801
• Production Capacity：300 Sets

Basic Info.

Usage Embossing Machine Transmission Method Drive by Gear Leveling Roller Sation 11 Rows Thickness 1-6mm Width 1600mm Max Voltage 380V 50Hz 3phase Speed 4-6m/Min Material of Rollers 42CrMo Alloy Steel Hardness of Roller HRC58-60 Roller Size 500mmx1600mm Main Power 15kw Automatic or Manual Automatic Transport Package Standard Packing Specification 9500*1450*1500 Trademark ZTRFM Origin Botou, Hebei, China HS Code 8474801 Production Capacity 300 Sets

Product Description

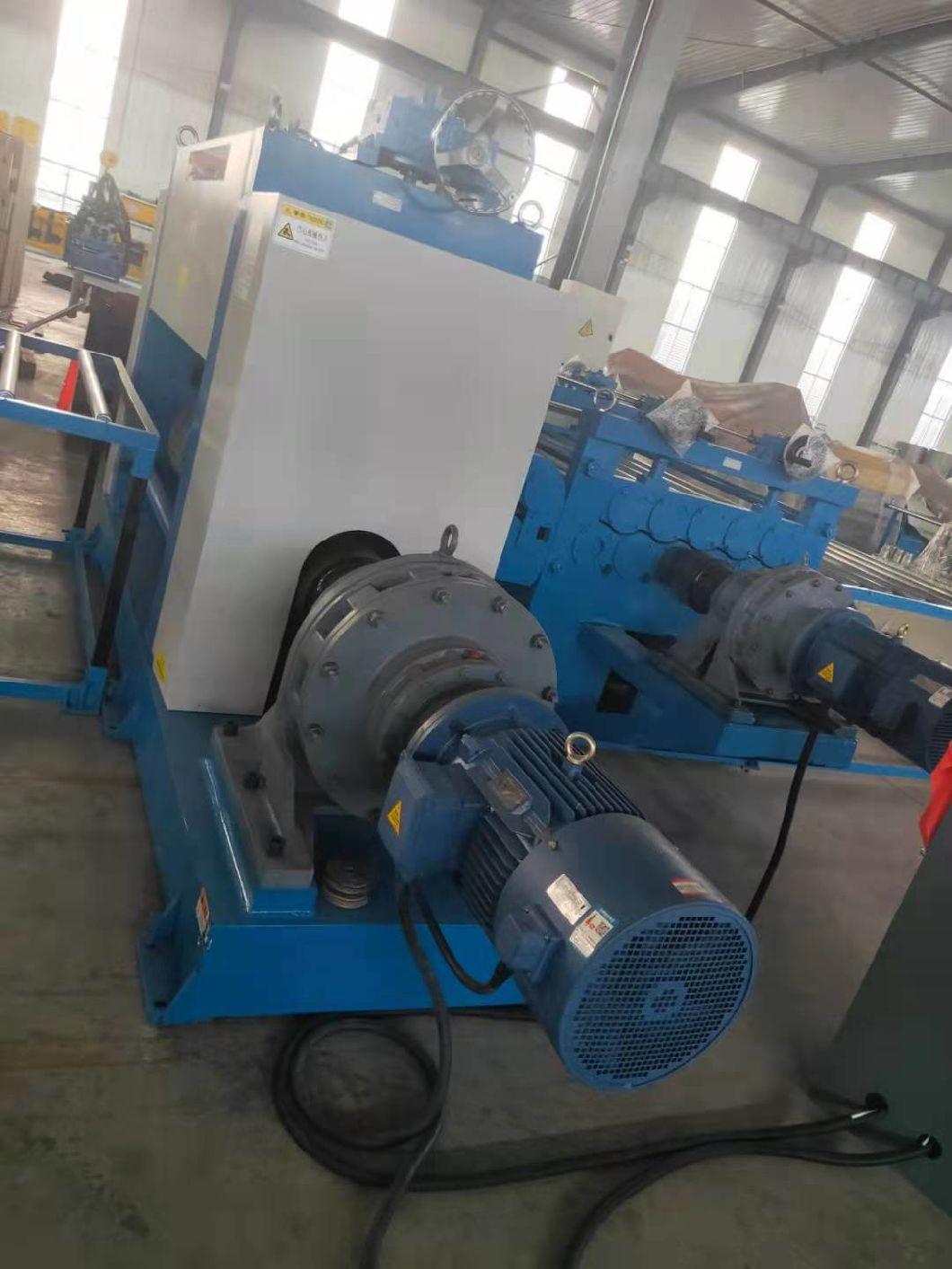

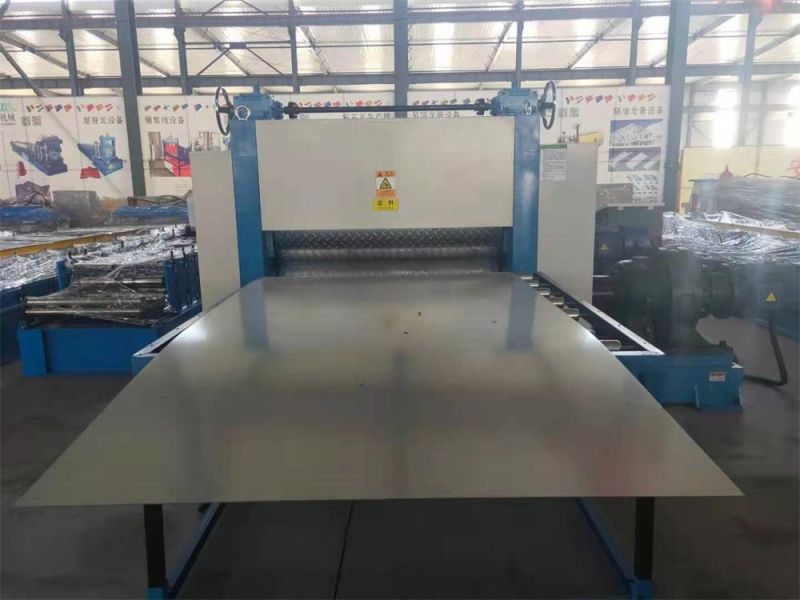

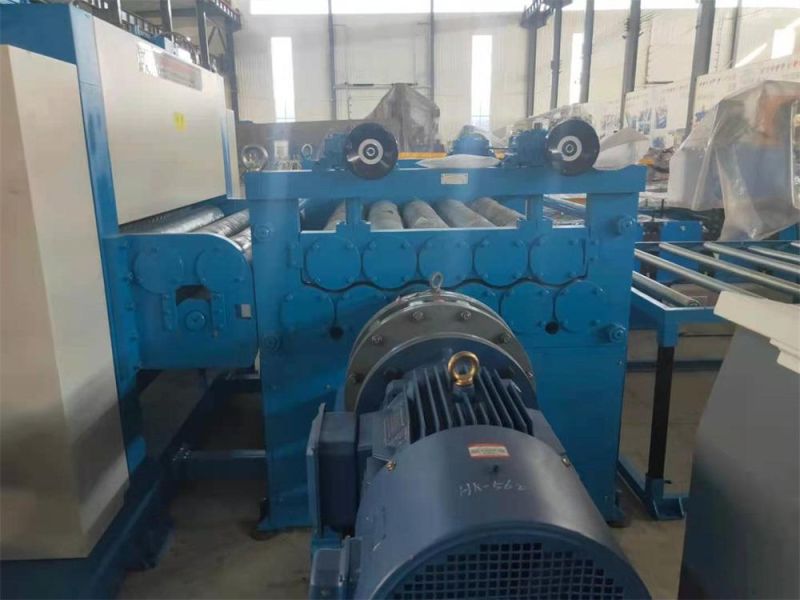

Anti-Slip Plate Making Machine Checker Steel Plate Metal Embossing Machineembossing machines are mainly for producing embossed aluminum and stainless metal sheets. metal embossing production line is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line
Products descriptionThe parameters of metal sheets steel plate diamond checker pattern embossing machine:
· Coil Width: 1600mm maximum;
· Coil Thickness: 6mm maximum;
· Working Speed: 4-6m/min;
· Material of Rollers: 42CrMO alloy steel;
· Hardness of Roller: HRC58-60;
· Roller Size: 550mmx1600mm (subject to final designing);
· Main Power: 15KW;
· Depth of Patterns: Adjustable;
· PLC Control: Mitsubishi of Japan;
· Electricity: 380V/50HZ/3ph

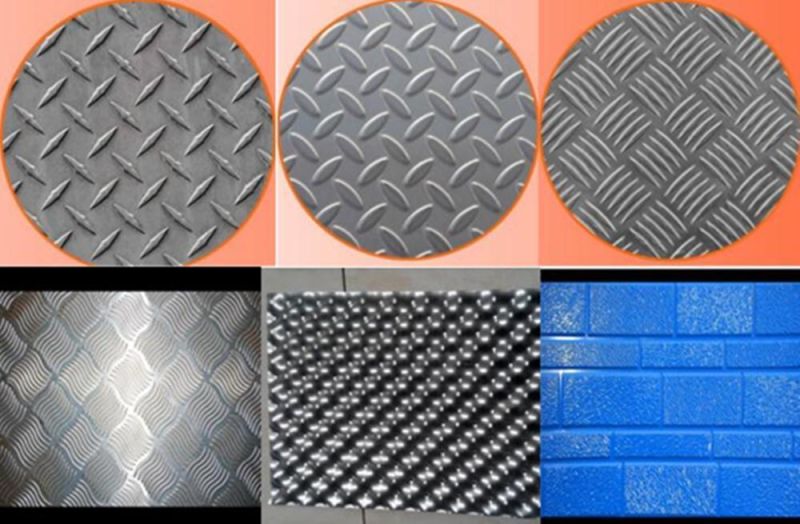

some regular patterns

Packing and Delivery

FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
     2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
    3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
