Roll Shutter Door Forming Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Coil Thickness：0.3mm-0.8mm

Base Info

  • Model NO.：ZH 914-716
  • Material Width：914mm
  • Forming Stations：23
  • Shaft Material：70mm Solid
  • Main Machine Structure：350h Beam
  • Main Motor：4kw
  • Cutter Motor：3kw
  • Speed：10-15m,Min
  • Roller Material：45# Forged Steel with Hard Chrom
  • Control System：PLC Control
  • Cutting Blade Material：Cr12
  • Transport Package：Water Proof Plastic Film
  • Specification：914-716
  • Trademark：ZHONGHENG
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：50 Sets,Months

Description

Suitable materialPPGI  GI  ALCoil Width914/925/1000/1200/1220/1250mm as customThickness0.3-0.8mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed15-30m/minForming stations12-18 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter75mmChain1.2 inchScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 7.6m×1.5m×1.2mWeight4.5T Package and shipment

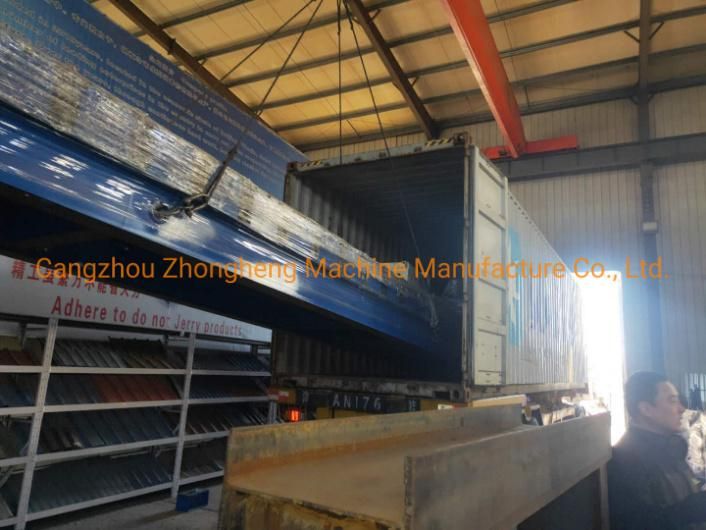

This roller shutter door machine need one 40' container to load.
