Building Material Making Machinery

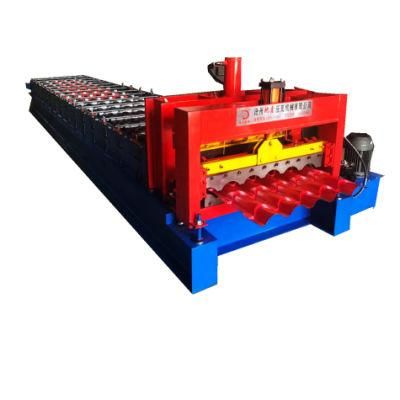

828/1035 Glazed Metal Forming Press Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • After-sales Service:1
  • Warranty:12 Months
  • Tile Type:Glazed Steel
  • Certification:CE, CCC, ISO9001
  • Condition:New
  • Customized:Customized

Base Info

  • Model NO.:828
  • Usage:Roof
  • Transmission Method:Machinery
  • Type:Rolling Machine
  • Power Source:Hydraulic Pressure
  • Feature:High Efficiency
  • Advantage:Easy to Maintenance
  • Forging Forming Method:Mold Forging
  • Name:Metal Roof Color Steel Roll Forming Machine
  • Material:Gi,Gl,PPGI
  • Width:1000,1200,1250mm
  • Thickness:0.30_0.80mm
  • Transport Package:Water-Proof Packaging, Covered with Plastic Film
  • Specification:CE ISO
  • Trademark:DIXIN
  • Origin:Botou Hebei China
  • HS Code:845522
  • Production Capacity:20 Set Per Year

Description


1) Main Motor Power: 5.5KW2)Hydraulic Station Power: 4KW3) Hydraulic Oil Pump: CB-E3104)Sprocket: P-25.45)Roller Station: 156)Yield Strength: 32MPa7)Diameter of Principal Axis: 75mm8)Material of Roller: 45#steel hard chrome plating9)Processing Speed: 8m/min10)Thickness: 0.3-1mm11)Installation Dimension (L*W*H): 7.5m*1.5m*1.2m12)Total Weight: 3.8T13)Coil Width: 1000/1200mm14)Cover Width: 840/1040mm15)Equipment Parts:  forming machine, hydraulic cutter, hydraulic station, electric controlling system and counter.

Decoiler
1set
Feeding & guiding device
1set
Main roll forming machine
1set
Hydraulic cutting system
1set
Controlling system
1set
Run out table
1set


Our Services

1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!


The real data, the most professinal foreign trade team, your best trustable partner.
If you want to get more information about our equipment ,
Please feel free contact Nancy


COMPANY


Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China


828/1035 Glazed Metal Forming Press Machine

payment :


30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.


FQA

Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.



Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.



Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.



Q: What's your service ?

A: 1. We provide 1 year warranty for our customers.
    2. Any parts damaged because of quality problem will be changed for free within the first year.
    3. Technical support is provided for free in the whole life of the machine.



PACKING :

1.Tighten to container with steel wire rope and welded angel iron.

2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)

3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead Time :30 days after your pre-deposit828/1035 Glazed Metal Forming Press Machine828/1035 Glazed Metal Forming Press Machine
