• Model NO.：ZH300
• Transport Package：Fully Assembled
• Specification：80-300mm
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. ZH300 Transport Package Fully Assembled Specification 80-300mm Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

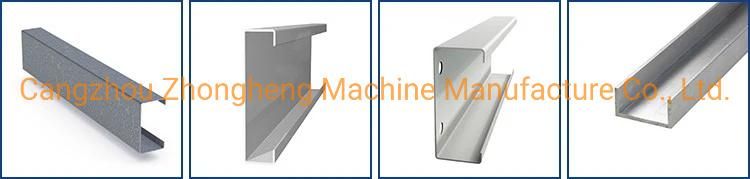

Full auto C U channel roof purlin Roll forming machine

Fully automatic CZ steel machine, can exchange CZ steel, realize 80-300mm any type of quick change in one minute, and achieve the product change specifications you need. The forming cutter can realize 80-300 any type of stepless cutting. No need to change tools. Feeding port automatic centering adjustment, fixed length cutting, precise precision, fast pressing speed, 8-15m/min per minute, saving labor costs and improving production efficiency.

Specification of the material

1.Suitable Material: Carbon steel
2.Width of the raw material: according to the final profile
3.Thickness: 1.5mm-3.0mm

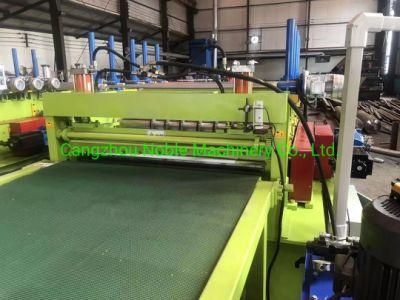

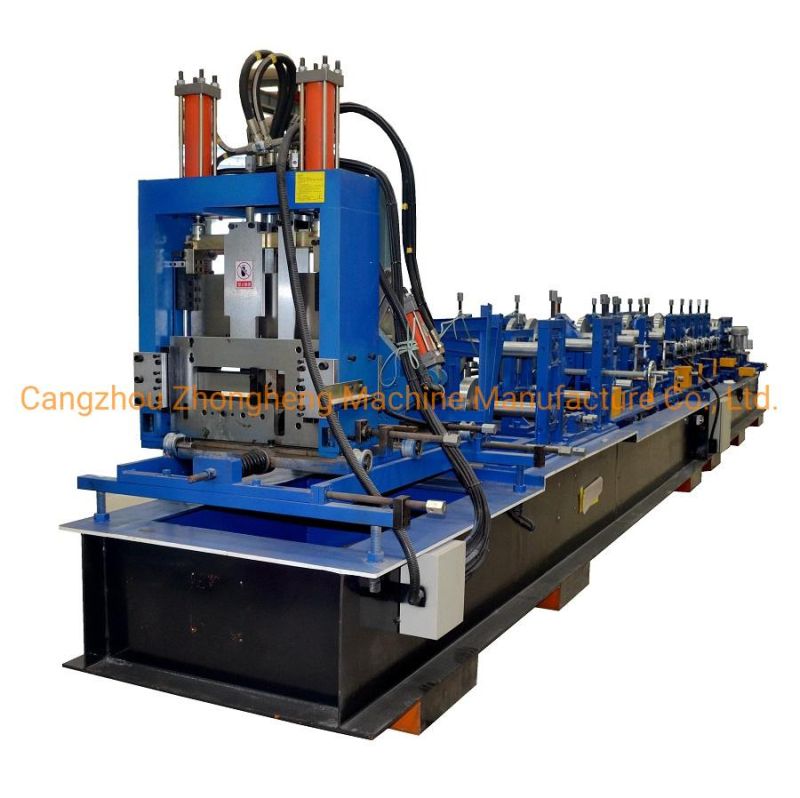

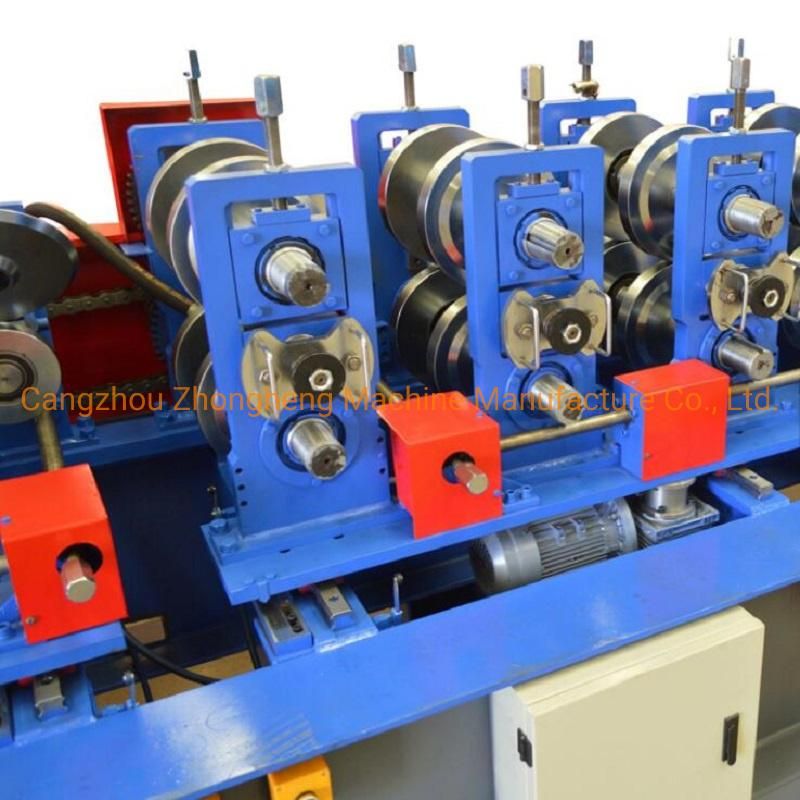

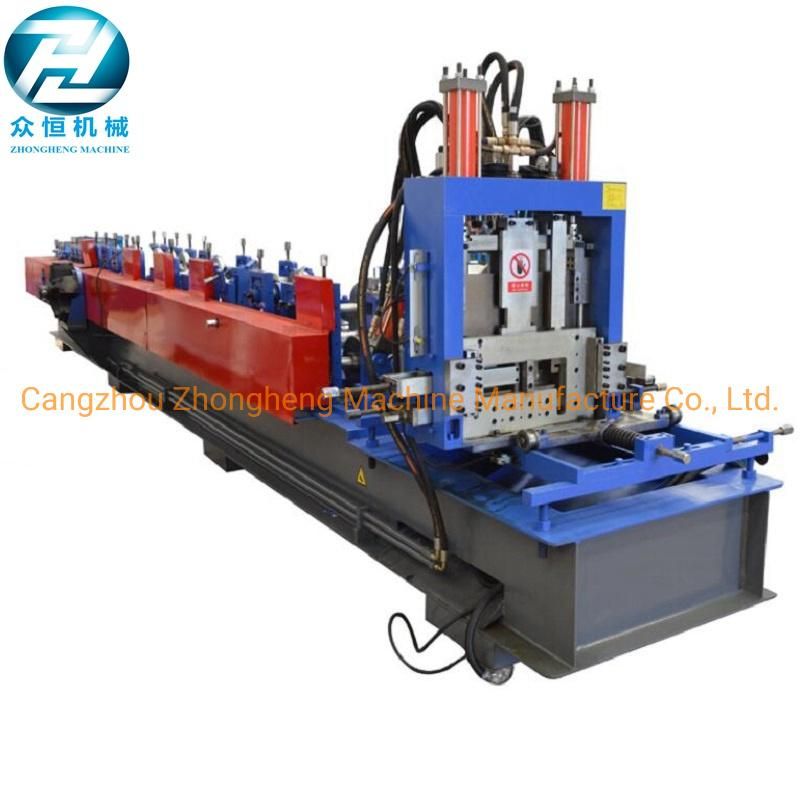

Machine Photos




C&Z purlin interchangeable roll forming machine Specification


No.	Item	Description
1	Coil width	According to the final profile
2	Rolling speed	0-15m/min(not include cutting and punching time)
3	Rolling thickness	1.5-3.0mm
4	Control system	PLC (Panasonic) as list in the note
5	De-coiler	3 TON hydraulic de-coiler
6	Flatten roller	7 rollers, upper is 3 rollers, down is 4 rollers
7	Feeding and flatten drive power	4kw, AC motor
8	Roller stations	About 16 stations and one correction adjust system
9	Machine stand	Guide pillar structure
10	Adjust flange and width moto	1.5KW x3
11	Roller material	Ccr15, chrome plated surface with hardness 58-62 degree ,CNC
12	Shaft diameter	45# forged steel, φ76mm
13	Main motor power	15kw, AC motor
14	Hydraulic station power	5.5kw
15	Hydraulic pressure	16-20Mpa
16	Punching and cutting mode	Machine adopts pre-punching and pre-cutting
17	Material of cutting	Cr12Mov
18	Tolerance	3m+-1.5mm
19	Electric source	380V, 50HZ,3 phase
20	Way of driving	By chain

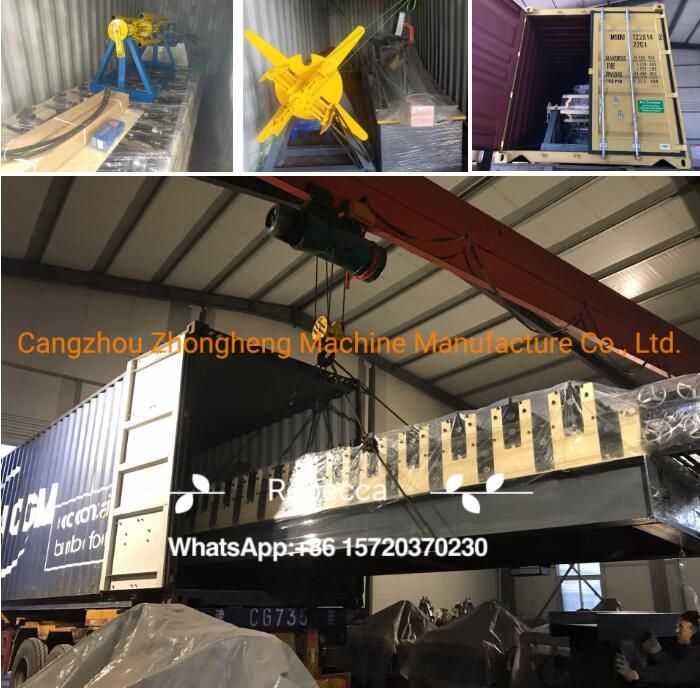

Packing and Shipping

1. Metal roofing sheet roll forming machine iron roofing sheet making machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

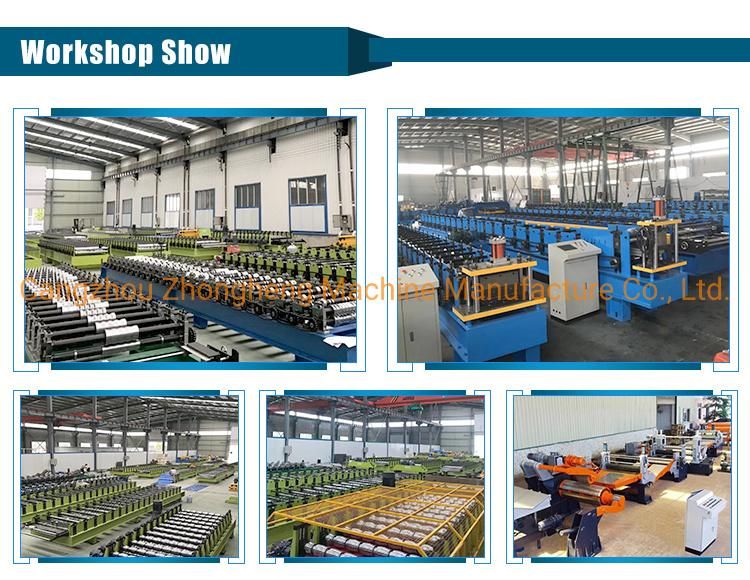

Company Introduction




FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
