• Model NO.：JCX840,1050
• Machine Size：7.0m*1.3m*1.2m
• Forming Stations：14
• Motor：4kw
• Hydraulic Device：4kw
• Cylinda：2
• PLC：Panasonic
• Inverter：Scheneider
• Chinas：1′
• Diameters of Shaft：75mm Solid
• Material of The Rollers：45# Steel
• Transport Package：According to Customers′ Request
• Specification：Jcx
• Trademark：JCX
• Origin：China Hebei
• HS Code：84552210
• Production Capacity：40sets Per Month

Suitable materialQ235 color steel sheet; 0.3-0.7mm, Forming speedabout 15-20m/minPower RequirementMain motor power: 7.5 Kw(Depend on final design)Hydraulic station power: 2.2Kw(Depend on final design)Material of forming rollersNo.45 steel, plated with chrome on sureface.Material of cutter Cr12 mould steel with quench treatment, HRC58-60Material of shaftHigh quality 45# steel with heat treatment.Roller grinder milling.Shaft diameter72mmControlling systemMitsubishi PLC & converterTotal weight of machineAbout 8000KGSMachine's sizeabout 9m×1.5m× 1.5m (Depend on final design)

Decoiler
(manual/ hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1.5m/ pc, 2 pcs

Process flow:

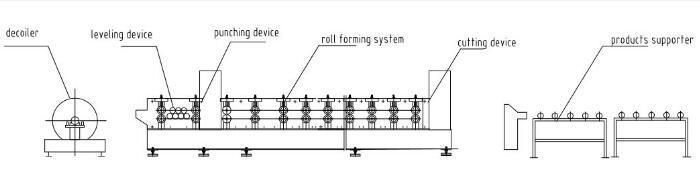

Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table



Packing:

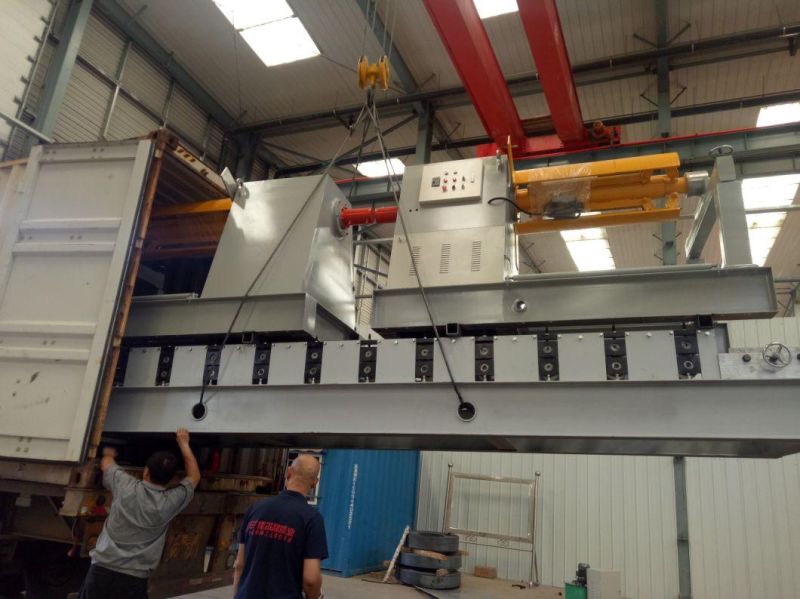

1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
