• Model NO.：312
• Customized：Customized
• Transmission Method：Machinery
• Warranty：2 Years
• Effective：Easy Operation
• Motor Power：4kw
• Forming Station：13 Stations
• Medium Plate Thickness：14mm
• Main Frame：300h
• Diameter of Roller：75mm
• PLC：Delta Brand
• Type：Roll Forming Machine
• Method：Roll Forming Machine
• Transport Package：One 20 Feet Container for Loading Machine
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：20sets,Per Month


                                                                              Technical parameterItemSpecification

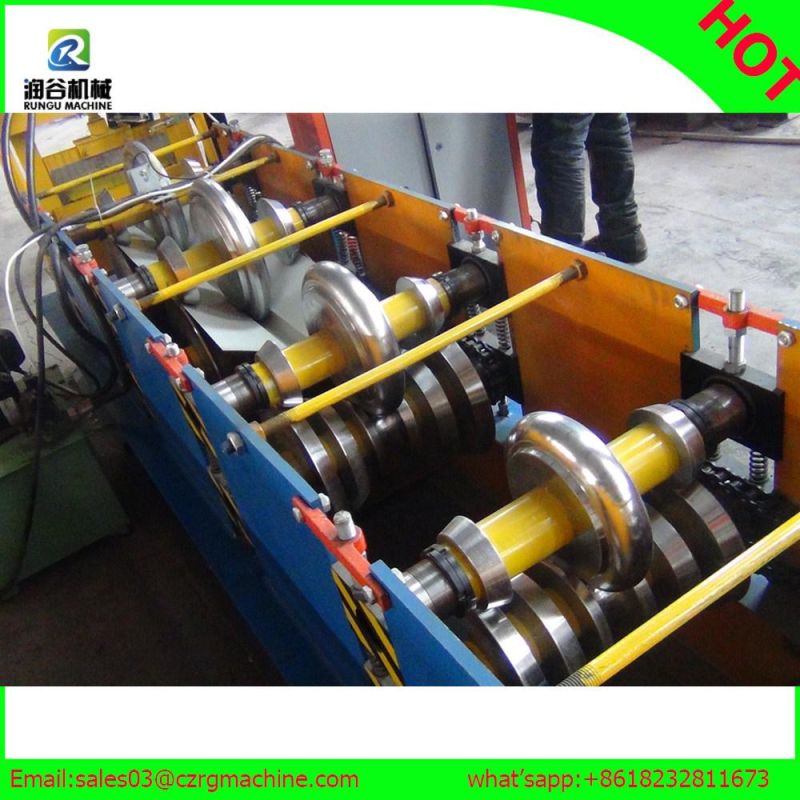

Raw MaterialPre-painted steel coil & galvanized coils0.3-0.8235-550Roller material45# steel , coated with ChromeShaft for rollers shaft with 75mm,processed with cylindrical grinderForming speed(m/min)About 6-8Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeautomatic hydraulic cut to lengthCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)4KWTotal power(kw)8 KW
Process flow

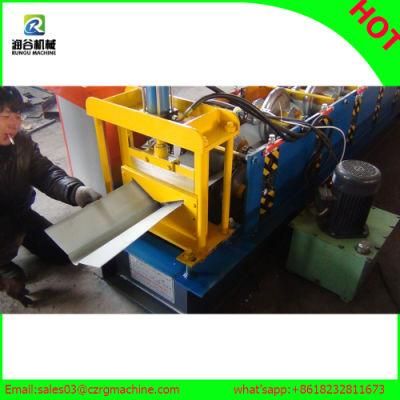

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machine

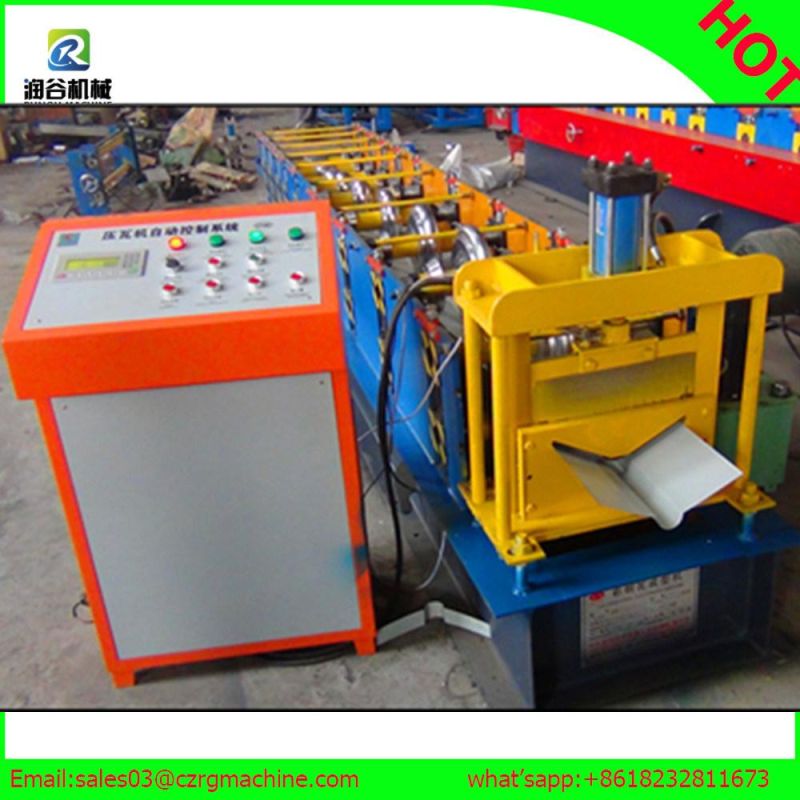

 Decoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set






Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3.  Decoiler Max. Capacity: 5000kgs
4.  Hydraulic station power: About 4Kw (Depend on final design)
5.  Cutting length: Cut-to-length

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

If you are interested in the roll forming machine,welcome to contact me directly:
:008618232811673
