• Model NO.：HLT
• Product Name：Stainless Steel 304 Flexible Metal Hose Making Mac
• Diameter：Dn25-150mm
• No. of Layers：Single or Double Layers
• Type of The Hose：Annular
• Control：PLC Control
• Length：<7000mm
• Expanding Medium：Emulsified Liquid
• Forming Speed：6-8 Seconds Per Convolution
• Wall Thickness：0.3-1.0mm
• Material：SUS304, 321, 316L
• Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
• Specification：SGS, ISO
• Trademark：HLT
• Origin：Jiangsu, Wuxi
• HS Code：844790900
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. HLT Product Name Stainless Steel 304 Flexible Metal Hose Making Mac Diameter Dn25-150mm No. of Layers Single or Double Layers Type of The Hose Annular Control PLC Control Length <7000mm Expanding Medium Emulsified Liquid Forming Speed 6-8 Seconds Per Convolution Wall Thickness 0.3-1.0mm Material SUS304, 321, 316L Transport Package Standard Sea Package for Flexible Metallic Hose Ma Specification SGS, ISO Trademark HLT Origin Jiangsu, Wuxi HS Code 844790900 Production Capacity 15 Sets Per Year

Product Description

Metal hose making machine1. Product description of metal hose making machine
*Diameter: DN25-150mm
*Type of the bellows: annular bellows
*Wall thickness: 0.3-1.0mm
*Control: PLC control
*Length: DN25-40mm, L ≤4000mm
                 DN50-150mm,L≤7000mm
*Expanding medium: emulsified liquid
*Forming speed: 6-8seconds per convolution
*The following parts will go with the machines: Rubeer clamping parts(for caterpillar) and related guiding plates, Ф25,32,40,50,65,80,100,125mm, totally 8sets.Hose parameters made by that machine

DN	Actual ID	Wall thickness (mm)	Width of s.s. strips(mm)	Height of convolution	Pitch distance (mm)
DN32	Ф31.5	0.3	100	7	5
DN40	Ф39.5	0.3	125	8	6
DN50	Ф49.7	0.3	157	8	7
DN65	Ф64.7	0.3	204	9	8
DN80	Ф79.5	0.4	251	10	9
DN100	Ф99.5	0.5	314	11	10
DN125	Ф124.6	0.5	393	13	12
DN150	Ф149.4	0.6	471	15	15

2. Main features

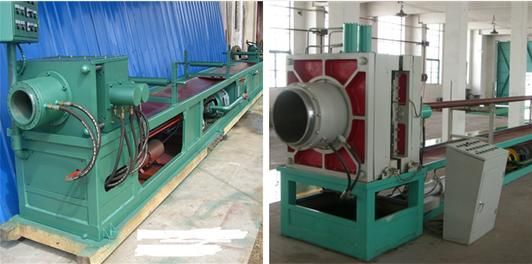

DN32-125mm Hydraulic forming machine          DN50-300mm Hydraulic forming machine
Size range:DN32-DN150mm                                                 Size range:DN50-DN300mm
Wall thickness:0.3-0.6mm                                                    Wall thickness:0.3-0.8mm
Width of strip:100-471mm                                                   Width of strip:158-944mm
Height of convolution:7-15mm                                            Height of convolution:9-35mm
Pitch distance:5-15mm                                                          Pitch distance:9-30mm

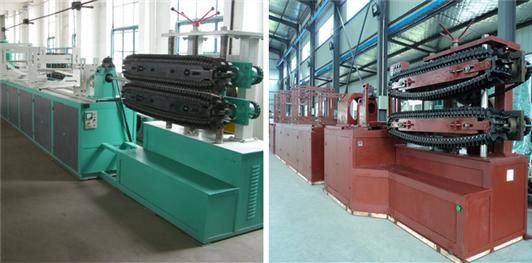

DN16-25 Tube mill machine                                   DN50-300mm Tube mill machine
Size range:DN12-DN150mm                                              Size range:DN50-DN300mm
Wall thickness:0.15-0.35mm                                              Wall thickness:0.3-0.8mm
Control: Inverter control                                                     Control: Inverter control
Welding speed: 250m/hour                                    Welding speed: 250m/hour
Tube length: No limited                                                       Tube length: No limited

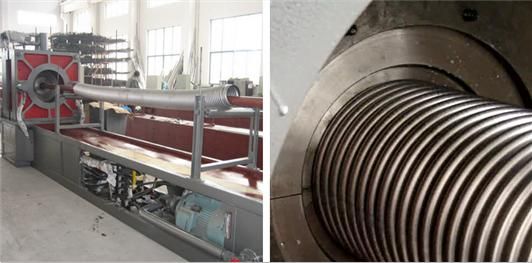

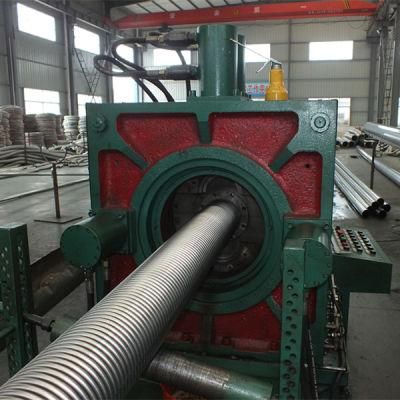

Production detail
4. Related products
                                                  Flexible metal hose/bellow

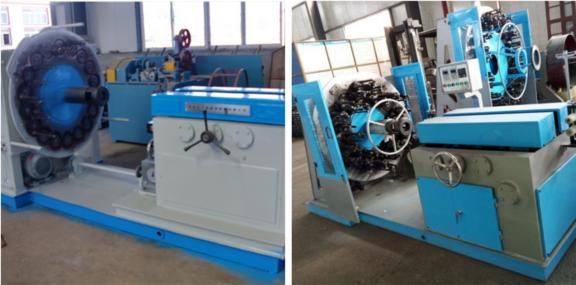

5. Related machineWire braiding machine
6. FAQ for metal hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
