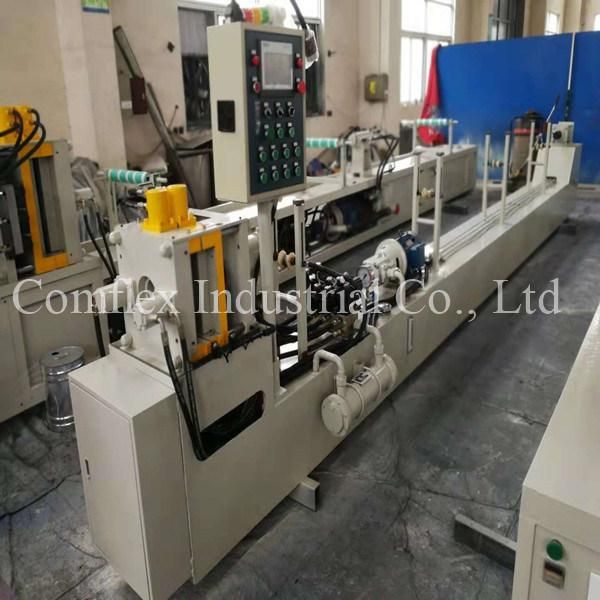

Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^

Comflex Industrial Co., Ltd.
  • Pipe Material：Stainless Steel
  • Condition：New
  • Customized：Customized
  • Theory：Inverter
  • Application：Industry
  • Type：Pipe Production Line

Base Info

  • Model NO.：Comflex
  • Width of Stripe：100-471mm
  • Pitch Distance：5-15mm
  • Length：4000mm
  • Strip Thickness：0.15-0.3mm
  • Wall Thickness：0.3-1.0mm
  • Product Capacity：5000PCS Per Year
  • Warranty：One Year
  • Product Name：Hydraulic Corrugated Pipe Hose Forming Machine
  • Lead Time：50 Days After Receiving Deposit
  • Transport Package：Standard Seaworthy Package
  • Specification：ISO9001
  • Trademark：Comflex
  • Origin：Jiangsu, China
  • HS Code：84819010
  • Production Capacity：5000 PCS Per Year

Description

Hydraulic Hose Making MachineMachine Type No.HLT-H-100Technical DataApplication of the hose: water, oil, steam
Size range: DN25 up to DN100
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
PLC:Siemens
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions:15000*1100*1700Packing details Polywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union
DNActual IDWall thickness
(mm)		Width of s.s. strips(mm)Height of convolutionPitch distance
(mm)
DN3231.50.310075
DN4039.50.312586
DN5049.70.315787
DN6564.70.320498
DN8079.50.4251109
DN10099.50.53141110
DN125124.60.53931312
DN150149.40.64711515

Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^


Company Introduction:

COMFLEX Industrial Co.,Ltd make all kinds hose making machine such as hydraulic forming machine,elastomer hose forming machine, mechanical hose making machine,wire braiding machine, rewinding machine,bellow forming machine, etc..
for more information: please check flexchina.en.made-in-china.com




Machine Description

Diameter: DN50-150mm
Wall thickness: D£ 0.3- 1.0mm
Type of the bellows: Annular bellows
Speed: 6-8seconds/convolution
Control: PLC control
Length: DN32 and DN40, L≤ 4000mm
The sizes bigger than DN50, L≤ 7000mm
Expanding medium: Emulsified liquid
The parts will go with the machines: Rubber clamping parts(for caterpillars) and related guiding plates, 25, 32, 40, 50, 65, 80, 100, 125totally 8sets.

DNActual IDWall thickness
(mm)		Width of s.s. strips(mm)Height of convolutionPitch distance
(mm)
DN3231.50.310075
DN4039.50.312586
DN5049.70.315787
DN6564.70.320498
DN8079.50.4251109
DN10099.50.53141110
DN125124.60.53931312
DN150149.40.64711515






Related machine

Tube Mill/Tube Welding Machine
Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^



Tubing Welding Machine
Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^
Elastomer hose making machine(for Ω metal hose)
Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^


Provide Machine Training for customers
Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^


 Customer Visiting

Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^



Machine Delivery&Package
Hydraulic Corrugated Pipe Hose Forming Machine, Annular Hose Making Equipment^






FAQ

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65

Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well


We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
