Good Price Door Frame Roll Forming Machines

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Certification：CE, ISO, Door Frame Roll Forming Machine
  • Condition：New

Base Info

  • Model NO.：door frame roll forming machine
  • Customized：Customized
  • Usage：Roof, Wall, Floor, Door Frame Roll Forming Machine
  • Transmission Method：Machinery
  • Color：Green
  • Control System：PLC
  • Rolller：High Grade 45# Steel
  • Froming Steps：13
  • Hydraulic Pump Station：4kw
  • Motor Power：5.5kw
  • Chain：1inch
  • Cutter：Cr12
  • Middle Plate：14mm
  • Shaft：75mm
  • Transport Package：Nude, Covered with Plastic Film
  • Specification：CE, SGS
  • Trademark：DIXIN
  • Origin：Botou, Hebei, China
  • HS Code：845522
  • Production Capacity：30 Sets,Month

Description

Basic Info.

Model NO. door frame roll forming machine Customized Customized Usage Roof, Wall, Floor, Door Frame Roll Forming Machine Transmission Method Machinery Color Green Control System PLC Rolller High Grade 45# Steel Froming Steps 13 Hydraulic Pump Station 4kw Motor Power 5.5kw Chain 1inch Cutter Cr12 Middle Plate 14mm Shaft 75mm Transport Package Nude, Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

2020 Hot sale new type good price door frame roll forming machines

We are a manufacture of roll forming machine. Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on. We also can design and produce machine according to customer's requirement.
Good Price Door Frame Roll Forming Machines


1. Components of this door frame forming machine
1.      Decoiler
2.      Coil sheet guiding and adjusting equipment
3.      Film covered device(optional)
4.      Main roll forming system
5.      Hydraulic pump station
6.      PLC control system
7.      Cutting device
8.      Run-out table

2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel

3. Technical Parameters:
Above all the parameters can be changed exactly according to customer's requirements.

1.Processing materialaluzinc/galvanized steel/colored steel coil
2.Material thicknessMax 1mm
3.Feeding width:As design

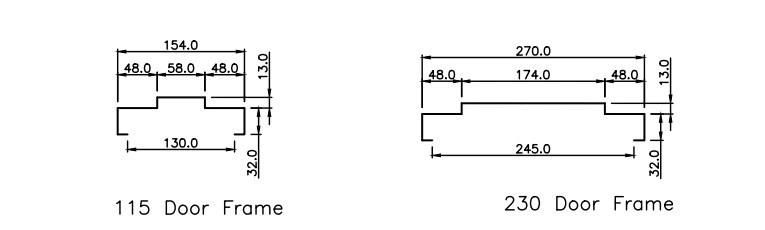

4.Effective width115mm
5.Main motor power7.5kw (Shanghai Lichao)
6.hydraulic pump power 5.5kw (Shanghai Lichao)
7. Shaft diameter70mm
8.Forming steps15steps
9.Main frame300H Steel frame
10. Side plate thickness16mm
11.Roller material45# forged steel, with hard chrome plating
12.Control systermDelta PLC control system with touch screen
13.Cutting blade materialCr12
14.Working speedAbout 10-12m/min
15. Transmission way1 inch chain drive
16. Machine size (mm)About 7200*800*1400mm
17. Machine weightAbout 2.5ton
18.Power supply380v,3phase,50hz or accodring to customer request

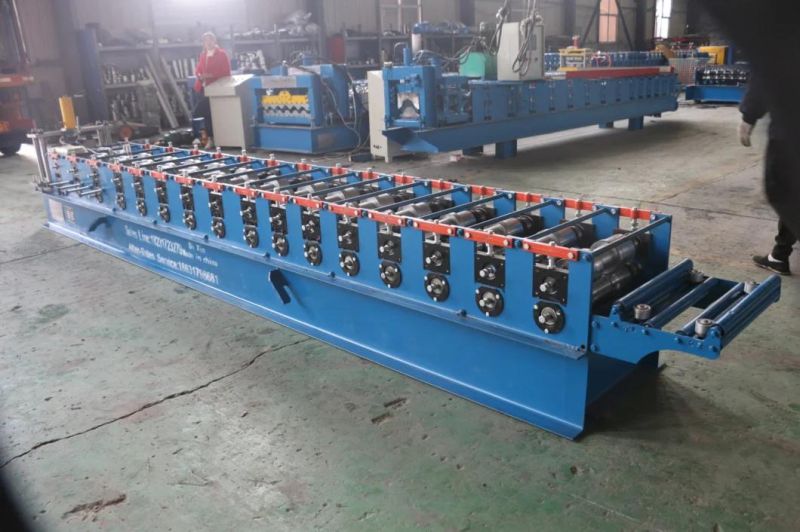

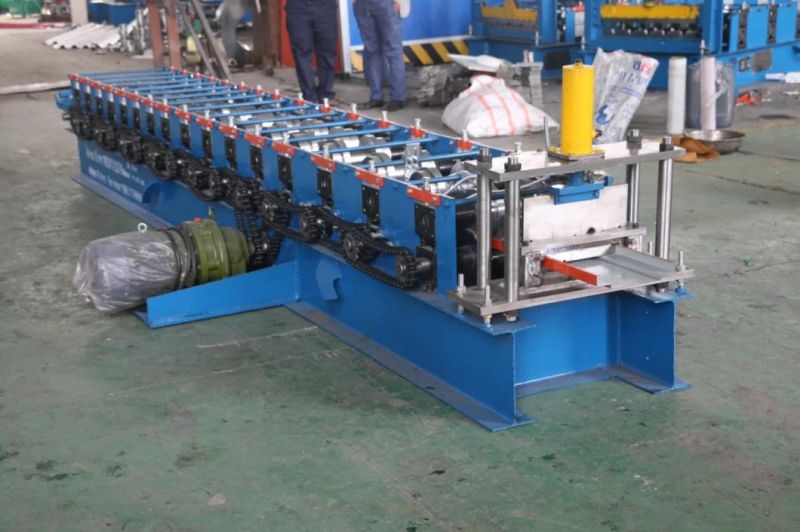

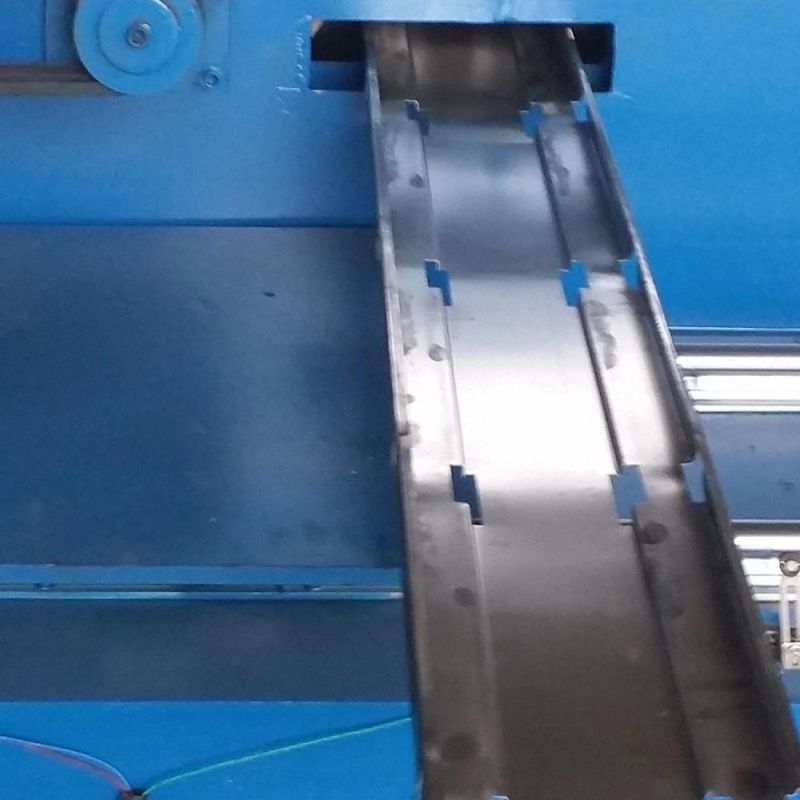

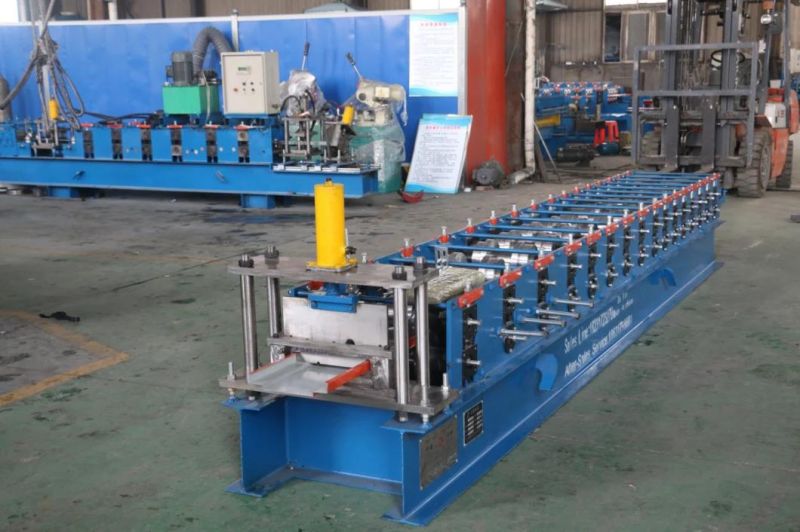

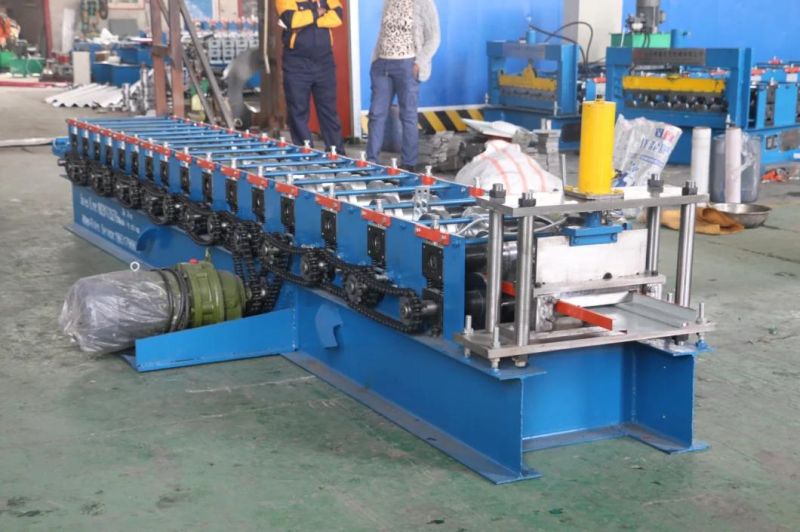

 4.Some machine pictures for your reference.
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines

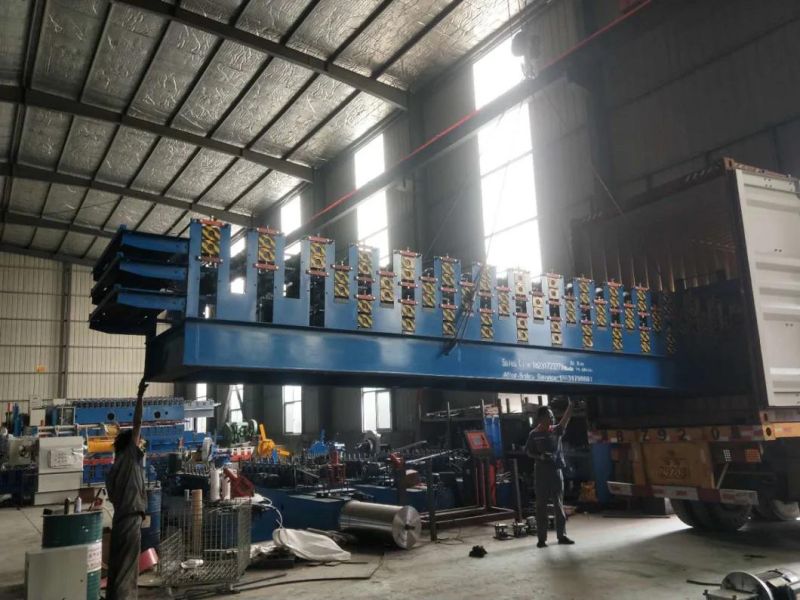

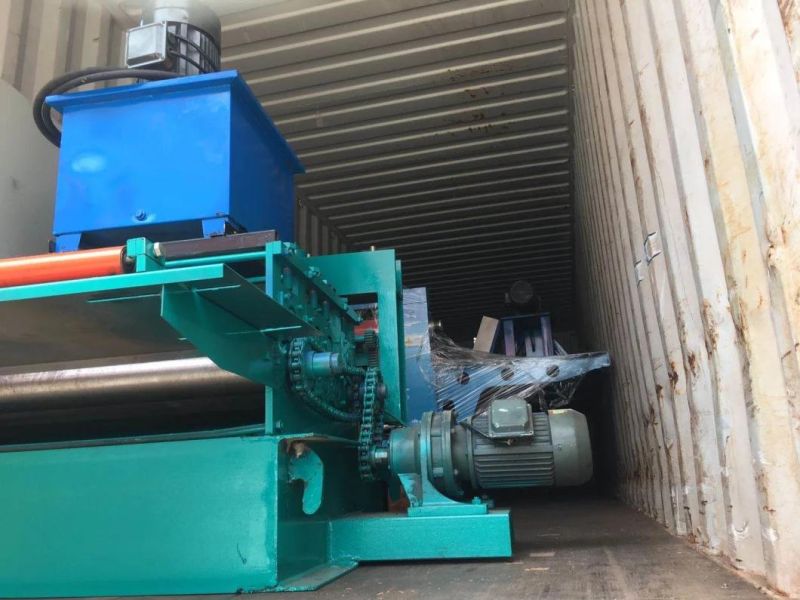

5.Packing and shipping details

1. PLC control system pump station,shafts and rollers are covered with plastic film,water-proof package.

2. Main body of roll forming machine is nude.

3. Spare parts are packed by carton box. Packages are according to customers' requirements.

    Fixed well by iron wire in container.
Good Price Door Frame Roll Forming Machines
Good Price Door Frame Roll Forming Machines


Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.



Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.



Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.



Q: What's your service ?

A: 1. We provide 1 year warranty for our customers.
    2. Any parts damaged because of quality problem will be changed for free within the first year.
    3. Technical support is provided for free in the whole life of the machine.
