• Model NO.：HLT
• Product Name：Corrugated Flexible Metal Hose Hydro Forming Machi
• Size：DN50-300mm
• Material Grade：300 Series
• No. of Layers：Single or Double
• Control：PLC Control
• Length：<7500mm
• Type of The Hose：Annular
• Forming Speed：5-10 Seconds Per Convolution
• Wall Thickness：DN0.3-1.5mm
• Pitch Distance：DN9-30mm
• Transport Package：Standard Seaworthy Package
• Specification：SGS, ISO, AISI
• Trademark：HLT
• Origin：Jiangsu, China
• HS Code：8447902000
• Production Capacity：100sets,Months

IDDN50DN65DN80DN100DN125DN150DN200DN250DN300Single wall thickness0.40.50.60.70.80.91.01.21.5Double layer wall thickness0.25*20.3*20.4*20.50X20.60X20.70X20.80X20.90X21.0X2Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Outer dimensions:15000*1100*1700Packing detailsPlywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union

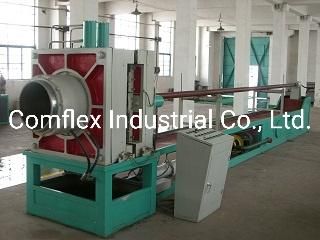

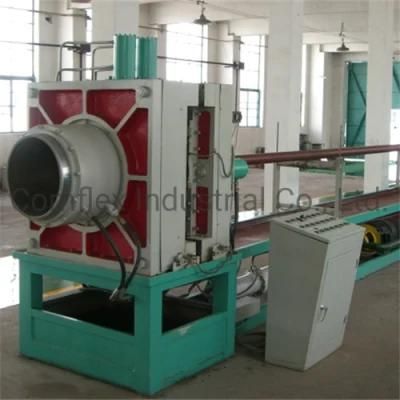

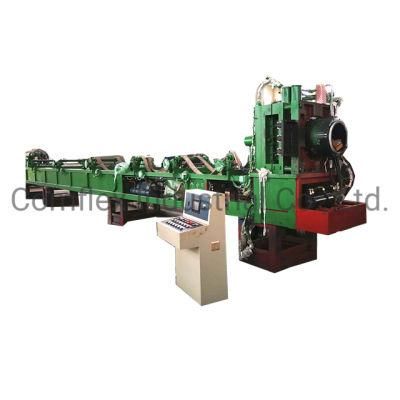

Picture of machine

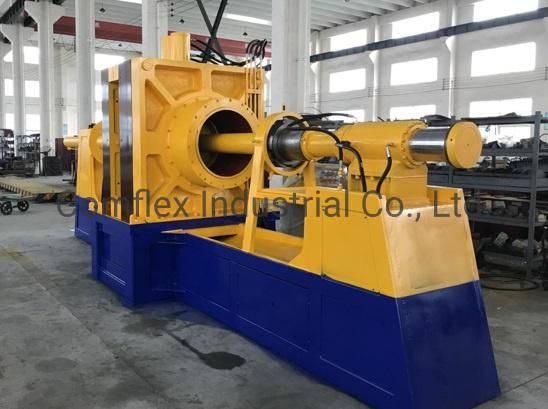

DN200- DN630

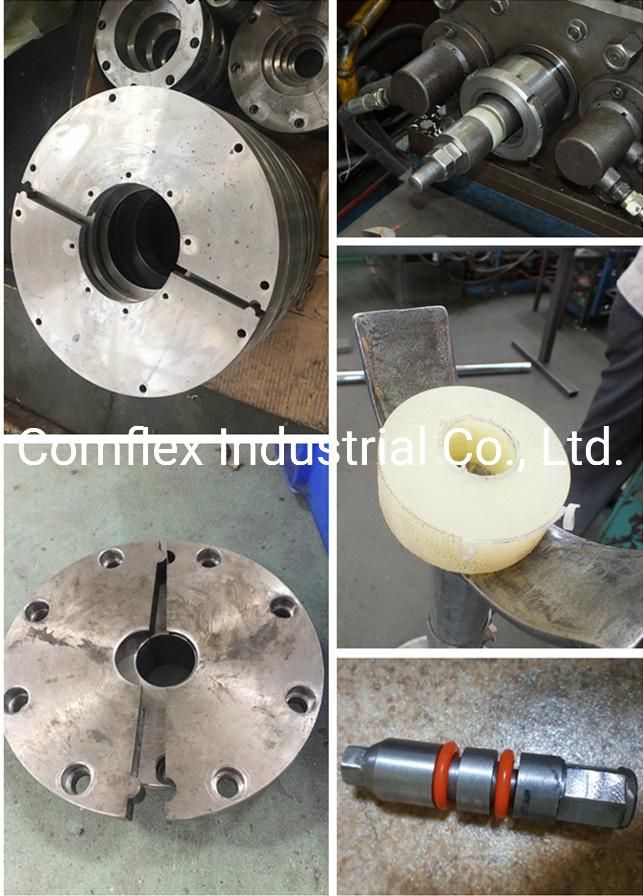

Spare Parts of Machine

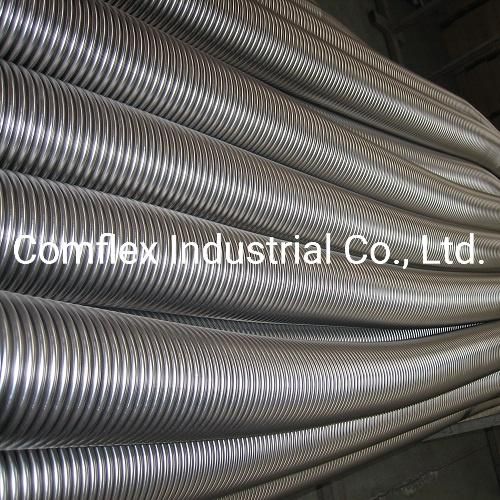

Products show


Our customers

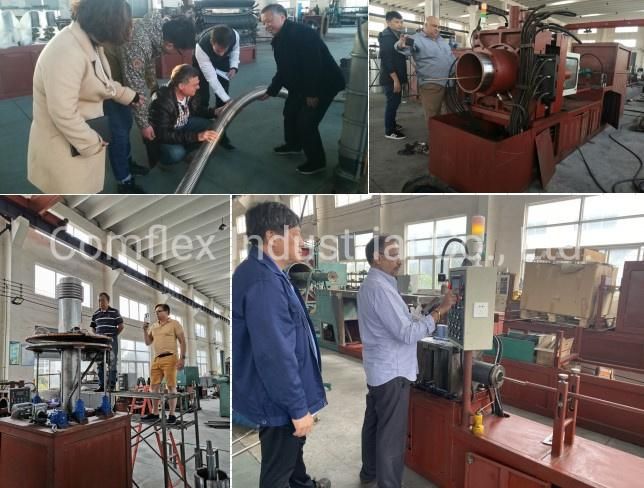

customers' visiting

Our Engineers install machines overseas

Related machines

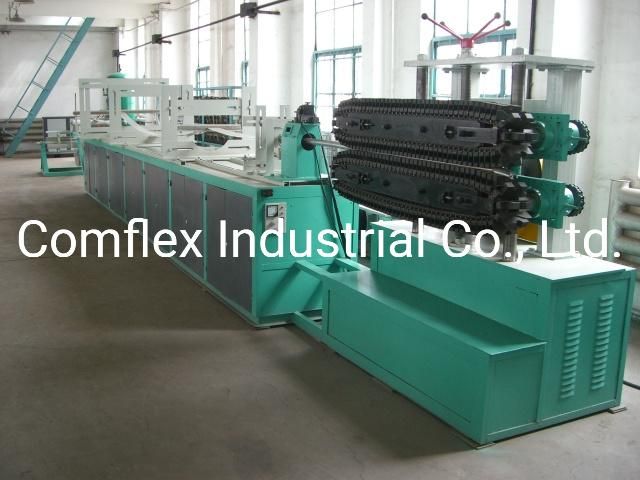

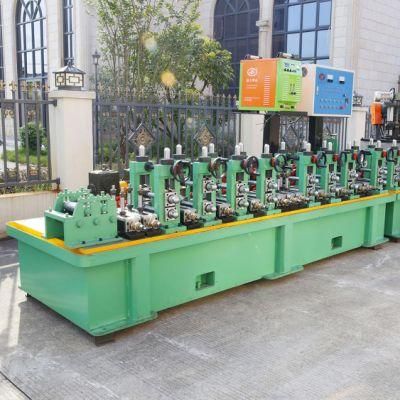

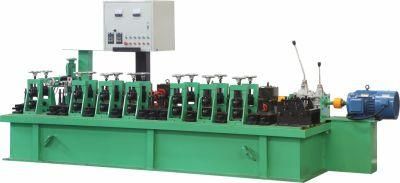

DN10-150 Tube welding machine
Wall thickness d³0.18mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit

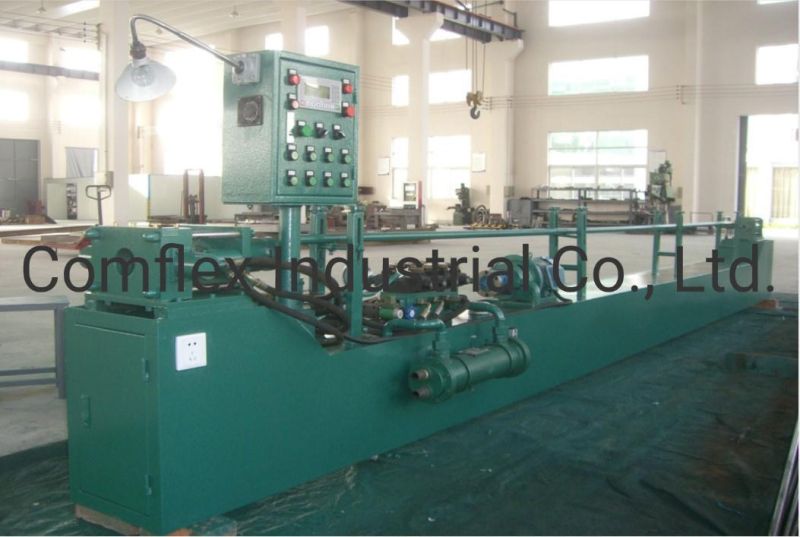

DN15-100 Elastomer forming metal hose making machine
Omega shape
1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic


Package



Company information
We are a professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose, chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on a different machine.


Our service
 Warranty period of one year
 standard seaworthy package
 Engineers available to service machinery oversea


FAQ for hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
     A: Hydraulic metal hose forming machine
     a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
     B: Mechanical hose making machine DN8-50mm
     C:PU/ Elastomer Metal Hose Making Machine
     a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
