• Model NO.：SYJW-1800
• CNC or Not：not CNC
• Voltage：380V
• Air Pressure：0.4~0.7MPa
• Air Consumption：80L,Min
• Input Voltage：380V 50~60Hz or as Customer Need
• Input Power：2*0. 75kw
• Cutting Range：320-1800mm
• Cutting Width：120mm
• Cutting Profile Height：29mm
• Overall Size：1900X700X1350 (mm)
• Weight：300kg
• Certificate：CE
• Transport Package：Film and Plywood Case
• Specification：1900x700x1350 (mm)
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：1000,Year

Basic Info.

Model NO. SYJW-1800 CNC or Not not CNC Voltage 380V Air Pressure 0.4~0.7MPa Air Consumption 80L/Min Input Voltage 380V 50~60Hz or as Customer Need Input Power 2*0. 75kw Cutting Range 320-1800mm Cutting Width 120mm Cutting Profile Height 29mm Overall Size 1900X700X1350 (mm) Weight 300kg Certificate CE Transport Package Film and Plywood Case Specification 1900x700x1350 (mm) Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

Feature
1. used for 45 ° glass glading bead cutting and the angle milling and cutting.
2. one time could cutting two pieces of glass glazing bead.

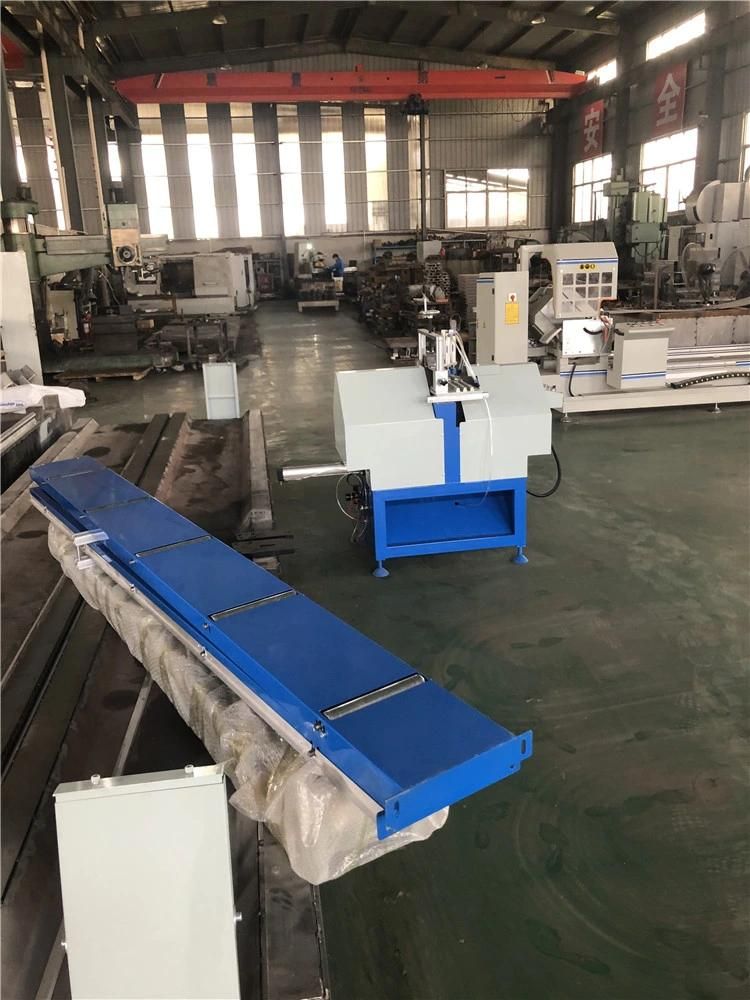

3. With measure rulers, It can processing the glazing bead according to the needed size in order to make sure the precision of the processing size and remove the fan frame assemby error.
4. 4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
5. Vertical clamping device and special designed cutting jig ensure stable positioning.
6. Furthermore, there is a tiny adjusting device, with which you can adjust the tihgtnesss degree after installing the glazing bead accordting to need.

Parameter
Air Pressure	0.4~0.7MPa
Air consumption	80L/min
Input Voltage	380V 50~60Hz or As Customer need
Input Power	2*0. 75Kw
Cutting range	320-1800mm
Cutting Width	120mm
Cutting profile height	29mm
Overall size	1900×700×1350 (mm)
Weight	300kg



Main accessory
Saw blade	Uniken
Solenoid valve	Airtec
Cylinder	Huatong
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC
Electrical Button and Switcher	Schneider
AC Contactor	Schneider



Standard accessory
Saw blade	1pcs
Measuring Rod &Machine support holder	1PCS
Complete tooling	1set
Certificate	1pc
