• Model NO.：SZG-30,40,50,60,80,100,120
• Product Name：Welding Steel Tube Mill Industrial Pipe Makin
• Main Voltage：220,380,415,420,440V
• Pipe Diameter：12.7-50.8mm
• Thickness：0.5mm-3.0mm
• Capacity：3-15m,Min
• Horizontal Roller：50mm
• Vertical Roller：40mm
• Color：Blue, Green, Grey, White or at Your Request.
• Roller Material：42CrMo
• Certification：ISO9001
• After-Sales Service：Installation, Commissioning and Staff Training.
• Warranity：1 Year
• Use Life：20 Years
• Production Line Direction：Customized
• Tolerance for Length：1mm,6m
• Transport Package：Water Proof Film, Box and Pallet
• Specification：Customized
• Trademark：SEKO
• Origin：China
• HS Code：8455102000
• Production Capacity：50 Sets Per Year

Basic Info.

Model NO. SZG-30/40/50/60/80/100/120 Product Name Welding Steel Tube Mill Industrial Pipe Makin Main Voltage 220/380/415/420/440V Pipe Diameter 12.7-50.8mm Thickness 0.5mm-3.0mm Capacity 3-15m/Min Horizontal Roller 50mm Vertical Roller 40mm Color Blue, Green, Grey, White or at Your Request. Roller Material 42CrMo Certification ISO9001 After-Sales Service Installation, Commissioning and Staff Training. Warranity 1 Year Use Life 20 Years Production Line Direction Customized Tolerance for Length 1mm/6m Transport Package Water Proof Film, Box and Pallet Specification Customized Trademark SEKO Origin China HS Code 8455102000 Production Capacity 50 Sets Per Year

Product Description

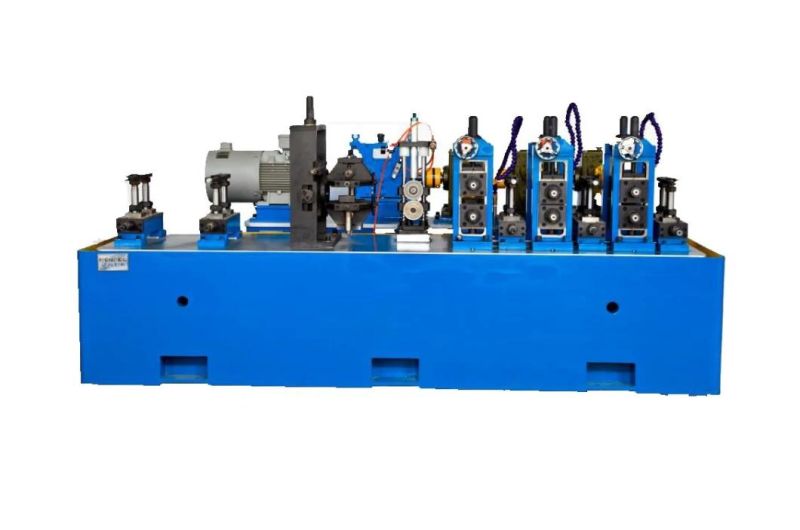

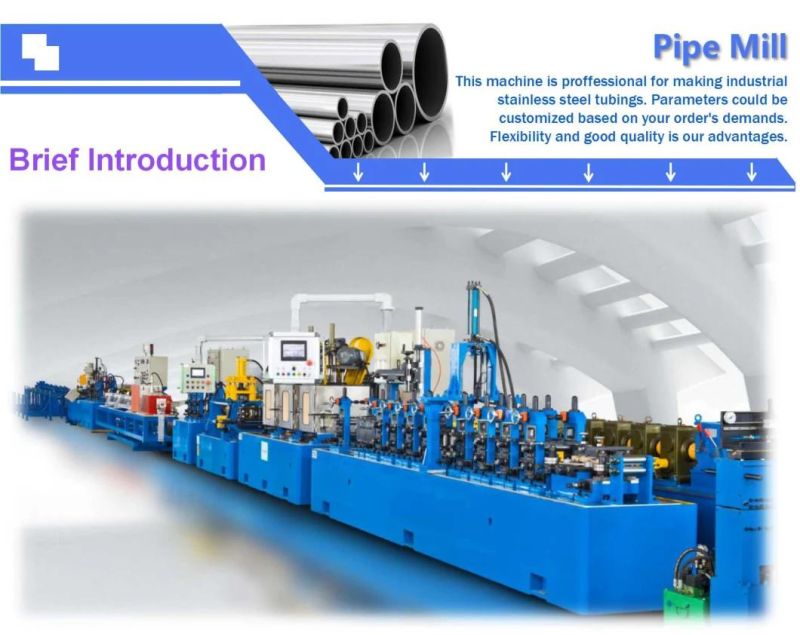

Precision Bright Annealing Stainless Steel Tube Welding Machine

Type	Material	Welding type	O.D. (mm)	Thickness (mm)	Capacity (m/min)	Motor Power (KW)
SZG-GS-30	SST	TIG	6-16	0.4-1.5	1.5-7	5.5
SZG-GS-40	SST	TIG	16-50.8	0.5-2.5	3-6	7.5
SZG-GS-50	SST	TIG	25.4-76	0.5-3.0	2-5	11
SZG-GS-60	SST	TIG	50.8-114	1.0-4.0	0.5-3	15
SZG-GS-80	SST	TIG	89-168	1.0-5.0	0.5-2	18.5
SZG-GS-100	SST	TIG	114-219	2.0-8.0	0.5-1.5	30
SZG-GS-120	SST	TIG	168-325	3.0-10.0	0.5-1.0	37

√ ISO9001 Certificate Approval

√ 20-year Industry Professional Experiences

√ Customer Oriented Technology Team

√ Timely Response After-sales Backup

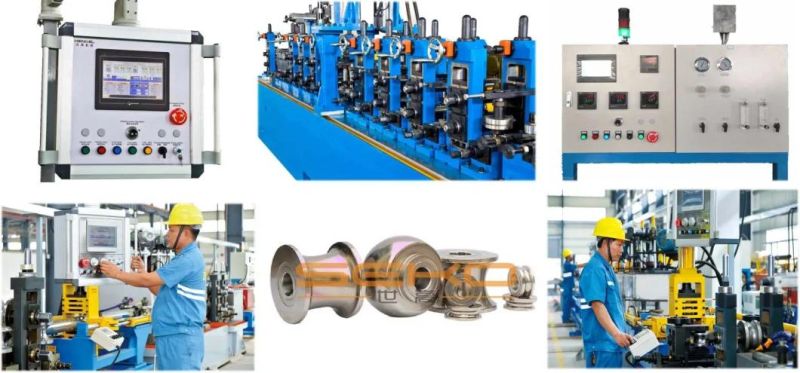

√ CNC Processing Finishing Rollers
Guangdong Shunde Seko Machinery Co., Ltd. is a manufacturer, specializing in industrial stainless steel pipe making machine, on-line bright annealing machine, weld bead rolling machine, steel pipe polishing machine and other tube mill components. With more than 20-year experience, we integrates designa, development, manufacture, after-sale service and other supporting service. Many top manufacturers like Jiuli, Wujin, Sanhua, USA Plymouth, India Pennar and etc., have become our partner. Our items are exported to Dubai, Russia, India, Thailand, Pakistan, Vietnam and ect..

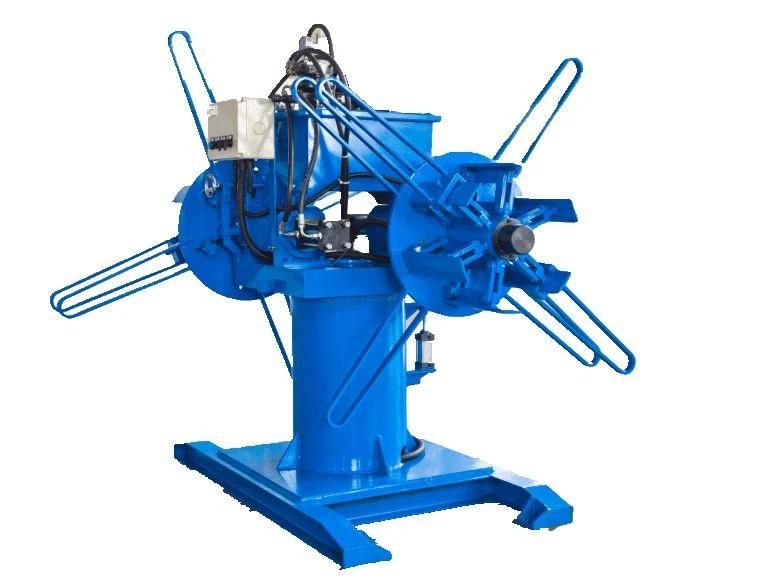

Uncoiler (1050*1320MM)

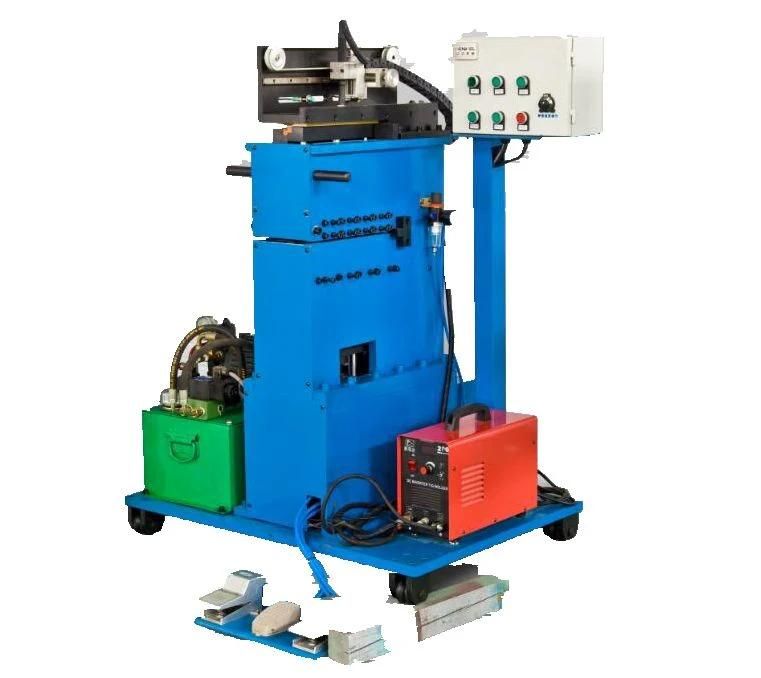

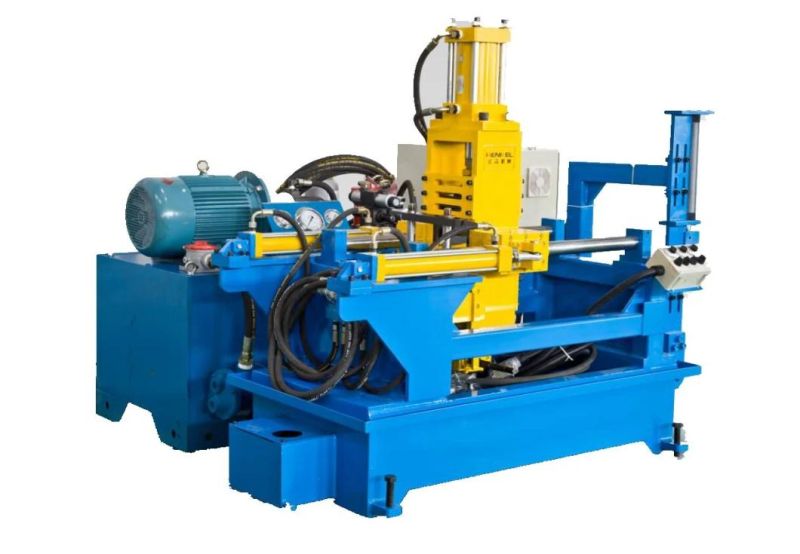

End Cutting and Butt Welding

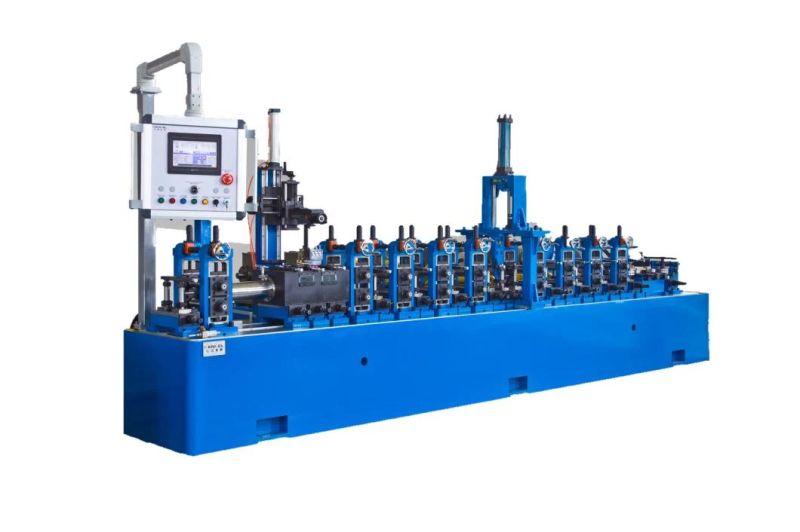

Forming and Welding Section (4800*1400MM)

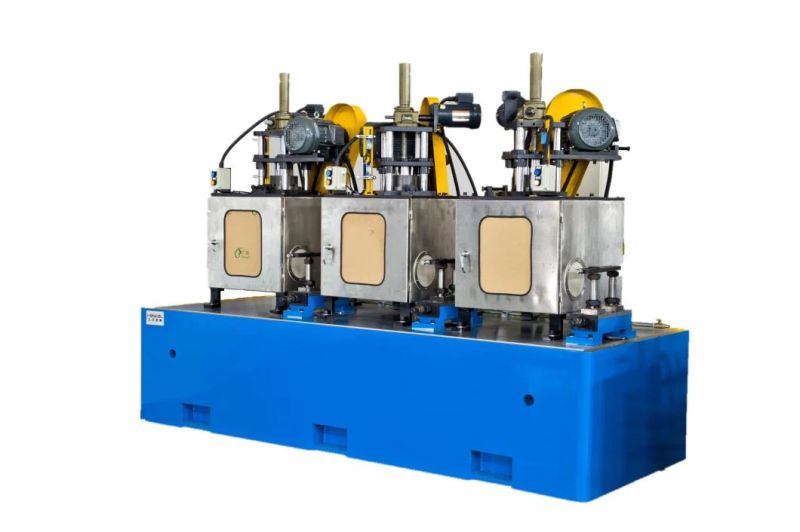

Wedling Seam Gringding Machine (2800*1400MM)




Weld Bead Rolling Machine (1870*900MM)

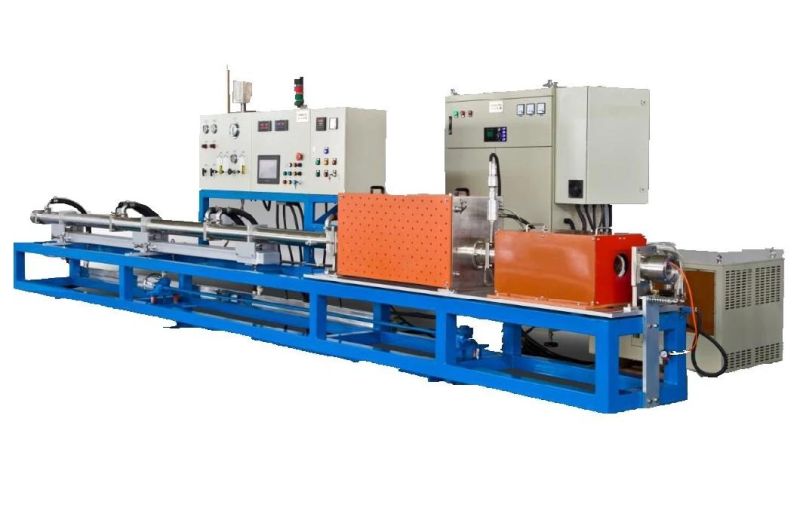

On-line Protective Atmosphere Bright Annealing Machine (6500*800MM)

Final Sizing Section (2200*1470MM)

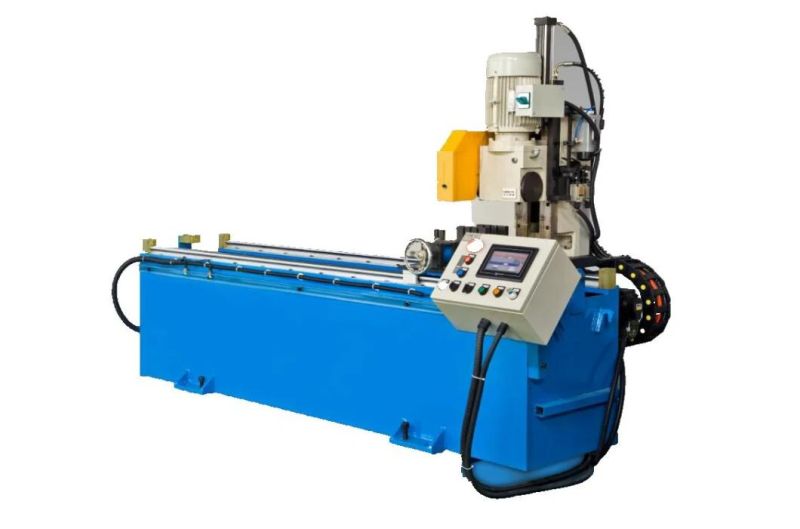

Saw Cutting (1780*880MM)


Our Features: Efficiency, Anti-corrosion, Experienced, Team-working

1. Intelligent digital control system to save long term consumption.
2. HMI system to get flexible operation.
3. Powerful database processing and tracking.
3. Self developed IGBT system.
4. Customization.



Efficiency

  1. Using electromagnetic control system to correct the arc trajectory, improving working speed at least 25% higher and guaranteeing the welding seam quality. The speed could reach up to 8-10 m/min for the TIG welding with excellent welding seam.

  2. Servo motor diriven weld bead rolling machine could be optional. It not only speed up the efficiency, but also save the consumption and factory's room, without hydraulic stations.

Automation

  Labor costs saving. One person could monitor 2 production lines in the meanwhile. Our self developed PLC control system could cordinate every section automatically. With HMI touching screen, you could use it easily.

Anti-corrossion

   High quality rollers are made of material SKD11, with vacumm gas quenching. Hardness reaches up to 64-66, with CNC high precision processing.

Accuracy

   Precise CNC processing could ensure the smooth surface with less scratch happenning when forming. Accurate size could controle the tolerance at the range of ±0.5-1.0 mm.

   Visible design of micro adjusting device of roller's lifting, making roller replacement higher operability.







Intergrated services:

  1. Offer reasonable investment plan, reconmmend the appropriate models based on actual maket situation.

  2. Offer layout of production line based on customer plant's drawings.

  3. Offer the base drawings required for installation.

  4. Offer machine's installation and commissioning by sending technicians, until machines operates normally.

  5. Offer professional training, until the buyer's operator command machine's operation.

  6. Offer and coordinate auxiliary components, accessories, and spare parts.

  7. The warranty is 1 year long, excluded situation of human-damage. If you have any question about machine operating, just contact us via mails or phone call, we will solve the problem for you immediately.



FAQ
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.

2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3.How to install your machine?
Usually speaking, engineers will be sent to your factory to help to install and adjust the machines. We also have paper installation instructions and videos, teaching you till you command it.

4. Which export port you use?
Any China ports. Commonly, we will use Shenzhen port. But it can be appointed as you like.

5. How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 40% deposit, 60% before shipment (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The machine delivery time is within 45-90 days.

6.Is your goods with ISO9001 or CE certificate ?
Yes, all our goods has ISO certificate. All machines are high quality goods.

7.What is your nature of your company:dealer or factory ?
We are manufacturer with a big factory ,warmly welcome to visit our factory and contact us.
