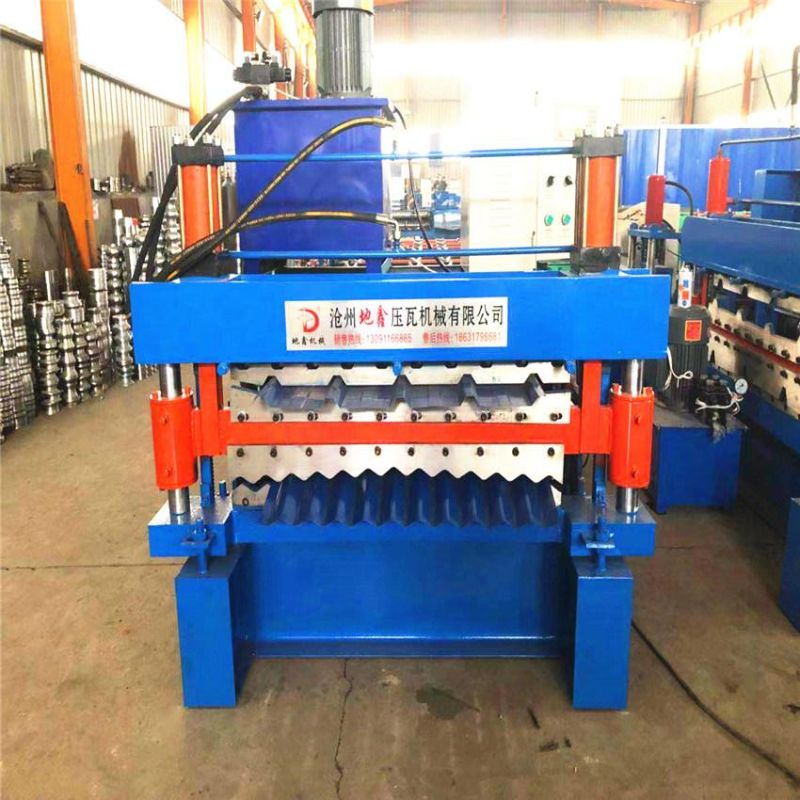

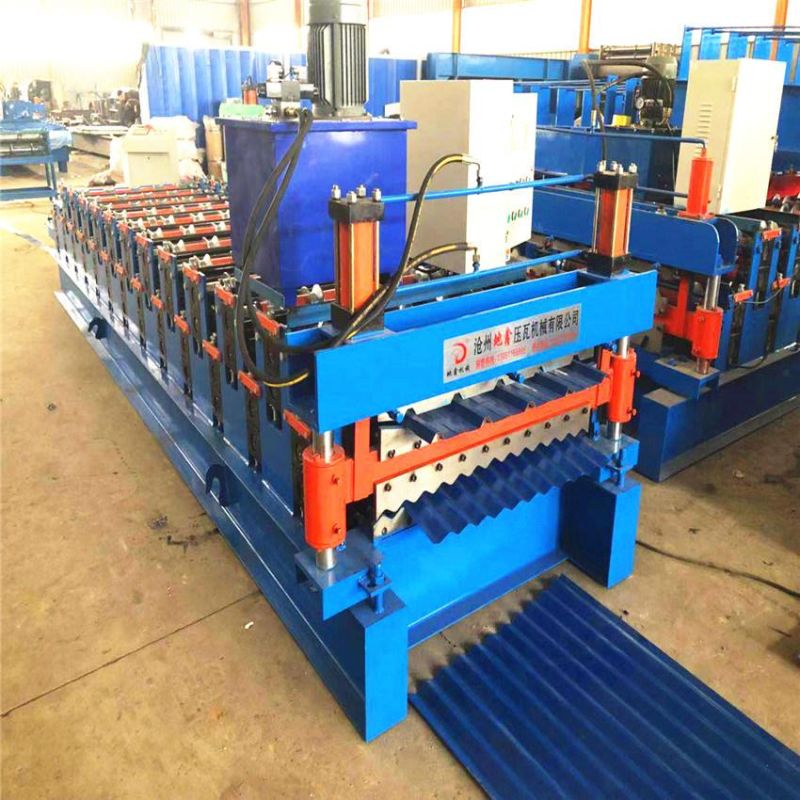

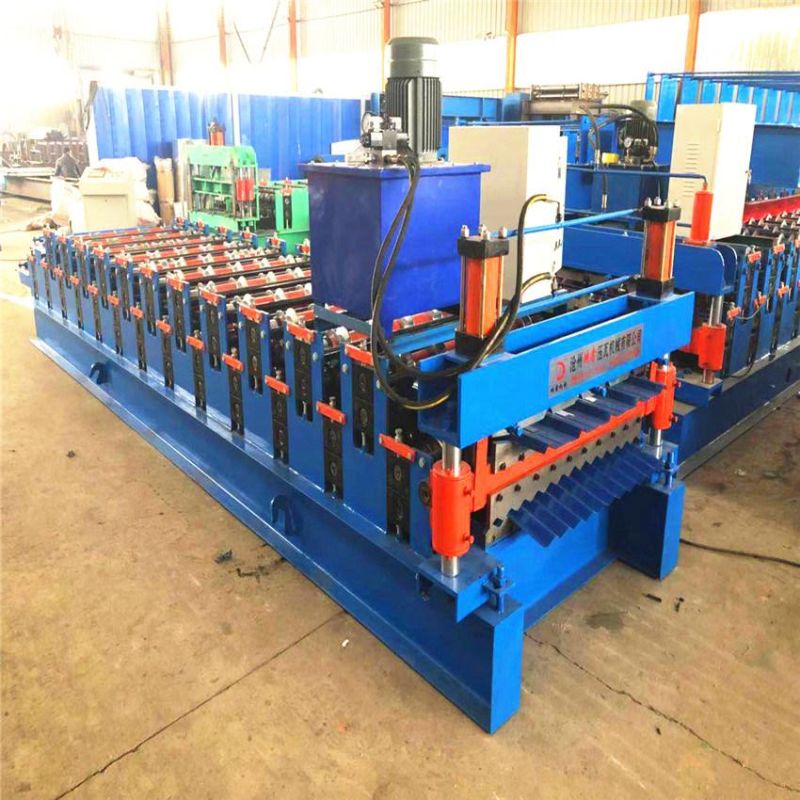

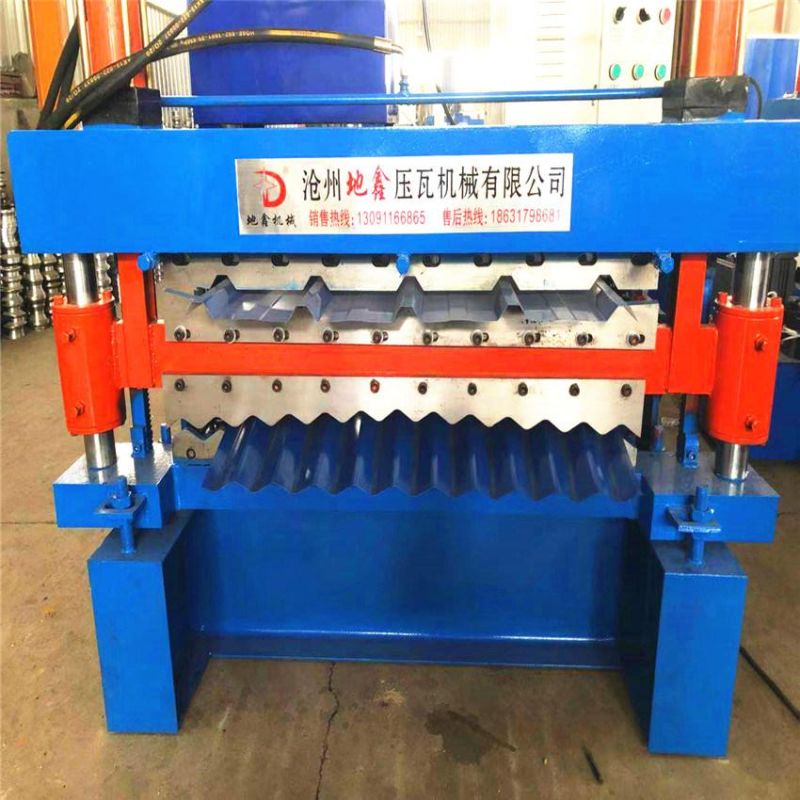

Metal Roofing Sheet Double Layer Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Warranty：2 Years
- Tile Type：Colored Steel
- Certification：CE, ISO, ISO9001: 2000, CE, SGS
- Condition：New
- Customized：Customized
- Usage：Roof, Wall, Floor
Base Info
- Model NO.：1000,1000
- Transmission Method：Machinery
- Effective Width：840mm&860mm
- Feeding Width：1000mm
- Main Motor Power：4 Kw
- Type：Roll Forming Machine
- Method：Roll Forming Machine
- Processing：Roll Forming Machine
- Product：Steel
- Brick Raw Material：Steel
- Automation：Automatic
- Transport Package：No
- Specification：CE
- Trademark：DIXIN
- Origin：Cangzhou City, Hebei Province, China
- HS Code：84552210
- Production Capacity：20 Sets Per Month
Description
Technical Parameters (some depend on the final design)
1
Style
2
Machine dimension
7500*1600*1650mm
3
Total wight
5800kgs
4
Forming steps
Up layer :11rows Down layer :13rows
5
Forming speed
Glazed design :1.5-3.0m/min Wave design:10-15m/min
6
Hydraulic station power(Kw)
4kw
7
Diameter of shaft
70mm
8
Hydraulic pressure
18-20 MPa
9
Electric condition(Voltage )
380V/3Phase/ 50HZ (or based on customer's need ,for example :220V 440V 415V or 2Phase 60HZ )
10
Suitable to process
Color steel plate(G330 or G350 ) galvanized steel coil
11
Manual uncoiler max capacity
5000kgs
12
Control system
PLC
13
Raw material thickness
0.3-0.8mm
14
Effective width
800mm and 836mm
15
Material width
1000mm and 1000mm
16
Main motor
17
Material of the cutting blade
Main Shaft Material
2.Components of glazed roof tile double layer roof sheet roll forming machine
If you are interested in the double layer roll forming machine,welcome to contact me directly
