Corrugated Roof Sheet Roll Forming Machine/Sheet Metal Roll Forming Machines

Cangzhou Dixin Roll Forming Machine Co., Ltd.

After-sales Service：Yes
Warranty：Yes
Tile Type：Colored Steel
Certification：CE, ISO
Condition：New
Customized：Customized

Base Info

Model NO.：DX850
Usage：Roof, Wall, Floor
Transmission Method：Hydraulic Pressure
Mode：Metal Roofing Tiles Roll Forming Machines
Auto：Fully Automatic
Feeding Material：Metal Coil
Feeding Width：1000mm
Feeding Thickness：0.25-0.7mm Thickness
Production Speed：10-15,Min
Roll Forming Speed：8-12m,Min
Control system：PLC Computer Control with Inverter
Size：6500mm*1500mm*1500mm
Weight：2.5 Tons
Transport Package：Waterproof Package
Specification：CE SGS ISO
Trademark：DIXIN
Origin：China, Hebei
HS Code：84552210
Production Capacity：10 Sets Per Month

Description

Item.Parameters(we can design accoding to customer requirement)Control SystemPLC Delta InverterDiameter of the shaft70mmWall panel thickness16mmDriving modeChain 1 inch Main motor power4 kwHydraulicPressure12-16MPaRoller stations16 rowsPump power4 kwMain electrical control systemPanasonic PLC, Delta frequency changer, Delta touch screen, Omron counterFrame Welded with 350H section steel

Packaging Details: main machine is naked and the computer control box is packed by carton box

Delivery Detail: 30 days after receiving the deposit

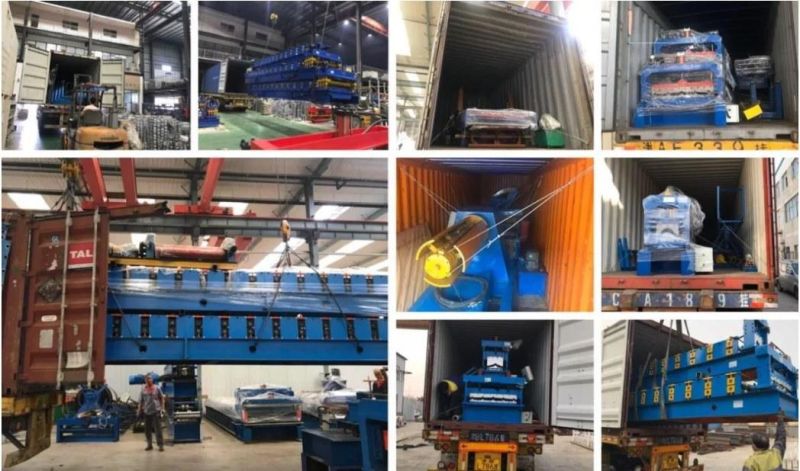

Transportation : Machines need one 40 feet container to hold

Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you
