Curtain Wall Making Machine/Aluminum Curtain Wall Automatic Milling Machine
JINAN MAG GROUP CO., LTD.- After-sales Service:Available
- Warranty:12 Months
- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
Base Info
- Model NO.:LXD-250
- Voltage:380V
- Input Power:3X2.2kw
- Motor Rotary Speed:2800 Rmp
- Working Air Pressure:0.5-0.8 MPa
- Max Open Tenon:40mm
- Cutter Adjustment:0-85mm
- Blade Specification:250mm
- Workable Journey:0-1050mm
- Transport Package:Plywood Case
- Specification:Machine size: 2240x970x1670mm
- Trademark:MAG
- Origin:Jinan
- HS Code:84752990
- Production Capacity:500,Year
Description
Basic Info.
Model NO. LXD-250 Voltage 380V Input Power 3X2.2kw Motor Rotary Speed 2800 Rmp Working Air Pressure 0.5-0.8 MPa Max Open Tenon 40mm Cutter Adjustment 0-85mm Blade Specification 250mm Workable Journey 0-1050mm Transport Package Plywood Case Specification Machine size: 2240x970x1670mm Trademark MAG Origin Jinan HS Code 84752990 Production Capacity 500/YearProduct Description

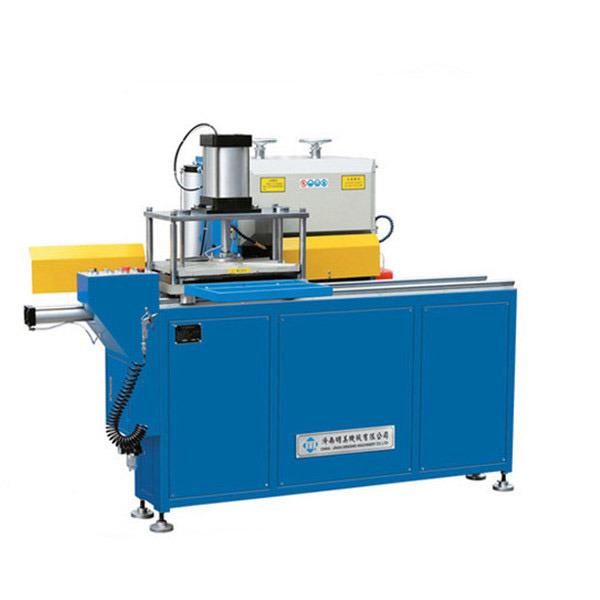

Aluminum Curtain Wall Profile tenon milling machineMain features
1) Used for aluminum profile end processing and suitable for various profiles.
2) Clamp one time can process multi-piece profiles, which increases the processing efficiency.
3) Convenient tool adjustment to meet different processing requirement.
4) Need not ordering tools when process various profiles, thus can decrease cost and save time.
5) Large tool diameter, high milling speed and good processing result.
6) Our machine is specially designed with safe guards, and they clip the profiles tight, even when electricity is cut off suddenly, so it can ensure the operators' safety.
Main technical parameters
Brand | Mingmei |
Model | LXD-250 |
Input Voltage | 80V 50Hz (three-phase, four-wire) |
Input Power | 3*2.2KW |
Rotary Speed | 2840r/min |
Air pressure | 0.5MPa~0.8Mpa |
Saw Blade Specification | φ250mm×32mm |
Max open tenon | 40mm |
Cutter adjustment | 85mm |
Worktable journey | 0-1050mm |
Saw cutting(w*h) | 100*40mm |
Overall Dimension | 2400mm×1250mm×1900mm |
Weight | about 820kg |
Diameter of milling cutter | 250mm |
Roughness of cutting surface | Ra 12.5 µm |
Packing and loading
Certificate:
About us:
Clients come to visit us:
