• Model NO.：QT12-15
• Main Vibration Form：Platform Vibration
• Pallet Size：1300*900mm
• Cycle Time：15-20s
• Host Machine Matched Power：44kw
• Rated Pressure：21MPa
• After-Sales Service Provided：Engineers Available to Service
• Brick Raw Material：Concrete
• Transport Package：Suitable for Sea Transport
• Specification：9350*2520*2950mm
• Trademark：Raytone machinery
• Origin：Shandong, China (Mainland)
• HS Code：8474802000
• Production Capacity：50 Set,Sets Per Month

Basic Info.

Model NO. QT12-15 Main Vibration Form Platform Vibration Pallet Size 1300*900mm Cycle Time 15-20s Host Machine Matched Power 44kw Rated Pressure 21MPa After-Sales Service Provided Engineers Available to Service Brick Raw Material Concrete Transport Package Suitable for Sea Transport Specification 9350*2520*2950mm Trademark Raytone machinery Origin Shandong, China (Mainland) HS Code 8474802000 Production Capacity 50 Set/Sets Per Month

Product Description

                                 QT12-15 AUTOMATIC BLOCK MACHINE INTRODUCTION
1.QT12-15 Fully Automatic Block Making Machine Generally Description
QT12-15 Fully Automatic Block Making Machine is with advanced design and technology. It has the biggest block Productivity for now, the block machine is quipped with big power motors to give high pressure on the blocks, so strength blocks and bricks, so the block quality is excellent.
QT12-15 full automatic brick Machine productivity: 23040 pieces of 8 inch hollow blocks per day;

1. QT12-15 Automatic Brick Machine line Basic requirements

The following information for the QT12-15 brick machine is theoretically for reference, the real site production data may be small different as per different raw materials etc.

land area	2500-6500 Square Meters	Water Consumption	14.4 T/day
Workshop area	200 Square Meters	Electricity Voltage &Frequency	220V/380V/415V; 50HZ/60HZ
Labors Quantity	6 workers	Power Consumption	125.2KW*8 Hours= 1001.6KWH;
Cement Consumption	37.8 Tons per day	Sand consumption	151.2 tons per day
		Crushed stones consumption	187.2 tons per day

3.Detailed Introduction of each single machine from QT12-15 fully Automatic block making machine
(1) 100 Tons Cement Silo for QT12-15 Full automatic block making machine plant

Capacity:	100T	tank height	9.6M
tank diameter	3.0M	cone height	2.5M
leg height	2M	total Height	15.1M

Some country may only have the cement in bags, not having bulk cement, so the cement silo is optional equipment. And for countries have bulk cement, the client can choose one or two sets cement silo as per their daily block capacity.

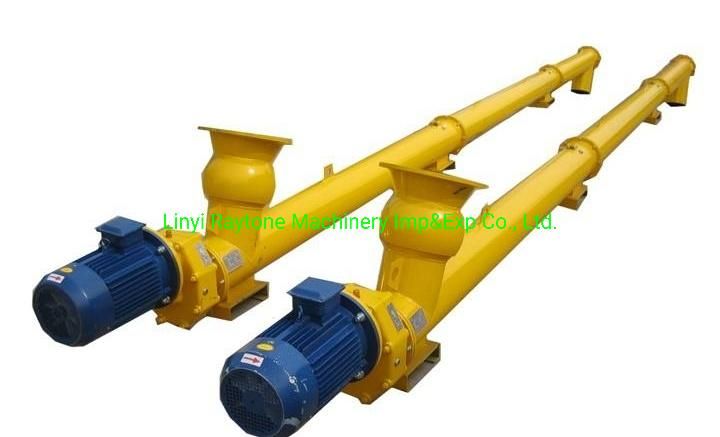

(2) 8 meters Length cement screwing machine for QT12-15 full automatic block machine

Length : 8 Meters, Power: 11KW; the diameter: 219mm
or Length: 6 Meters, Power: 7.5KW; the diameter: 219mm
The cement screwing machine is used to screw the cement
from cement silo to the cement scale, which is installed on
the JS750 concrete mixer;


1.  cement scale for QT12-15 full automatic block machine

The cement scale is installed on the concrete mixer, it can weigh 150KG per batch, after weighing, the cement is discharged into concrete mixer directly, this will make the proportion accurate

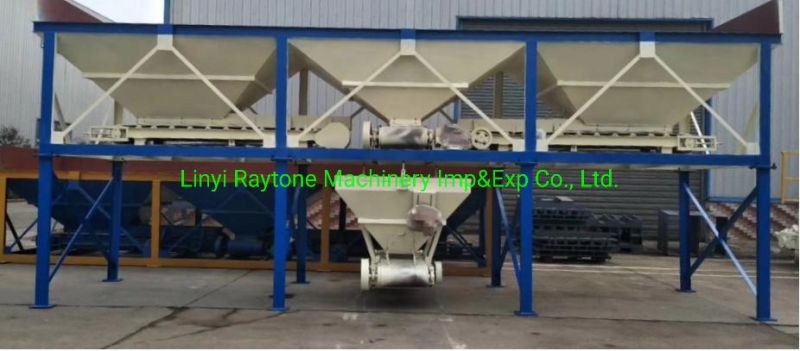

(4) PLD1200 three hopper batching machine for QT12-15 full automatic block machine

Weighing Volume	1.2CBM	Productivity	60M3/H
Maximum weighing	2000KG	Storing Volume	2.2CBM*3
Feeding height	2800MM	Aggregate types	3 types
Batching accurancy	±2%	Belt conveying speed	1.25m/s
power	3kw*4	Dimension:	8830*2100*3300mm
Machine weight	4000kg

(5) 7 meters length fast belt conveying machine for QT12-15 full automatic block machine
Length: 7000mm; width: 500mm, power: 2.2KW; cycloidal needle wheel type motor;

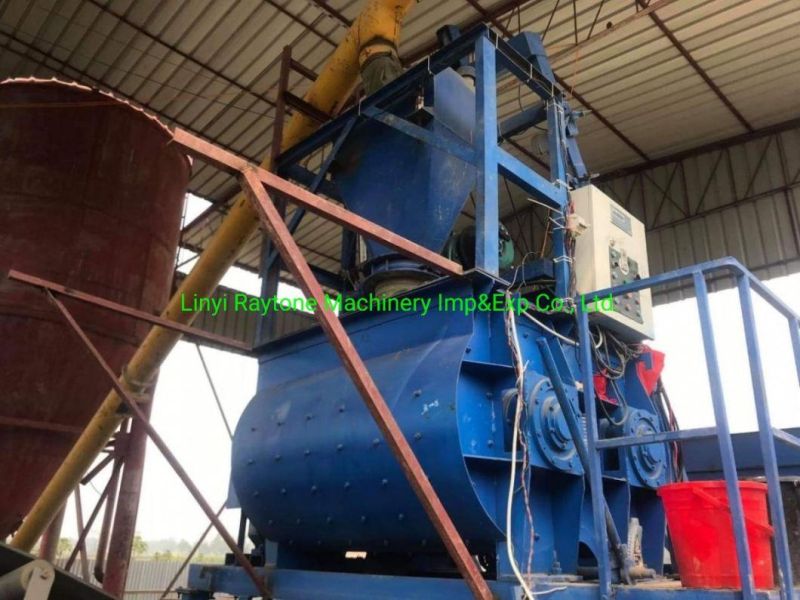

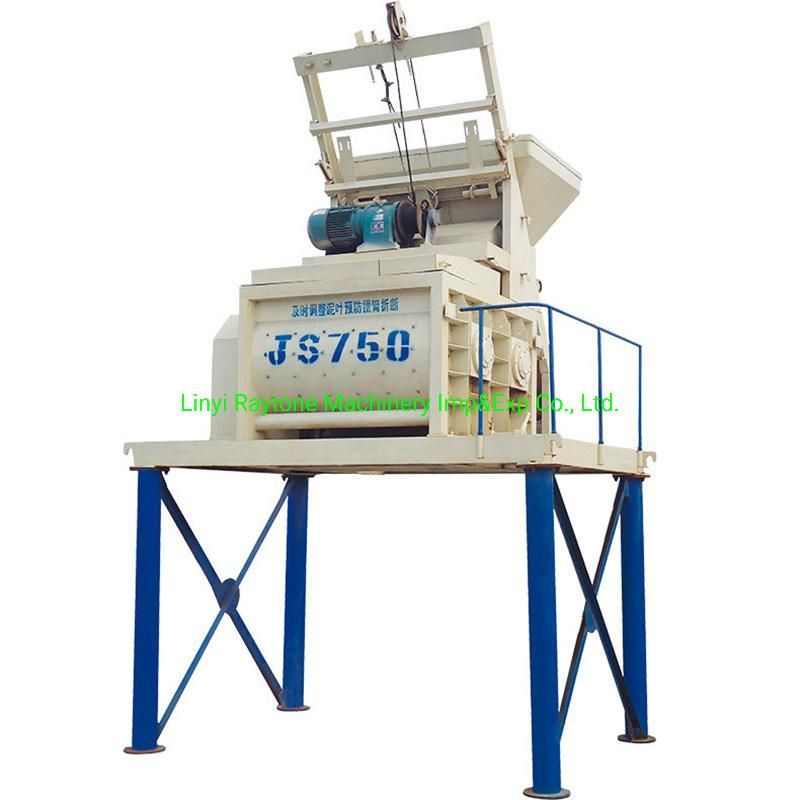

(6)JS750 Concrete Mixer for QT12-15 automatic brick machine

Charging Volume	1200L	Discharging Volume	750L
Aggregate Size:	≤60/80mm	Capacity	35 Cubic meters/hour
Working Circle	60S	Mixing Speed	35R/M
pump motor	1.1kw	Mixing Blade	2*8
mixing motor	30KW	Dimension	4550*2250*2450mm
Machine weight	5500kg

There are two models of JS750 concrete mixer,
 one is with elevator hopper, the other one is without
 elevator hopper, the JS750 concrete mixer without
 elevator is using fast belt conveying machine to
feed raw materials into the mixer;

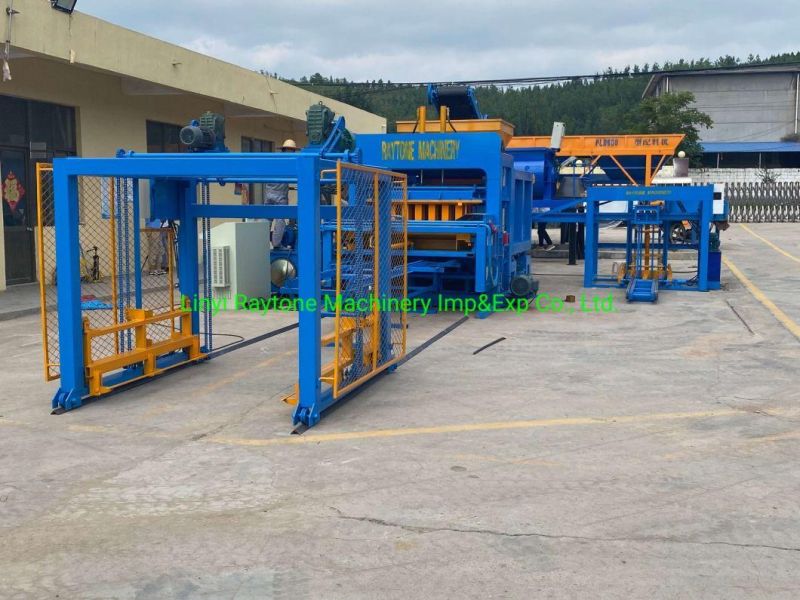

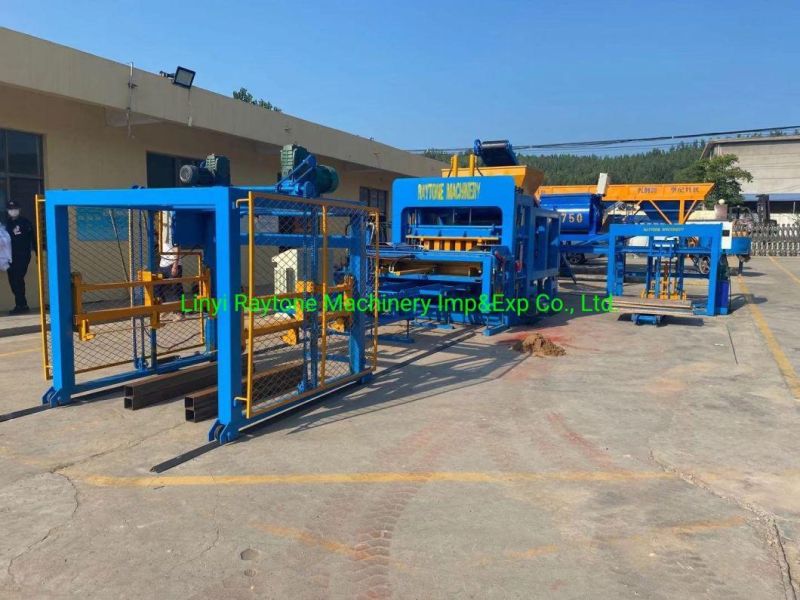

(7) Host QT12-15 Big Automatic Block Machine
<1> The main parameters of QT12-15 big Automatic block machine

Dimension of host machine	9400*3060*2980mm	water Consumption	14T/day
Weight of the host machine	12.5T	Voltage	customized
Moulding period	12-20S	Total required machine power	107.8
pallet size	1400*900*30mm	Diesel Genset capacity	120KVA
Vibration force	100KN	workshop area	250-300 m2
labour	3	Land Area	2500-6500 m2

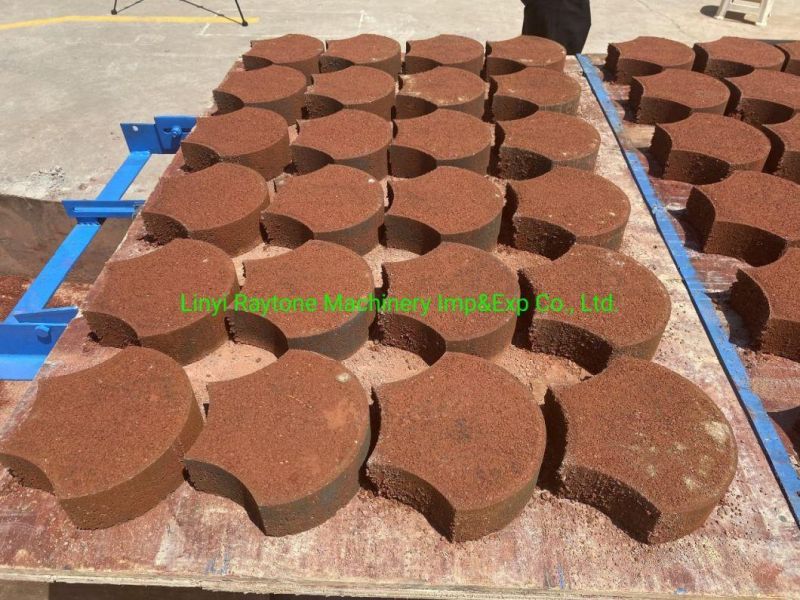

(8) GMT brick Pallets for QT12-15 automatic brick machine

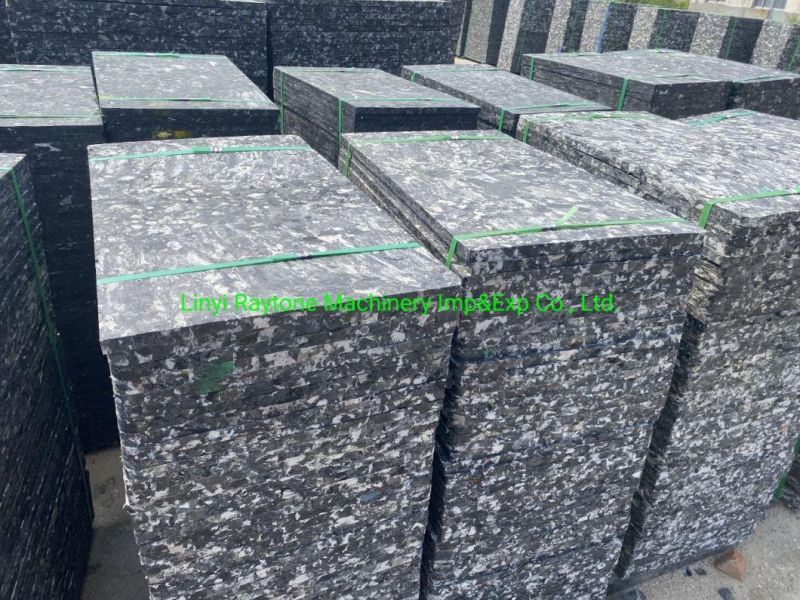

The GMT block pallet is made from the leftovers of car inner roof decorations, seats and some adhesive etc. It is like PVC brick pallet , but better performance and cheap cost than PVC brick pallet, it is strong enough for block machine, life can be 6-8 years.

9.Why choose our block machine?
(1) For the steel raw materials , our block machine is buying from China standard big steel factory to guarantee the raw materials quality first.
(2) For the welding, our block machine manufacture workers are very experienced and skilled. They have many years work experience in brick machine making.
(3) For the PLC control panel, client can choose Germany Siemens brand, the hydraulic electromagnetic valves, our block machine provides standard Taiwan CLYCA brand, but client can choose Japan YUKEN brand for optional, also for the sensor, our block machine is using Japan Omron brand;

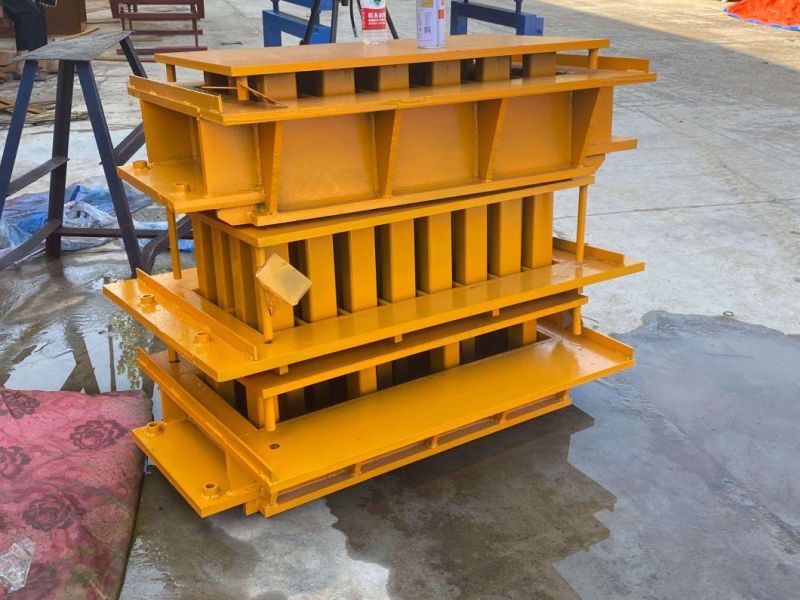

(4) our block machine is using high manganese steel for block moulds, and strictly via Linear cutting , carbonized and heat treatment procedures, to make sure the block mould is with enough hardness for long life.
(5) our block machine design is advanced by reasonable raw material distributing system, Synchronous mould lift structure and vibration system;

Welcome contact us if you are interested in our block making machine .
