Qt4 Semi-Automatic/Automatic Block Making Machine
Quanzhou Hawen Machinery Co., Ltd.- After-sales Service：Engineer Available to Abroad
- Warranty：One Year After Installation
- Certification：ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
Base Info
- Model NO.：QT4
- Pallet Size：980X560X22mm
- After Sales Service：Engineer Available to Overseas
- Vibration：Motor Vibration
- Working Method：Automatic
- Output for Indian Fly Ash Brick：14PCS Per Cycle
- Products：Hollow Block, Paver, Fly Ash Brick, Curb Stone
- Area Required：2000-3000 Square Meters
- Power Consumption：60-70kw
- Rectangle Paver：16PCS,Cycle
- Zigzag Paver：14PCS,Cycle
- 6inch Hollow Block：8PCS,Mould
- Transport Package：Standard Ocean Packing
- Trademark：HAWEN
- Origin：China
- HS Code：8474809090
- Production Capacity：300 Sets, Year
Description
Production per Shift
(8 Working Hours):Hollow Block (400x200x200mm): 5,700~5,800 pcs Hollow Block (400x150x200mm): 8,600~8,700 pcs Fly Ash brick(230x110x75mm): 26,800pcs Zigzag shape Paver(225*112.5*60/80mm): 20,000~26,800pcs Rectangle Paver (200x100x60-80mm): 23,000~30,000pcs Vibrating Frequency: 50 HZ Motors Power: 34KW For Main forming machine parts only Machine Dimensions: 8800x2300x2600mm Pallet Size: 980x560mm Gross Weight: About 8T Raw Materials: crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes Applied Products: concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. Applied Fields: widely used in buildings, road pavings, squares, gardens, landscaping, city constructions

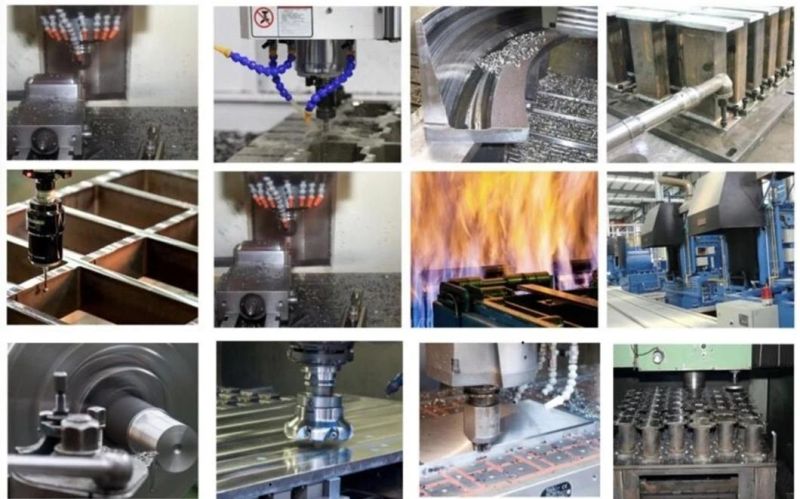

Processing equipment in the workshop
Application of QT4-15 Automatic Brick/Block Making Machine at site

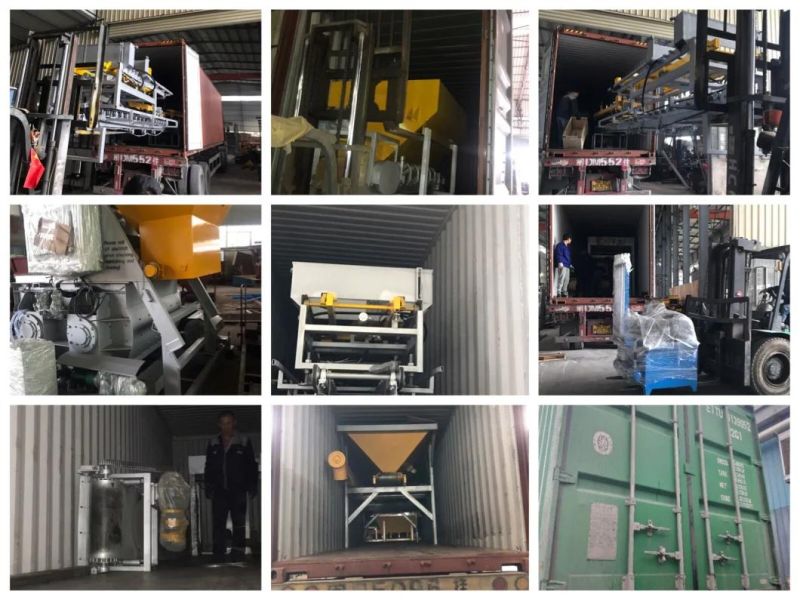

Container loading in workshp for customers overseas

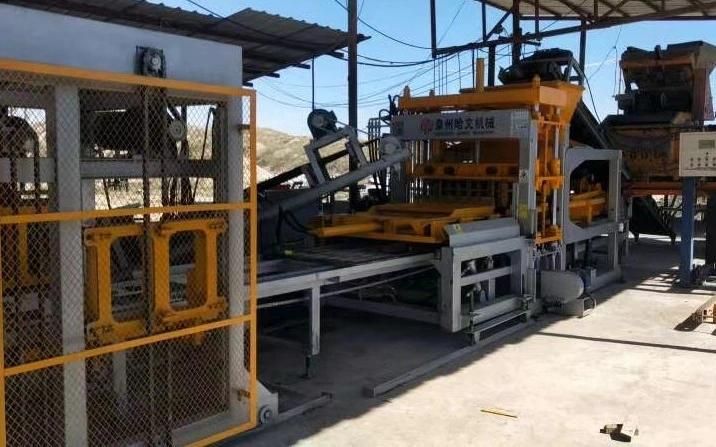

QT4-15 Automatic block making machine,with Facemix device, with Automatic block Stacker,Automatic Pallet provider working on site

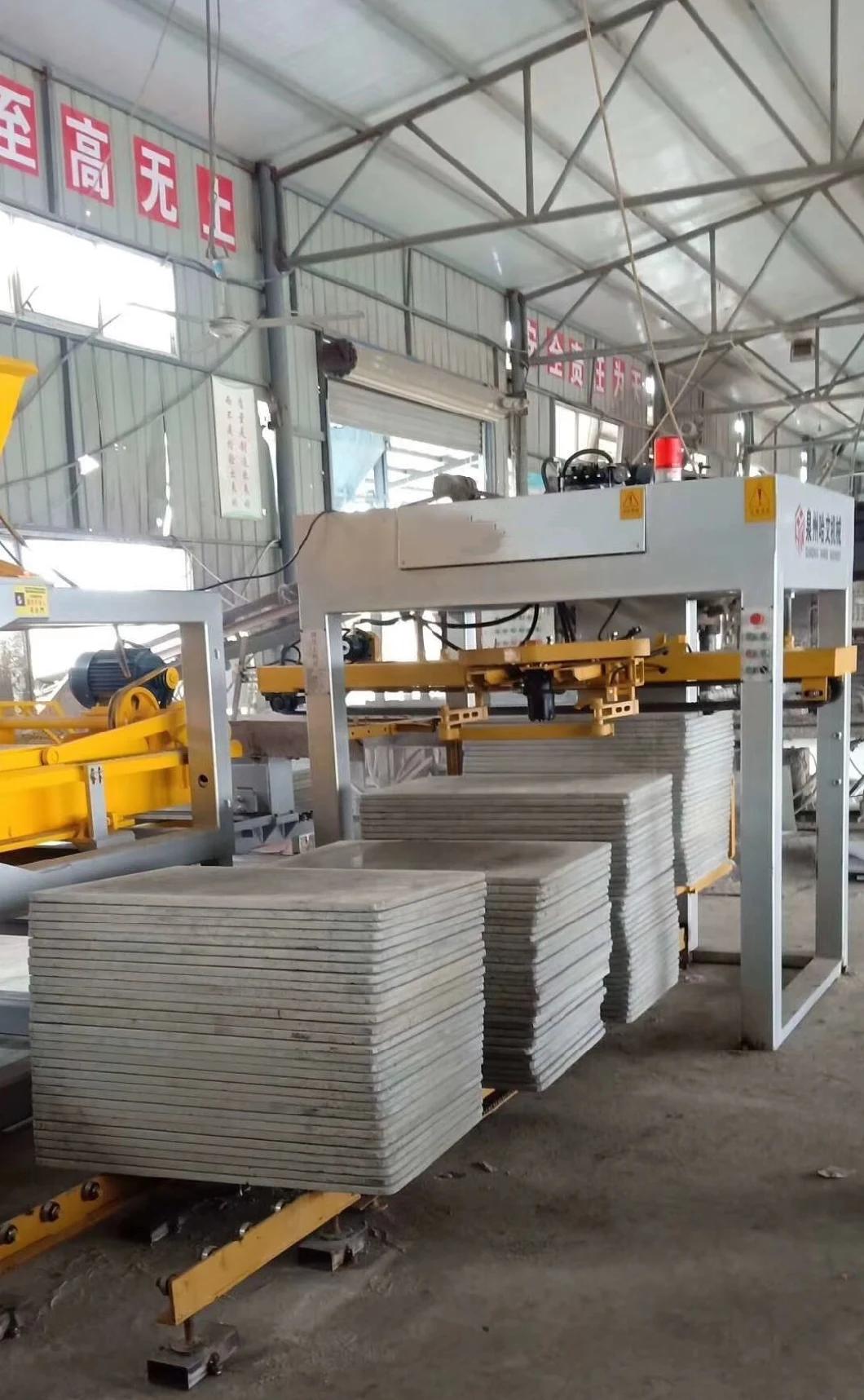

Automatic pallet feeder machine, Forklift put the piled empty pallet onto this pallet feeder machine,it will be fed into block machine automaticly.

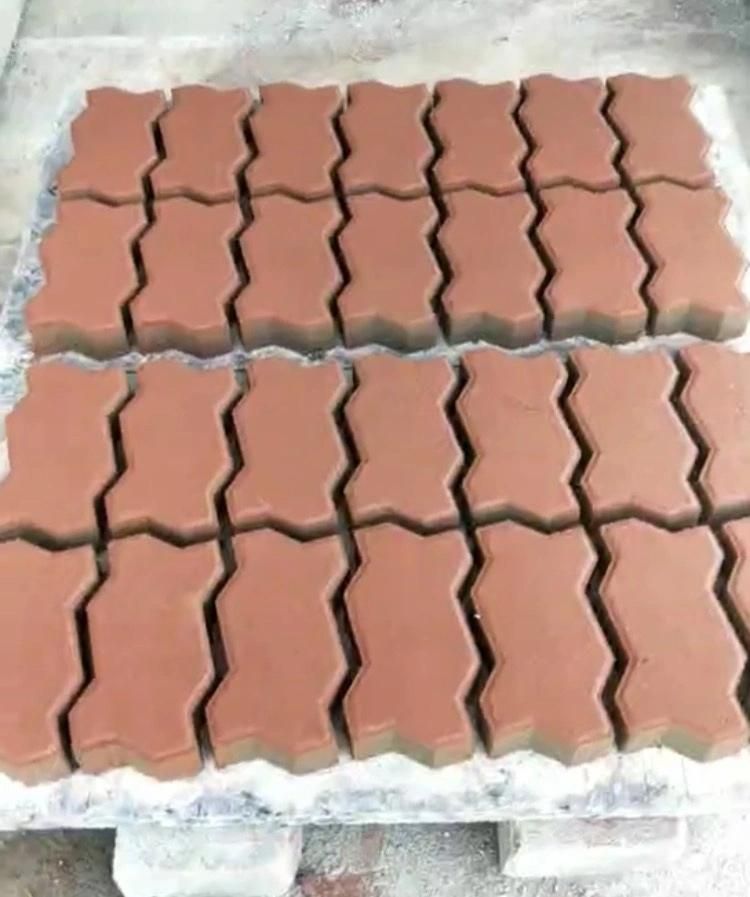

Zigzag Paver 225x112.5x60mm with the output at 14pcs/drop in QT4-15 Paver making machine

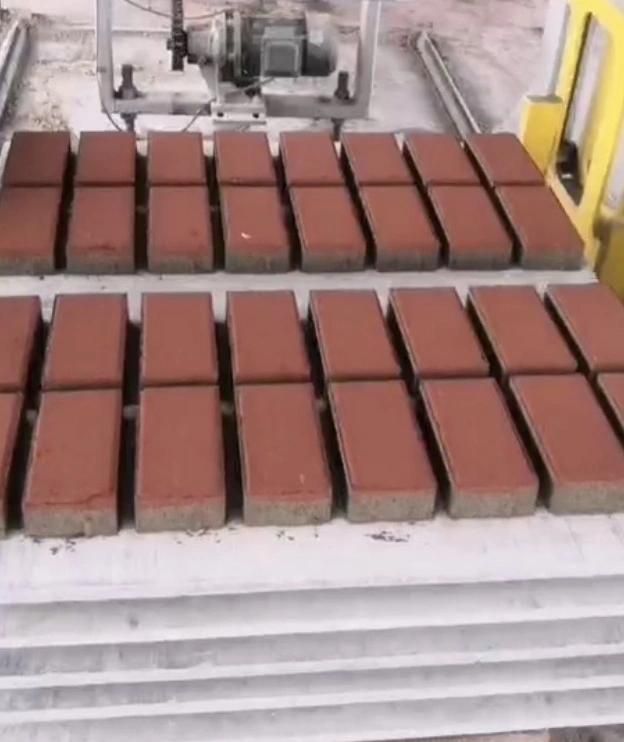

QT4-15 block making machine allows to make 16pcs/mould of Rectangle Paver (Quad Paver in Kenya, Bevel Paver in South Africa) at 200x100x60mm.

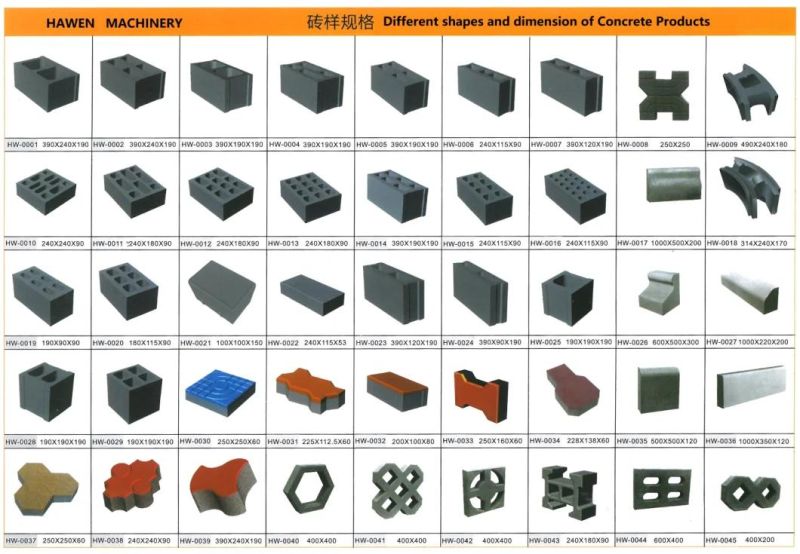

Block and Brick Sample
1. How many square meters required to set up a block factory?
Answer: Generally,the whole factory requires 2000-3000 square meters, including the recommended workshop to cover the equipments at 300-400 square meters,equipments are suggested to keep under the shed.
2. What kind of material can be used to produce concrete block?
Answer:Crushed stone(Max.10mm),sand and Cement as raw material, coal fly ash, cinder, slag,gangue, gravel, and other industrial wastes.And if customer makes the top colored paving stone,then the face material of fine sand and white cement and pigmen are required.
3. Can I get the warranty for the machine?
Answer:The warranty for the machine is one year after installation or 15 months after shipment,whichever comes first.Spare parts will be sent to customers for free of charge during the warranty period. Warranty does not cover the wearing parts, in cases of incorrect handling, improper user, insufficient maintenance, unauthorized service or modifications to the machine, normal wear .
4.What is the delivery time?
Answer:The delivery time is 30-40 days upon receiving the down payment and mould drawing approval from customer.
5. What about your payment terms?
Answer:T/T and L/C are acceptable.
Generally,it requested to pay 30% as depoist by T/T before production, and the balance to be paid by T/T or Irrevocable,Confirmed LC at sight before shipment.
6. How to prepare the foundation for the equipments?
Answer:The foundation drawing for the whole plant will be provided within 07 days after the order confirmed,customer could prepare the foundation construction according to the drawing provided.
7.How about the installation & commissioning ?
Answer: After the equipments arrive customer's site,and the preparation for the foundation,water & electricity are ready,we will send 1 of our technician for the installation & commissioning,the technician will train customer's staff for the operation and maintenance of equipment.
8. How about the installation cost?
Answer:We will send our technician for the installation,customer should responsiblefor all the expense and the allowance of our technician.
9. Are the machine be tested in your factory before shipment?
Answer:Yes all of our machines will be tested in our workshop before container loading.You are warmly welcome to do the inspection before shipment.
10.Can I visit your factory before placing the order and where is your factory ?You are Answer: Warmly welcome to visit our factory any time.Our factory located in Quanzhou City,Fujian Province.
The nearest airport to our factory is Jinjiang airport,which is 30 minutes to our factory by car.
How to come to your city?
You could take the international flight to Guangzhou airport first,then take the domestic flight from Guangzhou airport to Jinjiang airport,we will pick you up from Jinjiang Airport.
Or take the high speed train From Guangzhou South to Quanzhou train station.
Our Service
Pre-sale service support
According to every customer's demand and budget, we offer the professional factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order
Send technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
