• Model NO.：HKY
• Color：Blue or Green
• Trade Type：Real Manufacture of Roll Forming Machine
• Control System：PLC
• Sales Way：Factory Direct Sale Cbrl
• Delivery Time：30days
• Validity Time：Goods for 45 Days
• Transport Package：Nude
• Specification：CE, ISO
• Trademark：HKY
• Origin：Hebei, China(Mainland)
• HS Code：8455221000
• Production Capacity：15sets,Month

Basic Info.

Model NO. HKY Color Blue or Green Trade Type Real Manufacture of Roll Forming Machine Control System PLC Sales Way Factory Direct Sale Cbrl Delivery Time 30days Validity Time Goods for 45 Days Transport Package Nude Specification CE, ISO Trademark HKY Origin Hebei, China(Mainland) HS Code 8455221000 Production Capacity 15sets/Month

Product Description

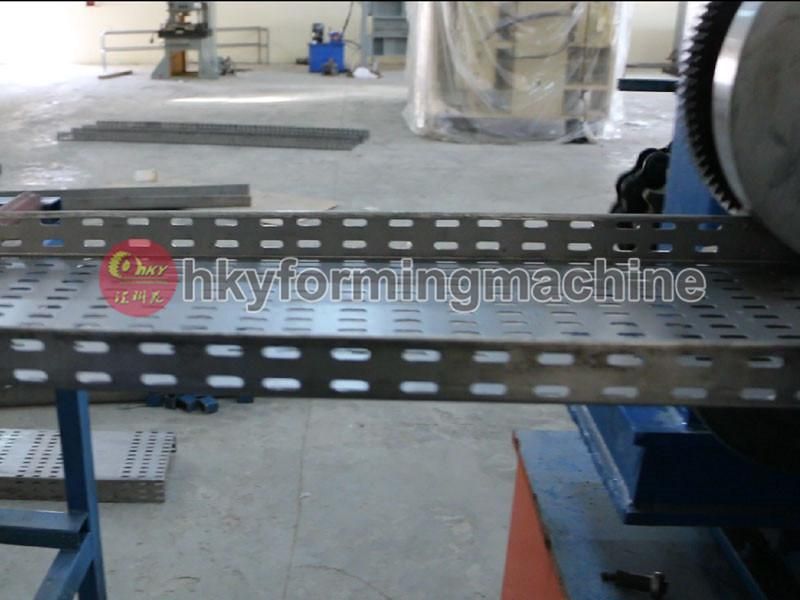

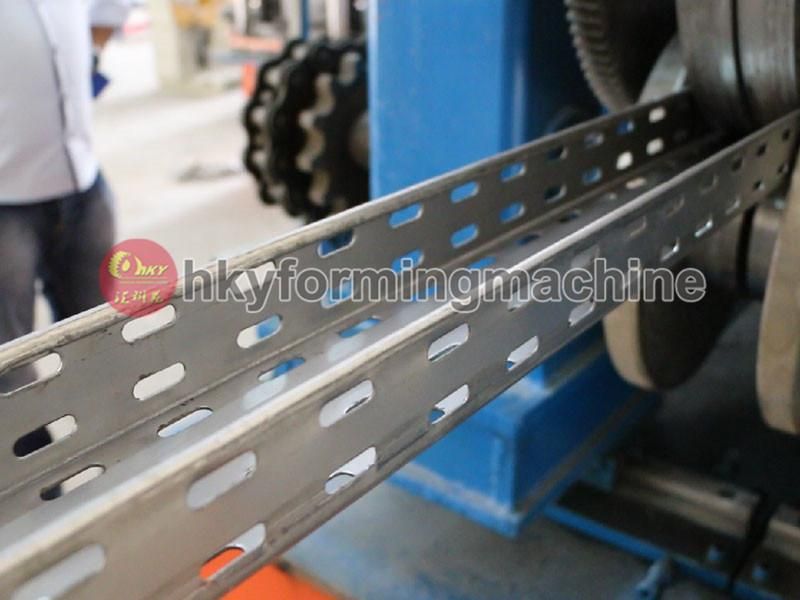

                               Steel Stud/Joist/Track/Cable Tray Forming Machine

MAIN TECHNOLOGY PARAMETERS

Automatic inner tight decoiler	◊ coil inner diameter 450mm-550mm ◊ maximum width of coiling600mm ◊ maximum weight of loading 2500kg

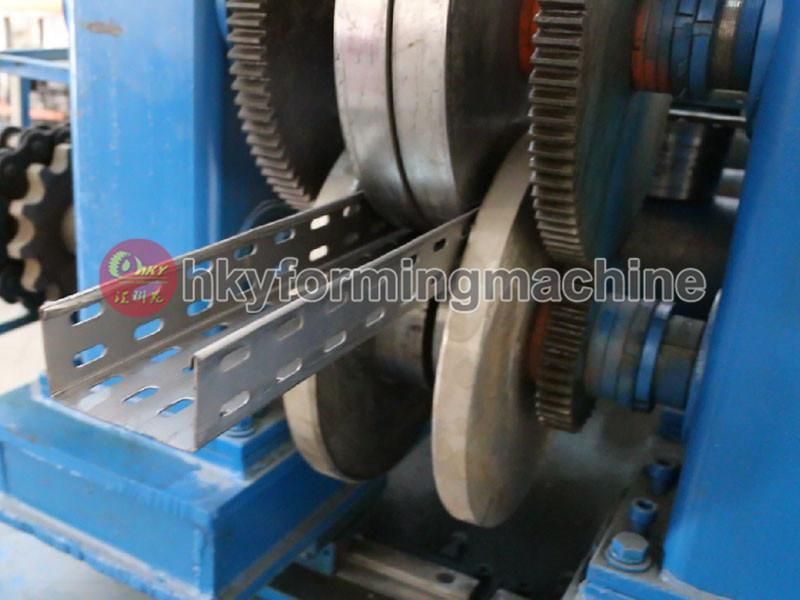

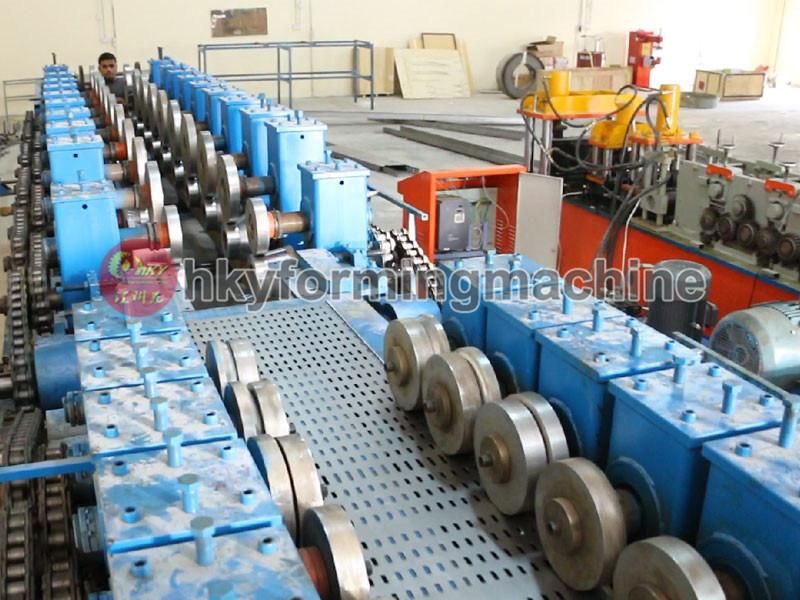

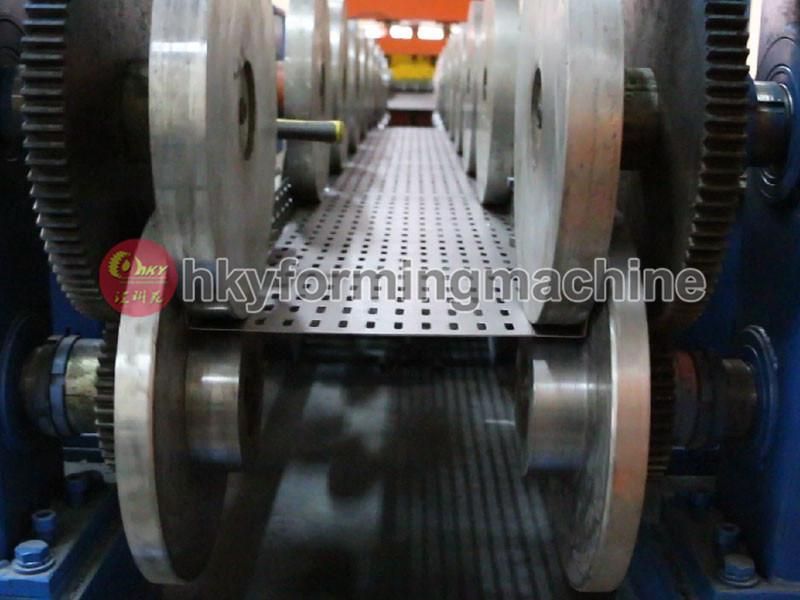

Main forming machine	◊ a. number of forming steps 11rows ◊ material of shaft 45# steel . Outer diameter 60mm ◊ main motor power: 5.5kw ◊ The speed of forming: 0-50m/min
Hydraulic cutter	◊ material of blade:Cr12 mould steel with quenched treatment 60-62 ◊ cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)
The electrical control system	◊ The Brand of display: DELTA ◊ The main computer (PLC): DELTA DVP14
Hydraulic system	◊ Adopting advanced hydraulic system of Tai Wan ◊ Power:3kw
The equipments coating , package	◊ the coating adopt international general shade-guide ◊ The package :simple waterproof package

COMPONENT

Equipment parts: 5T decoiler, forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter.
Material of main equipment:
(1)Roll material: High grade NO. 45 forged steel, plate hard chrome on the surface of roller with thickness 0.05mm.
(2)Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm
(3)Cutter blade: Cr12 mould steel with quenched treatment
Producing flow:
Decoiling the sheet- Sheet guiding- Roll forming- Measure length- Cutting the panel- Panels to the supporter

All technical parameters can be changed, according to user's need.
Products Warranty: 12 months, and we will provide the technical support for the whole life of the equipment.

USAGE AND FEATURE

The feature looks beautiful, elegant and noble. Those are widely used in building the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.

TERMS
1. Delivery: In stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine we send )
4. Validity: Good for 30days

REMARKS
1 The machine can according to your requirement to set the color
2 Within in one year if any parts go broken we will send new ones to replace for free
3 If you want to learn more about the product please login our website or contract to us

SERVICE
One years for free, after the warranty period. We will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem

EXPORT MARKET
Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.

ABOUT US
BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . Ltd.

We are a leading manufacture company of roll forming machine, metal process machine, cold forming machine, in the past 25 years, we get lots of experience of the parts & technology, and we improve the quality and technology as the demand of customer day by day.

Now mainly we supply European standard machinery, with Germany technology, Heavy Body, PLC control system, high speed, finish perfect. Also we have a team to make service after selling in abroad of China, we always think the quality is most important and good service is a part of quality.

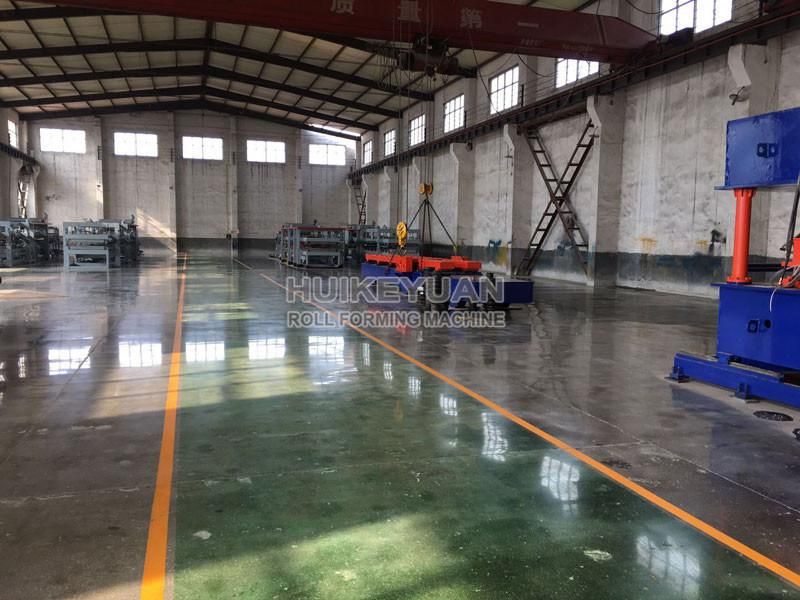

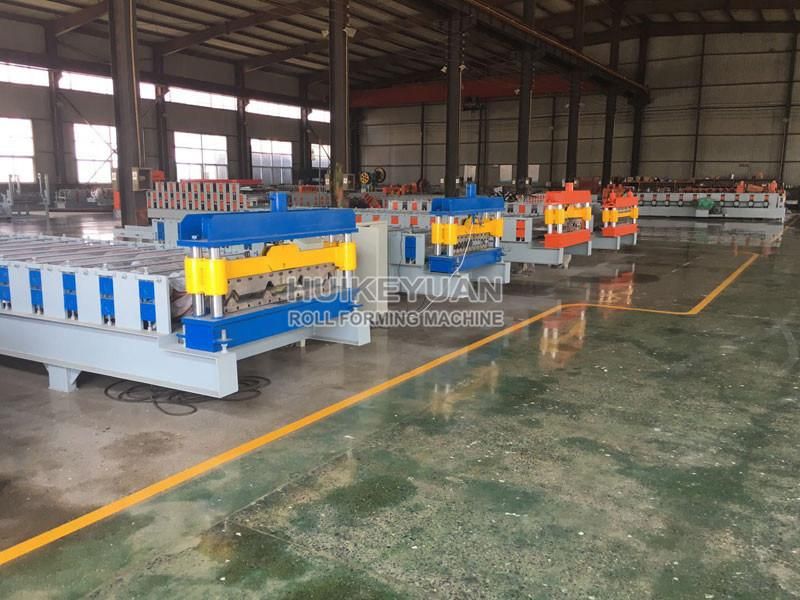

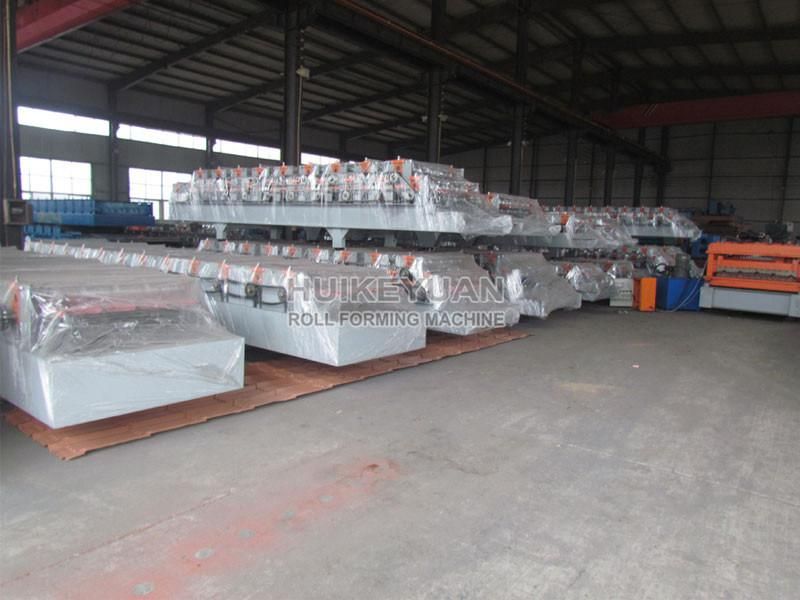

Our company:
