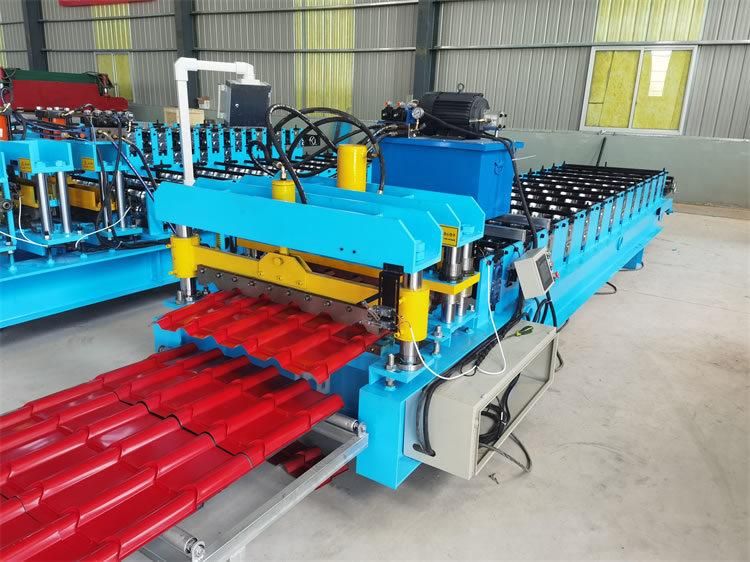

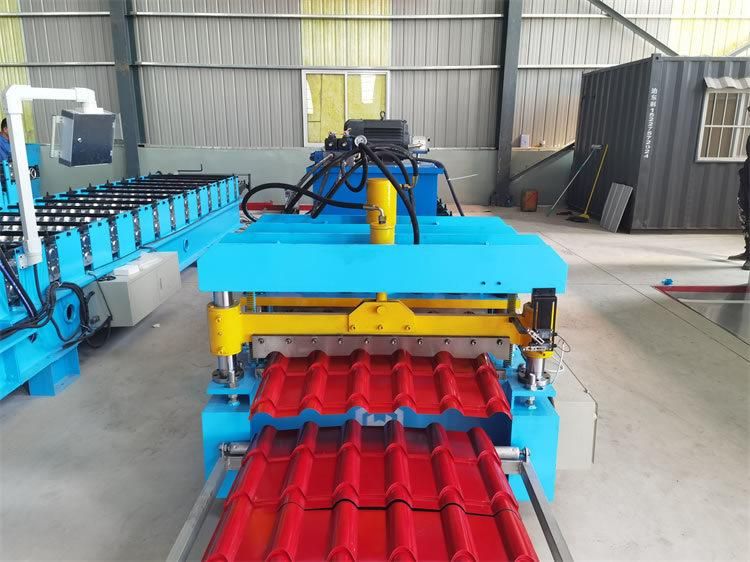

Roofing Sheet Forming Machine
Henan Wadley CNC Machinery Co., Ltd.- After-sales Service：Online Support, Free Spare Partsonline Support
- Warranty：1 Year
- Tile Type：Glazed Steel
- Certification：CE
- Condition：New
- Customized：Customized
Base Info
- Model NO.：800,900
- Usage：Roof, Wall, Floor
- Transmission Method：Hydraulic Pressure
- Production Capacity：30 M,Min, 50sets , Month
- Voltage：Customized
- Rolling Thinckness：0.3-0.8mm
- Weight：1500kgs
- Feeding Width：1000mm
- Main Frame：300,350
- Feeding Material：0.3-0.8 mm Thickness Color Steel
- Cutting Type：Hydralic Cutting
- Transport Package：Wooden Case and Full Container
- Specification：650X150X150 cm
- Trademark：wadley
- Origin：China
Description
Item
Description
1
Applicable materials
Colored glazed steel
2
Input width
1000mm
3
Effective width
800mm/900mm
4
Material thickness
0.3-0.7mm
5
Forming speed
Glazed tile 2m/min Common 10-15m/min
6
Number of rollers
13rows/9 roller
7
Frame size
350H section steel (national standard)
8
Middle plate thickness
16mm
9
Spacer
2mm Seamless steel pipe (spraying)
10

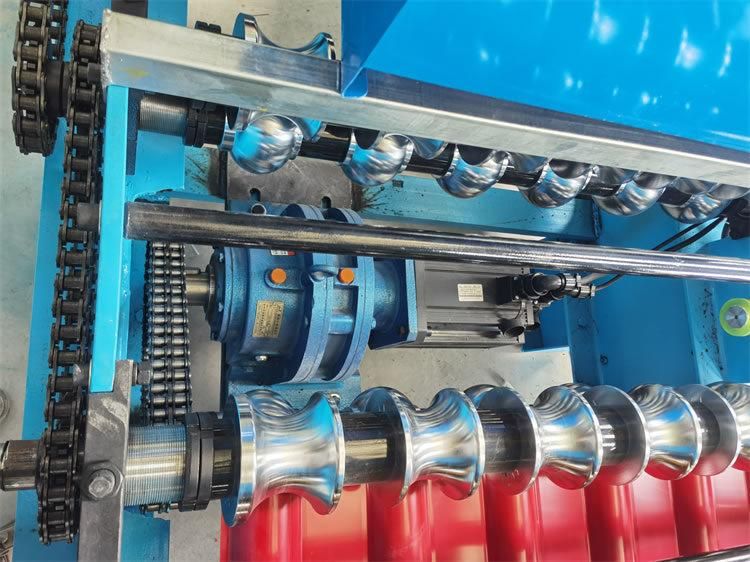

Roller material
45 # steel
11
Roller diameter
φ70mm(Hollow shaft)
12
Drive servo motor
5.5KW
13
Oil pump power
4KW(Large box + cooling air box)
14
transfer method
1 inch chain drive
15
Tool material
Cr12
16
Heat treatment
HRC58-60ºC
17
Voltage
380v,50hz,3 phase
18

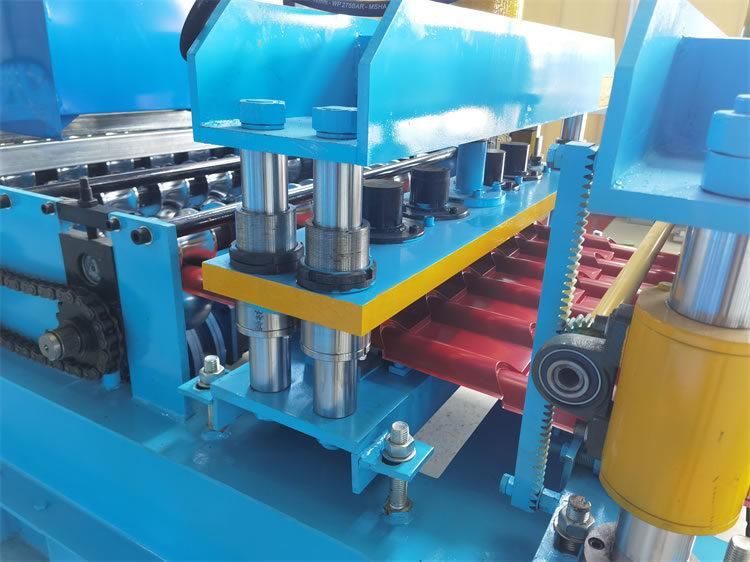

Cutting accuracy
±2 mm
19
PLC panel
touch screen electric control cabinet
20
Outside dimension
L*W*H=6500mm*1500mm*150mm
We are professional in roll forming machines,we have more than 20 years in this area.
We can make Double Layers Color Steel Sheet Roll Forming Machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.
