• Model NO.：metal stud making machine
• Condition：New
• Control Type：PLC
• Automatic Grade：Automatic
• Name：Metal Stud Making Machine
• Control System：PLC Colored Touch Screen
• Main Frame：16mm
• Power Supply：380V, 3-Phase, 50Hz or Any
• Forming Speed：10-15m,Min
• Roll Station：11
• Shaft Diameter：45mm
• Feeding Thickness：0.3-0.8mm
• Cutter Standard：Gcr12
• Roller Standard：45# Plating Cr
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX L
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. metal stud making machine Condition New Control Type PLC Automatic Grade Automatic Name Metal Stud Making Machine Control System PLC Colored Touch Screen Main Frame 16mm Power Supply 380V, 3-Phase, 50Hz or Any Forming Speed 10-15m/Min Roll Station 11 Shaft Diameter 45mm Feeding Thickness 0.3-0.8mm Cutter Standard Gcr12 Roller Standard 45# Plating Cr Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX L Trademark DIXIN Origin Botou Hebei China HS Code 84552210 Production Capacity 20 Set Per Year

Product Description

Botou best metal stud making machine
Main parameters
Suitable to process: Color steel plate
Width of the plate: 175/400mm
Rollers: 12 rows
Dimensions: 6.3*1.4*1.5m
Power: 4+4kw
Thickness of the plate: 1.5-2mm
Productivity: 8-10m/min
Diameter of the roller: Φ 80mm
Weight: About 3T
Voltage: 380V 50Hz 3phases
Material of the cutting plate: Cr12
Hydraulic: 40#
Processing precision: Within 1.00mm
Control system: PLC control

We can design kinds of roll forming machines according to your specific profile drawing.

Suitable material	Steel Belt
Main motor power	3KW
Hydraulic station power	4 KW
Hydraulic oil	36#
Thickness of material	0.6-1.5mm
Diameter of principal axis	Φ50mm
Electric tension	380V 3phase 50HZ
Material of roller	CGr15 bearing steel HR58-60
Galvanization thickness	0.05mm
Processing speed	15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 mould steel
Kind of drive	Sprocket&Chain
Roller station	11 Rollers
Dimension	5.5m*0.9m*1.2m
Weight	3.5Ton
Screen	5.7 inch Taida screen
PLC brand	Taida DVP14ES

2.Hydraulic decoiler

Material coiler inner diameter	450mm-700mm
Max coiler width	600mm
Carrying capacity	1500kg
Hydraulic power	1.5kw
Pump inner diameter	120mm
Working pressure	12Mpa

good features :
Low Noise
High Efficiency
Easy To Operate
Saving Energy
Without Change  Abrasive Tool
Excellent anti-bending property
Easy to install

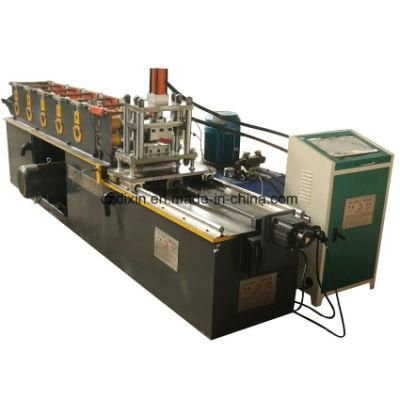

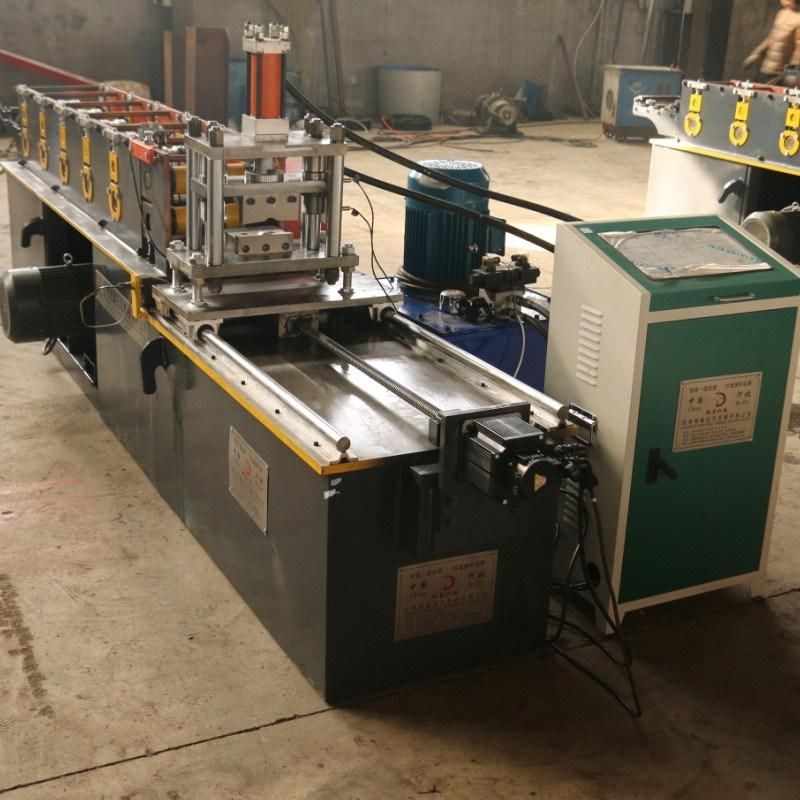

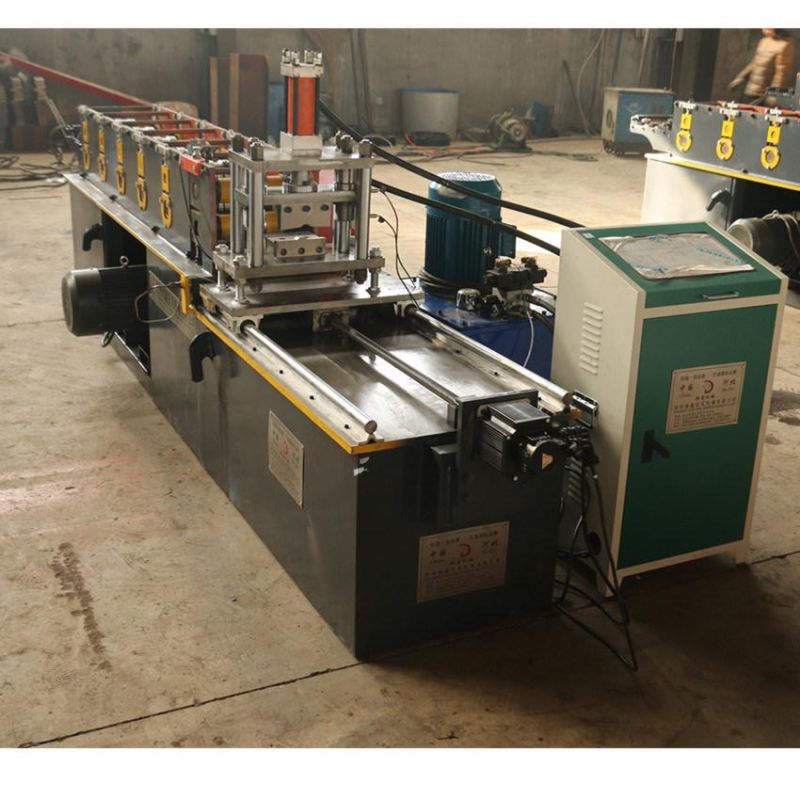

Some machine pictures for your reference



Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need.
Our address: Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
