• Model NO.：LJVE-CNC-6000
• Capacity：2300 Sqm. Per Shift

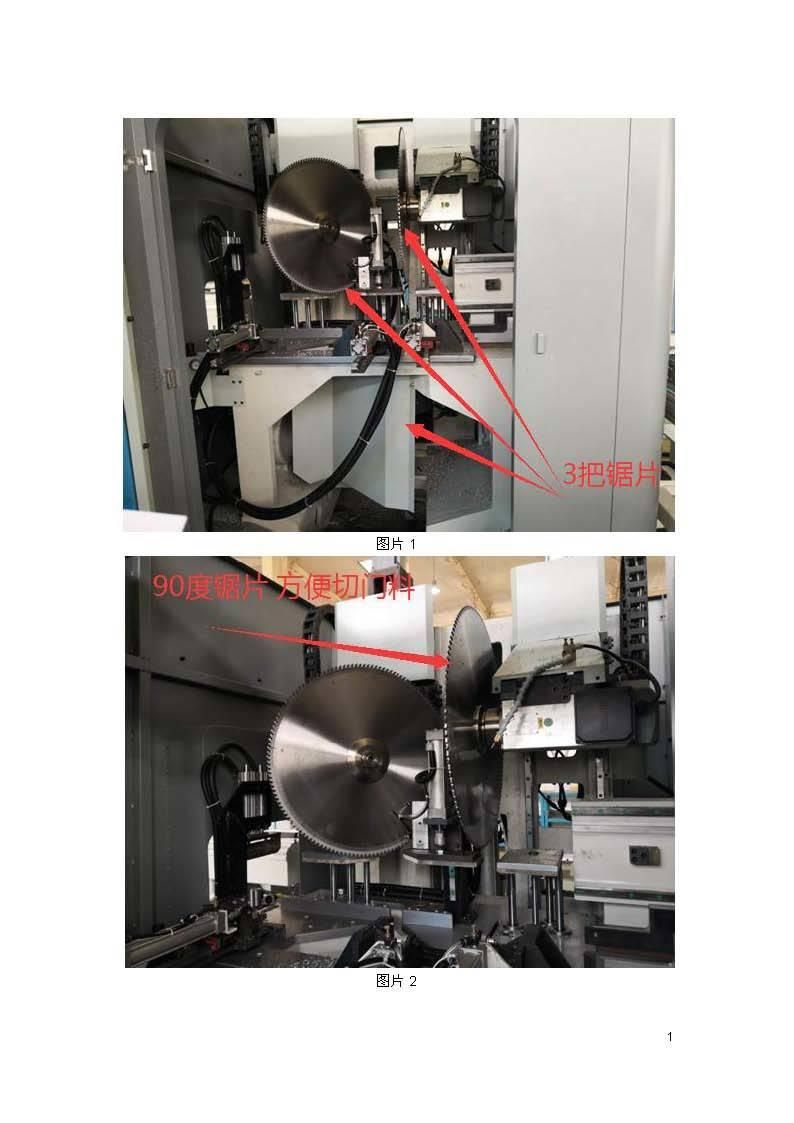

• Sawing Blade Quantity：3
• Cutting Angle：45 Degree and 90 Degree
• Transport Package：Iron Pallet in Container
• Specification：40GPx2
• Trademark：Tianchen
• Origin：Jinan, Shandong, China
• HS Code：8461409000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. LJVE-CNC-6000 Capacity 2300 Sqm. Per Shift Sawing Blade Quantity 3 Cutting Angle 45 Degree and 90 Degree Transport Package Iron Pallet in Container Specification 40GPx2 Trademark Tianchen Origin Jinan, Shandong, China HS Code 8461409000 Production Capacity 30 Sets Per Month

Product Description

Aluminum Profile CNC Sawing Machine Center
Model LJVE-CNC-6000
 Machine Main features:



1. It is used for high effective cutting aluminum profile at 45°or 90°.
2. The auto worktable continuous feeding and clamping profile.
3. It adopts high precision straight guide rail pair to ensure stability and reliable operation.

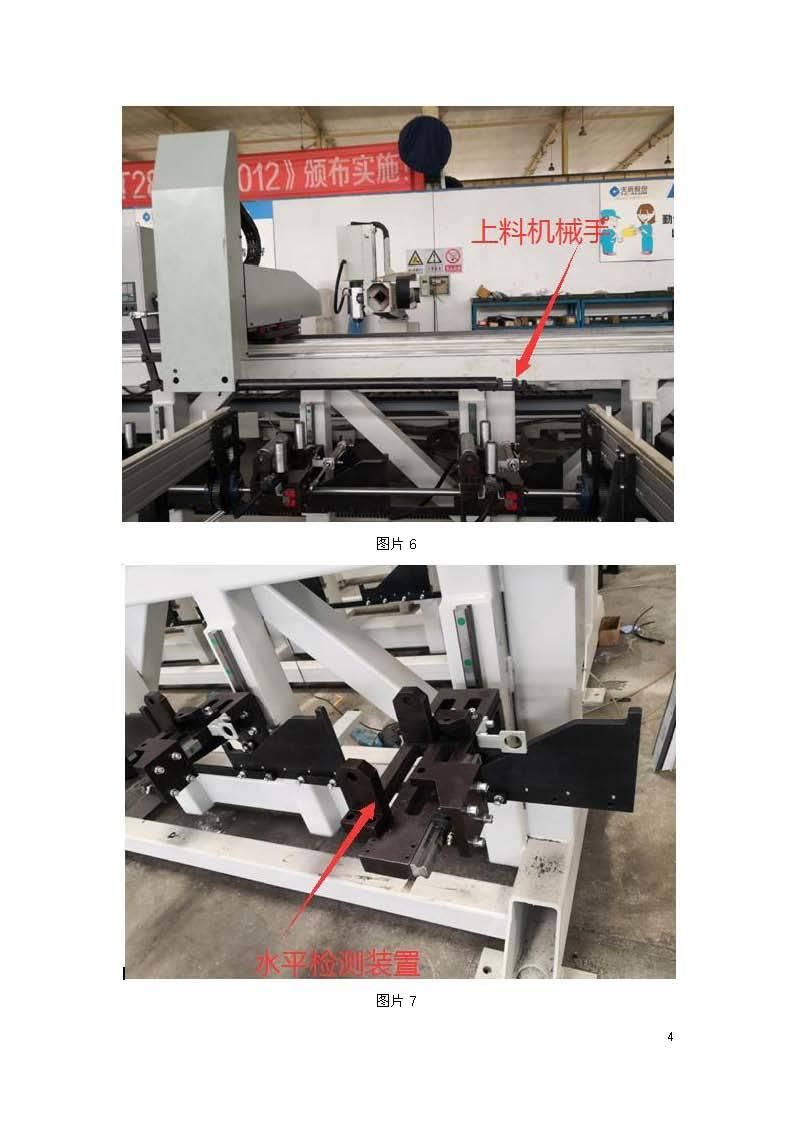

4. Load mechanical arm adopts Siemens servo drive can reach to three axis (X, Y, Z) auto control. Imported high precision gear rack drive to ensure reliable feeding.
5. Blade connected with imported motor. Cut smooth, steady and high precision.
6. Siemens control system makes machine working steady and reliable.

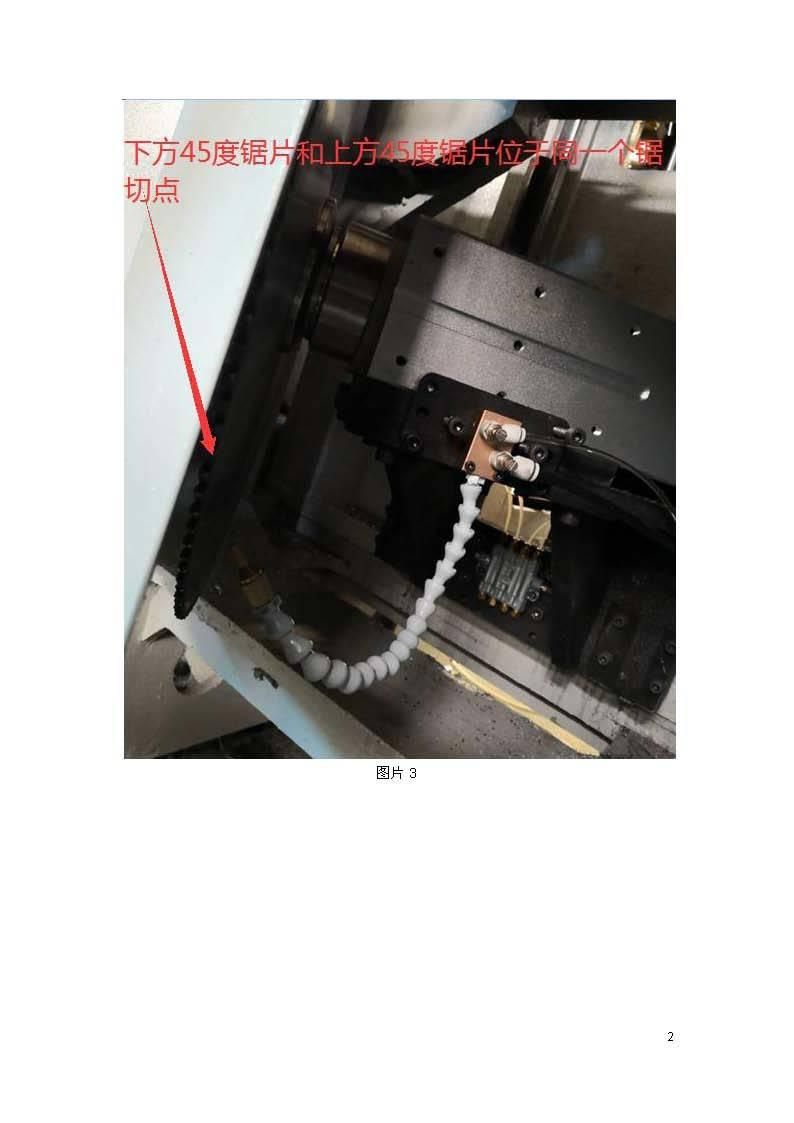

7. It can complete the 45°cutting through up and down saw blade respectively cutting, high cutting precision, which can avoid partial breakage of profile.
8. It can continuously complete profile ±45° or 90° cutting, high processing efficiency.
9. Unload mechanical arm adopts servo driver, which can realize fast unloading, positioning function and be able to reach the auto output of the shortest profile 260mm.
10. Roller linear guide pair and ball screw equipped with auto lubrication system, improve the precision and service life.
11. Hinge type constantly conveys scrap and aluminum scrap to the outside.
12. The totally enclosed safety cover to ensure the personal security.
13. Option: Profile lifting platform to achieve the single person feeding operation
14. Option: Bar code printer for E-works.

Main Specificaitons:
☆ Cutting Saw motor power:       3×3.0 kW
☆ Machine's total power:           18kW
☆ Input Power supply:               380V 50Hz
☆ Work pressure:                   0.6~0.8MPa
☆ Air Consumption:                   150L/min
☆ ±45°Sawing blade size:      Ф550×Ф30×4.4×120T
☆ 90°Sawing blade size:         Ф600×Ф30×4.4×120T
☆ Aluminum profile height:       30~140 mm
☆ Aluminum profile width:       30~100 mm
☆ Cutting Length:                  260~6000 mm
☆ Cutting angle tolerance:           ±5′
☆ Cutting length tolerance:      ±0.15mm
☆ Repeating location tolerance:  ±0.05mm
☆ Overall size (L*W*H):          14000×5000×2500 mm
☆ Net Weight:                     About 7000 kg
Main Outsourced Components List:

Item	Brand name

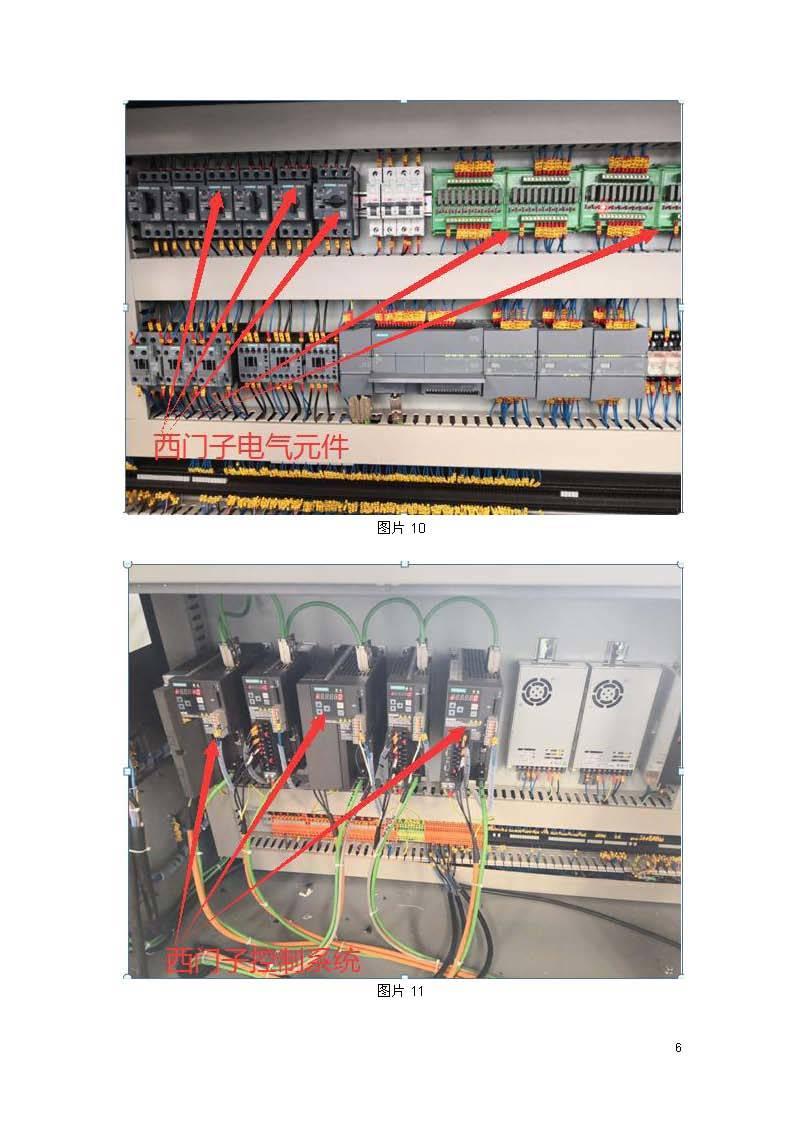

Control System	Siemens
Servo Motor	Siemens
Air Cylinder	SMC
Damping Cylinder	SMC
Guide Rail	HIWIN
Ball Screw	PMI
Cutting Motor	Shenyi
Rack	YYC
Infeeding material Reduction Box	APEX
Output material Reduction Box	NEWSTART
Sawing Blade	Wagen (Japan)
