• Model NO.：21-137-1166
• Use：Roof
• Power：4+4kw
• Voltage：380V,60Hz
• Material：PPGI
• After Sale Service：Engineer Available Overseas
• Control System：PLC
• Screen Type：Touch Screen
• Driving of Tile Forming Machine：by Chain
• Main Power of Motor：5.5kw
• Diameter of Shaft：75mm
• Transport Package：According to Customers′ Request
• Specification：Jcx
• Trademark：JCX
• Origin：China Hebei
• HS Code：845221000
• Production Capacity：40sets Per Month

 Name Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine Suitable Material PPGI, PI, CR, Q235 Or Equivalent Control System Auto Control Operation Panel 7 Inch Touch Screen Warranty 18 Months Life Time At Least 15 Years Color Blue Or At Buyer's Requirement Certification CE, ISO Noice Environment-friendly, Low Noise After-sales Service Provided Engineers Available To Service Machinery Overseas

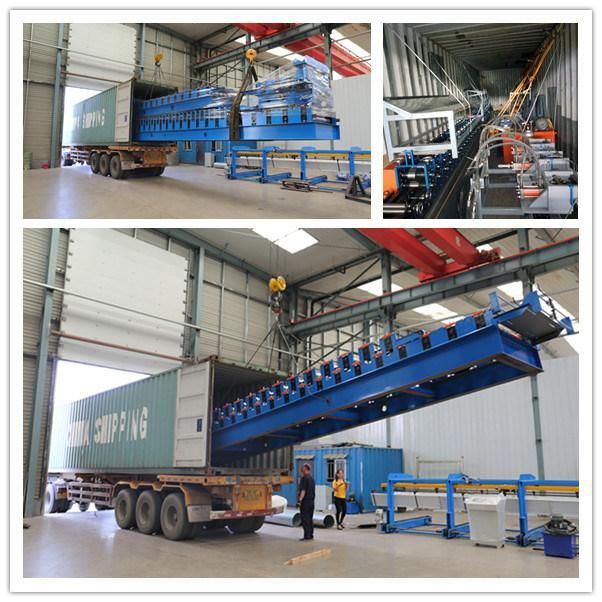

1.Photoes Of roll forming Machine

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

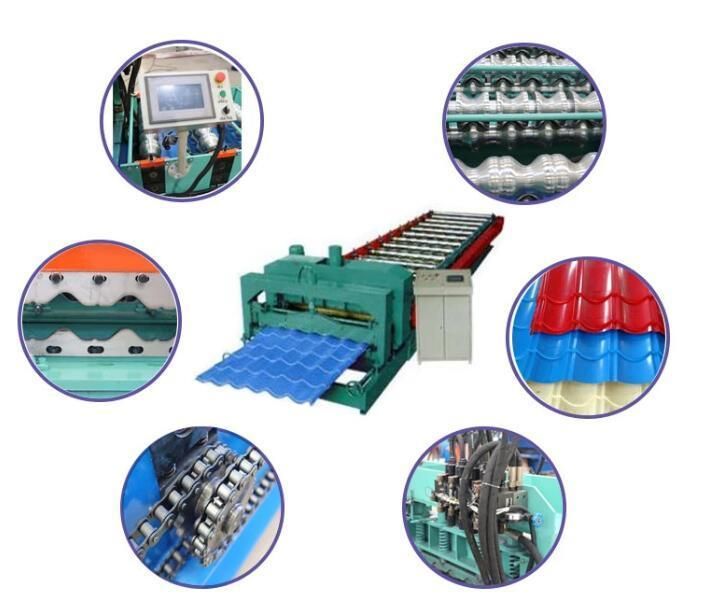

More Details of our machine

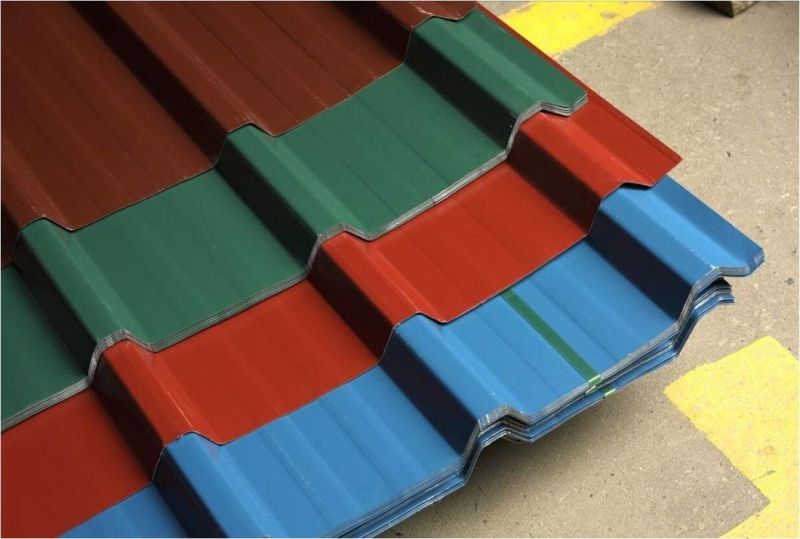

Colored Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

 2. Technical Parameters:

Metal Roofing Panel Roll Forming Machine-Roof Sheet Forming Machine



A. General

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

 Suitable Material HRB60 or equivalent Material Thickness 0.2-0.6 mm

 Length of the Sheet

 You can set the length according to your need.

 It is controlled by PLC

 which can ensure the accuracy of ±1mm.

 Cutting

 Automatically stop and cutting when it comes to the set

 length.

B. Components Details

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

 Roller Material High grade 45# steel. Hard chrome plating, 0.05mm. Main Frame 350# steel. More stable and no shaking. Middle Plate

 16mm. We use thicker plates to ensure stability

  of our products.

 Forming Steps 11-16, according to the drawing. Shaft Material

 Φ70 mm, high grade 45# steel.

 Treating process: tempering- finish turning,

 high rigidity, hard to deform.

 Cutting

 Blade Material

 Cr12, hardness HRC60-62.

 Treating process: heat treatment- plane abrasion-wire

 electrode cutting.



c.Component line

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

NO

Name

Unit

Qty

1

Man-made decoiler

set

1

2

Main machine for roll forming

set

1

3

Control system

set

1

4

Hydraulic system

set

1



3. Working Flow:

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine



Loading



Company Information

Packaging & Shipping

Package of Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine

1). Container packing of the line suitable for overseas shipping

2). The subjects can be loaded in one 20' container.

3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.



Certifications


Our Services

 A. One-Years product warranty.

B. Training and installation available.

C. The technical support for the whole life.

Contactor

Welcome to contact me!

Glazed tile IBR roofing sheet Double layer roof tile making roll forming machine
