PVC Profile Double Head Cutting Saw Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：CNC
  • Voltage：380V
  • Model：Ljz2-450*3800

Base Info

  • Model NO.：Ljz2-450*3800
  • Input Voltage：380V ,220 50Hz
  • Input Power：3.55kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：210L,Min
  • Spindle Speed：3200r,Min
  • Cutting Length：360~3800mm
  • Cutting Width：120mm
  • Cucutting Height：200mm
  • Overall Dimension：4800*1300*1450mm
  • Transport Package：Wooden Box
  • Specification：4800*1300*1450mm
  • Trademark：YueFeng
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：40 Window Per Day

Description

Basic Info.

Model NO. Ljz2-450*3800 Input Voltage 380V /220 50Hz Input Power 3.55kw Air Pressure 0.4~0.6MPa Air Consumption 210L/Min Spindle Speed 3200r/Min Cutting Length 360~3800mm Cutting Width 120mm Cucutting Height 200mm Overall Dimension 4800*1300*1450mm Transport Package Wooden Box Specification 4800*1300*1450mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

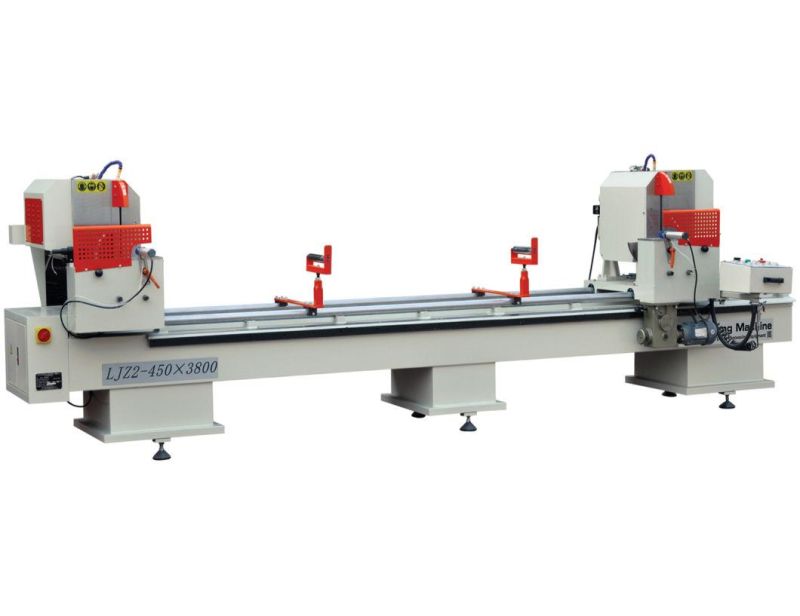

PVC Profile Double Head Cutting Saw Machine

PVC Profile Double Head Cutting Saw Machine1. Used for cutting aluminum and PVC at 45° 90°.
2.The right head can be adjusted horizontally by the motor.
3.Two heads work independently or together.
4.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

Technical Parameter:
ModelLJZ2-450×3800
Input voltage380V 50Hz
Input power3.55Kw
Air pressure0.4~0.6MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length360~3800mm
Cutting width≤120mm
Cutting height≤200mm
Cutting angle90° 45° -45°
Saw feeding speed0~3m/min
Saw blade standardφ450×4×φ30×Z120
Overall dimension4800×1300×1450mm







PVC Profile Double Head Cutting Saw Machine
PVC Profile Double Head Cutting Saw Machine
PVC Profile Double Head Cutting Saw Machine
PVC Profile Double Head Cutting Saw MachinePVC Profile Double Head Cutting Saw MachineFAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
