• Model NO.：roof forming machine
• Customized：Customized
• Transmission Method：Machinery
• Type：Roof Forming Machine
• Automation：Automatic
• Method：Hydraulic Pressure
• Tolerance：0.5mm
• Brick Raw Material：Color Steel
• Processing：Cold Roll Forming
• Product：Color Steel Sheet
• Color：Blue
• Roller Material：High Grade 45# Steel
• Machine Name：Roof Forming Machine
• Transport Package：Covered with Plastic Film
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：845522
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. roof forming machine Customized Customized Transmission Method Machinery Type Roof Forming Machine Automation Automatic Method Hydraulic Pressure Tolerance 0.5mm Brick Raw Material Color Steel Processing Cold Roll Forming Product Color Steel Sheet Color Blue Roller Material High Grade 45# Steel Machine Name Roof Forming Machine Transport Package Covered with Plastic Film Specification CE, SGS Trademark DIXIN Origin Botou, Hebei, China HS Code 845522 Production Capacity 30 Sets/Month

Product Description

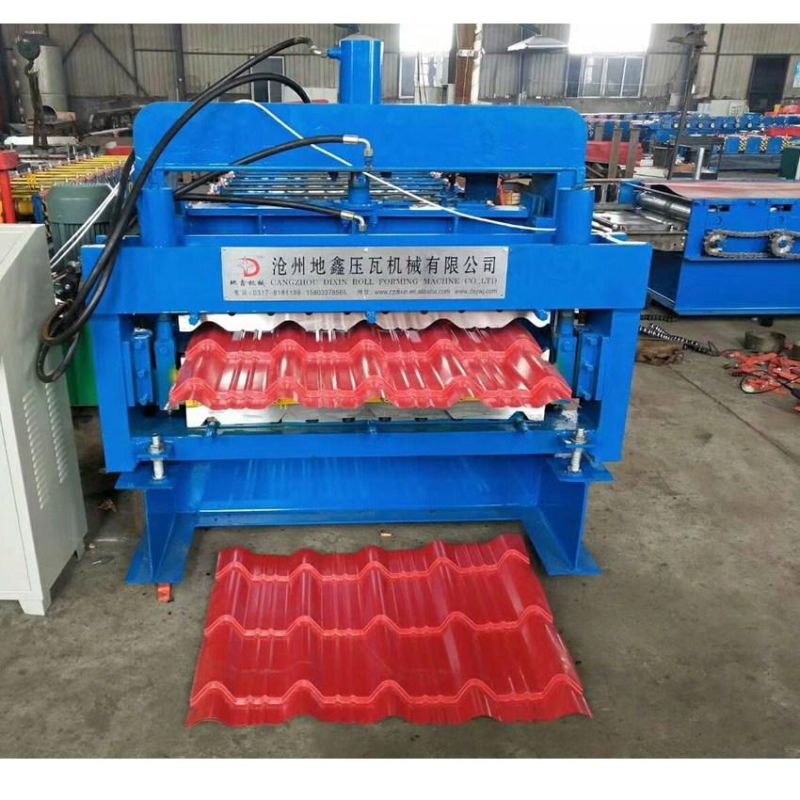

Hot type Double Layer roof forming machine

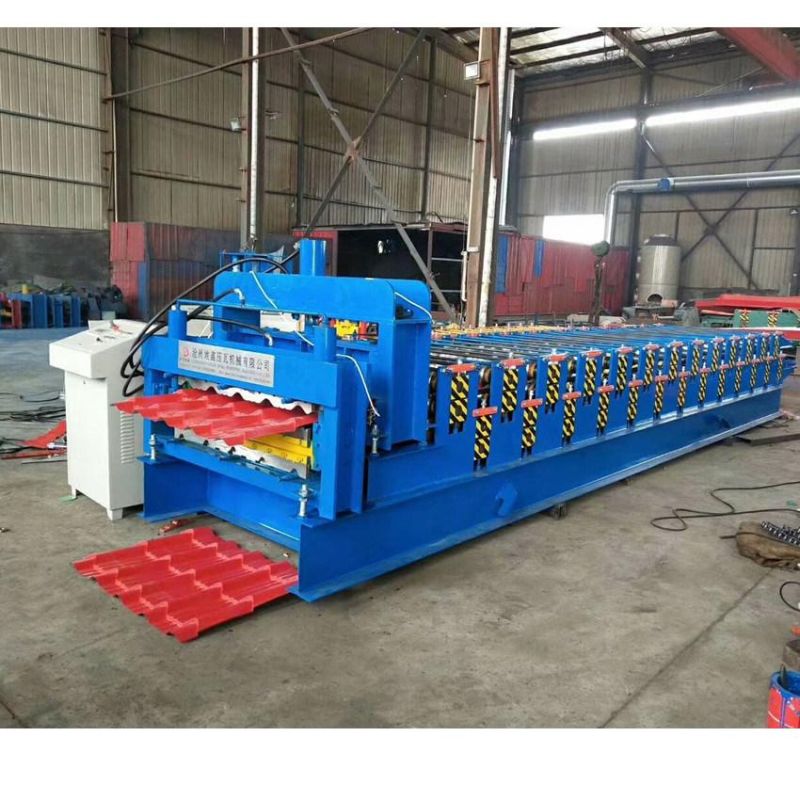

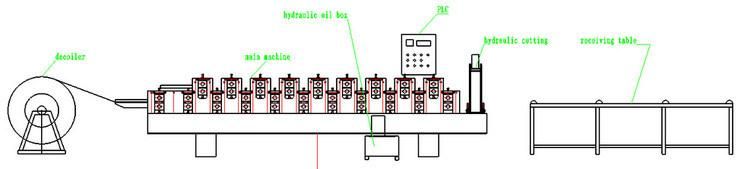

Whole production line
 Parateters.(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.25-0.75mm
(3) Effective width: 840mm/820mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4 k
(7) Shaft diameter: 75mm
(8) Forming steps: two level 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as requirement
(14) Over size: 6500mm*1400mm*1500mm

Whole line includes

No.	Name	Unit	Qty
1	Manual decoiler	set	2
2	Main forming machine	set	2
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	2

Factory introduction Our  factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers.Our machines are sold to worldwide, and feedback very well.Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.


We have CE and ISO Certification


If you have any other question, please let me know.



Contact: Bella : +8618231723279
