• Model NO.：DX 828-207-28
• Customized：Customized
• Usage：Roof
• Transmission Method：Machinery
• Type：Roof Tile Roll Former
• Power Source：Electric
• Feature：Automation
• Advantage：Easy to Maintenance
• Warranty：12 Months
• Forging Forming Method：Mold Forging
• Mode：828-207-28 Tile
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DX 828-207-28 Customized Customized Usage Roof Transmission Method Machinery Type Roof Tile Roll Former Power Source Electric Feature Automation Advantage Easy to Maintenance Warranty 12 Months Forging Forming Method Mold Forging Mode 828-207-28 Tile Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1000mm Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 50 Sets Per Month

Product Description

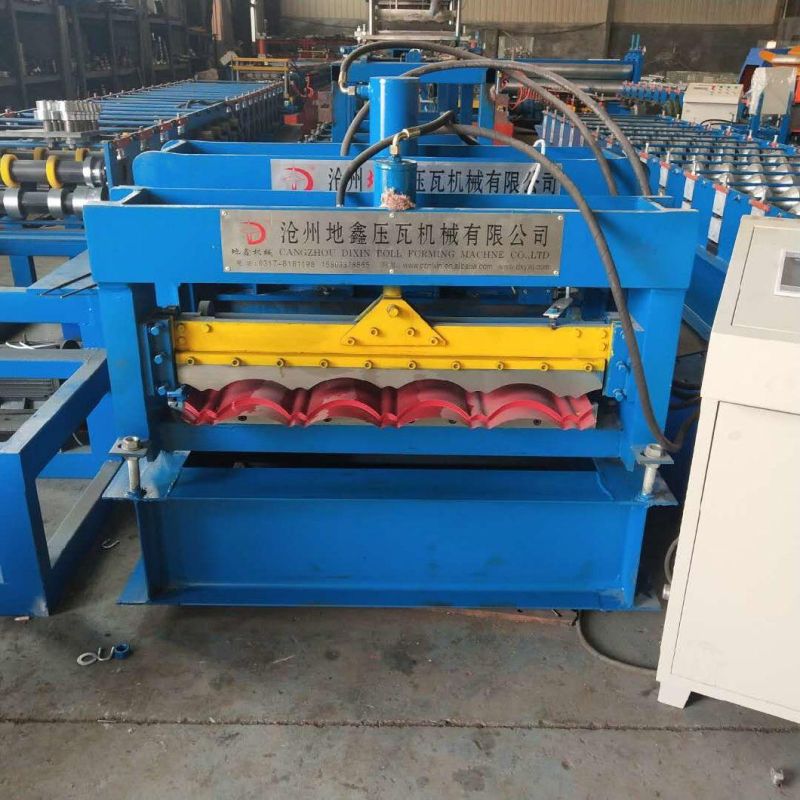

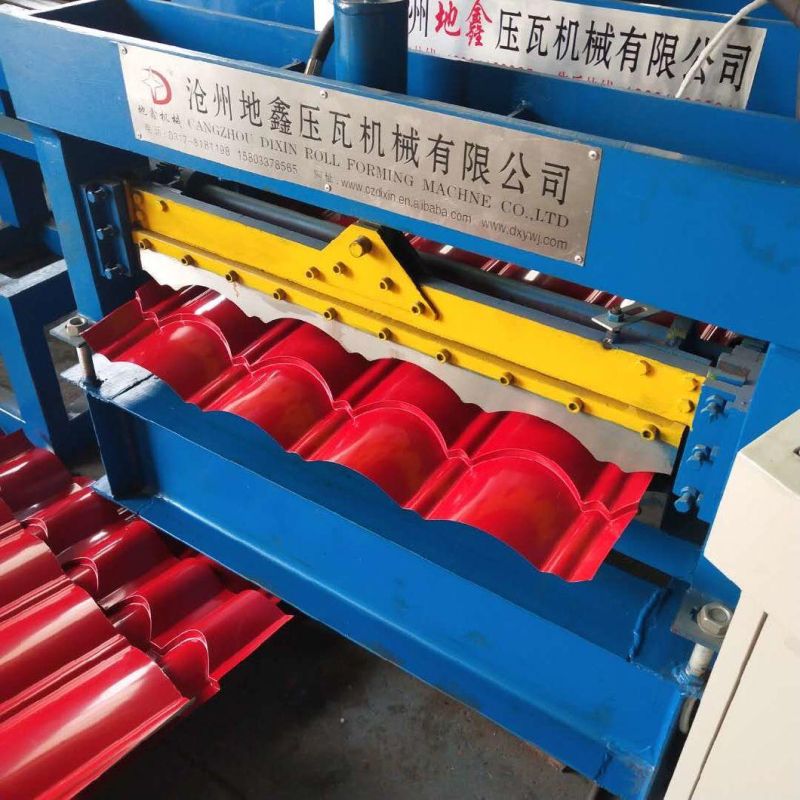

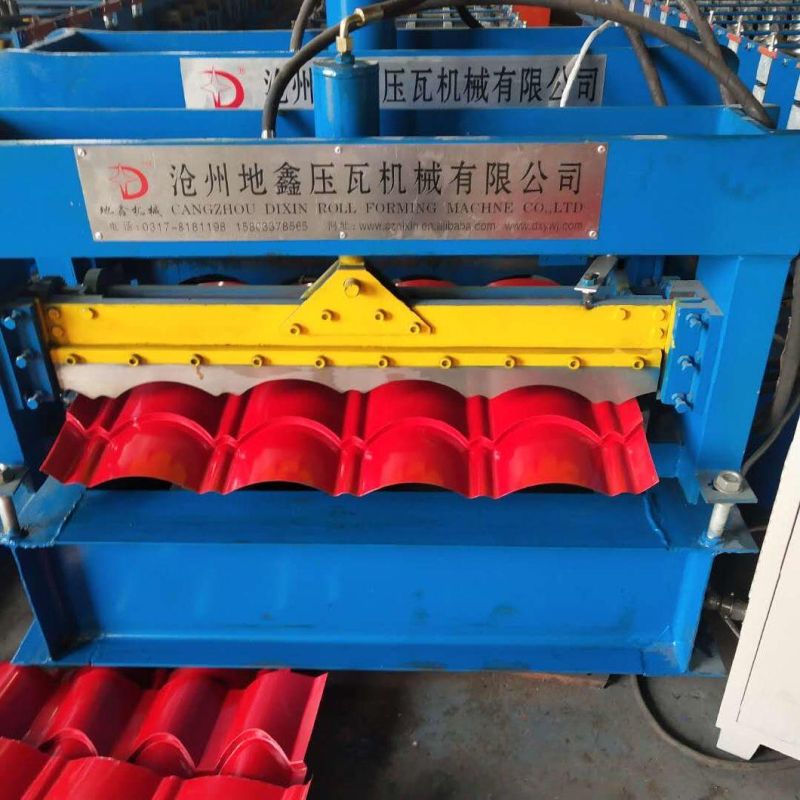

Dx Hot Sale Roof Tile Roll Former Machine



1.Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 828mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75 mm
(8) Forming steps: 13 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(14) 0veral sized: 6500mm*1500mm*1500mm
Packing size:5.7m*1.6m*1.5m(L*W*H) ,3.2 tons

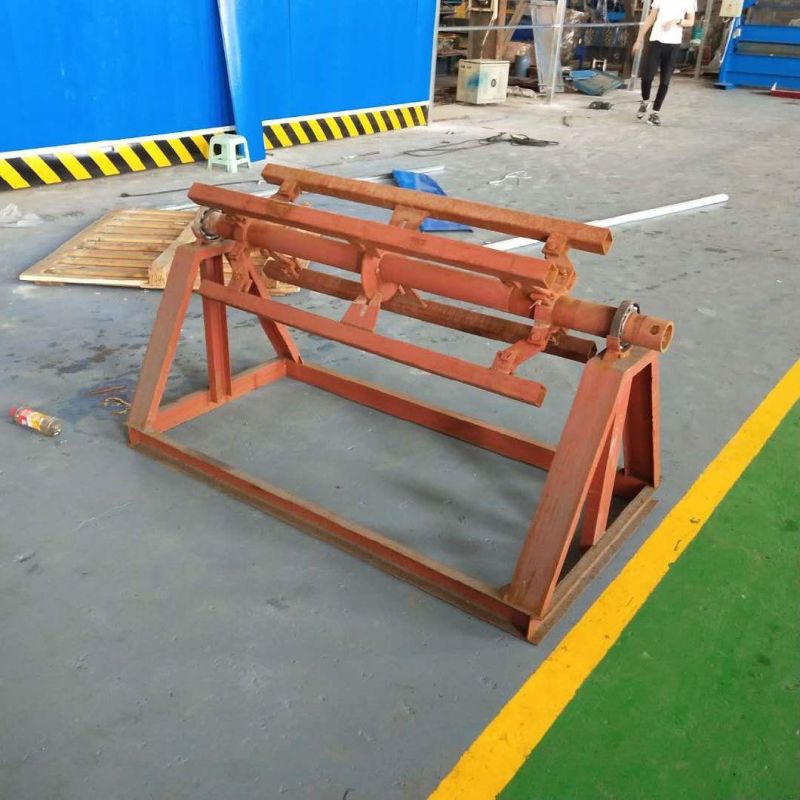

2.One manual uncoiler for free and other accessary


ading in a 20 foot container

NO.	ADVANTAGE
1	Direct manufacturer Since 2008
2	Golden customer evaluation and complete after-sale service
3	CE,SGS,BV,TUV--
4	Custom design to satisfy trader,factory or personal use.
5	Environmental protection production line ,no harm to environment and animal
6	Easy communication and feedback,professional advice for free
7	Engineer service in your factory available and economic

Company Introduce:

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
