High Quality Auto Line High Frequency Pipe Welding Machine

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd.
  • Pipe Material：Carbon Steel
  • Condition：New
  • Customized：Customized
  • Theory：Inverter
  • Application：Industry, Decoration
  • Type：Pipe Welding Machine

Base Info

  • Model NO.：ZY-HF45
  • Pipe Diameter：16-50.8mm
  • Pipe Thickness：0.6-2.0mm
  • Pipe Shape：Round
  • Uncoiler：Double-Head or Single-Head
  • Solid State High Frequency：150kw
  • Cutting：Flying Saw
  • Main Motor：80kw
  • Color：as Your Requirement
  • Max. Speed：90m,Min
  • Transport Package：Rain-Proof Package, Shipping
  • Trademark：Zhangyun Machinery
  • Origin：Zhangjiagang City
  • HS Code：8515219000
  • Production Capacity：10sets,Month

Description

Basic Info.

Model NO. ZY-HF45 Pipe Diameter 16-50.8mm Pipe Thickness 0.6-2.0mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 150kw Cutting Flying Saw Main Motor 80kw Color as Your Requirement Max. Speed 90m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

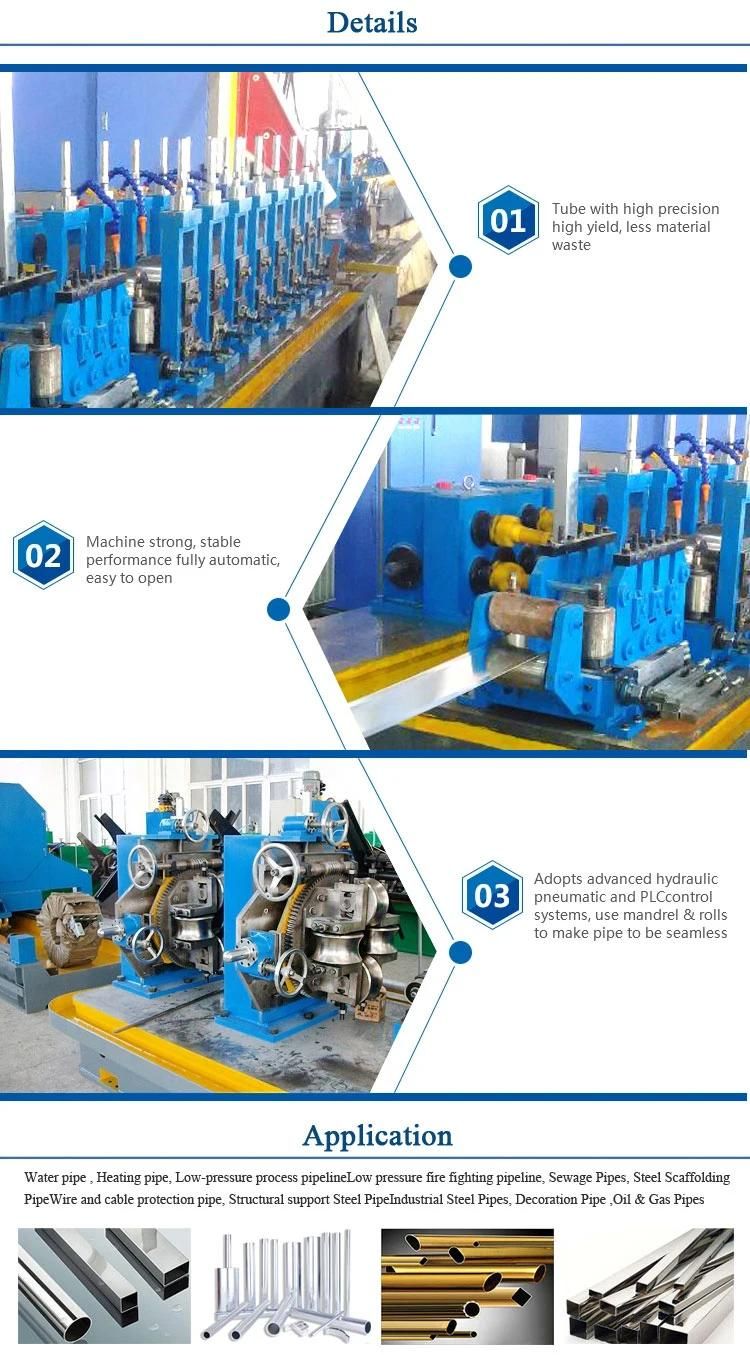

High Quality Auto Line High Frequency Pipe Welding Machine
High Quality Auto Line High Frequency Pipe Welding Machine


Technical Paramters
INCOMING RAW MATERIAL
Raw materialHR,CR carbon steel coil
Tensile Strength  σb≤600Mpa
Yield Strength σs≤315Mpa
O.D of steel coilMax. Φ1600mm
  I.D of steel coilΦ508mm
Weight of steel coil   Max. 3 ton/coil
 Round Pipe Wall thickness 0.6 ~2.0mm
Strip condition Slitting edge
Strip thickness toleranceMax. ± 5%
  Strip width tolerance± 0.1mm
 Strip camberMax. 5mm/10m
  Burr height≤ (0.05 x T) mm (T-strip thickness)
    MACHINE CAPACITY
Round pipe Φ16~ Φ50.8mm *0.6 ~ 2.0mm
Cutting length  4 ~ 12m
 Length tolerance Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed0~80m/min
 Strip storageVertical accumulate loop
 Main mill driver motor DC80kw
  Solid state high frequencyGGP-150kw

Working Process
Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit  + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table
High Quality Auto Line High Frequency Pipe Welding Machine
High Quality Auto Line High Frequency Pipe Welding Machine
FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
