Automatic Color Steel Deck Roofing Sheet Roll Forming Machine

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • After-sales Service：1 Years
  • Warranty：1 Years
  • Tile Type：Colored Steel
  • Certification：CE, ISO, ISO9001: 2000, CE, SGS
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：686
  • Usage：Roof, Wall
  • Transmission Method：Hydraulic Pressure
  • Effective：Easy Operation
  • Motor Power：4kw
  • Forming Station：13 Stations
  • Medium Plate Thickness：14mm
  • Main Frame：300h
  • Diameter of Roller：75mm
  • PLC：Delta Brand
  • Type：Roll Forming Machine
  • Method：Roll Forming Machine
  • Transport Package：One 20 Feet Container for Loading Machine
  • Specification：CE, SGS
  • Trademark：DIXIN
  • Origin：Cangzhou City, Hebei Province, China
  • HS Code：84552210
  • Production Capacity：20sets,Per Month

Description



Raw MaterialPre-painted steel coil & galvanized coils0.3-0.8235-550Roller material45# steel , coated with ChromeShaft for rollers shaft with 75mm,processed with cylindrical grinderForming speed(m/min)About 8-12Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeautomatic hydraulic cut to lengthCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)4KWTotal power(kw)8 KW
Process flow

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machine
 Decoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set   Some machine pictures for your reference

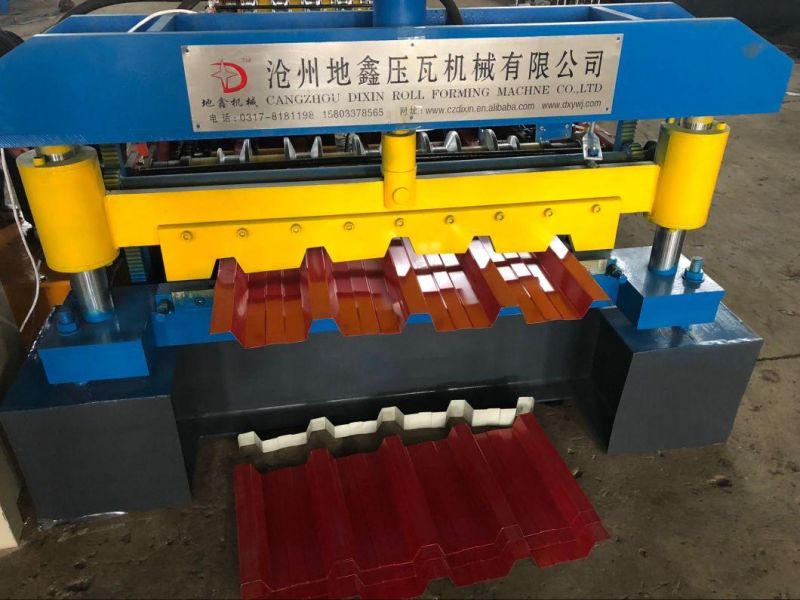

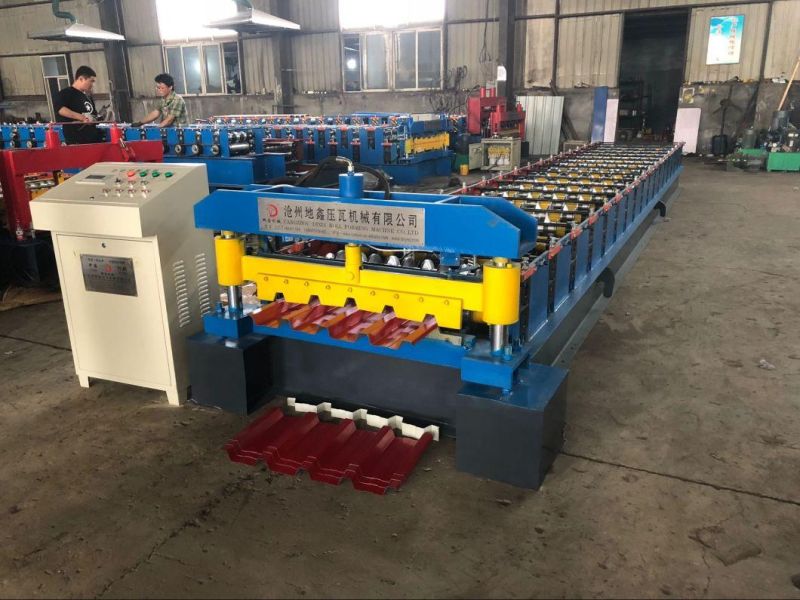

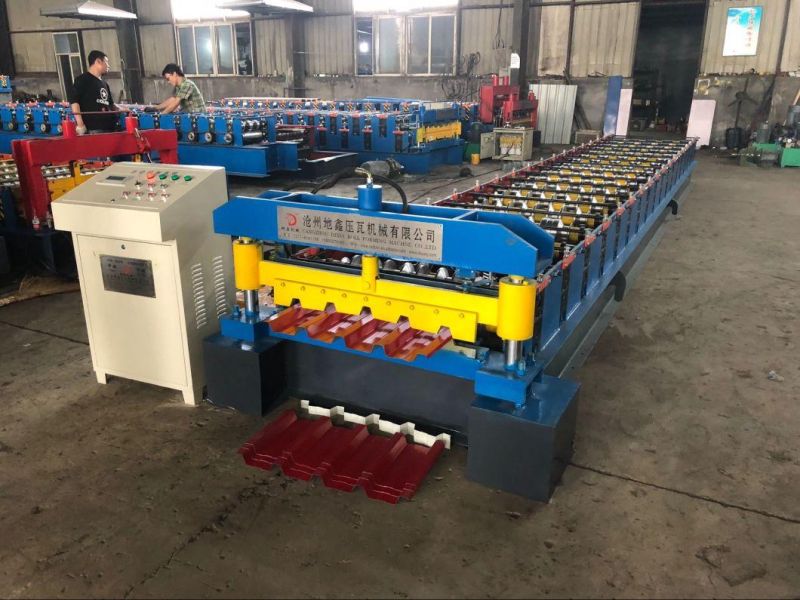

 Automatic Color Steel Deck Roofing Sheet Roll Forming MachineAutomatic Color Steel Deck Roofing Sheet Roll Forming MachineAutomatic Color Steel Deck Roofing Sheet Roll Forming MachineAutomatic Color Steel Deck Roofing Sheet Roll Forming Machine
Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3.  Decoiler Max. Capacity: 5000kgs
4.  Hydraulic station power: About 4Kw (Depend on final design)
5.  Cutting length: Cut-to-length

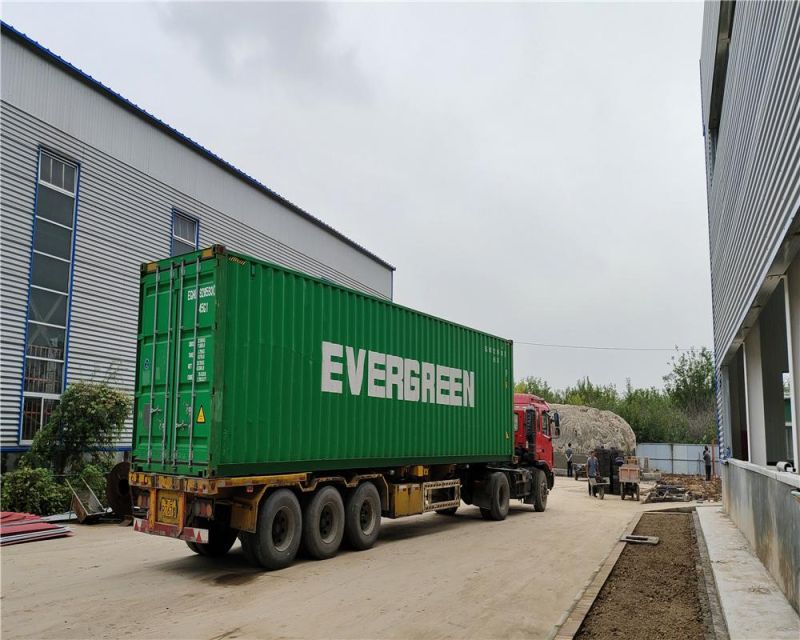

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
 Automatic Color Steel Deck Roofing Sheet Roll Forming MachineAutomatic Color Steel Deck Roofing Sheet Roll Forming Machine
1. Q: Are you a manufacturer?
A: Yes,we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands.
3. Q: What's the warranty for your machine?
A: We provide 2years guarantee and provide lifetime technical support.
4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system.
5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you.
8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service.
9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc.
10. Q: Any certification
A: Yes, we have CE SGS ISO certification.
