• Model NO.：zh
• Usage：Roof
• Transmission Method：Electric
• Dimension(L*W*H)：7800mm*1.55mm*1.3mm
• Weight：3500kg
• Thickness of Material：0.3mm-0.8mm
• Roller Material：45# Forged Steel with Hard Chrom
• Cutting Material：Cr12
• Main Motor：4kw
• Pump Motor for Cutter：3kw
• Structure：300h Beam
• Forming Stations：14
• Shaft Material：70mm
• Speed：10 Meters , Min
• Transport Package：Water Proof Plastic Film Cover
• Specification：335
• Trademark：ZHONGHENG
• Origin：China
• HS Code：8455221000
• Production Capacity：50 Sets,Months

Suitable materialPPGI  GI  ALCoil Width914/925/1000/1200/1220/1250mm as customThickness0.3-0.8mm as customPower380V 50Hz 3Phase  as customMain motor5.5KW SiemensHydraulic motor4KW SiemensSpeed15-30m/minForming stations12-18 rows Roller materialCr12 steel with vacuum heat treatment HRC57°-60°Shaft material45# steel quenched and temperedShaft diameter75mmChain1.2 inchScreem HMI Delta , Touch ScreenPLC Delta , SiemensProcessing precisionWithin 1mmSize 7.6m×1.5m×1.2mWeight4.5T

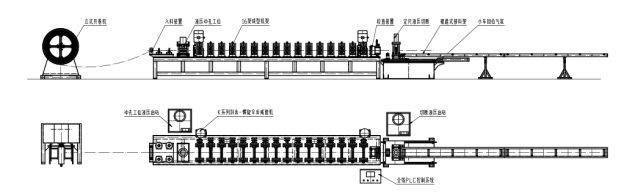

Flow chart


Components of line
1) Manual De-coiler ------------------------------------------------------ 1 set
2) Guiding Device---------------------------------------------------------1 set
3) Roll Forming System--------------------------------------------------- 1set
4) Cutting Device---------------------------------------------------------- 1set
5) Hydraulic System------------------------------------------------------- 1 set
6) PLC Control System----------------------------------------------------1 set
7) Run out table ----------------------------------------------------------- 1 set

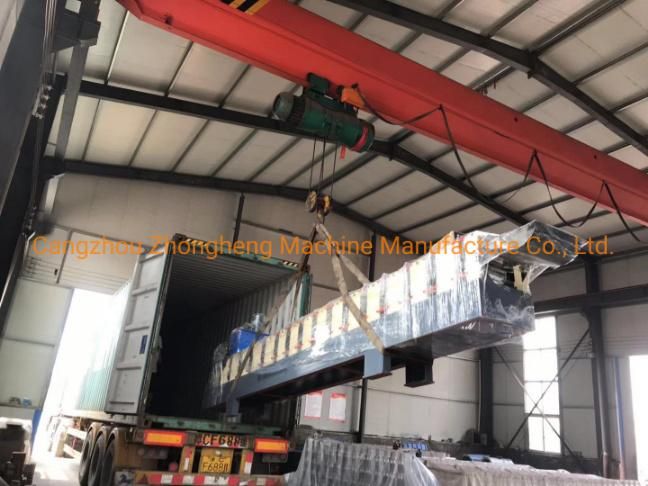

Package and shipment
One set of ridge cap machine can put in one 40' container
