• Model NO.：zh
• Usage：Roof, Wall
• Transmission Method：Electric
• Transport Package：Full Assembled
• Specification：4.5X0.85X1.4
• Trademark：ZH
• Origin：Hebei, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. zh Usage Roof, Wall Transmission Method Electric Transport Package Full Assembled Specification 4.5X0.85X1.4 Trademark ZH Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

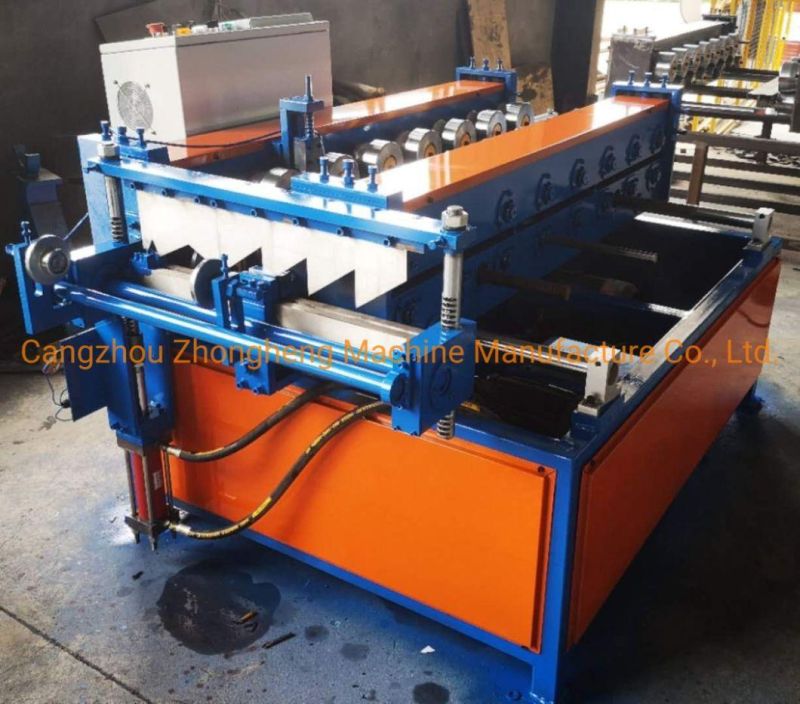

standing seam panel making machine

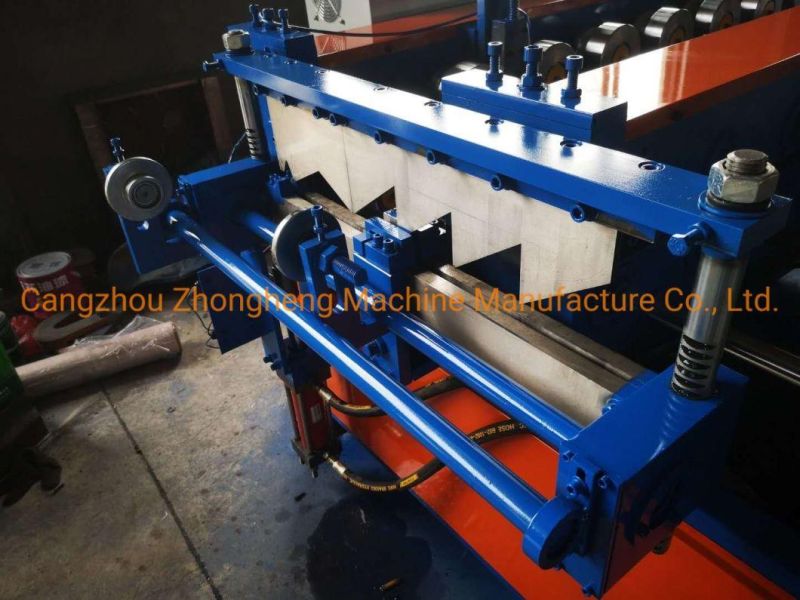

Machine Components
Forming Machine

With feeding material guide, body frame made from H400(Thickness is 13mm)
type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from high quality 40Cr Steel,CNC lathes, heat treatment,
hard Chrome Coated.
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor=7.5KW, Frequency speed control
Sprocket:18 tooth;Sliding block:130*140mm;Bolt and nut: international standard 8.8

TO AVOID OIL CANNING,WE CAN MAKE STIFFENING RIB AS YOUR REQUEST.

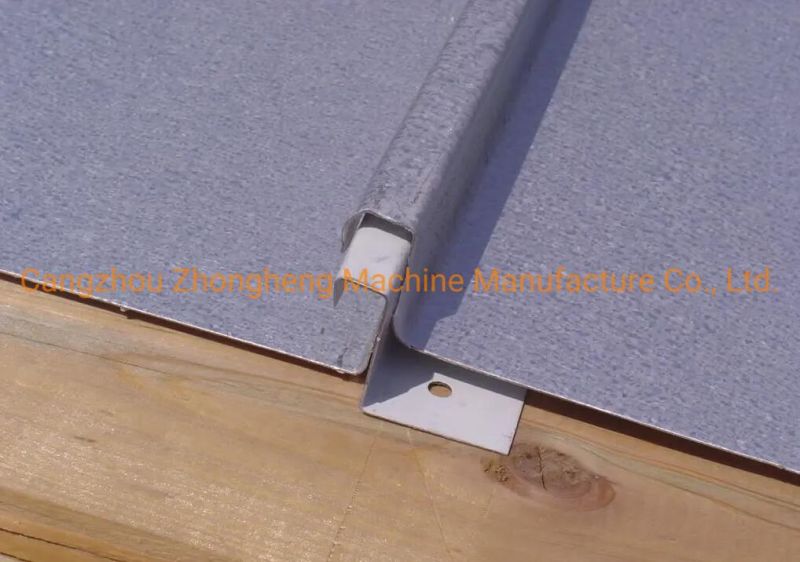

High Grade Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine Application



Standing Seam Metal Roof Roll forming Machine for sale Specifications

1.	Size	5800*1600*1400mm
2.	Weight	7000KGS
3.	Motor Power	7.5KW*2 sets
4.	Hydraulic Power	2.2KW
5.	Voltage	220V/60HZ/3PH
6.	Forming Steps	13
7.	Forming Speed	8-14m/min
8.	Effective Width	300mm, 400mm, 500mm
9.	Material of Width	470mm, 575mm, 680mm
10.	Thickness  for Aluminum sheets:	0.4-1.0mm
11.	Thickness for Colored Prepainted and Galvanized  Sheet	0.5-0.8mm
12.	Material for All Rollers	high grade no. 45 forged steel, plated hard chrome on the surface of rollers

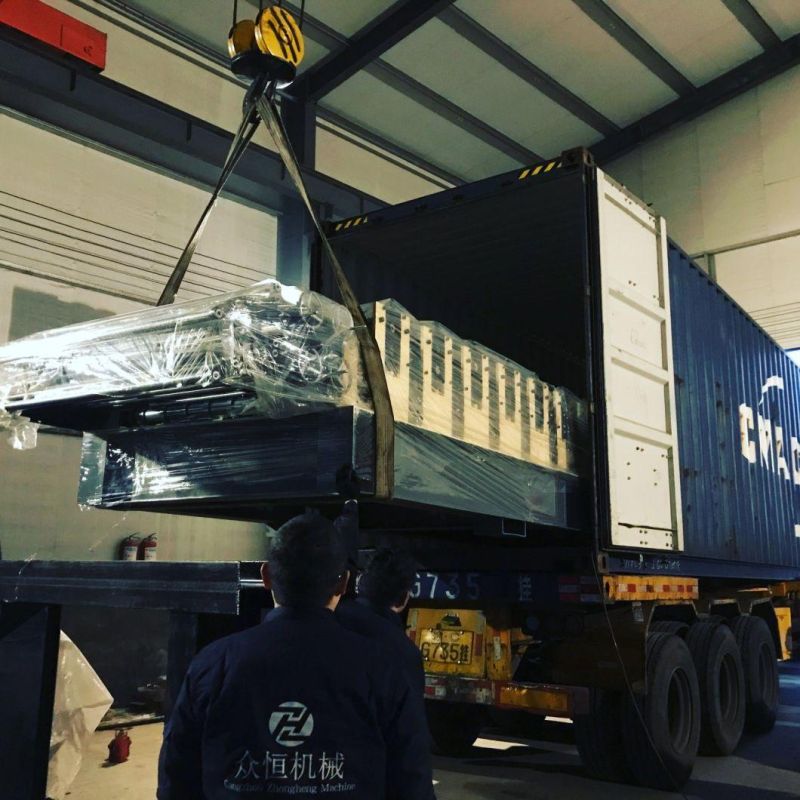

Packing and Shipping

1. Standing Seam Metal Roof Roll forming Machine for sale need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

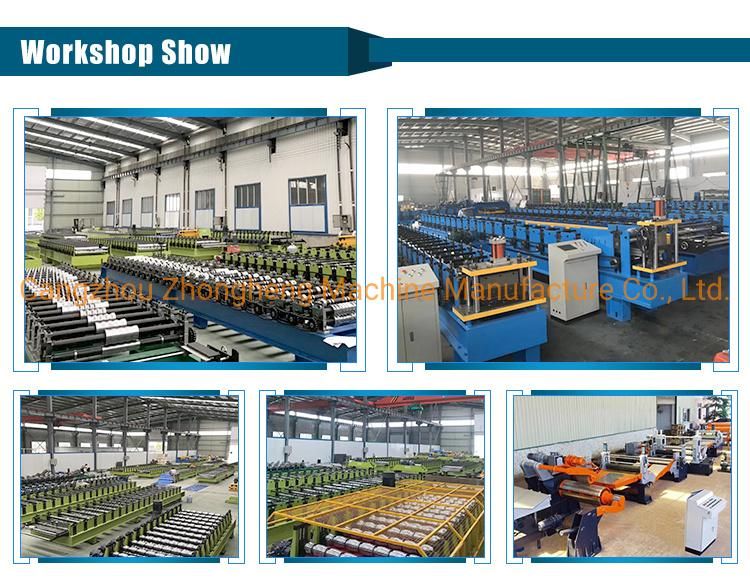

Company Introduction




FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
