• Model NO.：5ton 8ton 10ton
• Name：5ton 8ton 10ton Hydraulic Decoiler,Uncoiler with C
• Material：Coil
• Work Width：1250mm
• Max Capacity：10t(with 3 Arms)
• Main Motor Power：5.5kw
• Working Speed：20m,Min(Adjustable)
• Machine Size：3.5*2.5*2.2m
• Voltage：380V,3phase,50Hz
• Weight：About 4t
• Transport Package：with Plastic Film
• Specification：2700*1000*1500mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：100 Set,Year

Basic Info.

Model NO. 5ton 8ton 10ton Name 5ton 8ton 10ton Hydraulic Decoiler/Uncoiler with C Material Coil Work Width 1250mm Max Capacity 10t(with 3 Arms) Main Motor Power 5.5kw Working Speed 20m/Min(Adjustable) Machine Size 3.5*2.5*2.2m Voltage 380V,3phase,50Hz Weight About 4t Transport Package with Plastic Film Specification 2700*1000*1500mm Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 100 Set/Year

Product Description

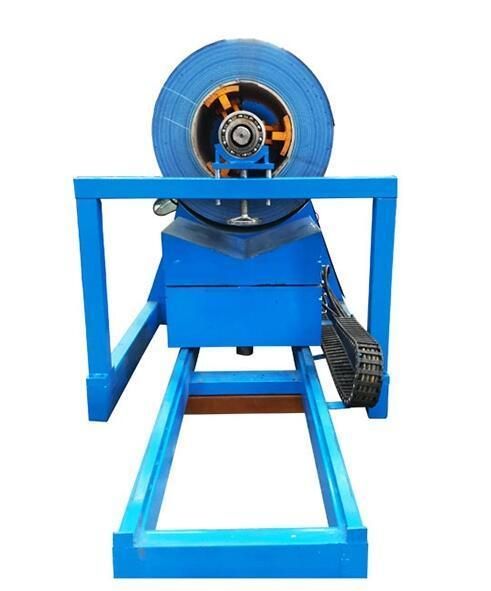

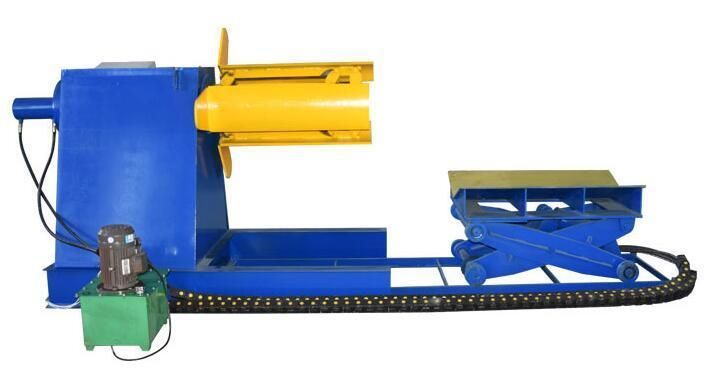

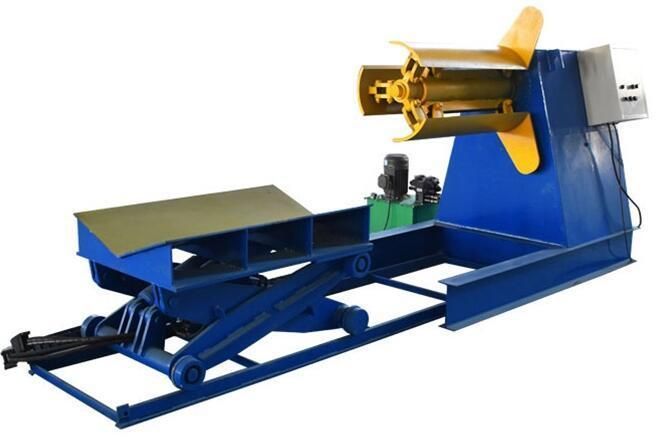

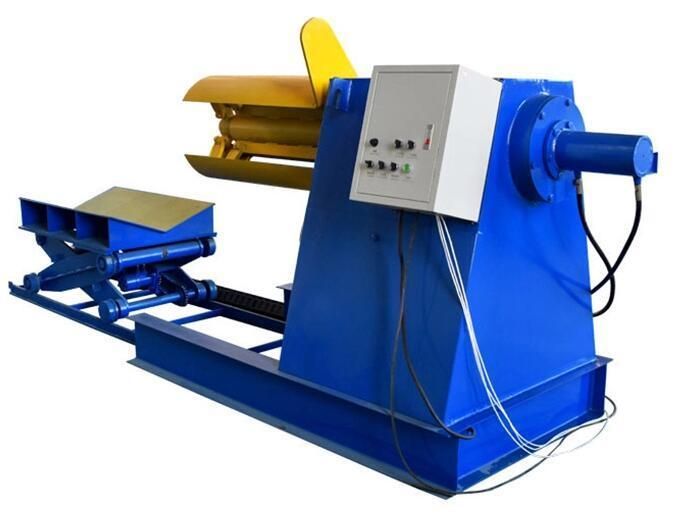

5ton 8ton 10ton hydraulic decoiler/uncoiler with coil car
uncoiler is suitable for all kinds of coil material feeding, no matter "COVAR" alloy or other pure material. Uncoiler works together with the straightener is normal; non-motive style is available as long as you need. The maximum load is 15 ton. And the m aximum material width is 1600mm. Uncoilers are always our best-sellers because many customers order most, which made us design more and more good-look and high-quality uncoilers for all of our clients. The special equipment (selective) has material pressing arm, oil pressure expansion style, oil pressure feeding device and motor adopted speed adjustable style. These special equipment will cost more, and please send inquiry to let us choose the most suitable selective for you~

No.	Item	Details
1	Dimension	2.5*1.6*1.9m around
2	Body weight	Around 2.5tons
3	Loading	5tons
4	Feed width	0-1250mm
5	Inner diameter of coil	470-530mm,570-630mm, ±50mm
6	Power	Hydraulic power:5.5KW Main power: 5.5KW
7	Frame	Base: 400H steel  Body: 25mm thickness steel panel welded
8	Bracing spindle	Material: seamless steel pipe Diameter:203*55mm
9	Electrical control system	Delta Frequency Converter

Company Information

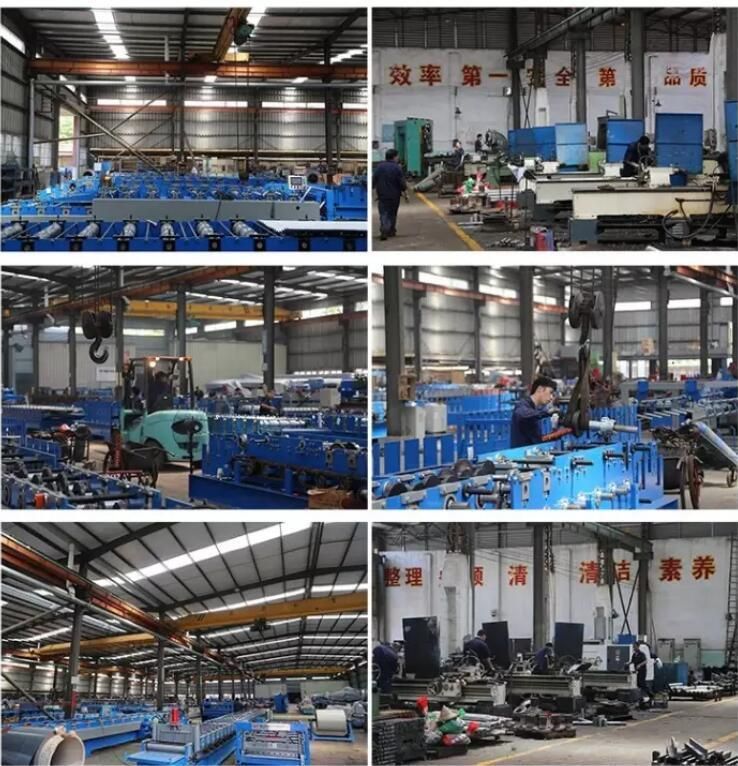

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China



Packaging

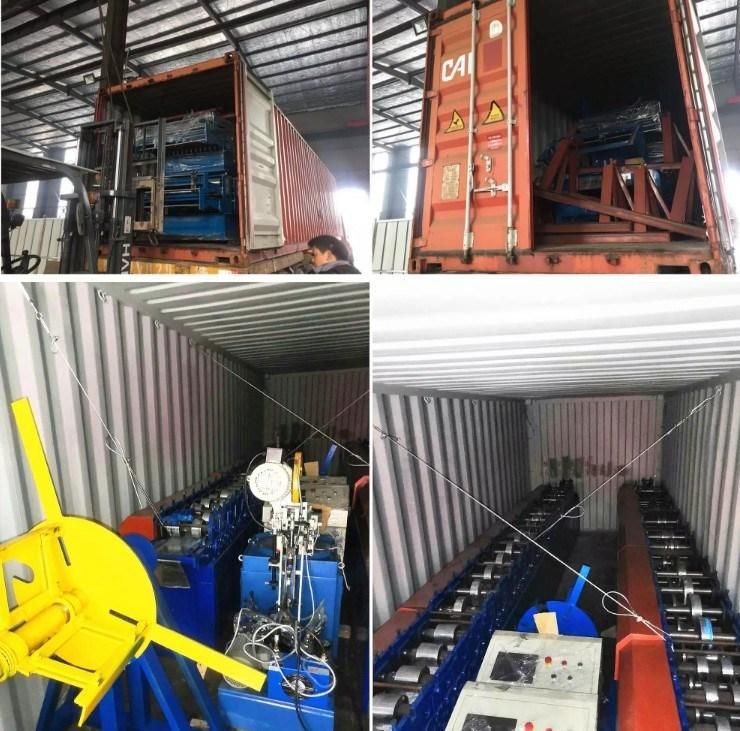

1.Tighten to container with steel wire rope and welded angel iron.

2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)

3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead Time :30 days after your pre-deposit

FAQ

Q: Are you manufacturer?

A: Yes, we are manufacturer and trading company.



Q: What kind of payment term you can do?

A: We are flexible about payment terms, please contact us for details.



Q: What info you need before you make the proposal for a roll forming machine?

A: The profile drawings, material informations, your special requirements.



Q: What's your service ?

A: 1. We provide 1 year warranty for our customers.
    2. Any parts damaged because of quality problem will be changed for free within the first year.
    3. Technical support is provided for free in the whole life of the machine.



Q: How to visit our company:

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

3.Fly to Tianjin airport: By high speed train From Tianjin Xi or Tianjin Nan to Cangzhou Xi (0.5 hour),then we can pick up you.
