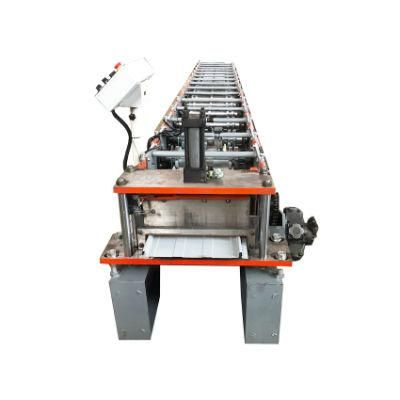

Floor Decking Roll Forming Machine Metal Steel Foor Tile Making Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Tile Type：Galvanized Steel
- Certification：CE
- Condition：New
- Customized：Customized
- Usage：Floor
- Transmission Method：Electric
Base Info
- Model NO.：895
- Name：Steel Plate Floor Tile Decking Sheet Roll Forming
- Material：Gi, PPGI, PPGL
- Width：1200mm
- Thickness：0.8-1.2mm
- Material of Rollers：High Grade 45# Forged Steel, Surface Hard Chromi
- Rows of Rollers：24
- Material of Shafts：High Grade 45# Forged Steel
- Diameter of Shafts：90mm
- Material of Cutting Blade：Cr12 Heat Treatment
- Speed：10-15m,Min
- Side Plate Thickness：20mm
- Chain Size：2 Inch
- Total Power：22 Kw
- Voltage：380V 50Hz 3phase
- Appearance Size (About)：12000mm*1800mm*1700mm
- Transport Package：Plastic File
- Specification：9800*1500*1200mm
- Trademark：dixin
- Origin：China
- HS Code：84552210
- Production Capacity：100sets,Year
Description
Suitable Material
Material
GI, PPGI, PPGL
Width
1200 mm
Thickness
0.8-1.2 mm
Material of rollers
High grade 45# forged steel, surface hard chromium plating
Rows of rollers
24 stations
Material of shafts
High grade 45# forged steel
Diameter of shafts
90mm
Material of cutting blade
Cr12 Heat Treatment
Speed
15-20 m/min
Side plate thickness
20 mm
Chain size
2 inch
Total power
22 kw
Voltage
380V 50HZ 3Phase
Appearance size (About)
12000mm*1800mm*1700mm
Weight(About)
13 tons
Length measurement
Encoder
Control mode
Delta PLC
Operating mode
Button +Delta Touch screen
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 50 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer
