• Model NO.：DX125
• Name：Rolling Shutter Machine
• Suitable Material：Color Steel Sheet, Galvanized Steel Sheet, Aluminu
• Installation Dimension (L*W*H)：6.5m*1.5m*1.4m
• Main Motor Power：4kw with Cycloidal Reducer
• Hydraulic Station Power：4kw
• Hydraulic Oil Pump：CB-E 310
• Thickness of Material：0.8-1.2mm
• Diameter of Principal Axis：70mm
• Electric Tension：380V 3phase 50Hz
• Controlling System：PLC
• Processing Speed：8-12m,Min(Glazed Tile Is 2-3m,Min)
• Material of Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Roller Station：11-20 Rollers
• Roller Material：High Grade 45#Steel; Cr12 Quenching
• Leak Frame Load-Bearing：3.5t
• Transport Package：Nude
• Specification：6300*800*1200mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：100 Set,Year

Basic Info.

Model NO. DX125 Name Rolling Shutter Machine Suitable Material Color Steel Sheet, Galvanized Steel Sheet, Aluminu Installation Dimension (L*W*H) 6.5m*1.5m*1.4m Main Motor Power 4kw with Cycloidal Reducer Hydraulic Station Power 4kw Hydraulic Oil Pump CB-E 310 Thickness of Material 0.8-1.2mm Diameter of Principal Axis 70mm Electric Tension 380V 3phase 50Hz Controlling System PLC Processing Speed 8-12m/Min(Glazed Tile Is 2-3m/Min) Material of Cutting Blade Cr12 Mould Steel with Quenched Treatment Roller Station 11-20 Rollers Roller Material High Grade 45#Steel; Cr12 Quenching Leak Frame Load-Bearing 3.5t Transport Package Nude Specification 6300*800*1200mm Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 100 Set/Year

Product Description

Metal Shutter Slat Roll Forming Machine Steel Garage Door Machine 1.Panel profile of shutter door forming machine

1.Main Components
Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station --------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit

2.Technological process
Uncoiler-Feeding-Leveling-hydraulic punching-Hydraulic cutting-Roll forming-Output table

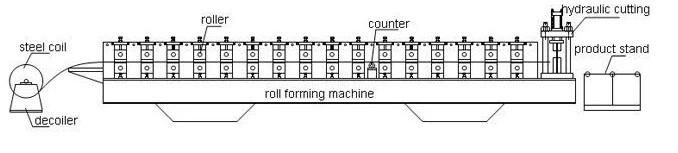

3.Technical drawing



4.Main Technical Parameters

1.Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H):	6.5m*1.5m*1.4m
3.Main motor power	4KW with Cycloidal reducer
4.Hydraulic station power	4KW
5. Hydraulic oil pump	CB-E 310
6.Thickness of material	0.3mm~1.0mm
7.Diameter of principal axis	Φ70-90mm
8.Material expand width	1000-1250mm
9.Electric tension	380V 3phase 50HZ or as the customer's requirements
10.Material of roller	High grade 45# forged steel plated with hard chrome plating
11.Controlling system	PLC
12.Processing speed	8-12m/min(glazed tile is 2-3m/min)
13.Processing precision within	1.00mm (depend on design)
14.Material of cutting blade	Cr12 mould steel with quenched treatment
15.Kind of drive	0.6 inch chain link bearing model 6210
16.Roller station	11-20 Rollers
17.Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	3.5T

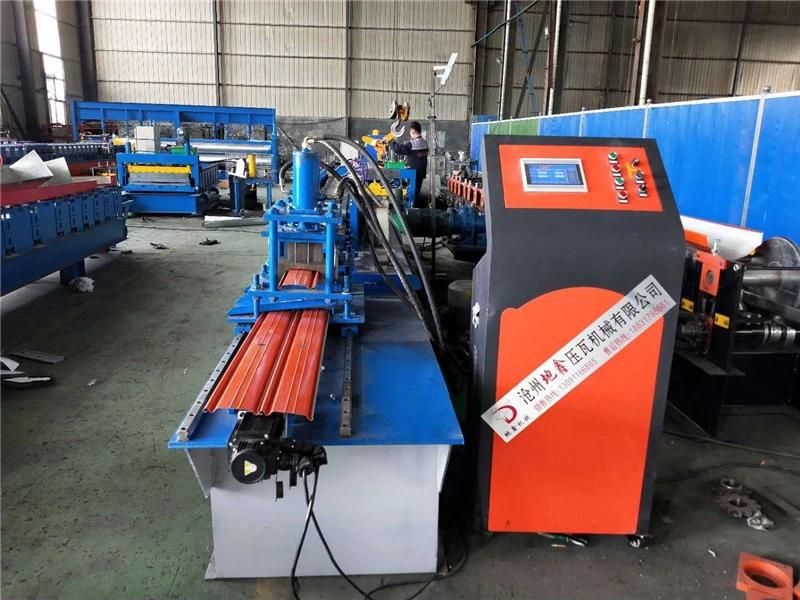

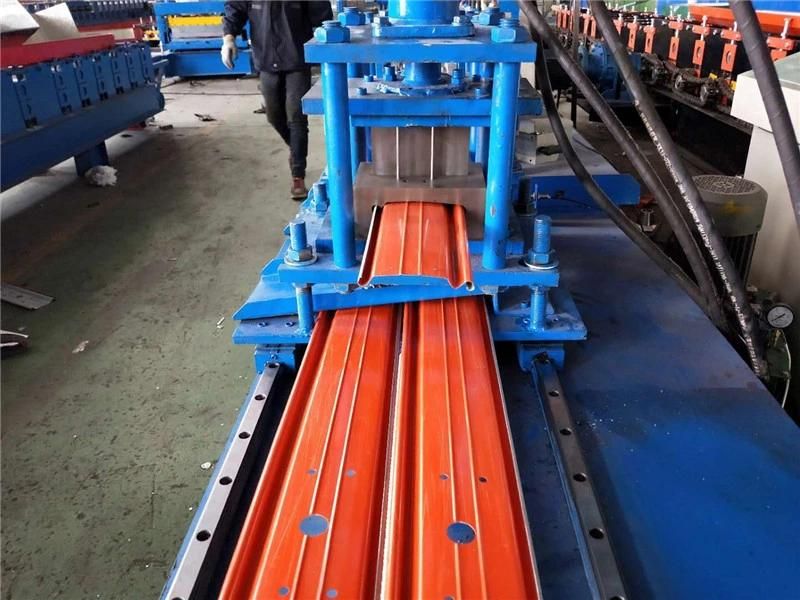

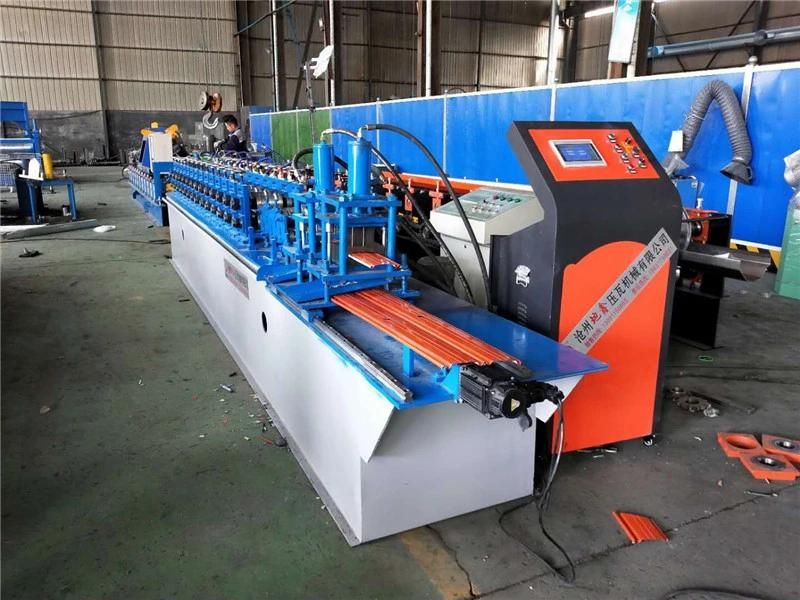

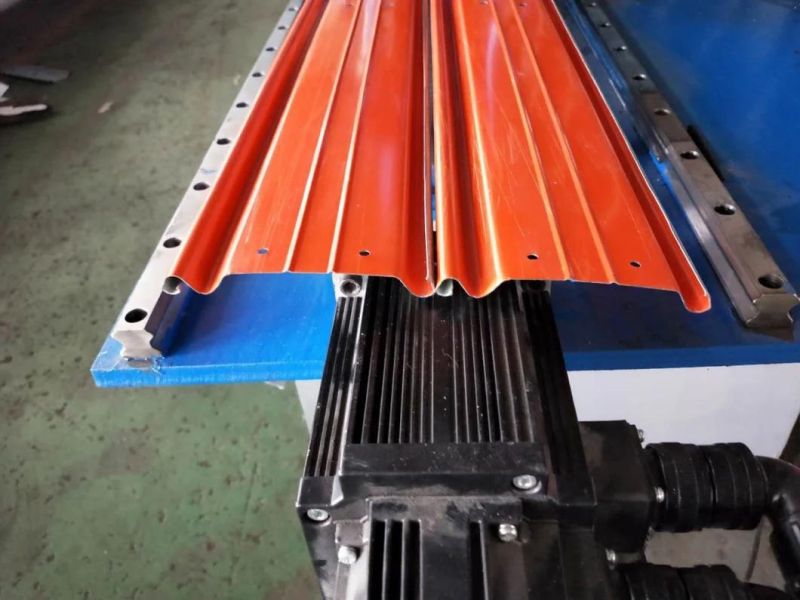

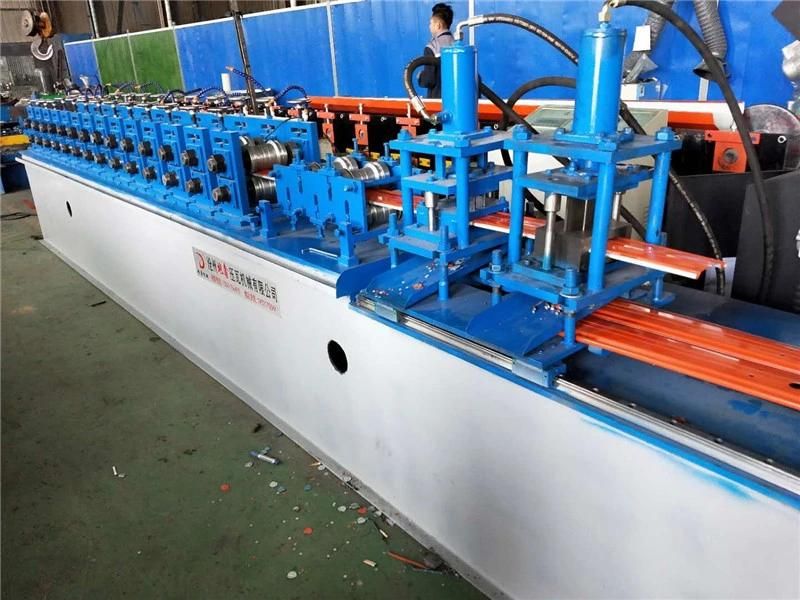

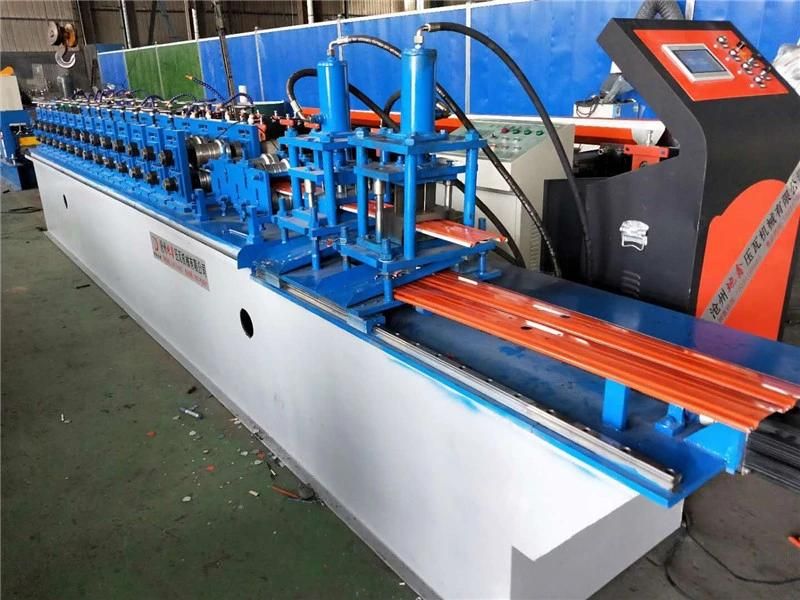

5.125 shutter door machine pictures





FAQ
1)Q:Can you make machine according to my design?
   A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. The core of our company culture is honesty and credit.
3)Q:What payment terms you accept?
    A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
    A:We have one year guarantee, and provide whole life's technical support.
