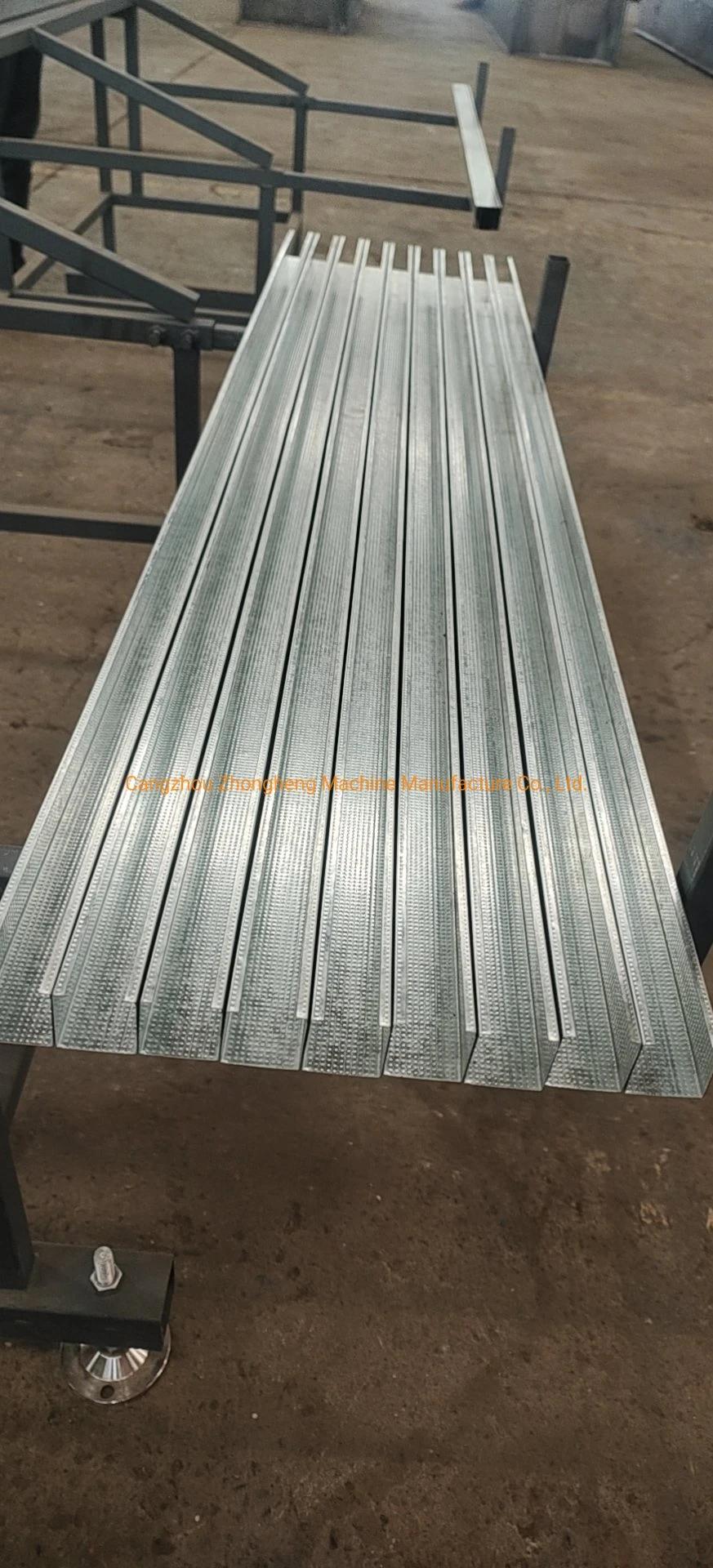

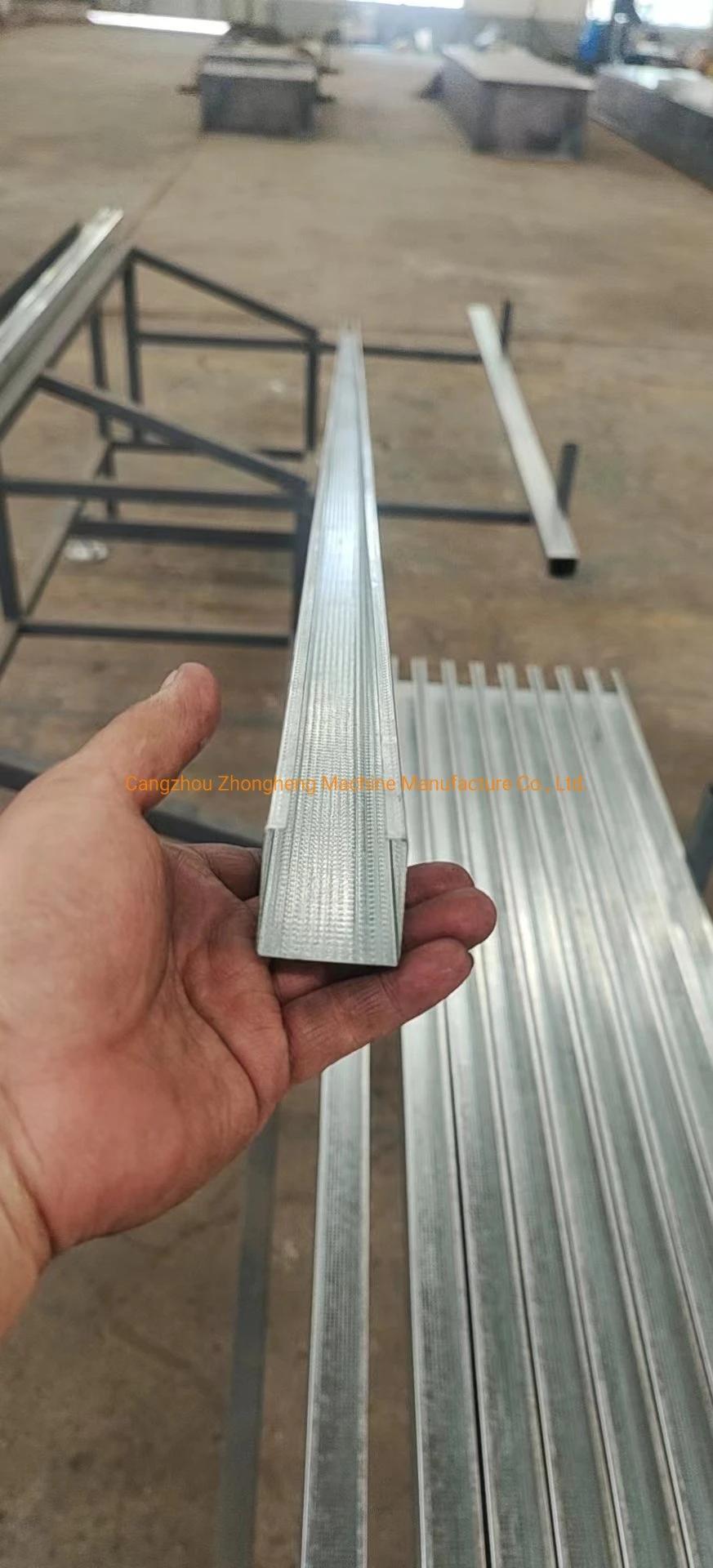

Hot Sale Drywall System C Stud and Omega Drywall Studs Channel Roll Forming Machine
Cangzhou Zhongheng Machine Manufacture Co., Ltd.- After-sales Service：Whole Life After Sale Service
- Warranty：2 Years
- Certification：CE
- Customized：Customized
- Condition：New
- Control Type：Artificial
Base Info
- Model NO.：zh
- Automatic Grade：Automatic
- Type：Omega Type Furring Stud and Truck Roll Forming Mac
- Speed：40m,Min
- Motor：7.5kw
- Servo Motor：1.5kw
- Rollers：Cr12
- Cutting：Non Stop
- Blade：Cr12 MOV
- Voltage：380V
- Control System：PLC Xinjie
- Decoiler：2.5ton
- Delivery Time：30 Days
- Transport Package：Full Assmebled
- Specification：4.5X0.85X1.4
- Trademark：ZH
- Origin：Hebei, China
- HS Code：8455221000
- Production Capacity：20 Sets Per Month
Description
Material
Effective width:About 25 mm
Material Thickness:0.3-0.6mm
Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390Mpa
Work Follow
Decoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit Rack
Machine Components

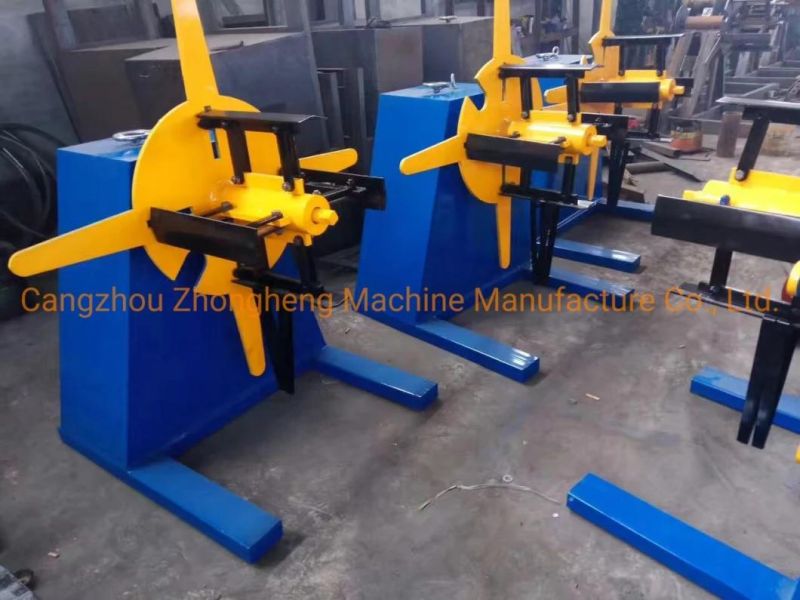

Manual Decoiler 1 Set
Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 500mm,coil ID range ф460-520mm
Capacity:Max 2 Tons*2
Main Roll forming machine
Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner
Hole and the end face. The precision machining roller surface with CNC lathe
Shafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome Coated
With thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Main motor and 14 reducers combination driving,about 14-step to form
Main Motor =5.5KW,Frequency speed control
Non stop cutting and punching
Cutter stype:Not stop cutting and punching
The length of tolerance:±1.0mm(3m)
Cutter motor:Hydraulic
Servo motor power:3 KW

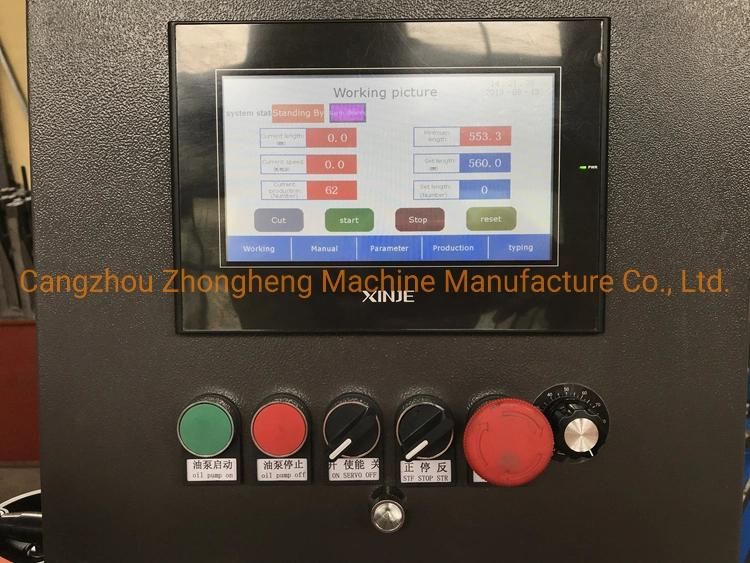

Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etc
After-sale service of stud and track roll forming machine
1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years,
we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 40 workdays
3. Port of loading: port of Tianjin
4. Type of payment: by T/T or by L/C

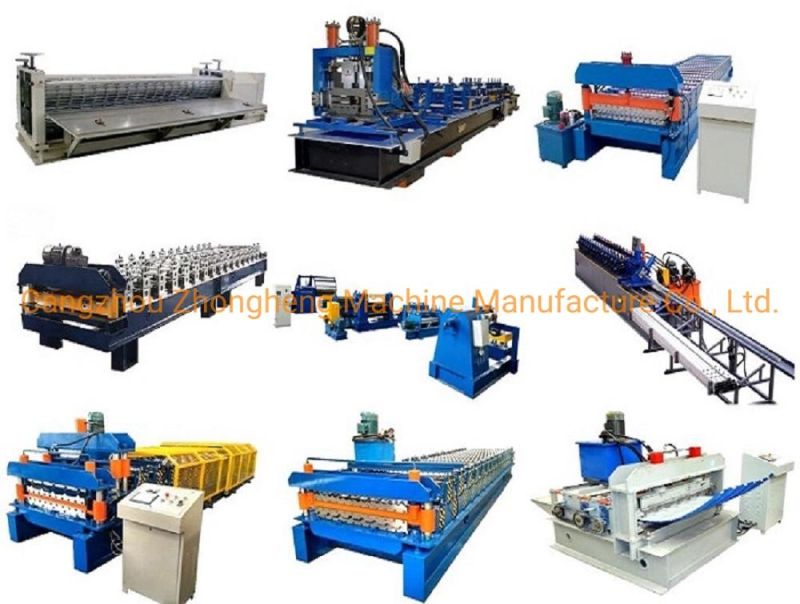

More Roll Forming Machine for reference , welcome to send us Inquiry .
