• Model NO.：LGZW6512
• Positioning Accuracy：X Axis:≤0.10mm; Y,Z Axis: ≤0.08mm
• Pepeat Positioning Accuracy：≤0.05mm
• Indexing Axis Accuracy：±2 Arc Minute
• Surface Roughness：Ra 12.5μm
• Worktable Nos.：8
• Spindle Taper Hole：Hsk63f
• Spindle Motor Power：8.5kw
• Spindle Max Output Torque：8 N.M
• Spindle Max Rotating Speed：24000r,Min
• X/Y/Z Axis Work Range：6500,200,700mm
• Distance From Spindle to Worktable：0~600mm
• B Axis Swing Range：±185°
• C Axis Rotation Range：±320°
• X/Y/Z Fast Movement Speed：50,30,20m,Min
• Transport Package：40gp
• Specification：6500x1700x1900mm
• Trademark：TIANCHEN
• Origin：China
• HS Code：8461409000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. LGZW6512 Positioning Accuracy X Axis:≤0.10mm; Y/Z Axis: ≤0.08mm Pepeat Positioning Accuracy ≤0.05mm Indexing Axis Accuracy ±2 Arc Minute Surface Roughness Ra 12.5μm Worktable Nos. 8 Spindle Taper Hole Hsk63f Spindle Motor Power 8.5kw Spindle Max Output Torque 8 N.M Spindle Max Rotating Speed 24000r/Min X/Y/Z Axis Work Range 6500/200/700mm Distance From Spindle to Worktable 0~600mm B Axis Swing Range ±185° C Axis Rotation Range ±320° X/Y/Z Fast Movement Speed 50/30/20m/Min Transport Package 40gp Specification 6500x1700x1900mm Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/Year

Product Description

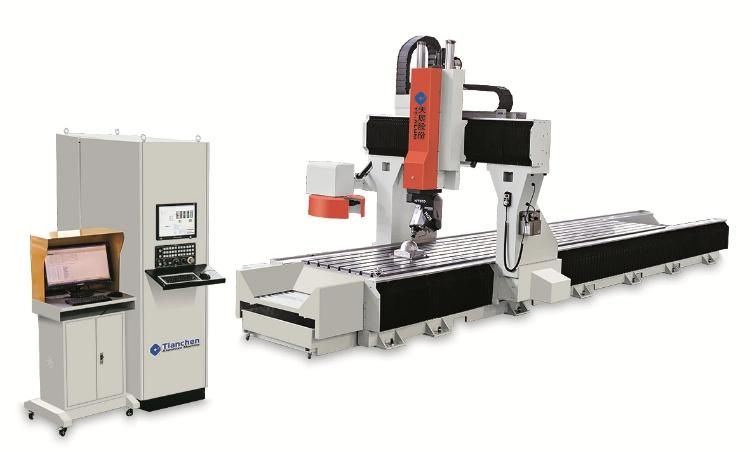

                         5 Axis CNC Gantry Window Frame Making Machine                                                            Modle LGZW6512Machine Features1. Using a CNC double pendulum head with 5-axis and 5-linkage function, it can complete milling, boring, drilling,
tapping thread, and cutting on 5 surfaces. 2. Beside the high precision double pendulum head, it equipped with a high power, high speed spindle, the inner conic
hole of the spindle head is HSK63F interface. The machine has much higher cutting volume per unit time.3. Adopting imported high quality Osai CNC system from Italy, with fine user interface, the machine can complete
complex five-axis machining, and can realize the RTCP control. All CNC are equipped with bus communication of CANOPE.4. The worktable adopts high-strength cast iron pieces, the machine bed, the beam, the slide, the ram and other key parts
are made of steel plate welding parts. Finite element analysis is used for analyzing and calculating, which can ensure the
quality of the optimal stiffness ratio and excellent static and dynamic performance and thermal properties. The cast iron
worktable is provided with a standard T-slot, which can facilitate the positioning and installation of various tooling fixtures
and work pieces.5. With water circulating cooling system on the electric main shaft, automatic lubricating system on the feed drive, and
cooling spray system on cutting tool, it guaranteed the reliable operation and precision stability of the machine tool.6. With rotary tool magazine of 12 positions, it can realize automatically tool changing.Technical Parameters

Item	Specifications
Moving range of Axis X/Y/Z	6500/1520/600mm
Distance from spindle head to worktable surface	0 ~ 600mm
B-axis swing range	±185°
C-axis rotation range	±320°
Worktable size(length*width)	6500x1200mm
T shape groove	7x22H7
X:vertical/horizontal(without tool)	6500/6400mm
Y:vertical/horizontal	1200mm
Z:vertical/horizontal(without tool)	450/600mm
X/Y/Z axis move speed	50/30/20m/min
X/Y/Z axis feed motor torque	18.6/2/11.5/11.5N.m
B/C axis rotating speed	166.7/191.7°/s
B/C axis Max continuous output torque	320/670N.m
Taper hole/handle spec	HSK63F No.
Motor power	12KW
Max output torque/rev	12.3N.m
Max rev	18000r/min
Tool magazine capacity	12 automatic tool change
Air pressure	6~7(kgf/cm2)
Air consumption	240L/min
Total electrical capacity	50KVA
Net weight	13500kg
NC system	Italy Osai CNC system
