Manual Small Manufacturing Machines Making Brick Block

Linyi ShengMing Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO

Base Info

  • Model NO.：QTJ4-40A
  • Customized：Customized
  • Automatic Grade：Manual
  • Type：Vibration Molding
  • Work Method：Vibration Forming
  • Raw Material：Sand, Stone, Cement, Stonedust
  • Block Type：Hollow Concrete Brick Machine
  • Product Name：Manual Concrete Making Machine
  • Name：Manual Cement Block Machine
  • Products：4PCS,Mould
  • Keywords：Manual Vibration Cement Block Moulding Machine
  • Pallet Size：850*450mm
  • Brick Type：Hollow Brick Concrete Brick Hole Brick
  • Molding Cycle：40-45s
  • After Warranty Service：Video Technical Support
  • Warranty Service：Online Support
  • After-Sales Service Provided：Free Spare Parts
  • Advantage：Hollow Block Making Machine
  • Machine Type：Brick Block Making Machine
  • Transport Package：Shipping by Sea
  • Specification：1150*1650*2000mm
  • Trademark：SHENGMING
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：50set,Month
  • Package size per unit product：140.00cm * 140.00cm * 190.00cm
  • Gross weight per unit product：550.000kg

Description

Total rated power
 9.3KW
 Block yard area
 50M2
 Daily capacity
 1000-1500 pieces
 Power voltage
 380V/220V AC
 Pallet quantity
 400-500 pieces
 Labor quantity
 2-3 people
 Water consumption
 1-3T/day
 Forming period
 40S-45S
 QTJ4-40B block making machine introduction

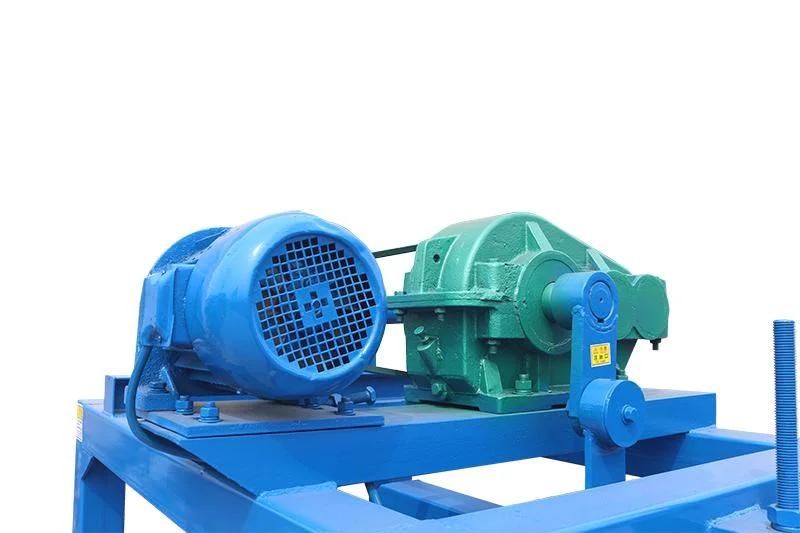

This machine is a small fixed brick making machine with simple structure and reasonable design. A durable JZQ reducer is used to take care of the lifting of the mold box. The press head adopts a push-pull design, which is safe and convenient.
The vibration platform is welded by Q345 steel plate, and the connecting piece with the host adopts rubber column design, which greatly improves the durability.

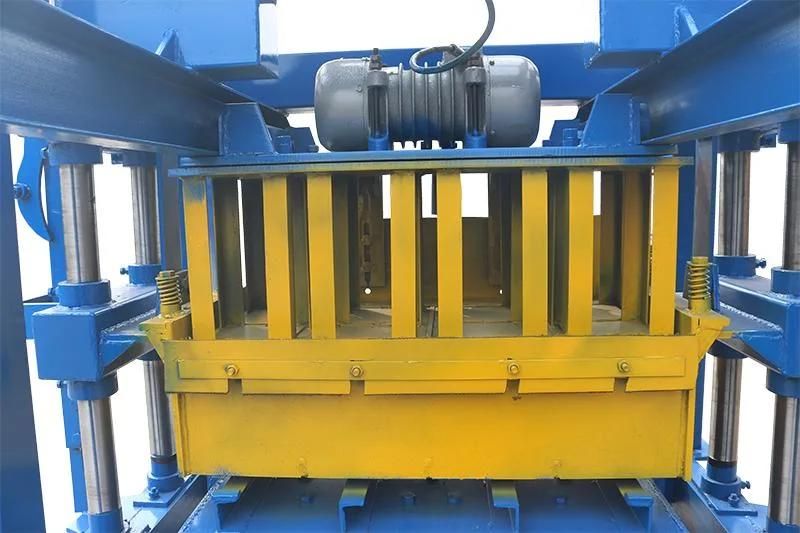

The whole machine is equipped with 3 vibrators, which can provide strong excitation force, fast brick forming speed and good density.
The mold is welded with Q345 steel, which can be directly replaced to produce different brick types.Manual Small Manufacturing Machines Making Brick BlockManual Small Manufacturing Machines Making Brick BlockManual Small Manufacturing Machines Making Brick Block Size (LXWXH)mm
 Pieces/mold
 Pieces/Hour
 Pieces/Day

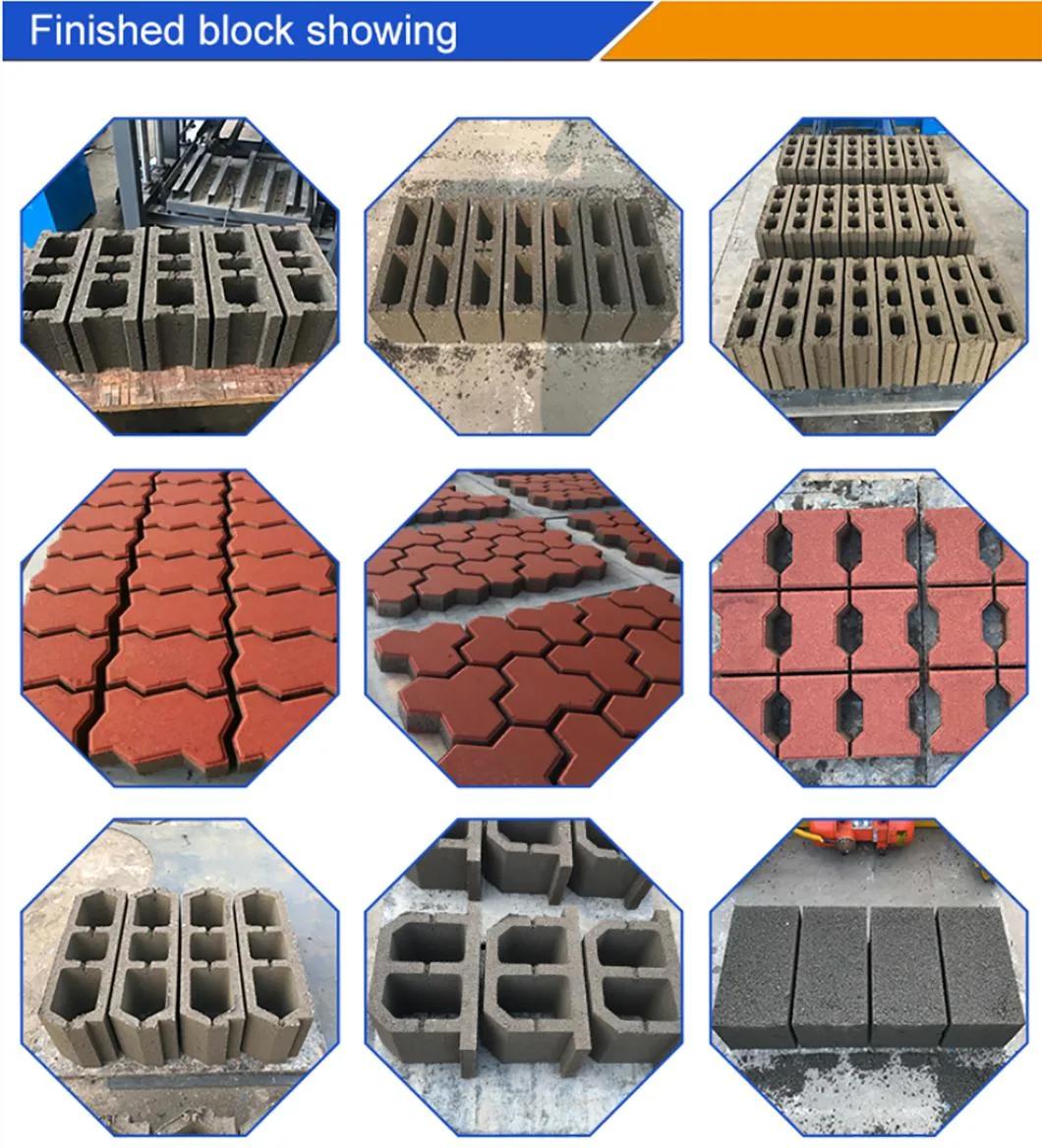

 Hollow block
400x200x200
 42401920Hollow block
400x150x200
 53002400Hollow block
400x100x200
 74202800Solid block
400x200x200
 42401920Paver
200x100x60
 10604800Features:
1. The body design is simple and easy to operate
2. Design of vibrating motor under high power, with large excitation force and good density
3. The mold is made of Q345 steel, which has high durability

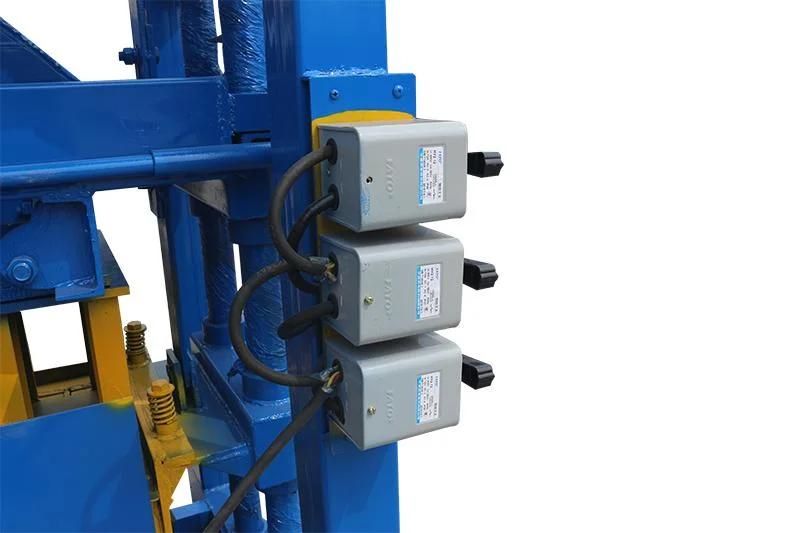

4. Reverse switch design, simple operation and maintenance
5. One machine with multiple functions, can change different molds Manual Small Manufacturing Machines Making Brick Block   Manual Small Manufacturing Machines Making Brick BlockQTJ4-40A manual small manufacturing machines making brick block Manual Small Manufacturing Machines Making Brick Block  Manual Small Manufacturing Machines Making Brick Block  Manual Small Manufacturing Machines Making Brick Block  Manual Small Manufacturing Machines Making Brick Block  Manual Small Manufacturing Machines Making Brick Block  Manual Small Manufacturing Machines Making Brick Block (1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?

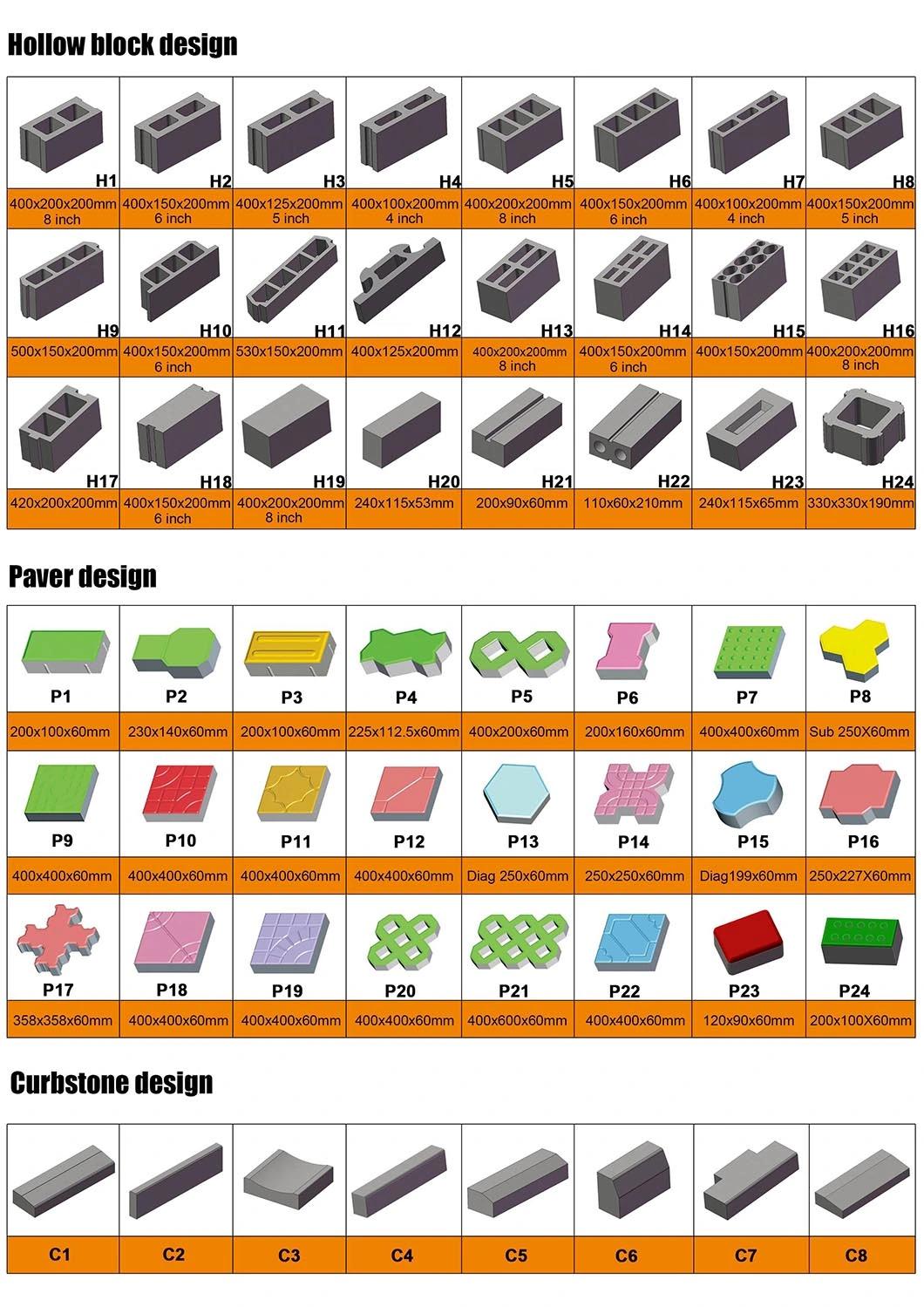

A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
