• Model NO.：QT4-35
• Mixer Model：Jq500
• Moulding Period：18
• Block Material：Sand,Cement,Gravel,Crushed Stone
• Machine Usage：Solid Brick,Hollow Block
• Voltage：as Per Local Requests
• Condition：New
• Machine Color：as Client Requirement
• Power：17.4kw
• Vibration Force：30kn
• Weight：4t
• Transport Package：Suitable for Sea Transrtation
• Specification：1350*1460*1800
• Trademark：RAYTONE MACHINERY
• Origin：Shandong Province, China
• HS Code：84748090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. QT4-35 Mixer Model Jq500 Moulding Period 18 Block Material Sand/Cement/Gravel/Crushed Stone Machine Usage Solid Brick/Hollow Block Voltage as Per Local Requests Condition New Machine Color as Client Requirement Power 17.4kw Vibration Force 30kn Weight 4t Transport Package Suitable for Sea Transrtation Specification 1350*1460*1800 Trademark RAYTONE MACHINERY Origin Shandong Province, China HS Code 84748090 Production Capacity 100 Sets/Month

Product Description

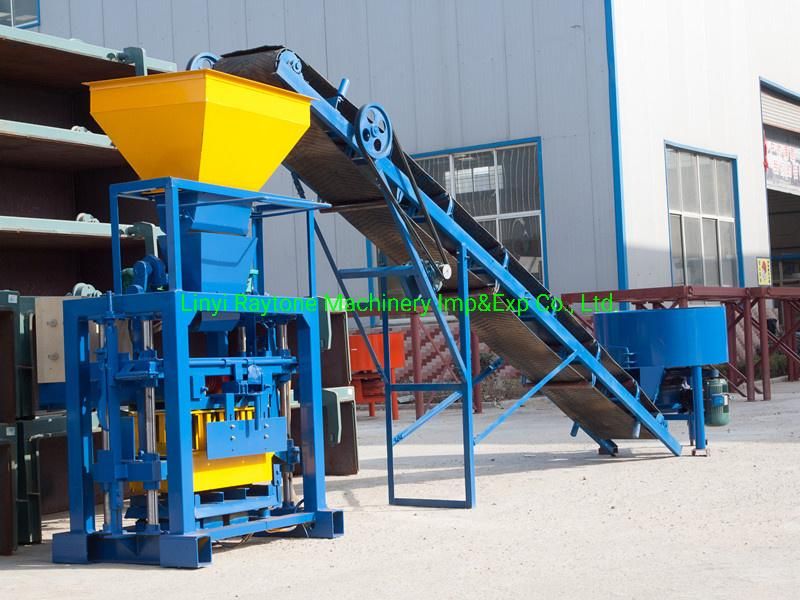

                                               QT4-35 Manual Brick Making Machine
1.QT4-35 Manual Brick Making Machine Generally Description
Based on simple design concept, this QT4-35 manual brick machine has simple machine structure but with raw materials hopper, so it can save labor cost and improve the productivity efficiency.

QT4-35 manual brick machine can make various size hollow block, paver bricks, curbstones etc from the raw materials of cement, sands, crushed stones or stone powder etc.
QT4-35 manual brick machine is also name QT40-1 manual block machine, its block moulds are all customized as per client requirements;
QT4-35 manual brick machine productivity is 2560-3290 pieces of 8 inch hollow blocks per day;
QT4-35 manual brick machine price is from 5000 USD to 15000 USD as per the extra block mould quantity;


2. Each single machines detailed introduction for QT4-35 manual brick machine
(1) JQ350 concrete mixer for QT4-35 manual brick machine
function: to mix the raw material of sand, loosen stones, cement, etc
Item: JQ350 Mixer
Power: 7.5kw
Feeding capacity: 560L
Discharge capacity:350L
Overall dimension (mm):1500*1200*1200

There are two models of concrete pan mixer now, the first one is using the electric reducer model, the reducer is used since the pan mixer comes out, the reducer need to be maintained after several months use, and reducer can be replaced if it got broken;
The second model is using the truck rear axle gearbox model. This model doesn't need to maintain, its life is very long, after the oil is filled in, it can be used all the time. But once the truck axle reducer got broken, it cannot be repaired, but its broken chance is very small.
Also for the concrete mixers, its inner side can add one piece of round steel plate to make it long life, and can also add the anti-wear bushes to protect the mixer.
(2) 6 Meters Belt Conveying Machine for QT4-35 manual brick making machine
Length: 6000mm
Belt width: 400mm
Motor power: 1.5KW

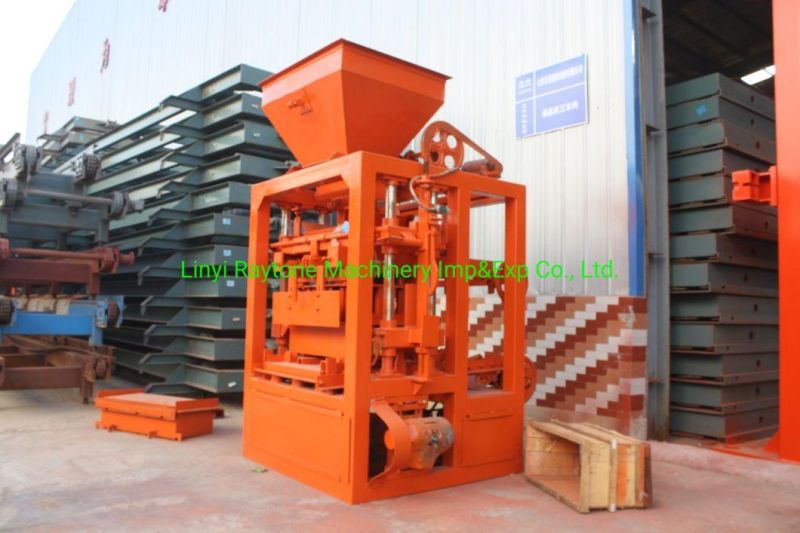

(3) Host manual brick machine

(1)	Dimension of host machine	1800*1500*2500mm	(6)	labour	4 workers
(2)	Weight of the host machine	1.5T	(7)	Voltage	customized
(3)	Moulding period	35-45	(8)	Toal required machine power	23.15KW
(4)	pallet size	850*550*20mm	(9)	Diesel Genset capacity	30KVA
(5)	Vibration force	50KN	(10)	workshop area	200 m2

3. Daily block productivity for QT4-35 manual brick making machine

	Size(LxWxH) (mm)	Forming Period (S)	Pcs/ Mould	Pcs/Hour	Pcs/ 8 hours

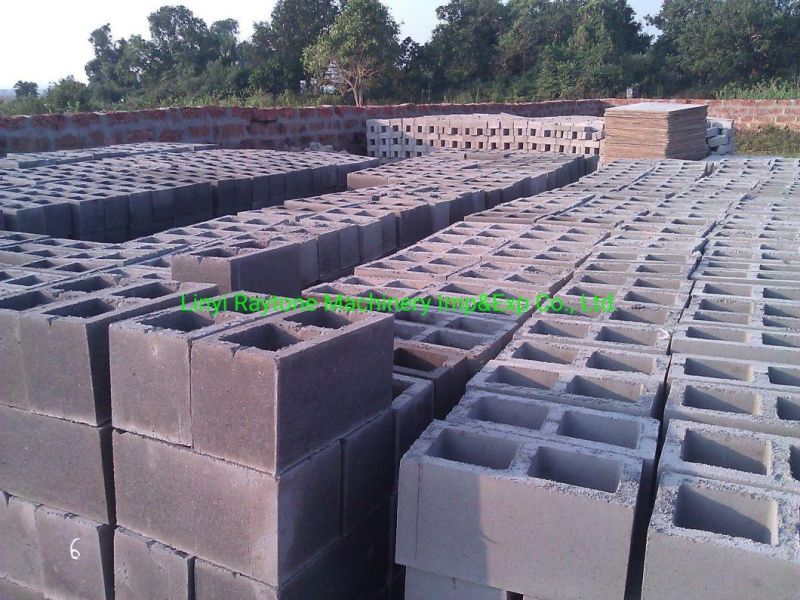

(1)	hollow block 400*250*200	35-45	3	240-308	1920-2468
(2)	hollow block 400*200*200	35-45	4	320-410	2560-3290
(3)	hollow block 400*150*200	35-45	5	400-514	3200-4114
(4)	hollow block 400*100*200	35-45	7	560-720	4480-5760
(5)	Solid Brick 240*50*115	35-45	18	1440-1848	11520-14784

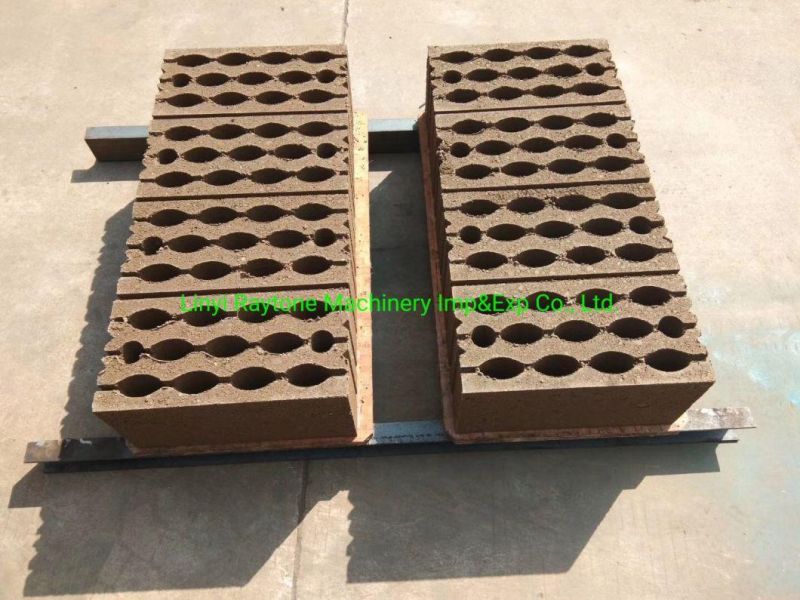

(6)	Porous Brick 240*115*90	35-45	9	720-924	5760-7392

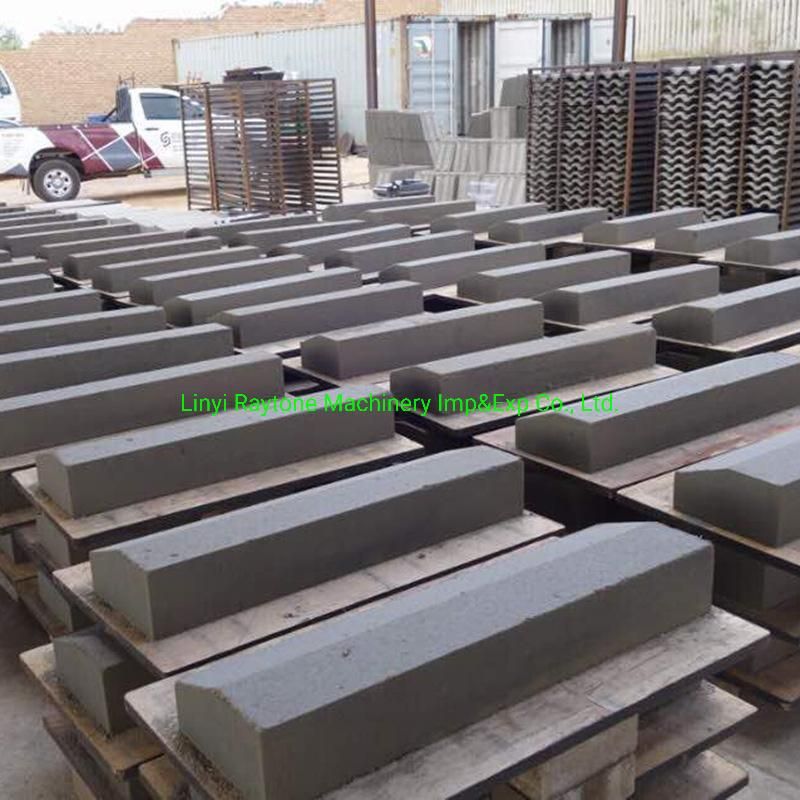

(7)	Curbstone 500*200*300	35-45	1	80-102	640-816
(8)	"I" shape paver brick without color 200*163*60	35-45	6	480-616	3840-4928
(9)	"S" Shape Paver Brick without color 225*112.5*60	35-45	9	720-924	5760-7392
(10)	Holland Brick without color 200*100*60	35-45	9	720-924	5760-7392
(11)	Square Paver without color 250*250*60	35-45	3	240-308	1920-2468

4 FAQ
(1) What is Packing method ?
For container loading, normally is it nude packing, it is safe in the container;
If by LCL, we an pack the block machine into wooden case or steel box, but need extra cost;
(2) How many workers are needed for the QT4-35 manual block machine?
The block machine need 4-5 workers, one operates the mixer and feeds material, one operates the host machine, and two workers transport the blocks. The office, curing area, stacking area are arranged according to your specific conditions.

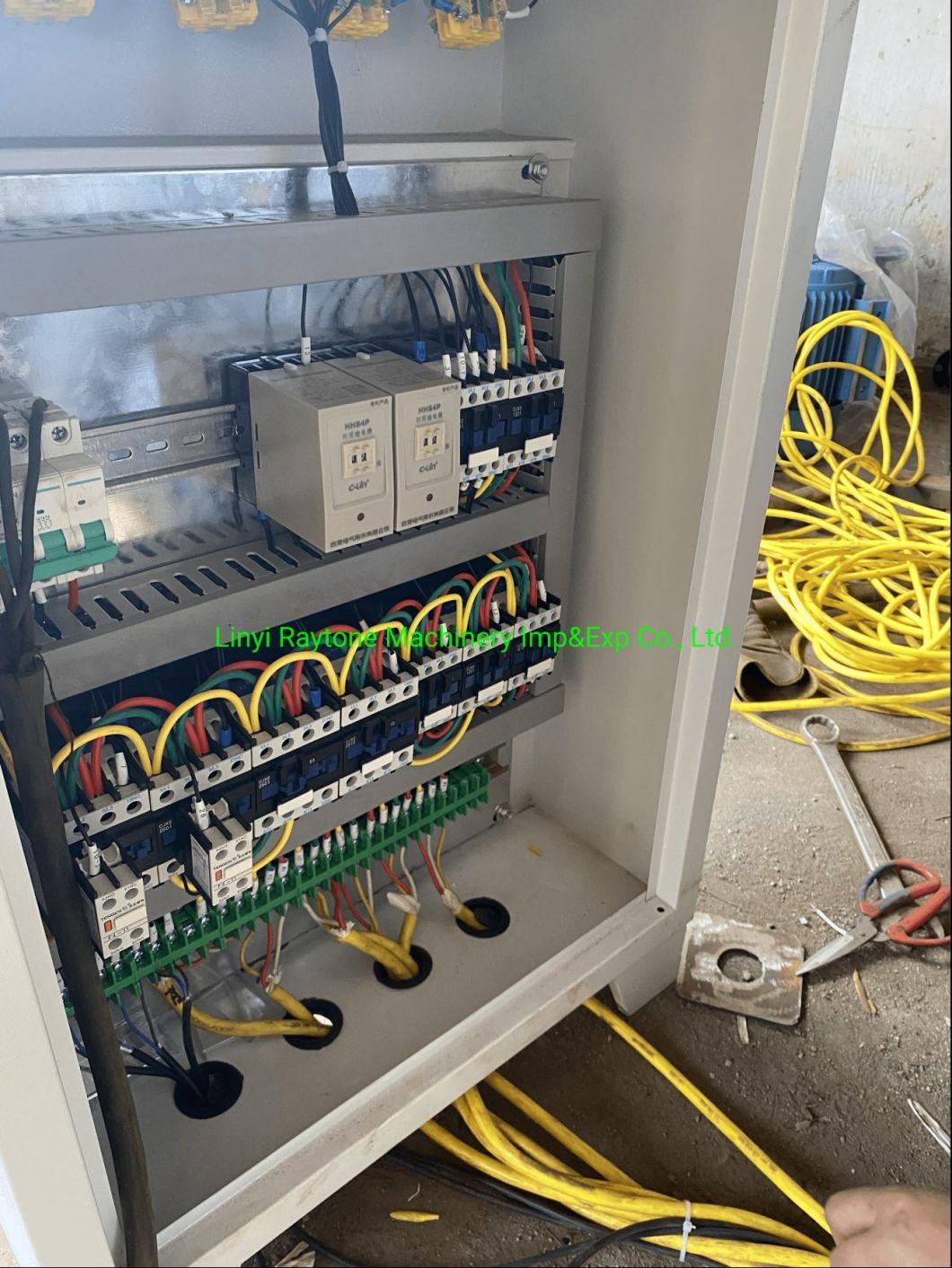

(3)What's motor and electric brand we choose for our machine?
RAYTONE block machine factory normally supply the China famous brand motors like HUAXING or SHANBO brand copper electric motors, not using any aluminium motors.
Some buyer can also choose  Siemens brand motors, also need extra cost.
(4) What kind of steel my machine and molds use ?
RAYTONE block machine factory is using Q235B for block machine, Manganese steel for molds. The mould is More durable.
(5) Will you send engineer to install for user?
Yes, we have technician service team. They will supply service as per needs.
(6) Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use more than two years.
(7)Do you supply free technical service during later production ?
Yes, we have online technical service in 24hours.
(8) What is the Warranty for the machine?
For the machine,we have 1 years warranty(except the wearing part ).

Welcome contact me if you have any interest .
