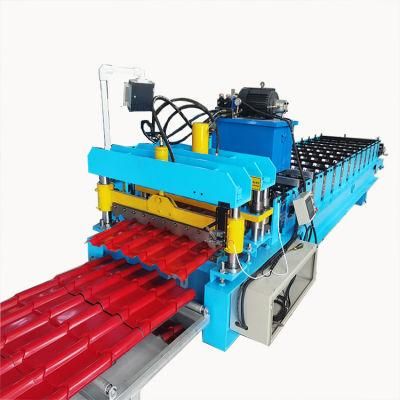

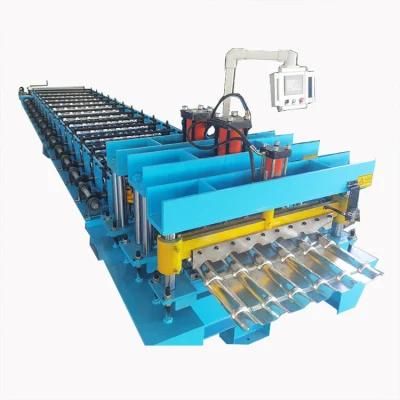

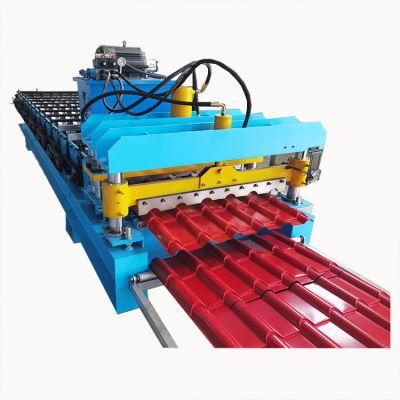

Maquina Acanaladora De Zinc Hacer Tejas De Zinc PARA Hacer Planchas
Tianjin Haixing Imp. & Exp. Co., Ltd.- After-sales Service：Technical Help The Whole Life
- Warranty：14 Months
- Tile Type：Colored Steel
- Certification：CE, ISO, SGS
- Condition：New
- Customized：Customized
Base Info
- Model NO.：762+5v
- Usage：Roof, Wall
- Transmission Method：Electric
- Name：Construction Machinery Zinc Tile Making Machine
- Working Speed：10-15m,Min
- Total Power：8kw
- Thickness：0.3-0.8mm
- Main Frame：350h Steel
- Cutting Blade Material：Cr 12 High Grade Steel
- Type：Tile Forming Machine
- Dimension(L*W*H)：6500*1350*1600mm
- Roller Material：45#Steel Chrome Plated
- Shaft Material：45# Steel Outer Diameter: 70mm
- Control System：PLC(Imported Brand)
- Suitable Material：Color Galvanizedsteel Coil
- Use：Steel Construction
- After Warranty Service：Video Technical Support, Online Support
- Motor Beand：Siemens, Delta or Other Famous Brand
- Transport Package：Roofing Machine Is Nude
- Specification：762+5v
- Trademark：Haixing
- Origin：China
- HS Code：84552210
- Production Capacity：200 Sets,Year
Description
No.maquina acanaladora de zinc hacer tejas de zinc para hacer planchas Suitable to process Color alu-zinc steel coil 2 Roller Uplayer 9 rows; down layer 13 rows 3 Dimensions 6.5*1.65*1.7m 4 Motor Power 4Kw 5 Pump Station Motor 4Kw.Lichao Brand 6 Thickness of the plate 0.3-0.8mm 7 Productivity 10-15m/min 8 Material of the cutting blade Cr12,Quenched treatment 58ºC-60ºC 9 Diameter of the roller Φ70mm 10 Weight About 5800kgs 11 Main structure of the machine 300H beams 12 Processing precision Within 1.0mm 13 Side panel of machine 16mm 14 Chain Wheel and Cycle Chain 1 Inch 15 Voltage 380V 50Hz 3phases or as customer's need 16 Control system PLC control (Delta) 17 Frequency system Delta 18 Drive mode Motor driver 19 Touch screen Delta 20 Rolling materials 45# forging steel with chromium plate 21 Length Tolerance ±2mm
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
Details Images
1.Manual decoiler:
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
2.Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand with leveling roller

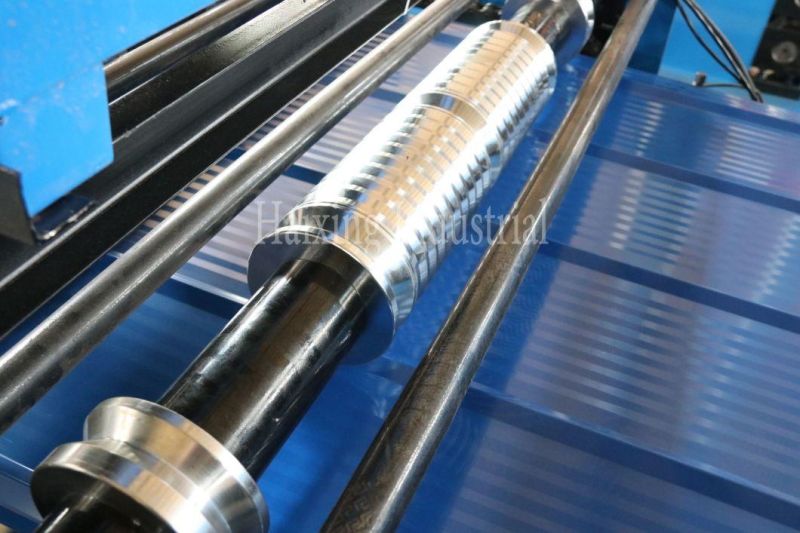

3.Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4.Computer Control Cabinet
PLC:Delta PLC(or according to customer's inquirement) Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish

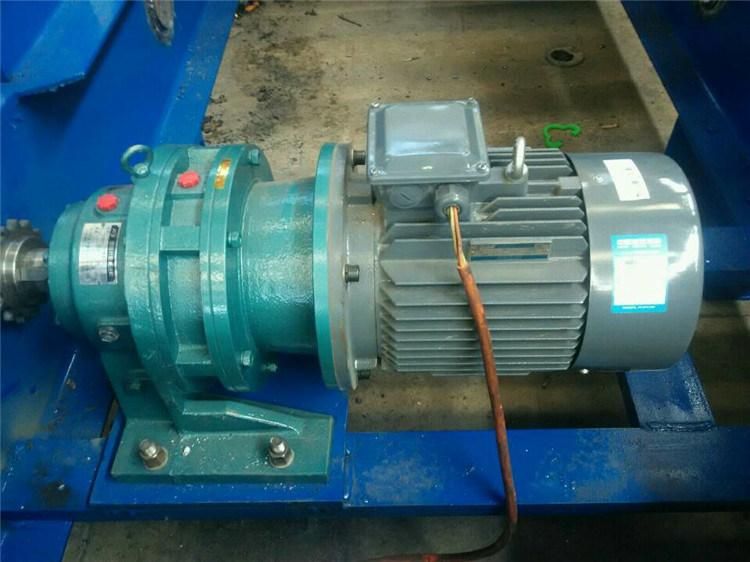

5.Motor driver
Main motor size :4Kw
Brand: The famous brand from Germany or according to customer's need

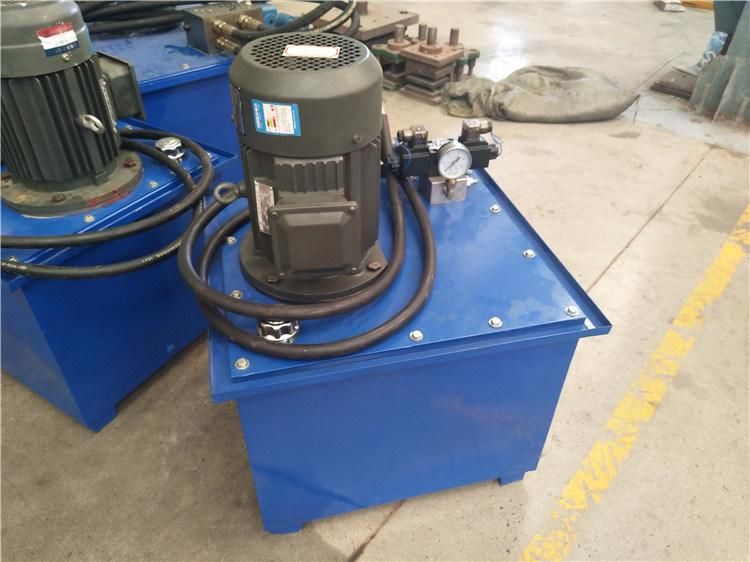

6.Hydraulic station power
Hydraulic station power: 4Kw, the brand is Lichao, Shanghai
7.Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment

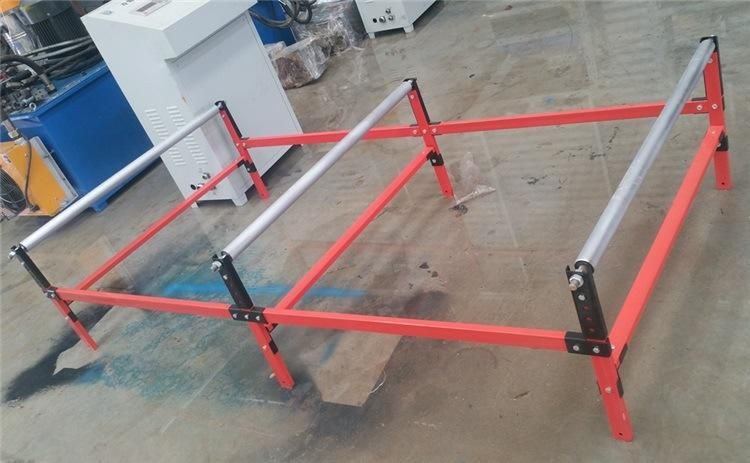

8.Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters
metal roof roll forming machinery after sales services
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.

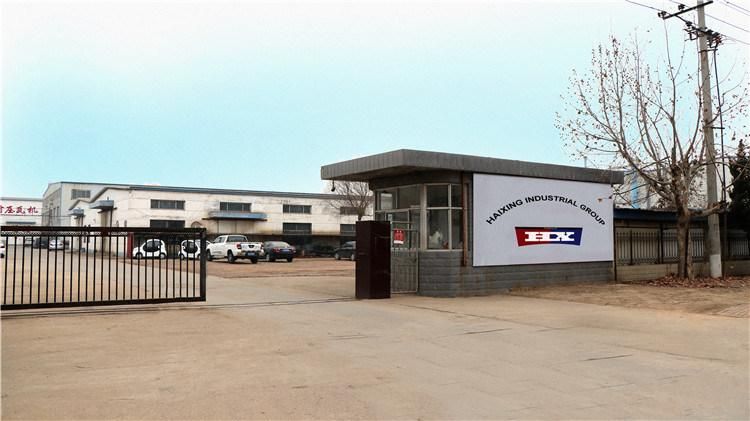

Company infomation
Tianjin Haixing Imp & Exp Co., Ltd. Is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of machines. It is located in northwest of Tianjin, China . As a long history of cold roll forming machine production base. For example :color steel roofing sheet roll forming machines, C&Z Purlin machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely. We would like to invite you come and join us to build our mutual benefit.
