• Model NO.：HW2500
• CNC or Not：CNC
• Voltage：Cutomized
• Model：Hw2500
• Input Voltage：380V 50Hz ,3p or as Customer Need
• Input Power：21.95kw
• Work  Speed：2-22m,Min
• Max. Glass Size：2500*3000mm
• Min. Glass Size：450mm*450mm
• Single Glass Thickness：3-12mm
• I.G. Unit Glass Thickness：12-40mm
• Glass Wasing Speed：0-8mm
• Air Pressure：0.8m3,Min(1 MPa)
• Transport Package：Film Plywood Case
• Specification：15000*1800*2630
• Trademark：Hiwoc
• Origin：China
• HS Code：84752990
• Production Capacity：500,Year

Basic Info.

Model NO. HW2500 CNC or Not CNC Voltage Cutomized Model Hw2500 Input Voltage 380V 50Hz /3p or as Customer Need Input Power 21.95kw Work  Speed 2-22m/Min Max. Glass Size 2500*3000mm Min. Glass Size 450mm*450mm Single Glass Thickness 3-12mm I.G. Unit Glass Thickness 12-40mm Glass Wasing Speed 0-8mm Air Pressure 0.8m3/Min(1 MPa) Transport Package Film Plywood Case Specification 15000*1800*2630 Trademark Hiwoc Origin China HS Code 84752990 Production Capacity 500/Year

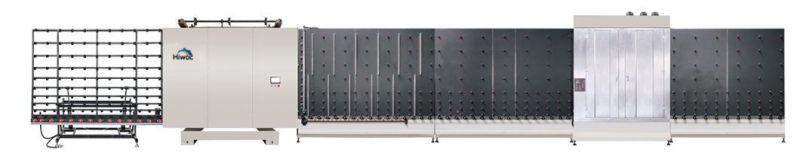

Product Description

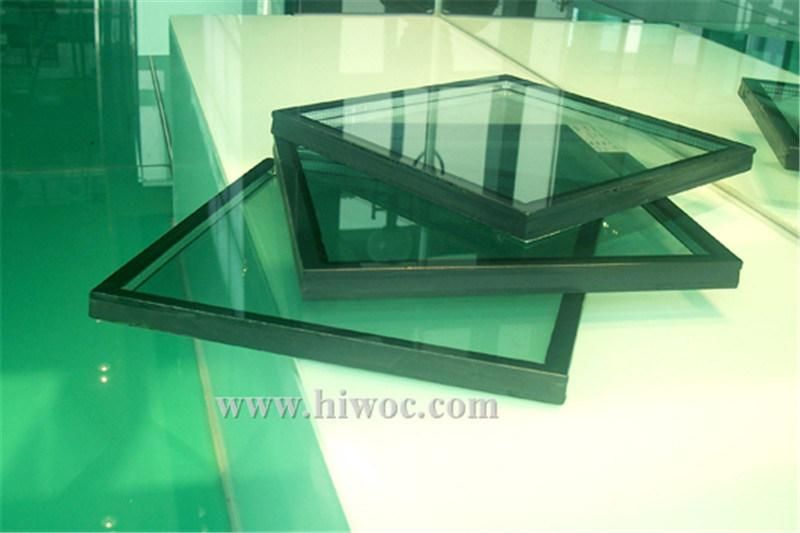

Feature:1. Automaticlly distinguish the coating side of coatd glass and Low-E glass2. PLC control system with touch screen operation.3. Dynamic display for machine work and fualt conditon.4. LB1800P inside assembly lines can produce standard double layers insultating glass and three layers insulating glasses(optional).5. Designed for curtain wall glass(LB1800P), double layer insulating glass and three layers insulating glasses.6. Insulating glass pressing design adopts gear and rack synchronous device driven by hydraulic station.7. Frequency control designed for glass transmission.8. 800-1000 units insulating glasses every single shift 8 hours(double layer insulating glass size 1M)9. Panel pressing can be openable, maximum openning size: 500mmAbout the machine working workflow and other questions:
a) Description of components of the Insulating Glass Line (parts).//Taiwan Delta brand PLC system, Delta inverter , Taiwan Hiwin Square Guide Rail, China famous brand Sanyang Motor, China Famous brand CHINT AC contactor etc. All the parts you could check their official website.
b) To Confirm capability of this Production Line to process float glass, reflective glass, Low-E glass.//Sure.
c) To describe the washing machine, materials of pumps, boxes, doors, filters and pipes.//Stainless material.//Working flow: pump up the water on the glass, the brush will cleaning the glass, then the sponge roll sip up the water of the glass, then the air blower will dry the glass.
d) How many brushes and its motorization.//3 pairs, 6 pieces.(realize the cleaing working by brush rorating, the rotating source is motor, motor power is about 500W)
e) Does it have electrical resistance in one of the tanks?//Yes, and heating power is 2KW.
f) Is the drying fan soundproof? what DB level reaches?//about the cleaning part, the soundproof is by Sound insulation cotton, about the air blower part, it is by box sealing to up to the sound insulation effect. The Db Level is GB12349-90 IV LEVEL, 70 DB.
g) Does it use inverterr?//Yes, we use Delta from Taiwan with 4 sets in this machine.
h) What transmission system does it use?//Chain transmission
i) Brand of electrical components.//Some are china brand CHINT, some are Schneider.

Model	HW2500
Input Voltage	380V 50Hz /3P or As Customer need
Input Power	21.95KW
Work  speed	2-22m/min
Max. glass size	2500*3000mm
Min. glass size	450mm*450mm
Single Glass thickness	3-12mm
I.G. unit glass thickness	12-40mm
Glass wasing speed	0-8mm
Air pressure	0.8m3/min(1 mpa)
Oversize	15000*1800*2630
Gross Weight	4000kg
