• Model NO.：LMB-120B
• Voltage：380V
• Power Volatge：380V,220V or Other
• Rating Power：3kw
• Rating Air Pressure：20MPa
• Air Consumption Pressure：0.5~0.8MPa
• Genenral Pressure：60kn
• Air Consumption：2L,Min
• Capability of Oil Box：60L
• Profile Height：90mm
• Overall Dimension：1200X1200X1300mm
• Machine Color：Customer Choose

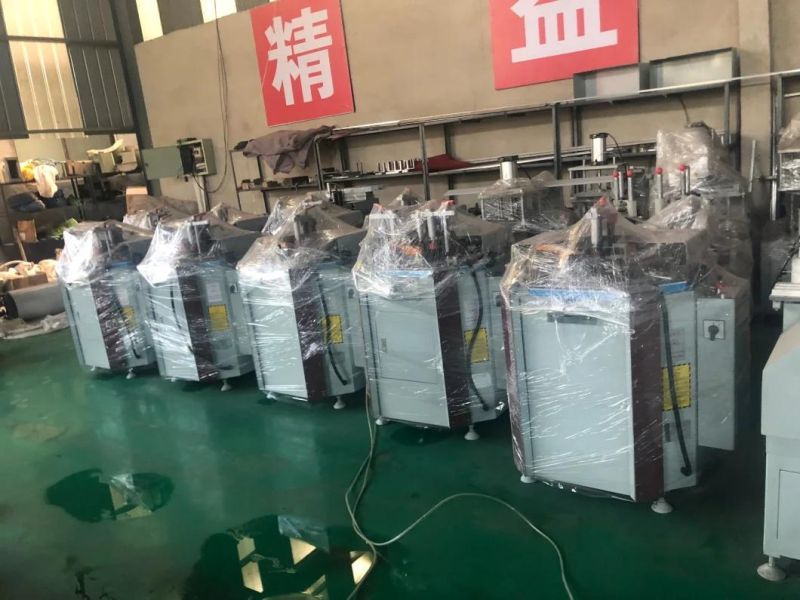

• Transport Package：Wooden Box
• Specification：1200x1200x1300mm
• Origin：Shandong, China
• HS Code：84659200
• Production Capacity：40000PCS,Per Year

Basic Info.

Model NO. LMB-120B Voltage 380V Power Volatge 380V/220V or Other Rating Power 3kw Rating Air Pressure 20MPa Air Consumption Pressure 0.5~0.8MPa Genenral Pressure 60kn Air Consumption 2L/Min Capability of Oil Box 60L Profile Height 90mm Overall Dimension 1200X1200X1300mm Machine Color Customer Choose Transport Package Wooden Box Specification 1200x1200x1300mm Origin Shandong, China HS Code 84659200 Production Capacity 40000PCS/Per Year

Product Description

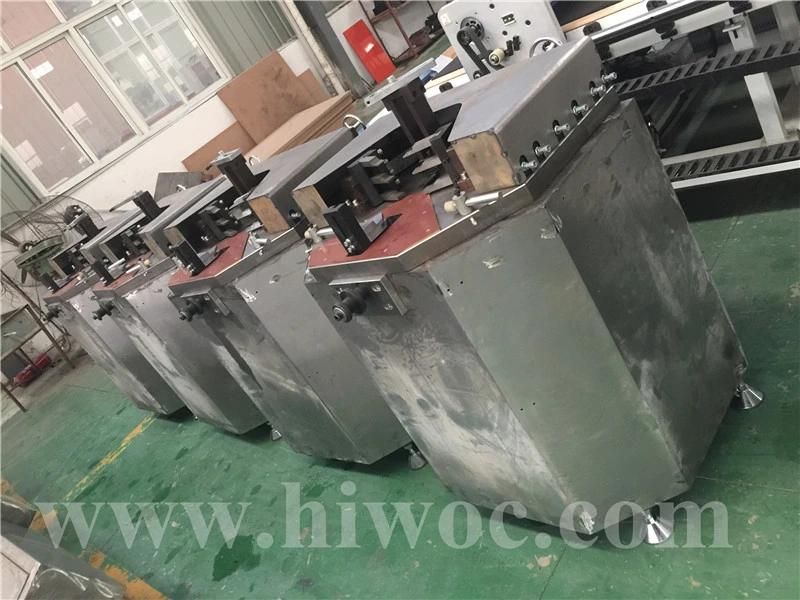

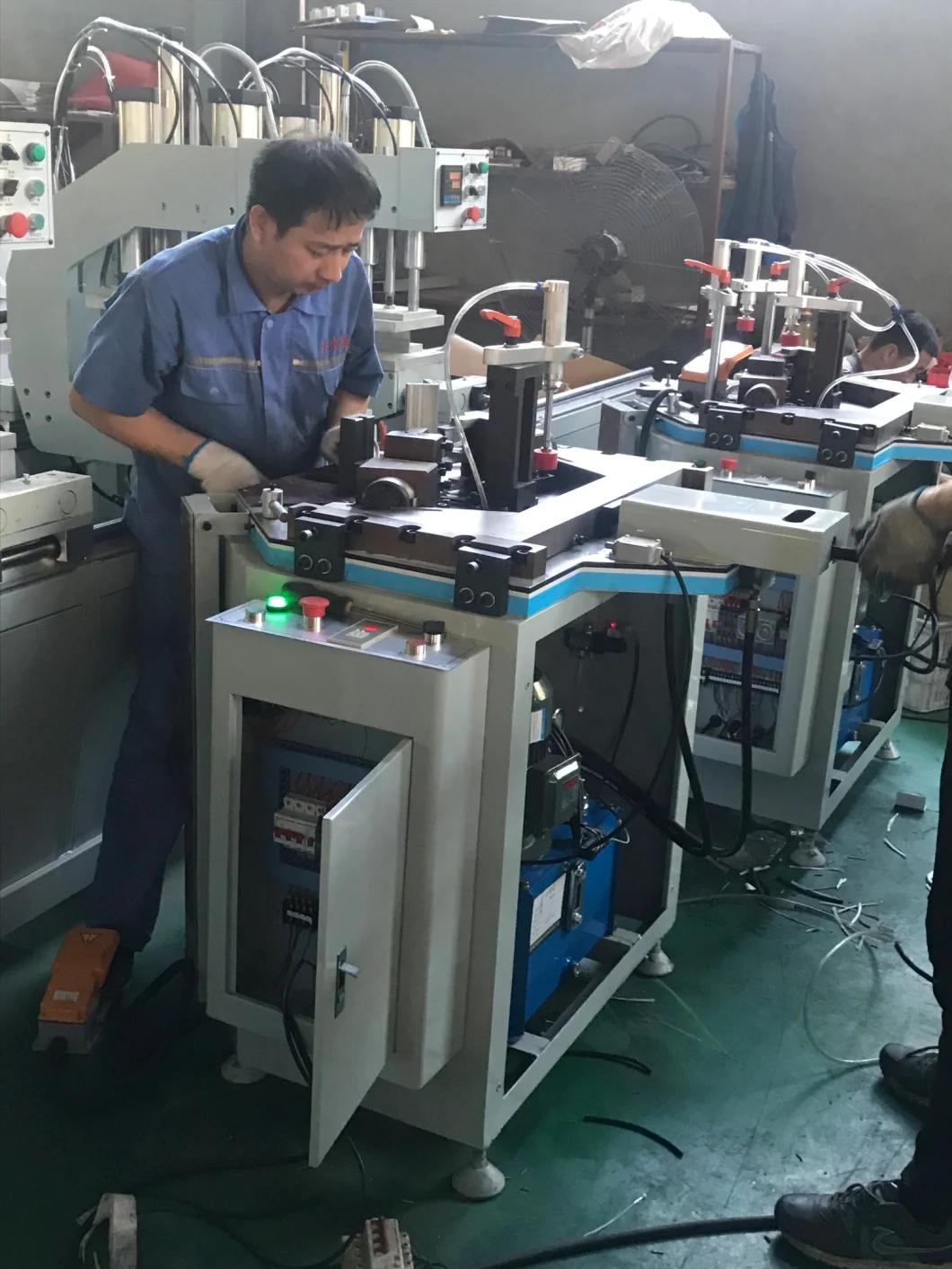

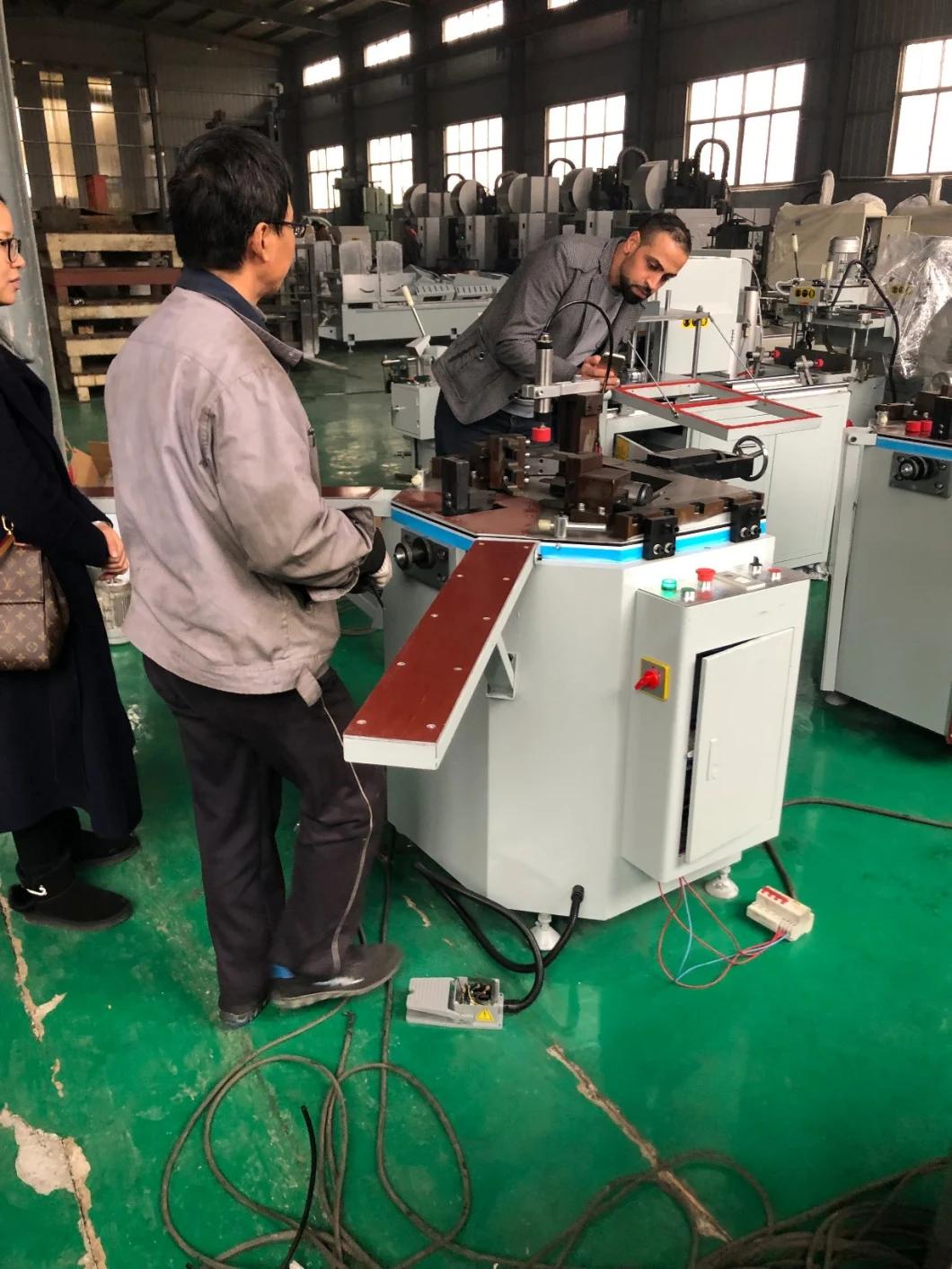

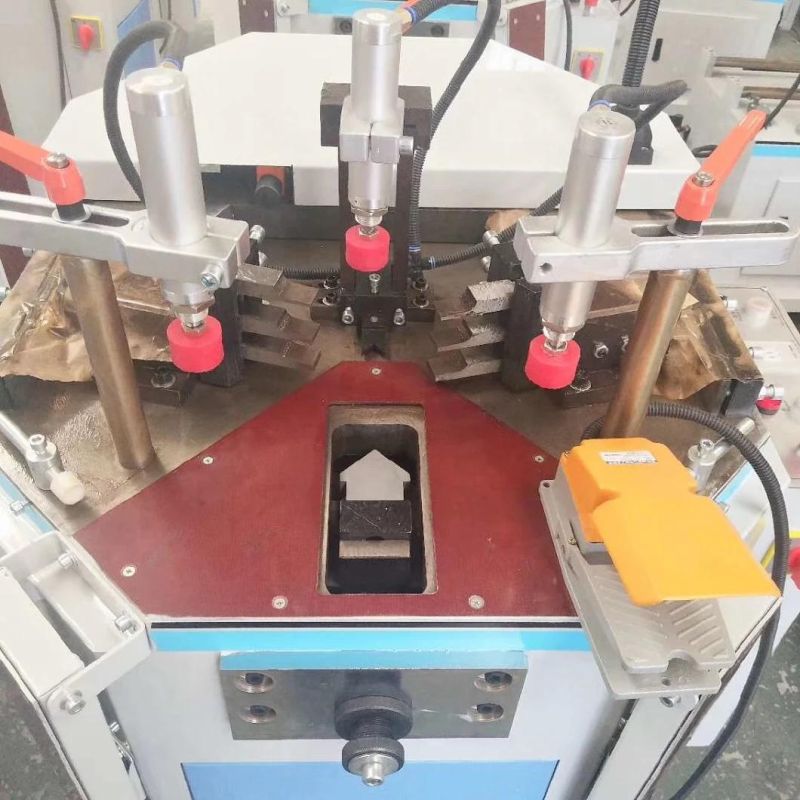

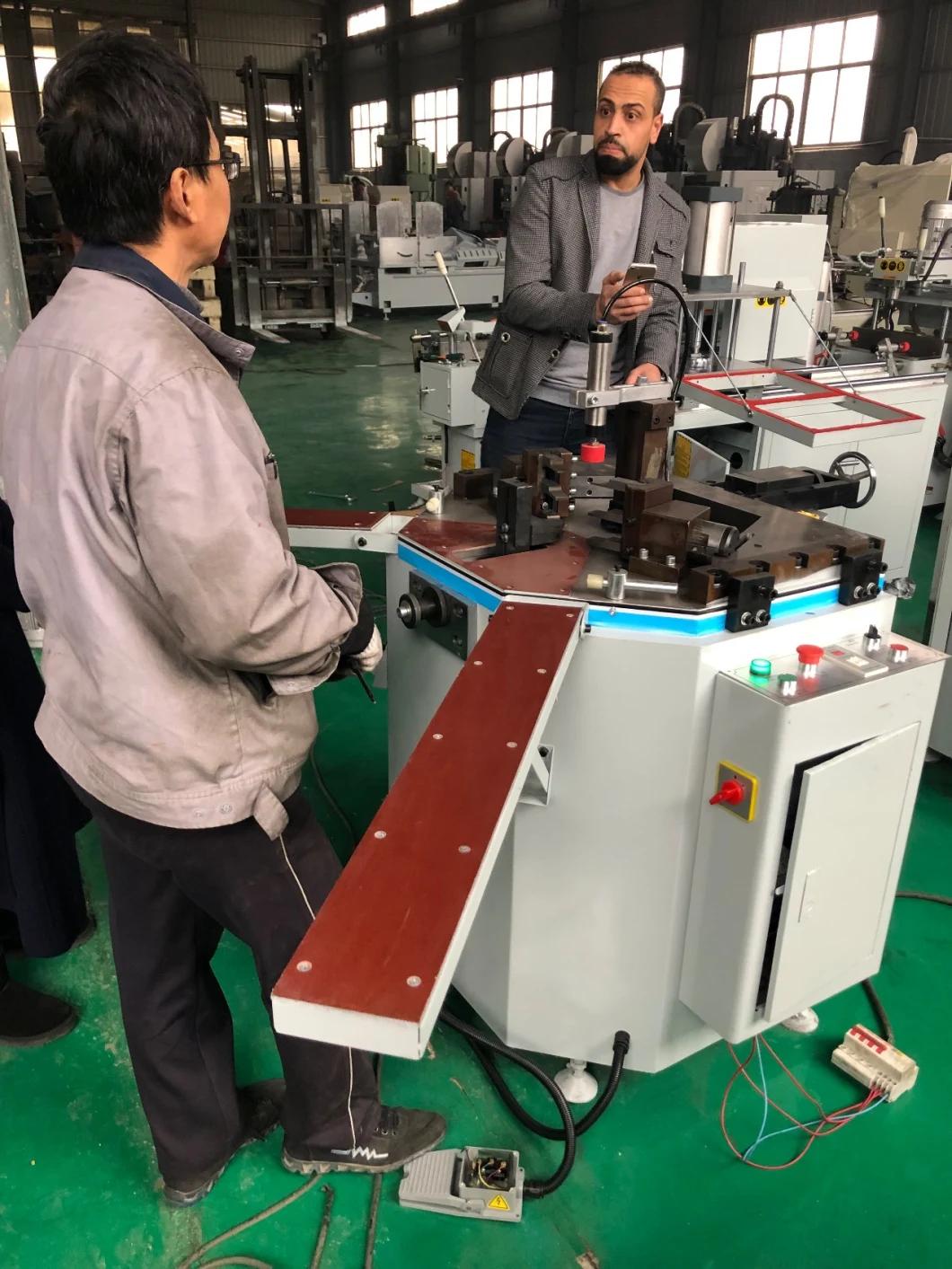

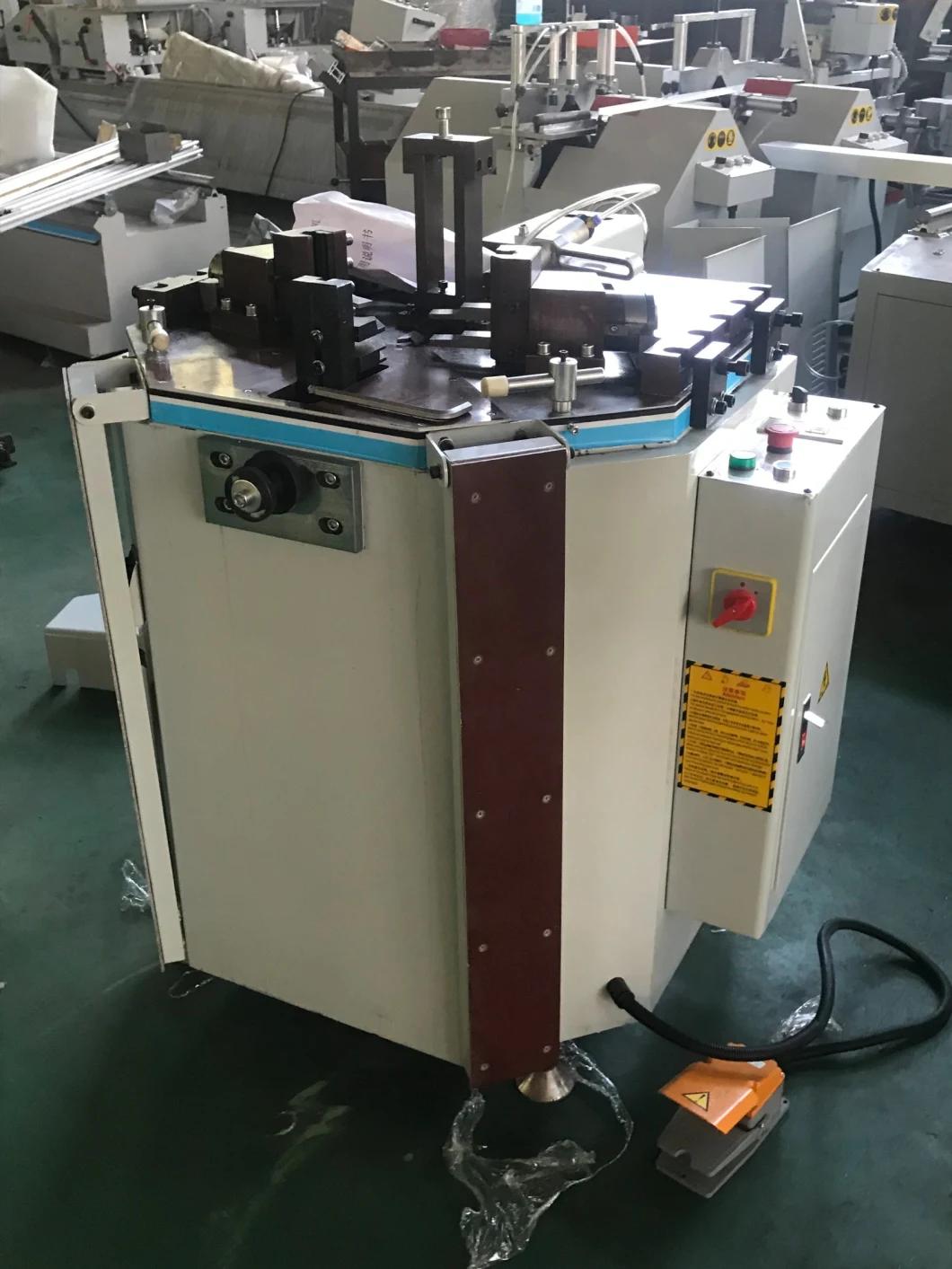

Jinan Manufacturer window door machine heavy combining machine for aluminum for aluminum widow door
Main Feature:

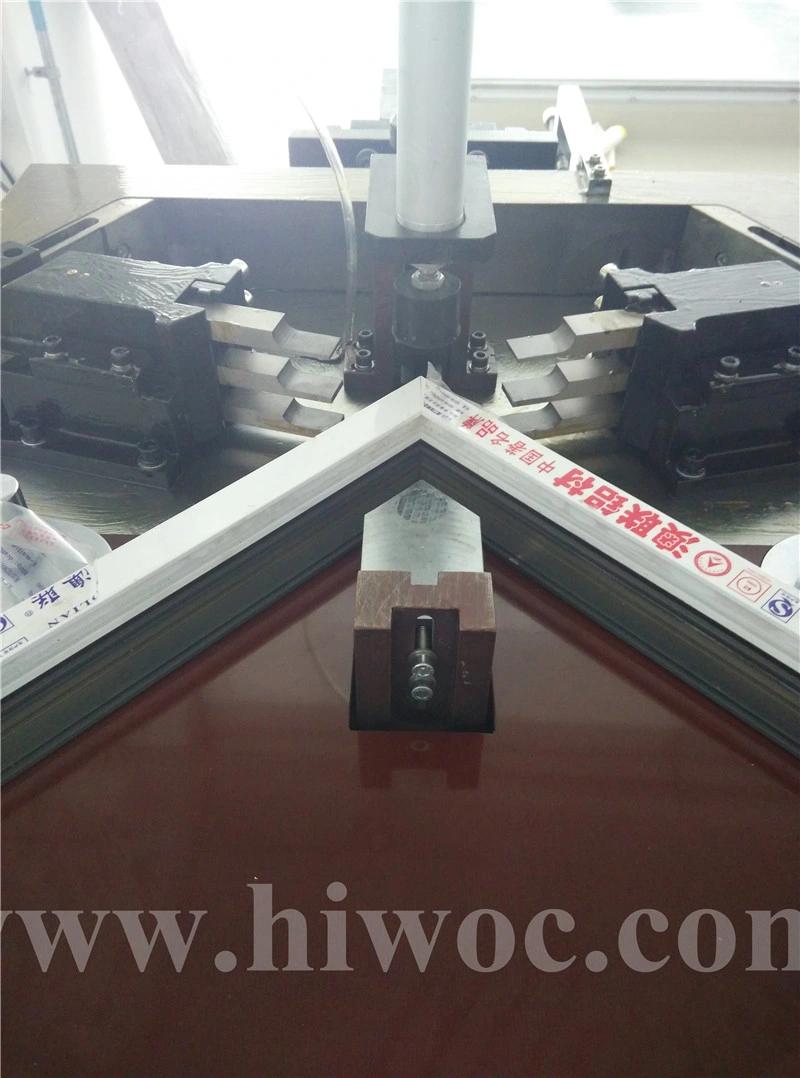

1). uitable to connection of 90 angle structure of aluminum door and window.
2). The frame is specially jointed by steel with high quality and then does special process
3). Adopt new mechanical linkage device,realized complete synchronous corner combining.4). Strengthened machine structure and rack to make it work more stable and low malfunctions.
5). Auto up-down inner localization to make work-piece clamping convenient.
6). Special hydraulic station with big power and big crimping power, that can process profile with big cross-section and big thickness.
7). Special high speed hydraulic system to supply fast crimping and high efficiency.

Main Technical Parameter:


Power supply	380V 50Hz or other
Input power	3.0kw
Rated pressure	20Mpa
Corner combining pressure	26-41.6KN
Air consumption pressure	0.5~0.8Mpa
Genearal pressure of corner combining	60KN
Air consumption	2L/min
Capability of oil box	60L
Profile width	100mm
Casing movement journey	95mm
Over all dimension: (L × W ×H)	1150*1100*1300mm
Weight:	550Kg

Standard accessory

Mobile work piece supports	2set
Standard Crimping Cutter	1set
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc

Optional tools

Special crimping cutter	Based on the profile section.
Automatic up-down function	can choose add
