• Model NO.：LJP2Z-400*3500
• CNC or Not：not CNC
• Voltage：380V
• Transport Package：Film and Plywood Case
• Specification：4000× 1000× 1450mm
• Trademark：Hiwoc
• Origin：China
• HS Code：84659200
• Production Capacity：40000,Year

Basic Info.

Model NO. LJP2Z-400*3500 CNC or Not not CNC Voltage 380V Transport Package Film and Plywood Case Specification 4000× 1000× 1450mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 40000/Year

Product Description

Please note that this machine can only cut UPVC/PVC profile, if you want do both UPVC/PVC and aluminum profile, please advise us, we have another model to meet your need.

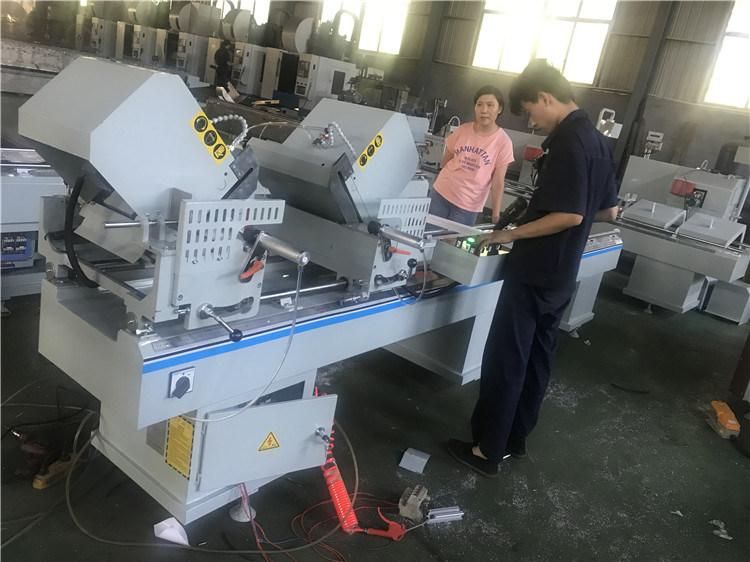

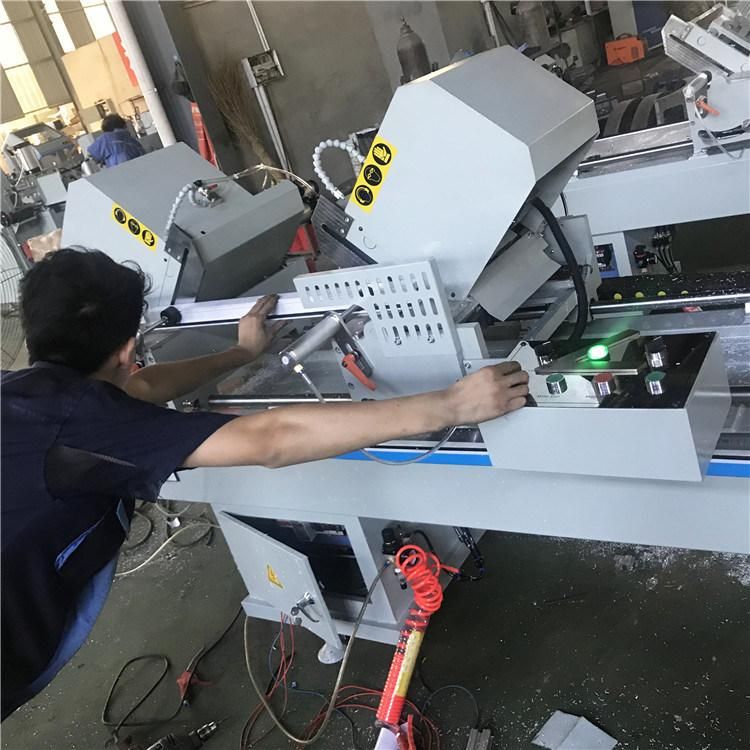

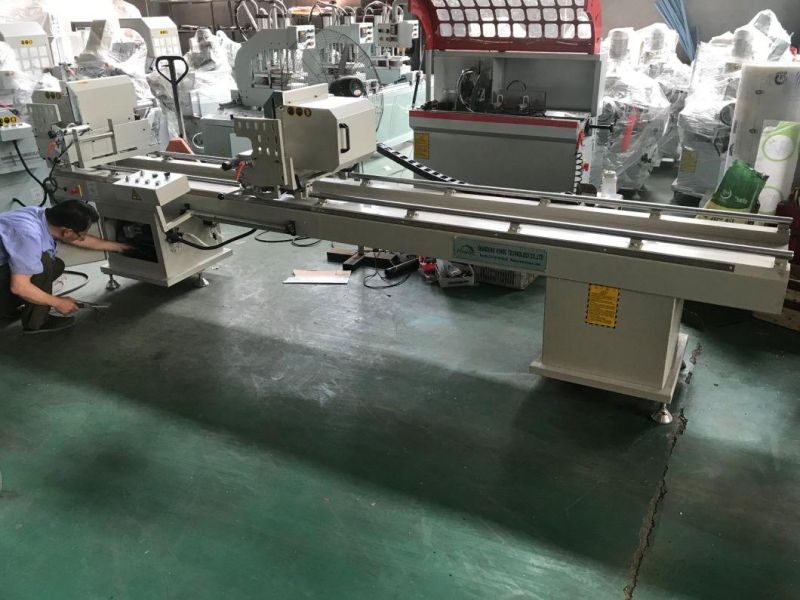

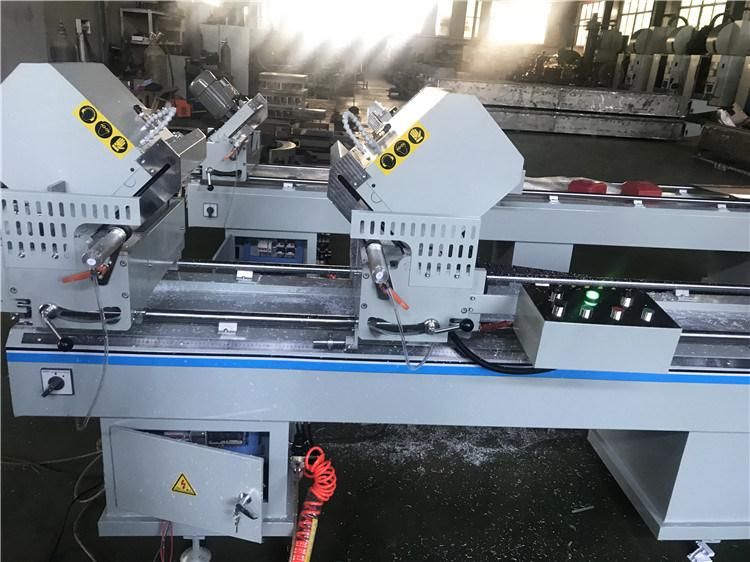

FEATURE1. The machine is used for cutting of UPVC/PVC profile.2. Imported carbides blade is of accurate processing and high endurance.3. The two heads can work alone, can also work at the same time.4. To cut out the section of desired length and two end angles.5. Two saw head can be manually switching angle, realize the -45 degrees, 90 degrees.

Parameter
Air Pressure	0.5~0.8MPa
Saw blade specification	100L/min
Input Voltage	380V 50Hz or As Customer need
Input Power	2*1.5Kw
Air comsuption	80L/min
Motor rotary	2800r/min
Cutting width*height	100*500mm
Cutting lenth	400-3500mm
Saw blade specification	Φ400*Φ30
Cutting angle	90°~ 45°
Overall size	4000×1000×1450mm
Weight	820kg



Main accessory
Saw blade	WEIKE
Solenoid valve	STNC
Cylinder	Baihong
Motor	Anhui Sanyang (Best Chinese Motor Brand)

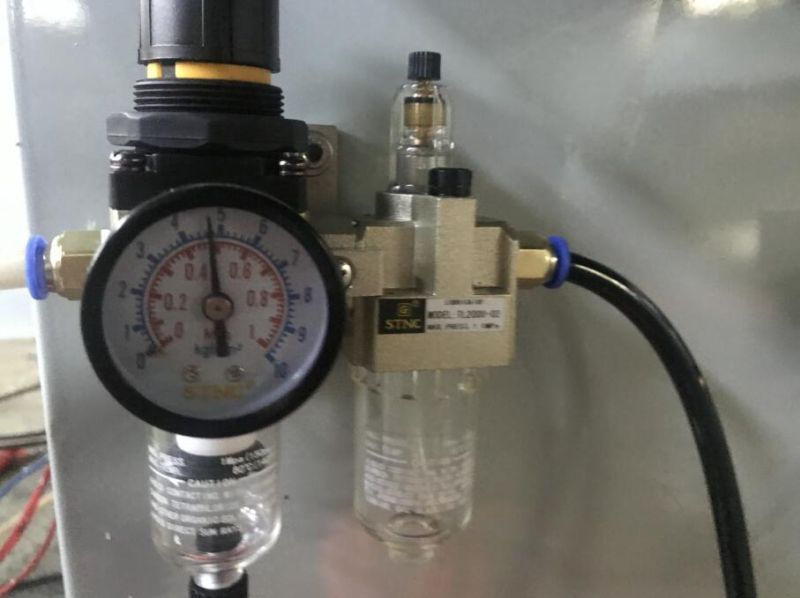

Air Filter Device	STNC
Electrical Button and Switcher	CHINT

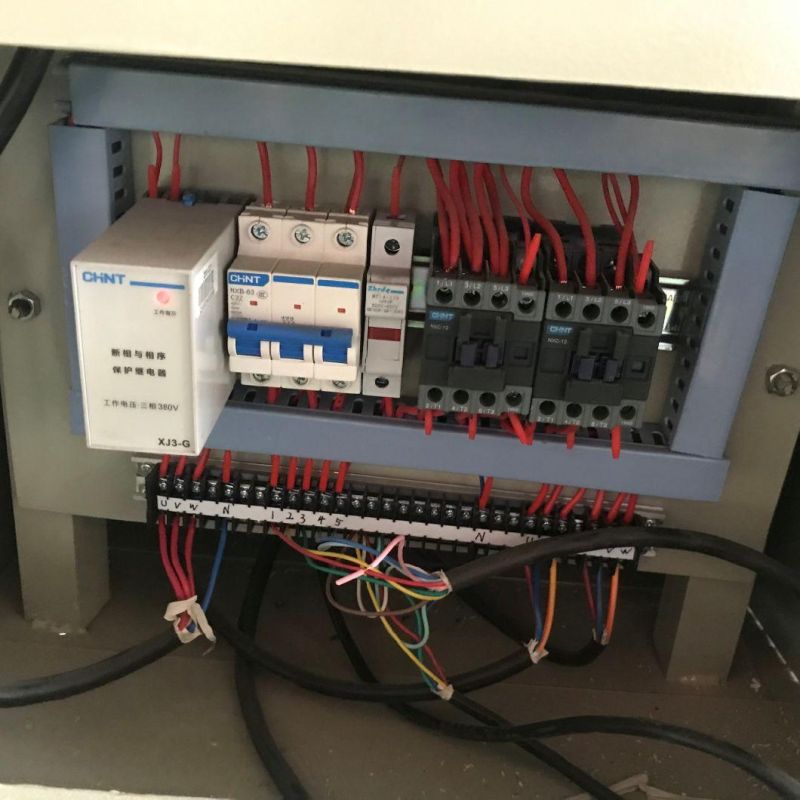

AC Contactor and Circuit Breaker	CHINT



Standard accessory
Saw blade	2pcs
Work piece supports	2set
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
