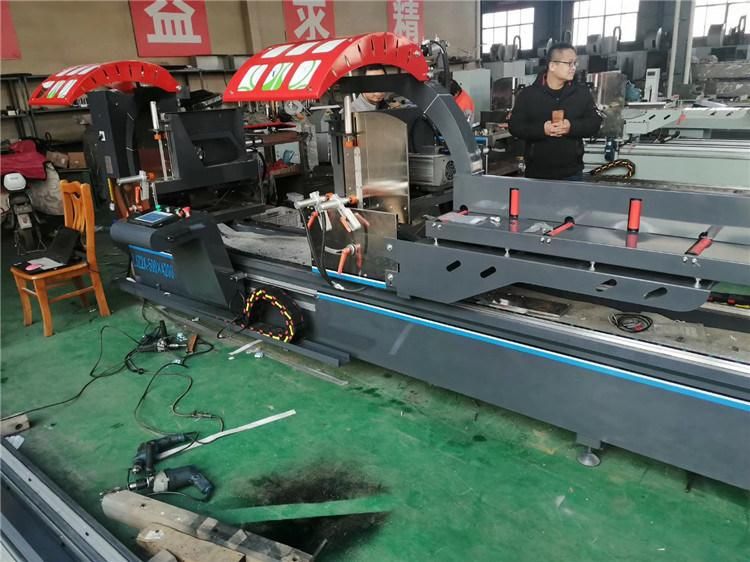

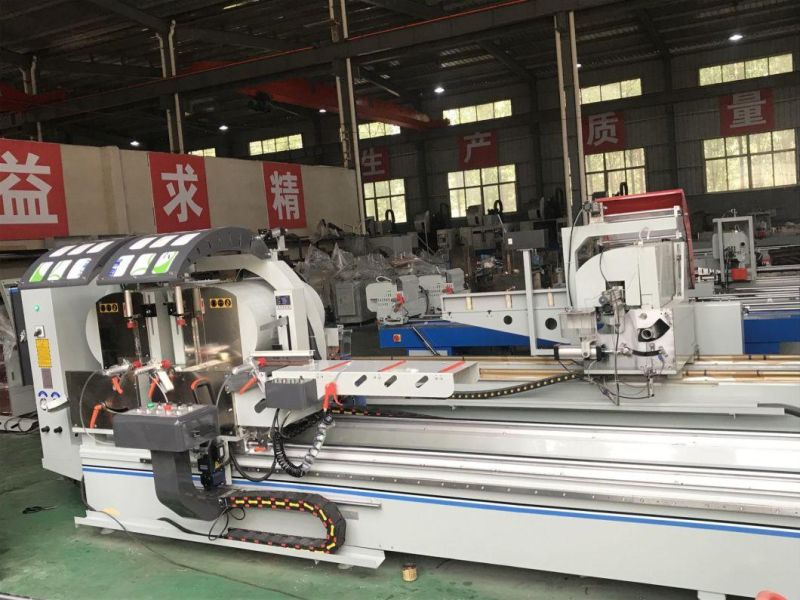

CNC Aluminum/UPVC Profile Double Head Cutting Saw/Aluminum Profile Cutting Machine/UPVC and Aluminum Window Door Making Machine
Jinan Hiwoc Group Co., Ltd.- Certification:ISO, CE
- Automatic Grade:Semi-Automatic
Base Info
- Model NO.:LJZ2S-500X4200
- CNC or Not:not CNC
- Voltage:Customized
- Air Pressure:0.5~0.8MPa
- Input Voltage:380V 50Hz or as Customer Need
- Input Power:2.2X2kw
- Air Consumption:80L,Min
- Motor Rotary:2800r,Min
- Cutting Width*Height:135X200mm
- Cutting Length:400-4200mm
- Saw Blade Specification:500mm, 30mm
- Cutting Angle:90° 67.5° 45°
- Overall Size:5530*1650*1950mm
- Transport Package:Film and Plywood Case
- Specification:5530*1650*1950mm
- Trademark:Hiwoc
- Origin:China
- HS Code:84659200
- Production Capacity:1000,Year
Description
Basic Info.
Model NO. LJZ2S-500X4200 CNC or Not not CNC Voltage Customized Air Pressure 0.5~0.8MPa Input Voltage 380V 50Hz or as Customer Need Input Power 2.2X2kw Air Consumption 80L/Min Motor Rotary 2800r/Min Cutting Width*Height 135X200mm Cutting Length 400-4200mm Saw Blade Specification 500mm, 30mm Cutting Angle 90° 67.5° 45° Overall Size 5530*1650*1950mm Transport Package Film and Plywood Case Specification 5530*1650*1950mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/YearProduct Description
This machine can cut both pvc and Aluminum profile.Feature
- Imported carbides blade is of accurate processing and high endurance.
- Saw blade rotates smoothly due to the high accurate spindle
- Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.
- The feeding system adopts the imported linear guide pair, with high accuracy and stability

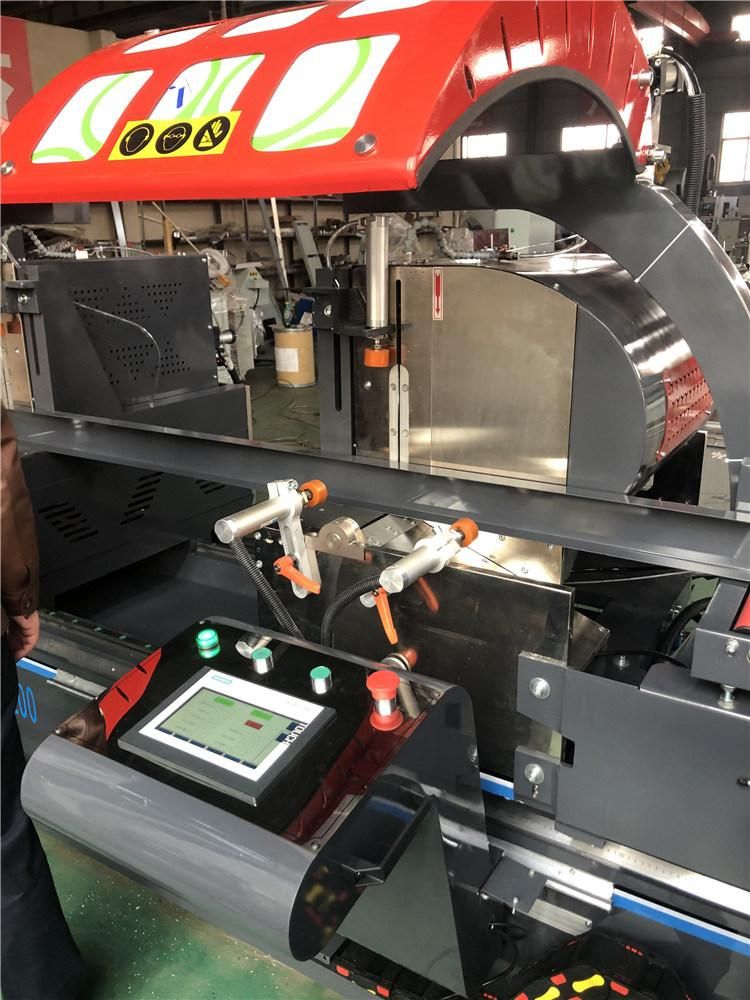

- Two saw heads are adjustable and cut the profiles in -45 ° -67.5 ° 90 °

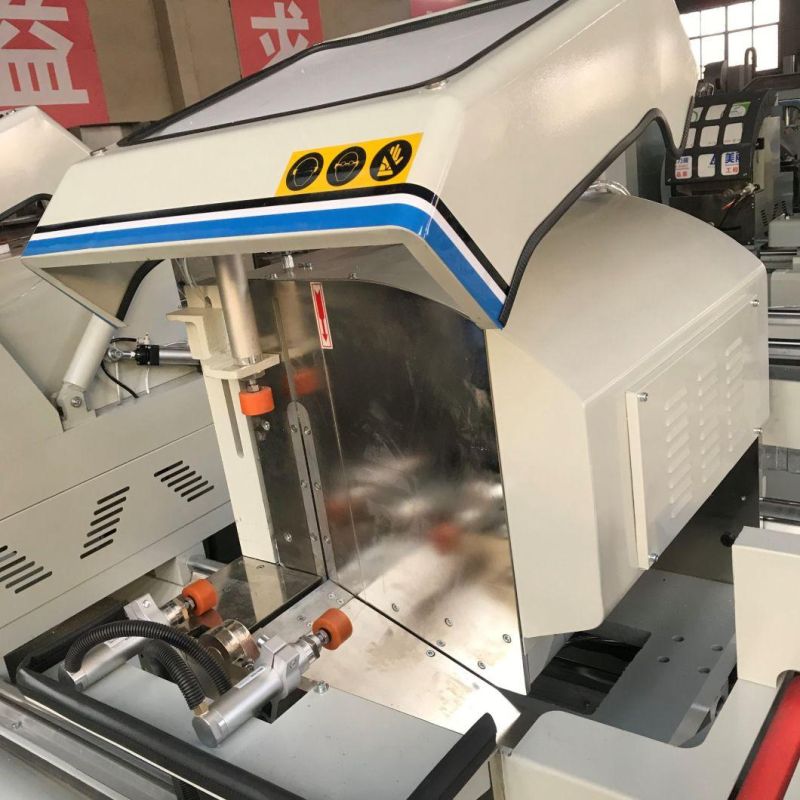

- Auto open and close shield marked the operation safety.
- Right head feeding adopts high lead ball screw with high accurate driving, locating and smooth working.

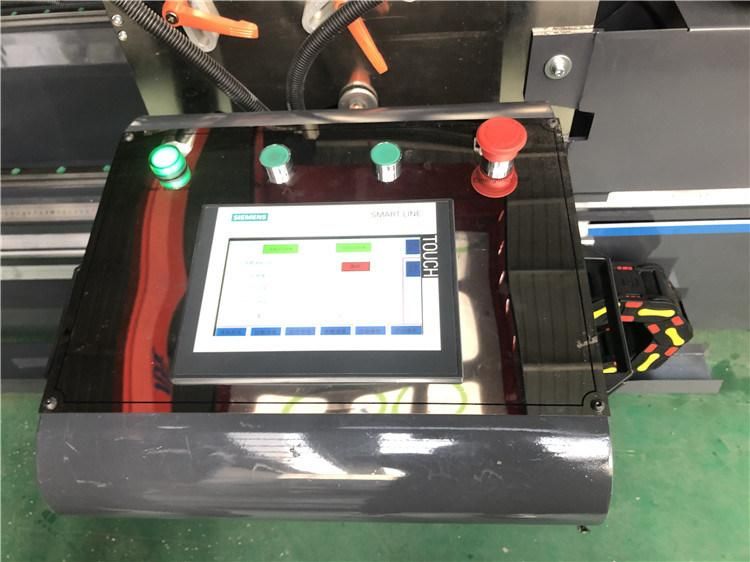

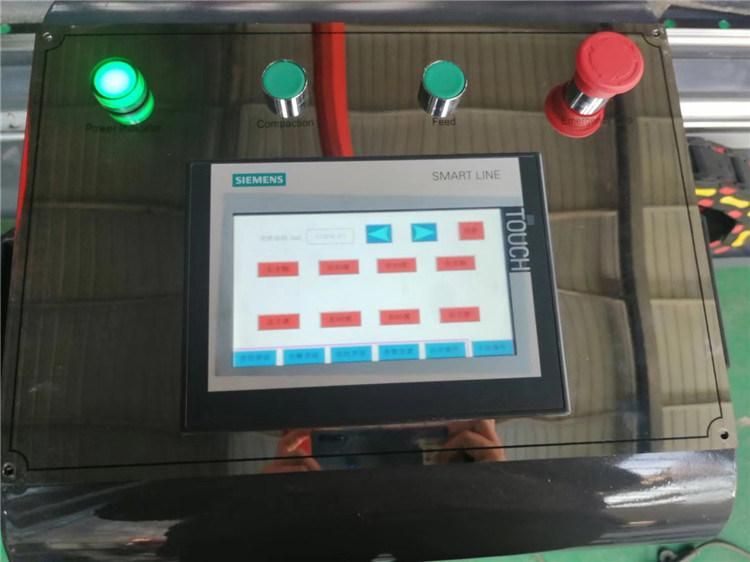

- This machine uses the digital display device.
- Vertical and horizontal clamping cylinder.
Parameter | |
Air Pressure | 0.5~0.8MPa |
Input Voltage | 380V 50Hz or As Customer need |
Input Power | 2.2x2Kw |
Air consumption | 80L/min |
Motor rotary | 2800r/min |
Cutting width*height | 135X200mm |
Cutting length | 400-4200mm |
Saw blade specification | Ø500×Ø30 |
Cutting angle | 90° 67.5° 45° |
Overall size | 5530*1650*1950mm |
Weight | 1450kg |
Main accessory | |

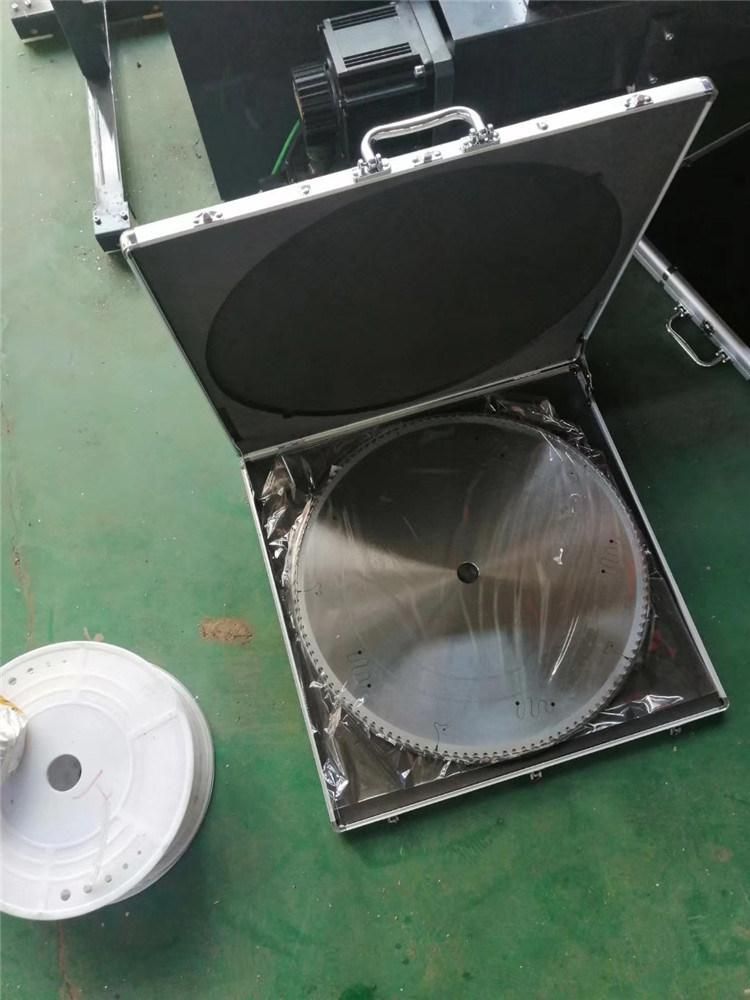

Saw blade | Japan Wagen |
Solenoid valve | Airtec |
Cylinder | Huatong |

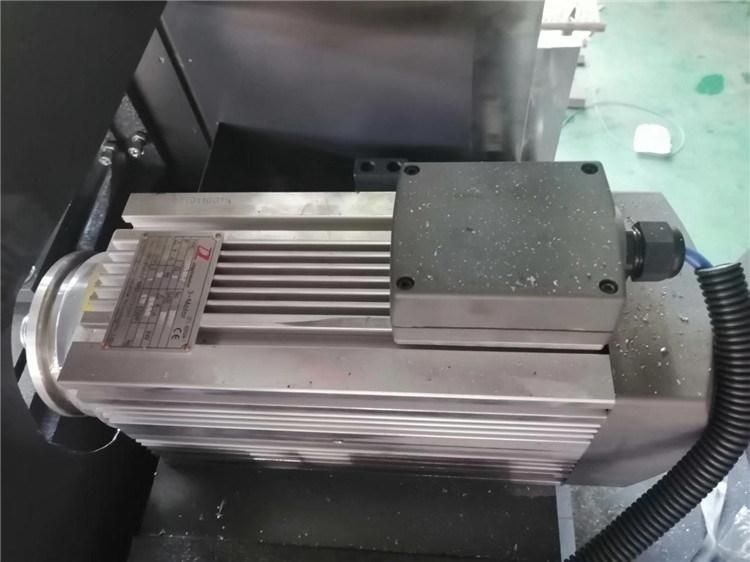

Motor | Anhui Sanyang (Best Chinese Motor Brand) |
Air Filter Device | STNC |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switch | Japan Omron |
Standard accessory | |
Saw blade | 2pcs |
Work piece supports | 2set |
Air Gun | 1pc |
Complete tooling | 1set |
Certificate | 1pc |
Operation Manual | 1pc |
