• Model NO.：Rd-3000
• Voltage：380V
• Machine Name：Hot Melt Extruder Machine
• Votage：380V,220V or as Customer Specification
• Glue Warehouse Capacity：29kg
• Glue Outing Speed：0-2kg,Min
• Net Weight：200kgs
• Gross Weight：250kgs
• Warranty Time：2years
• Machine Color：White,Blue Color
• Service：Professional
• Transport Package：Export Standard Wooden Package
• Specification：800*950*1230mm
• Trademark：Hiwoc
• Origin：Shandong, China
• Production Capacity：300,Month

Basic Info.

Model NO. Rd-3000 Voltage 380V Machine Name Hot Melt Extruder Machine Votage 380V/220V or as Customer Specification Glue Warehouse Capacity 29kg Glue Outing Speed 0-2kg/Min Net Weight 200kgs Gross Weight 250kgs Warranty Time 2years Machine Color White/Blue Color Service Professional Transport Package Export Standard Wooden Package Specification 800*950*1230mm Trademark Hiwoc Origin Shandong, China Production Capacity 300/Month

Product Description

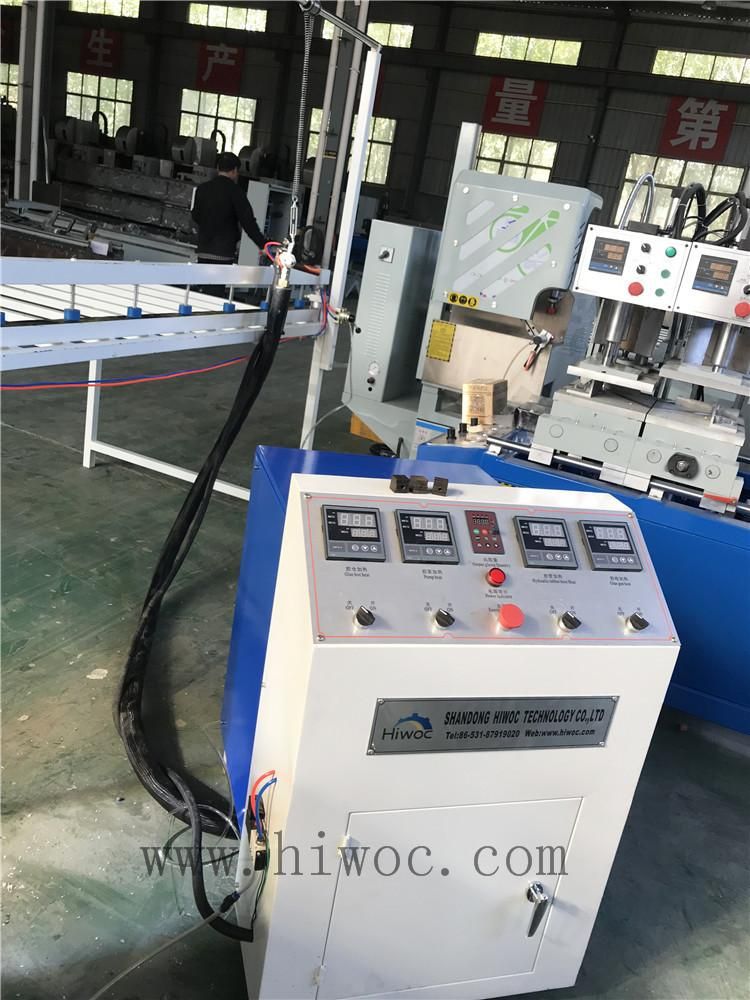

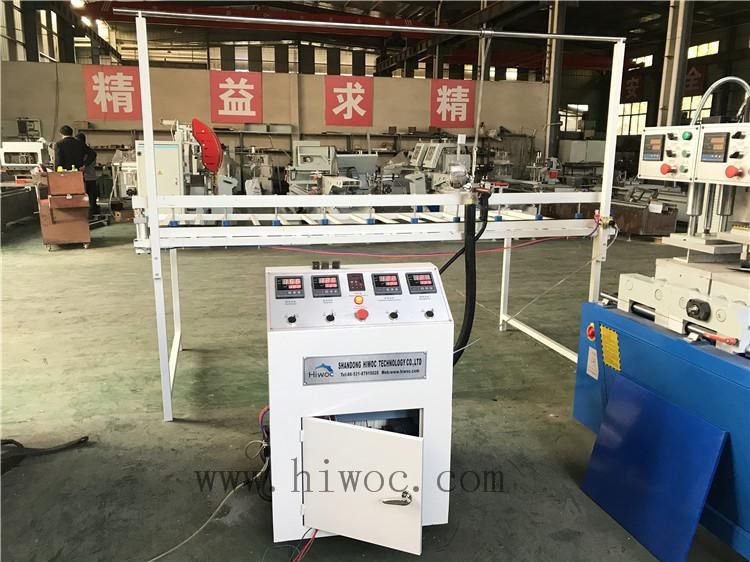

Hot Melt Butyl Extruder Machine Hot Melt Coating Machine for IG Line


Machine specification

Features

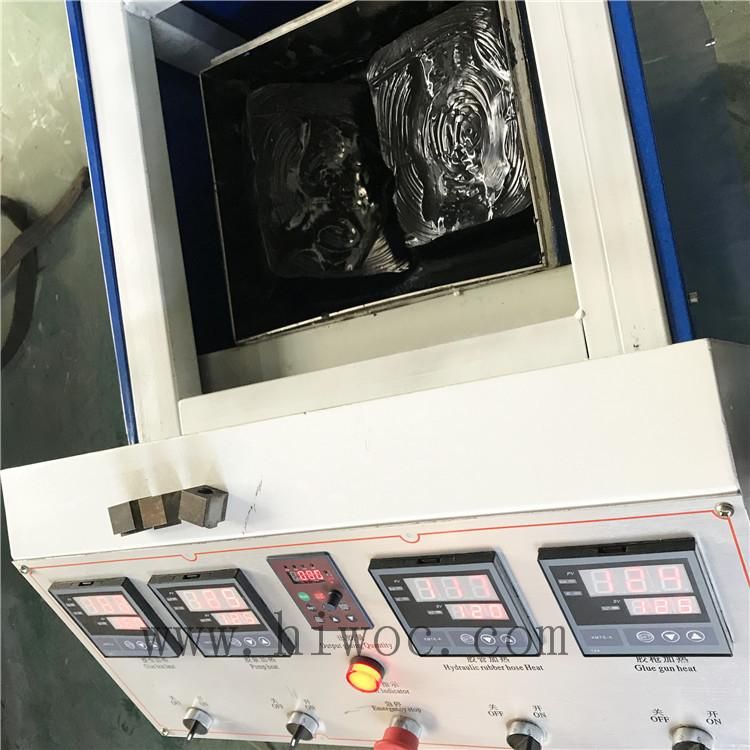

1) 4 zones heating, 4 points temperature testing, digital display.
2) The special design of the anti carbonation, can protect the glue quality effectively.
3) The special design for sealing system to avoid the leakage of glue.
4) Optimization design of heating system, more uniform and high efficiency.

Parameter
Power supply	380V/50HZ
Power	5.5kw
Glue warehouse capacity	29KG
Glue Outing Speed	0-2kg/min
Net Weight	200KG
Gross Weight	250KG
Oversize	800*950*1230mm

Machine details:
